ELP Full HD 1080P H.264 varifocal USB webcam IMX 322 with build in microphone for Video Conferencing systems ELP USBFHD06H BFV
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (60650289121):
Product Overview
Description
Product Description
Features:

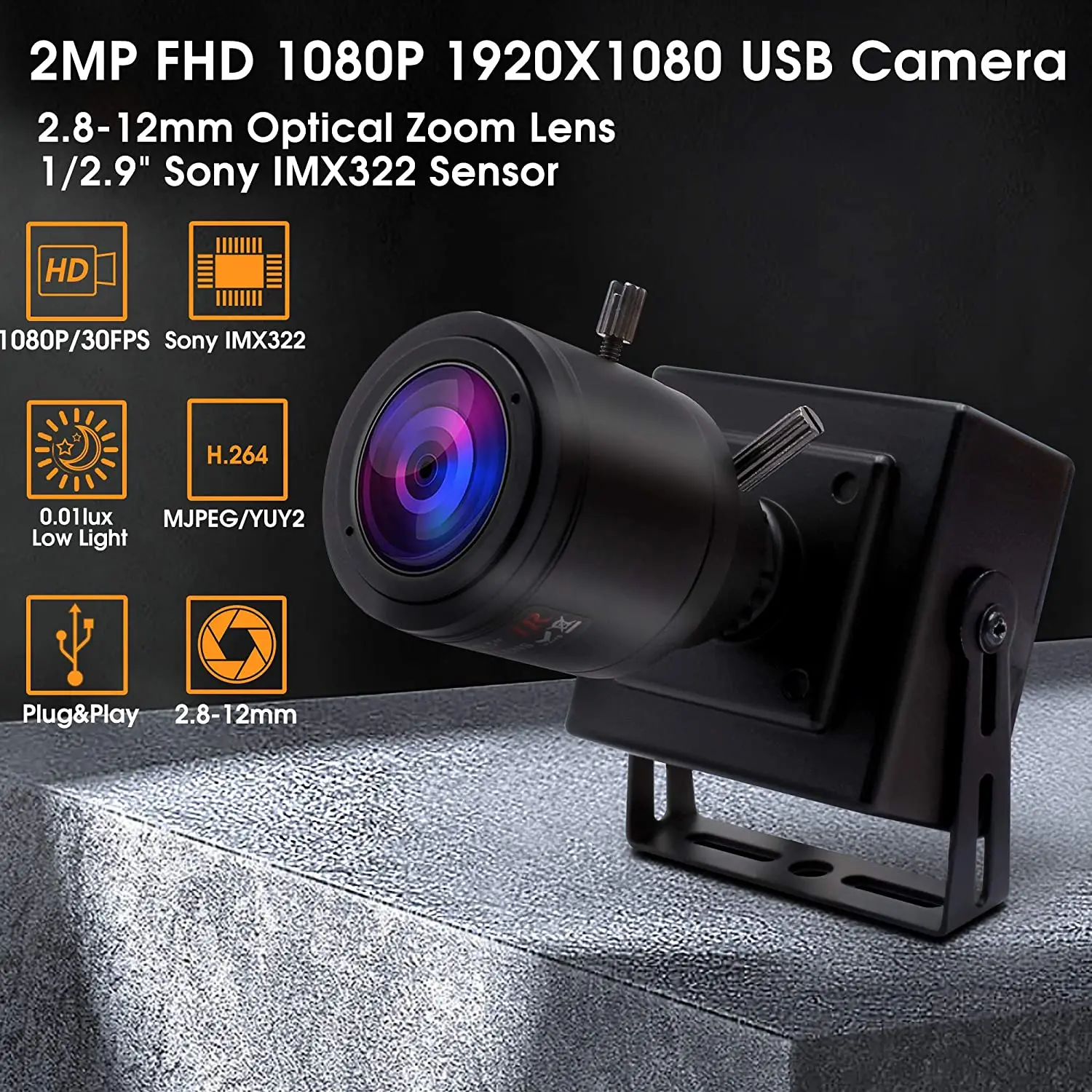

* 2MP 1080P H.264 USB Camera
* 1/2.9” Sony IMX323 sensor for high quality image
* 0.01 Lux Low illumination - ideal for any lighting condition
* With HD 2.8-12mm varifocal M12 lens
* With microphone for audio recording
* H.264/MJPEG/YUY2 dual video format optional

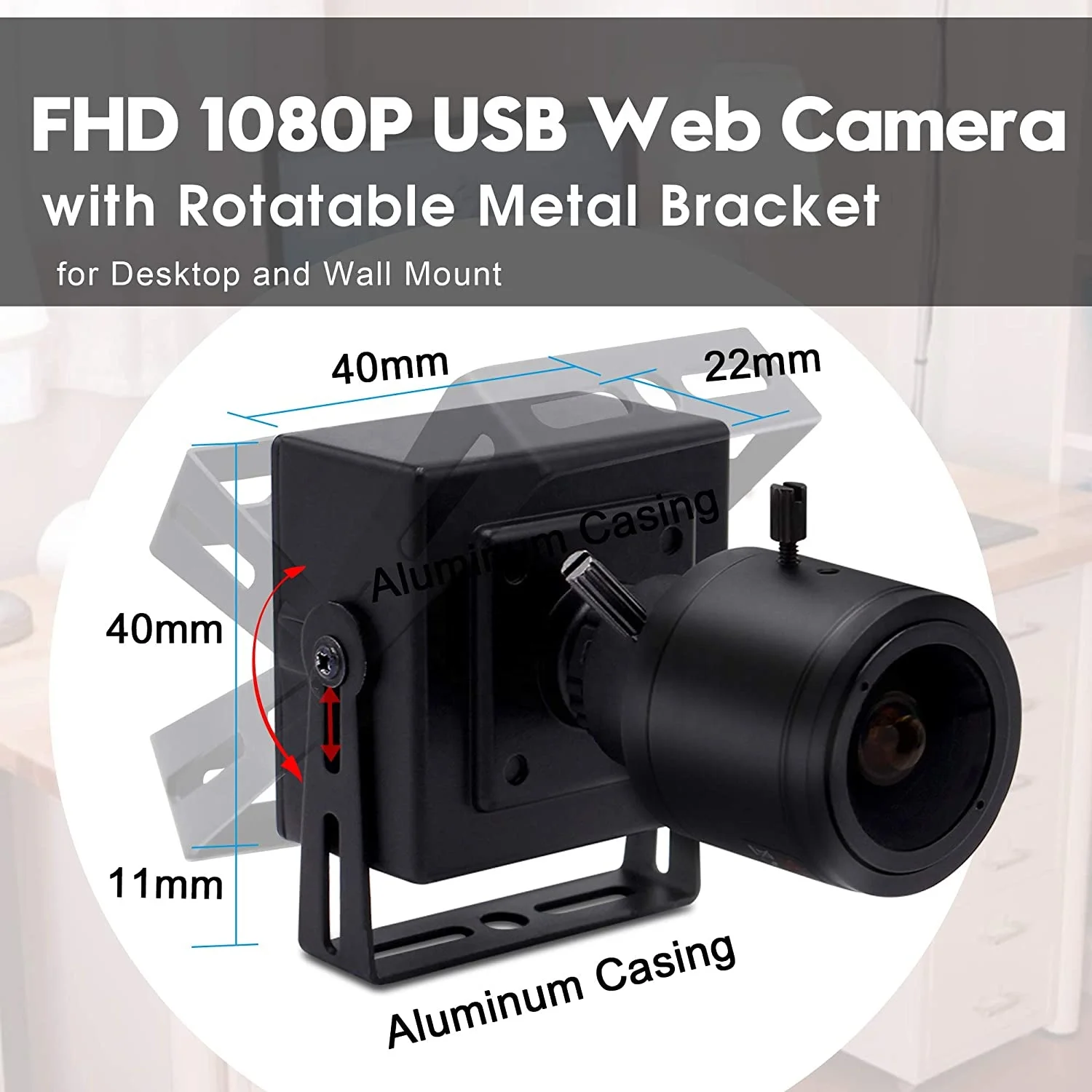

* Mini size 40*40mm mini metal box housing with rotatable bracket
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.

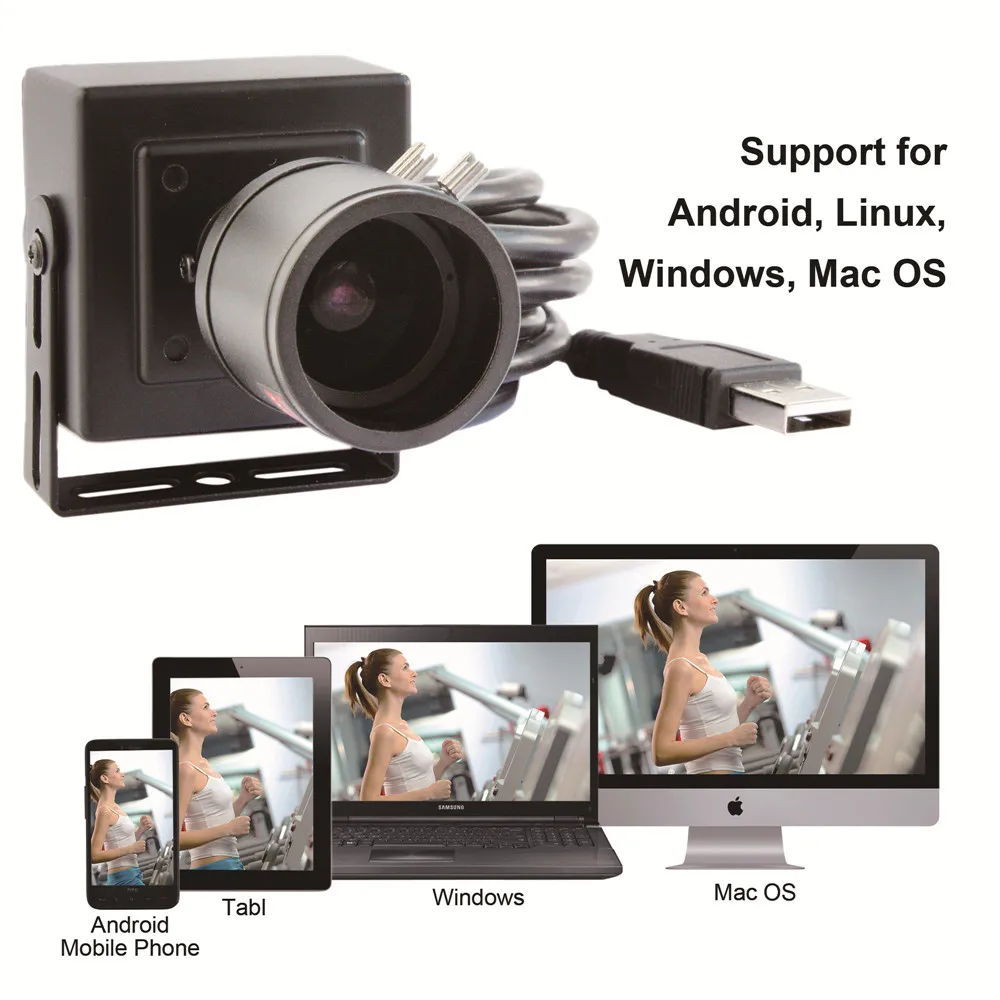

* UVC compliant - support Windows, Linux, Android system with UVC

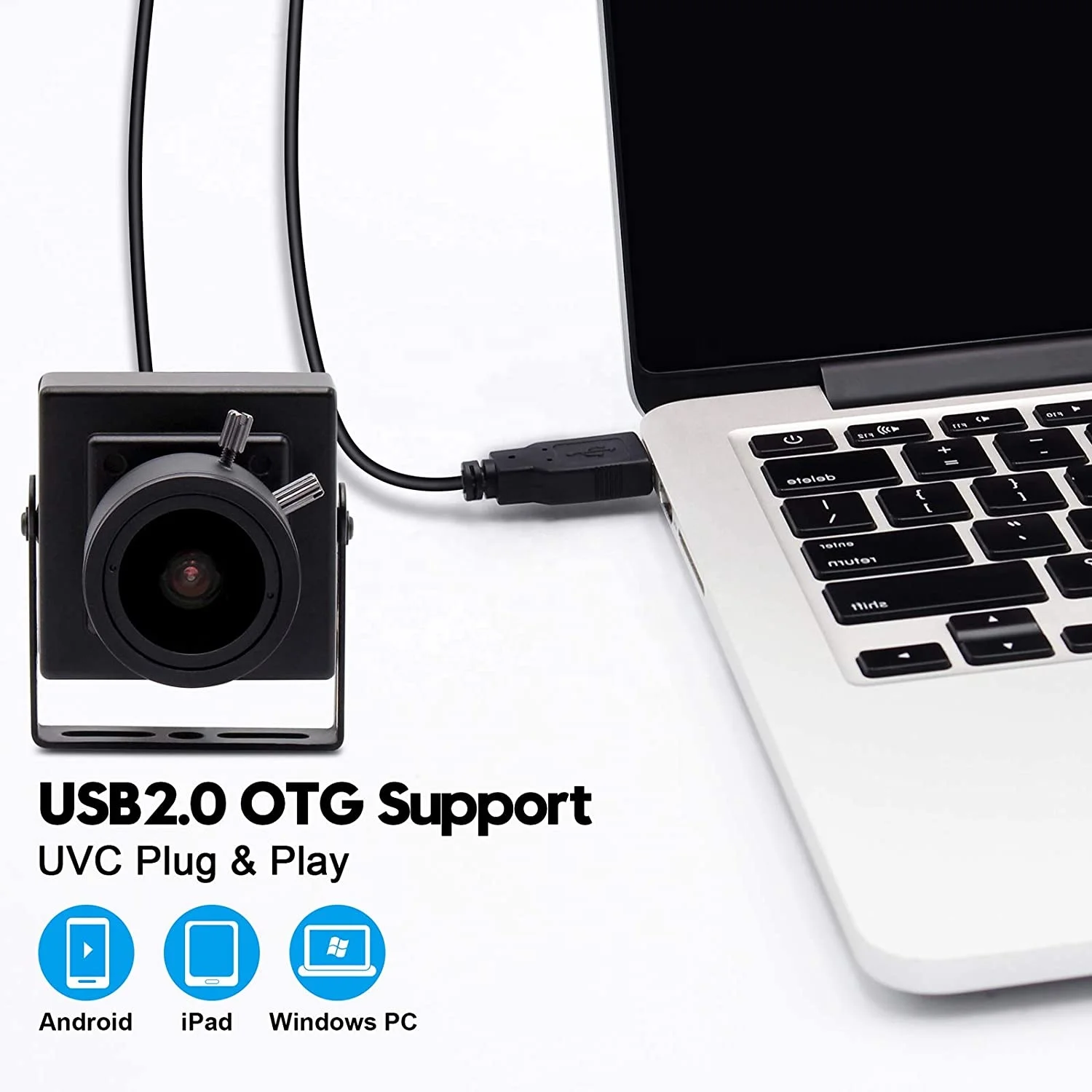

* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
* 1/2.9” Sony IMX323 sensor for high quality image
* 0.01 Lux Low illumination - ideal for any lighting condition
* With HD 2.8-12mm varifocal M12 lens
* With microphone for audio recording
* H.264/MJPEG/YUY2 dual video format optional
* Mini size 40*40mm mini metal box housing with rotatable bracket
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
Model | ELP-USBFHD06H-BFV |
Sensor | Sony IMX323 |
Lens Size | 1/2.9 inches |
Pixel Size | 12.8X11.6 mm |
image area | 2000(H)X1121(V) approx. 2.24 M pixels |
Max. Resolution | 1080P |
Compression format | H.264 /MJPEG / YUV2（YUYV） |
Resolution & frame | H264：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps MJPEG：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps/ 640X480@30fps/800X600@ 30fps/ 1280X720@30fps/1920X1080@ 30fps YUV：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/ 800X600@ 15 fps |
S/N Ratio | 42dB |
Dynamic Range | 86dB |
Sensitivity | 5.0V/lux-sec@550nm |
Mini illumination | 0. 01lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class（UVC） |
Support OTG Protocol | USB2.0 OTG |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
Lens Parameter | 180degree, optional 2.1/2.8/3.7/6mm/FOV(D)170 Degree |
Digital audio | High quality digital MIC, support single, dual channel |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Operating Voltage | DC5V |
Working current | 140mA~190mA |
Working temperature | -10～70℃ |
Storage temperature | -20～85℃ |
Board size /Weight | 38X38mm（Compatible 32X32mm）/ about 30g |
Cable | Standard 1M / 2M,3M,5M optional |
Operating system request | Win7 Win8 Win10 Win11 Linux 2.6 or above Android 4.0 or above |
Details Images
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
2MP Full HD Low light USB Camera
--Sony IMX323 Sensor--0.01 Lux Low illumination
--Full HD 1080P 30FPS
--Free driver, Plug and play

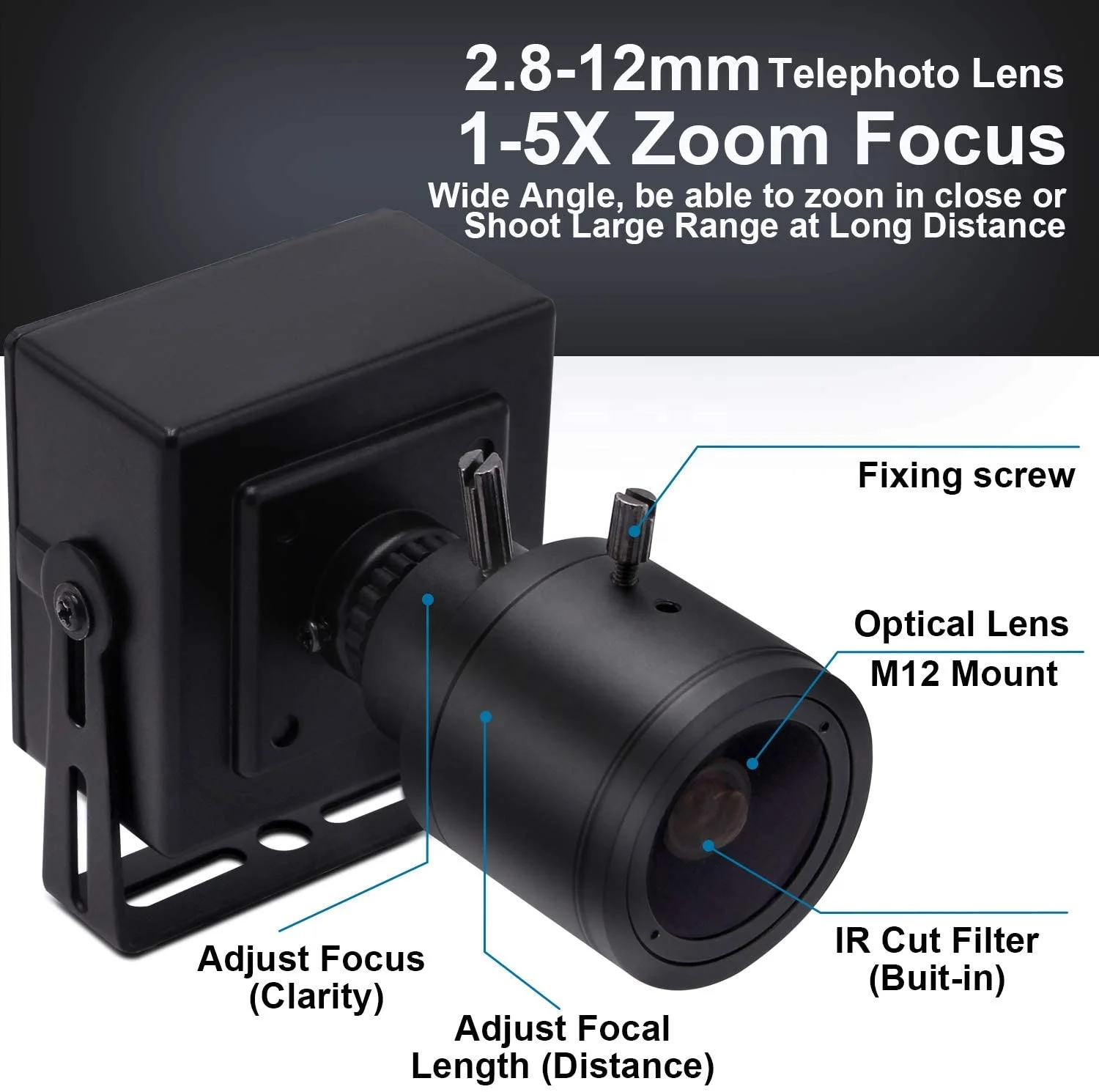

--2.8-12mm Varifocal Lens

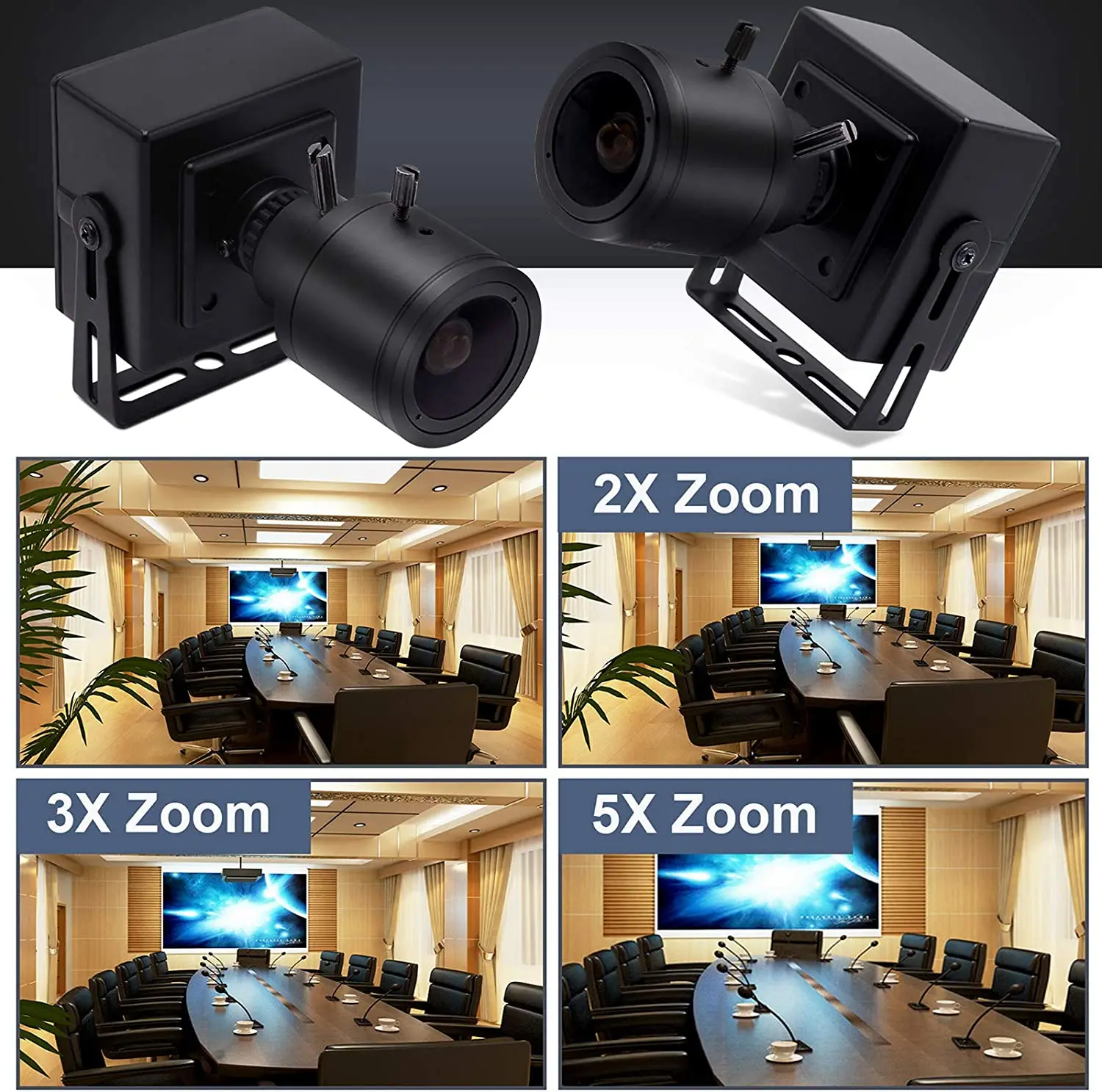

5X Optic Zom USB Webcam
--Black Metal Mini Box Housing
--With screw on the lens to adjust the focus and zoom manually
--Can see objest close to Far distance
Mini USB PC Camera
--With 40*40mm Small size housing
--With Rotatable metal Bracket to adjust camera view direction
Related Products
Packing&Shipping
Company Introduction
About US
At present, Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial, commercial vision application. Like ATM, Kiosk, Robot, Medical device,Smart factory, video surveillance. Resolution range from 0.3megapixel, 1 megapixel, 2 megapixel, 5 megapixel to 8 megapixel. And recently We launch new ultra HD USB cameras like Super Sharp 4K cameras,13 Megapixel cameras. We also supply special function Auto focus cameras, High frame rate cameras, Low illumination cameras, WDR Cameras, Global shutter camera, H.264 cameras, USB 3.0 cameras, Stereo cameras. We can also provide OEM or customization service.
We always believe"Together Everybody Achieves More". We are looking forward to your choice and join.
Our Office
Our Factory & production Flow
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 16 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
Yes, we are designer and manufacturer for usb camera module for more than 16 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
