Roller glass coating machine
US $10000-$13000
Vacuum Glass Magnetron Sputtering Coating Line For Aluminum Silver Mirror
- Category: >>>
- Supplier: Xiangtan Hongfeng Mechanical Equipment Manufactory
Share on (60650343087):
Product Overview
Description

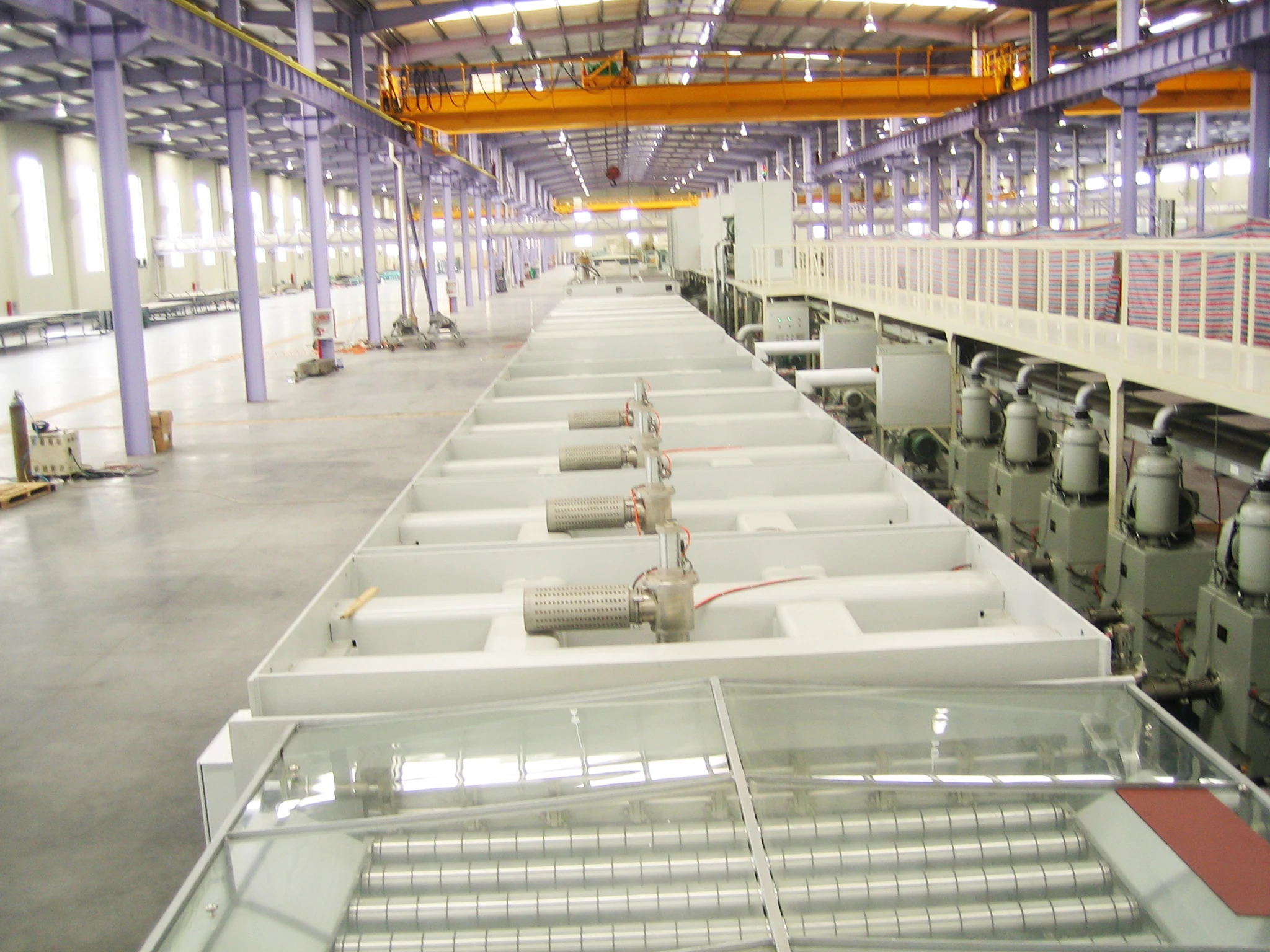

Vacuum Glass Magnetron Sputtering Coating Line For Aluminum Silver Mirror
This equipment can produce a kind of coated glass products, which has a function of sunshade, insulation, energy conservation and decoration, by the use of cylindrical magnetron sputtering target technology and high-precision power supply in flat glass.
By adjusting the size of current, gas flow, the speed of target movement, you can get different products with different transmission layer, which are mainly used for the decoration of large-scale construction curtain walls and balconies.
Mirror Line Spec.
Structure of the magnetron sputtering coating line |

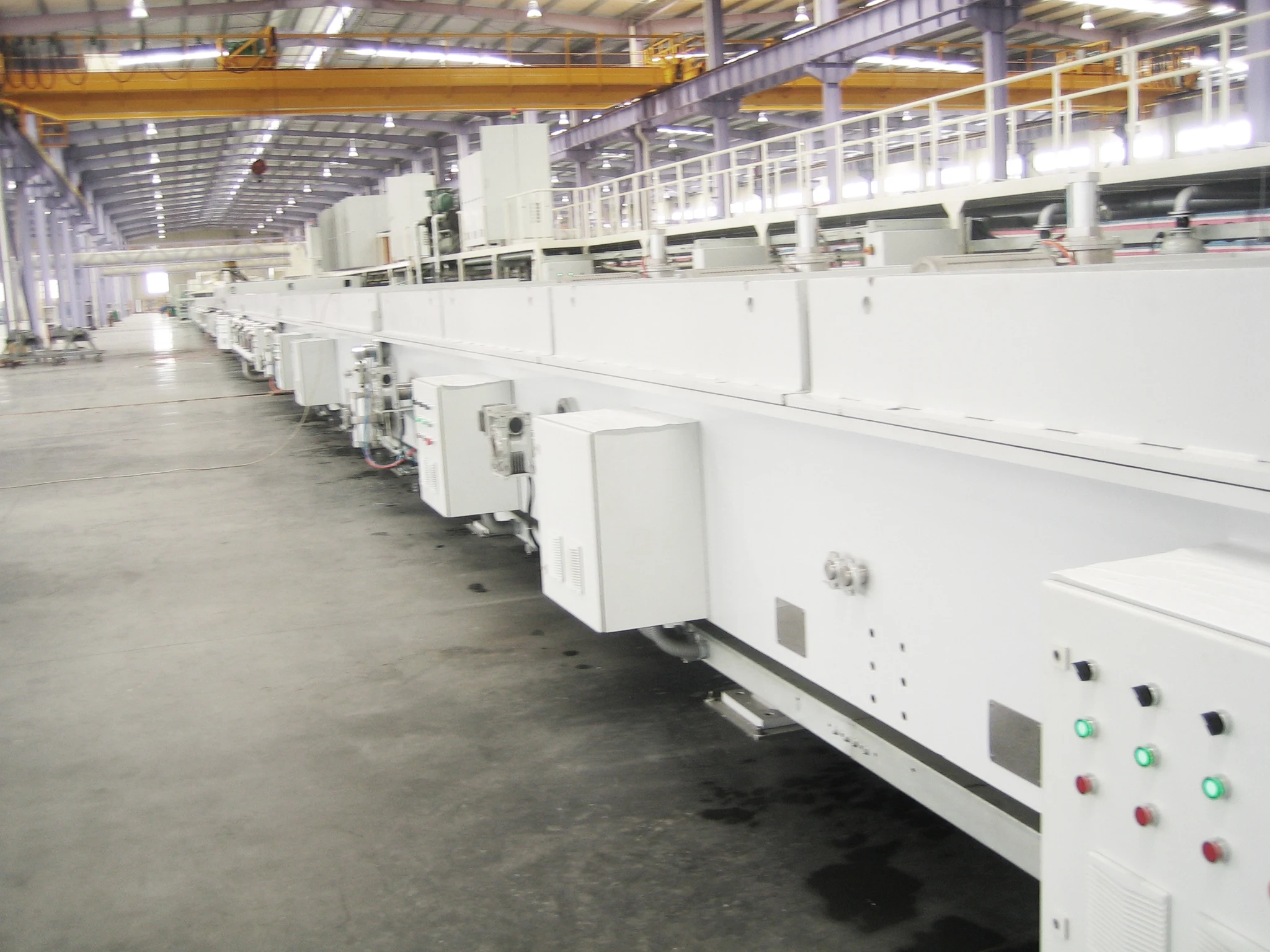

The vacuum coating production line is usually connected by more than three vacuum chambers to form a continuous working vacuum coating machine.
- Advantages of this vacuum coating line are:
- Extremely high vacuum, high film quality
- Coating film quality is stable
- High productivity
- High degree of automation, fewer operator requirements

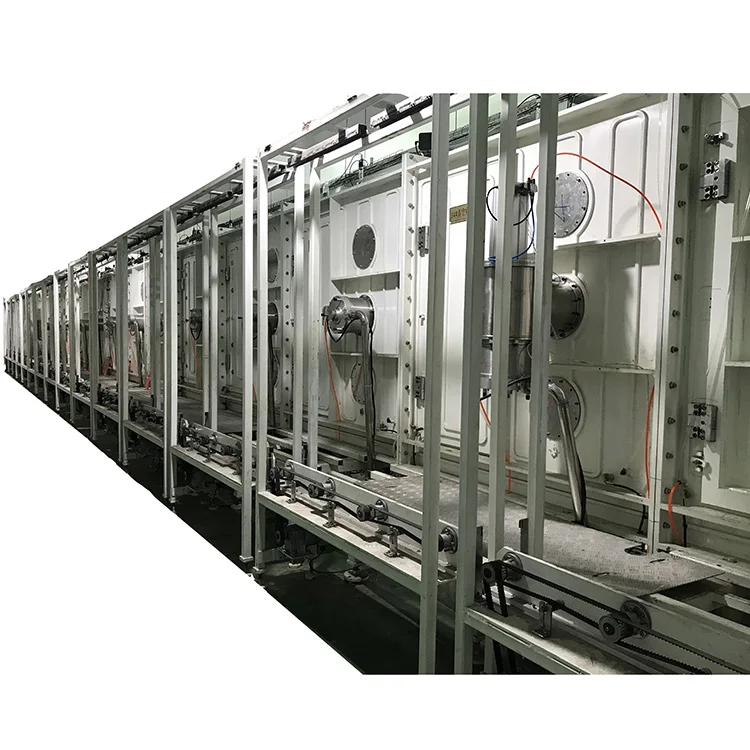

Vertical magnetron sputtering coating line(Custom made) |
Hongfeng VAC uses advanced magnetron sputtering coating technology in Europe and America, combined with the actual situation, the development of innovation and introduction of high-grade aluminum mirror coating production line, allowing users to comprehensively improve the competitiveness of many in the variety, quality, efficiency, scale, high technology, and automation. The line is equipped with PLC and touch screen or industrial computer to achieve automatic control, to provide customers with high-quality low -cost products.

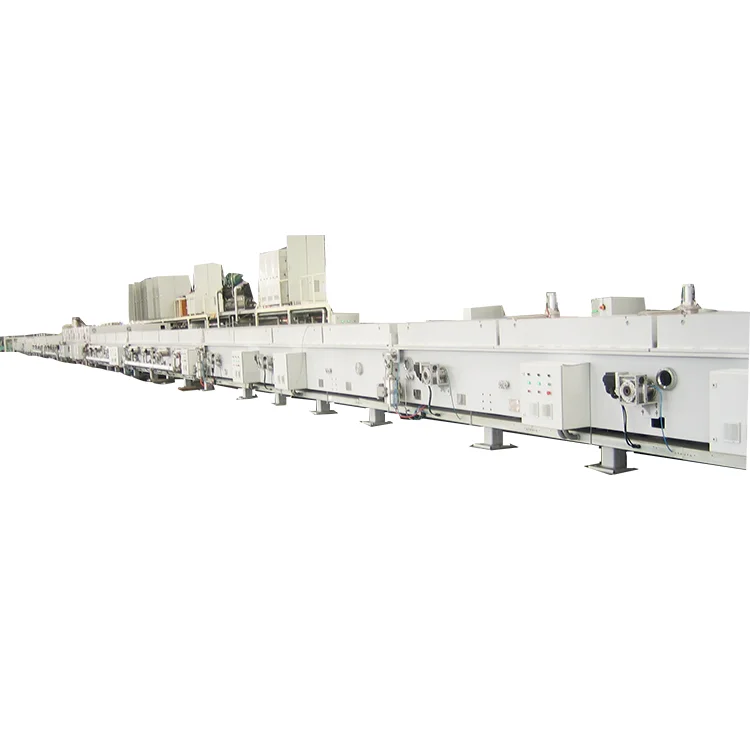

| Horizontal Magnetron Sputtering Coating Production Line(Custom made) |
The company can provide design according to user requirements, provide a full set of equipment, responsible for the process, according to "turnkey" engineering services.

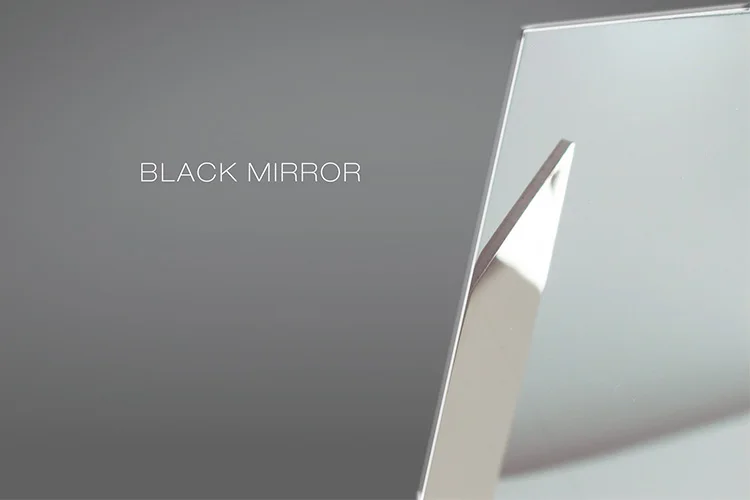

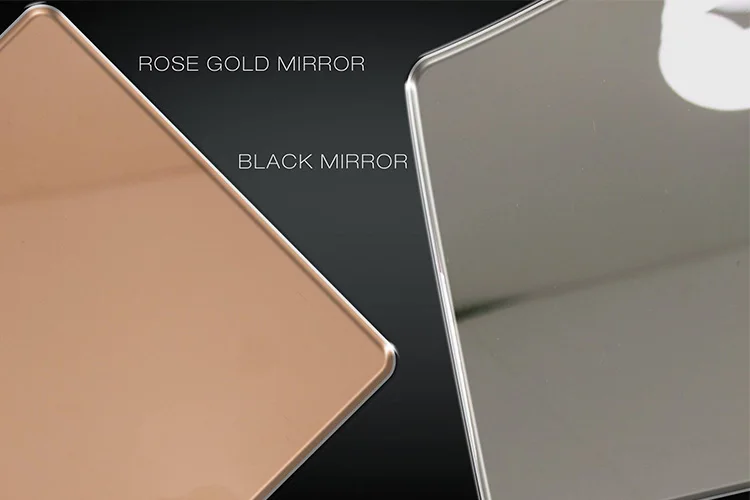

Samples photos of glass mirrors |

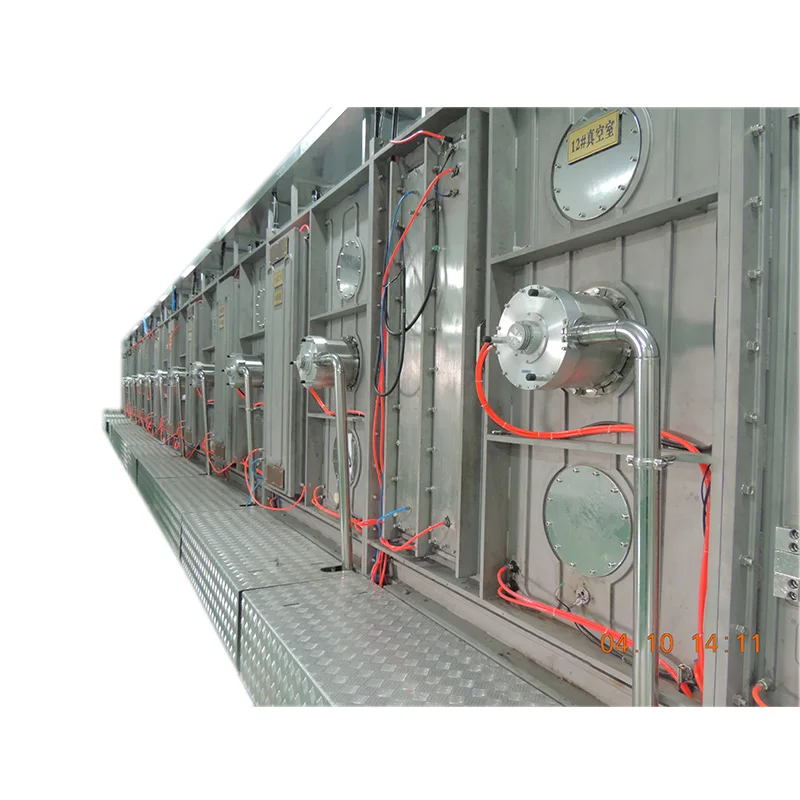

Accorinf to different technical requirements of each customers, we can design different types of magnetron sputtering cathodes for the machine. This is the coating system of the machine. You can load different raw material to the cathodes for different coatings.
Technical Spcifications |
| Chamber type | Vertical and horizontal method of multi-chamber | |
| Applied material | Glass and Wafer, other plastic, metal materials | |
| Substrate size | Vertical type | According to the size of customer's glass sheet |
| Horizontal type | According to the size of customer's glass sheet | |
| Tact time | 120 sec or less (Static method) 90 sec or less (Dynamic method) | |
| Coating source | Sputter source | Rotary cathode, Planar cathode |
| Coating material | Metal material | Al, Ti, Cr, Cu, NiCr, Ni, Ag, other metal material |
| Reactive material | TiO2, Nb2O5, SiO2, TIO, SiAlOx, MoOx, other nitride / oxide material | |
| Power supply | DC, Pulse DC, MF | |
| Thickness uniformity | ±10% or less (Static film) ±5% or less (Moving film) | |
| Measuring instrument | Sheet resistance, optic (Transmittance, reflectance, color-difference meter), | |
| plasma emission monitor, RGA | ||
| Household appliances field | Decorative coating on household products and exterior of mobile devices | |
| Energy field | Silver & aluminum mirror manufacturing industry | |

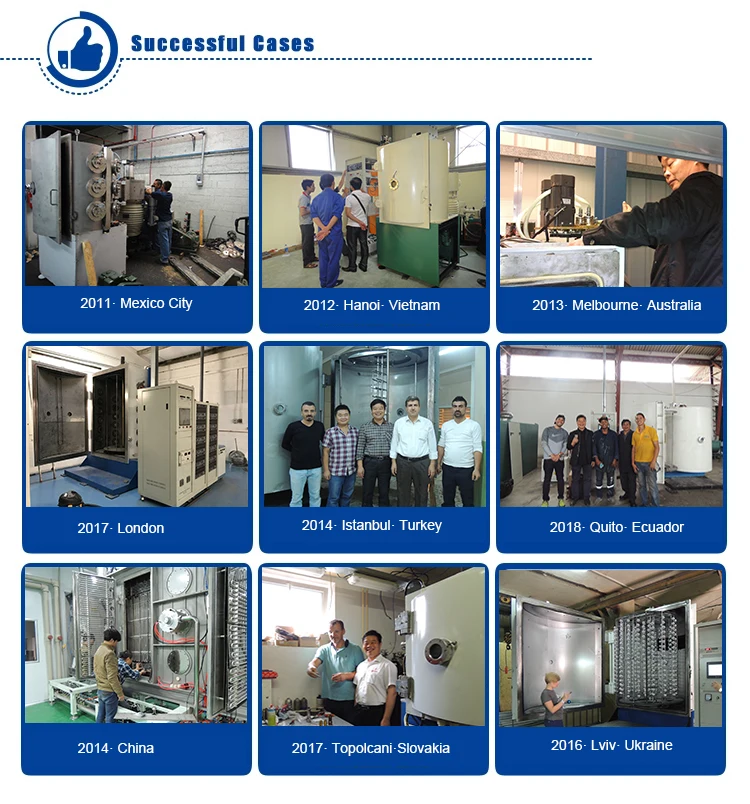

Customers cases |

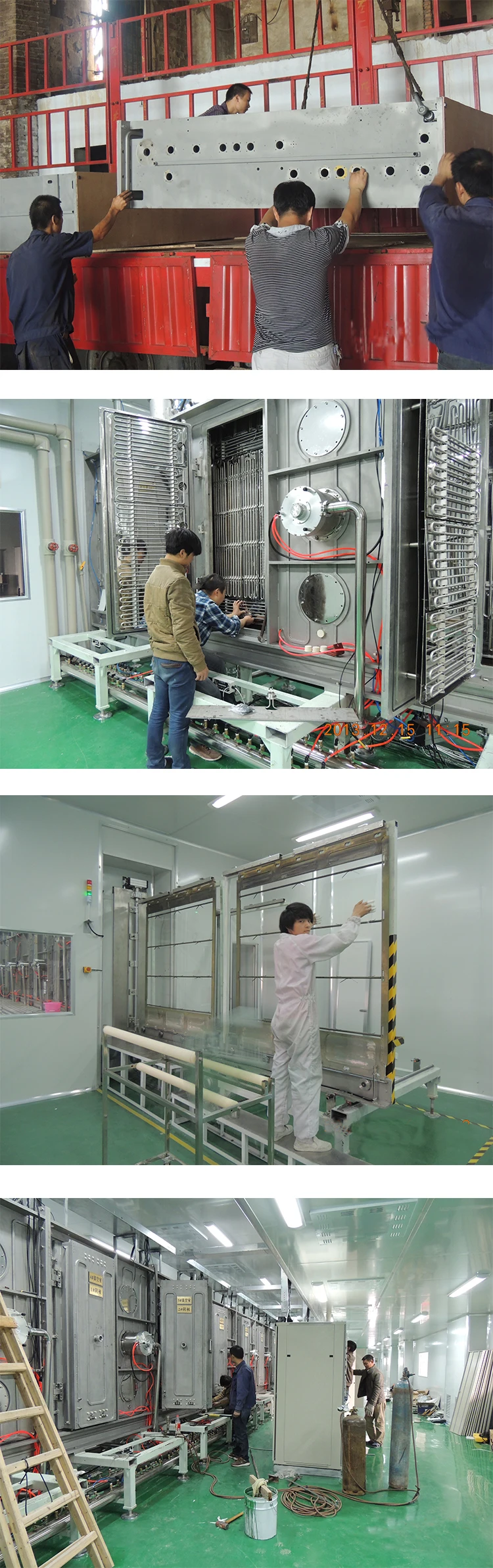

| Installation in the customer's factory |
Welcome the customers to visit our company to discuss the technical details of the magnetron sputtering coating line.
Company Information
Contact
In order to help you choose the best suitable PVD coating machine, please try to reply my questions below, thanks for your cooperation.
Q1: What is your product, and the max. dimension?
Q2: The size of your processing material, your desired daily production capacity?
