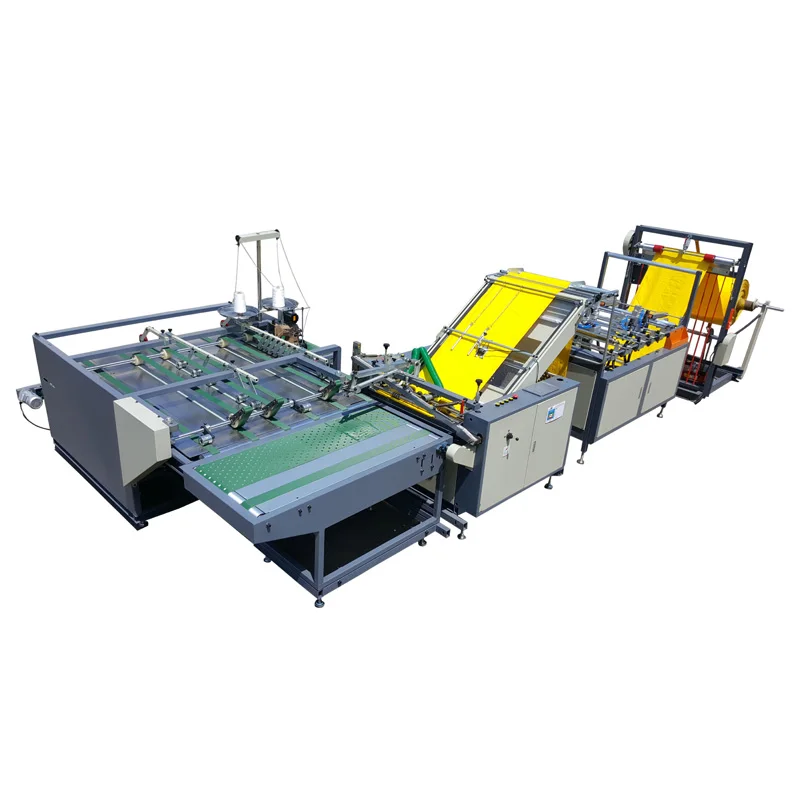

Automatic PP Woven Bag Cutting and Sewing Machine

Product Overview

Description

Automatic PP Woven Bag Cutting and Sewing Machine



Scope of application:

Chemical bag,flour bags,rice bags,rice bags,feed bags and other woven bags.



Features:

Integration of cutting and sewing as a whole.

Unreeling Machine Cloth roll pneumatic lift.

The cloth wind-driven automatic tension control.

Chase marked cut,fixed-length cut.

Sewing machines break automatically alarm.

Bag lay and set number and displacement.



Techincal Parameters:

Model	RQF-800B
Cutting Speed	40-50pcs/min
Max.Diameter of cloth roller	1500mm
Max.cutting width	800mm
Cutting length	500-1300mm
Cutting precision	±2mm
Bottom Sewing Fold width	20-30mm
Feeding motor	3.8kw
Unreeling power	0.75kw
Weight	3500kg

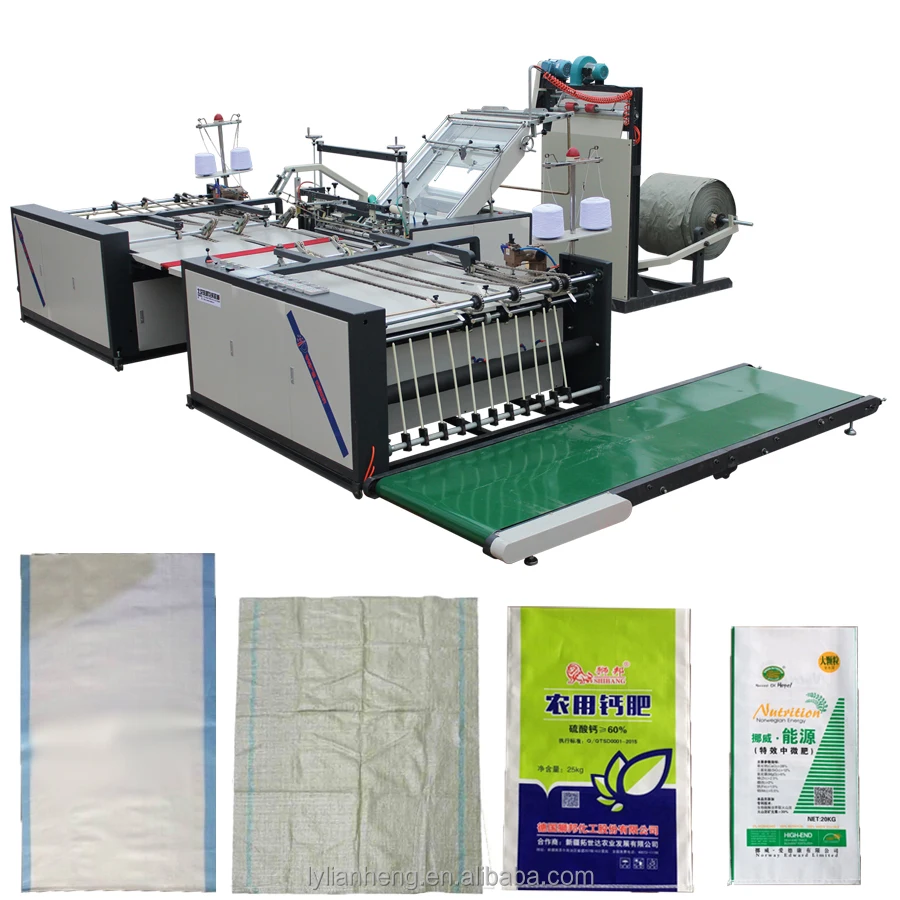

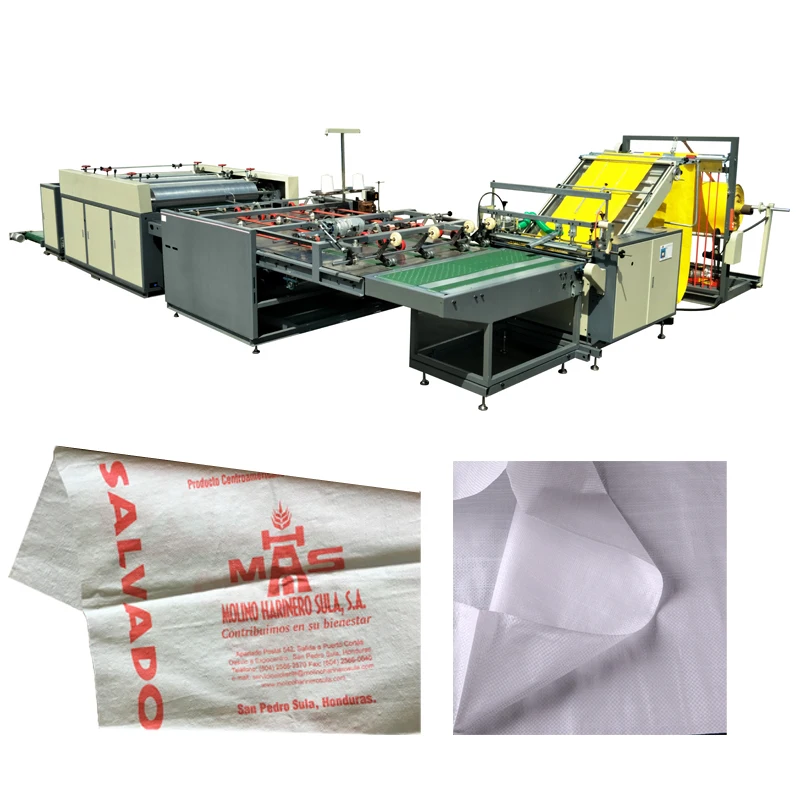

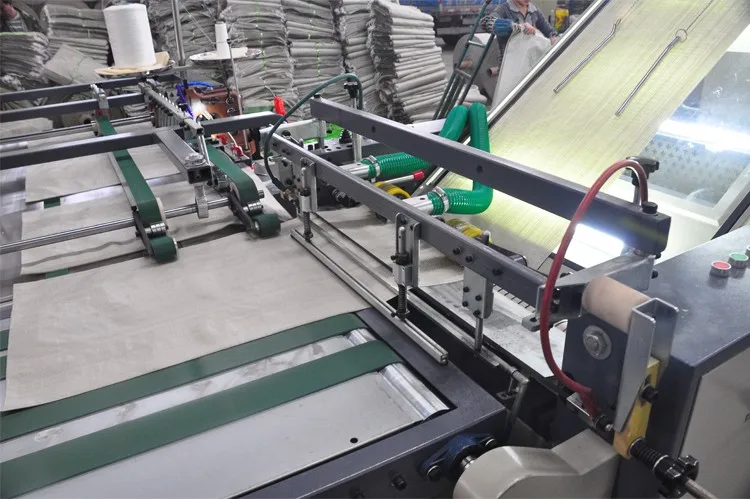

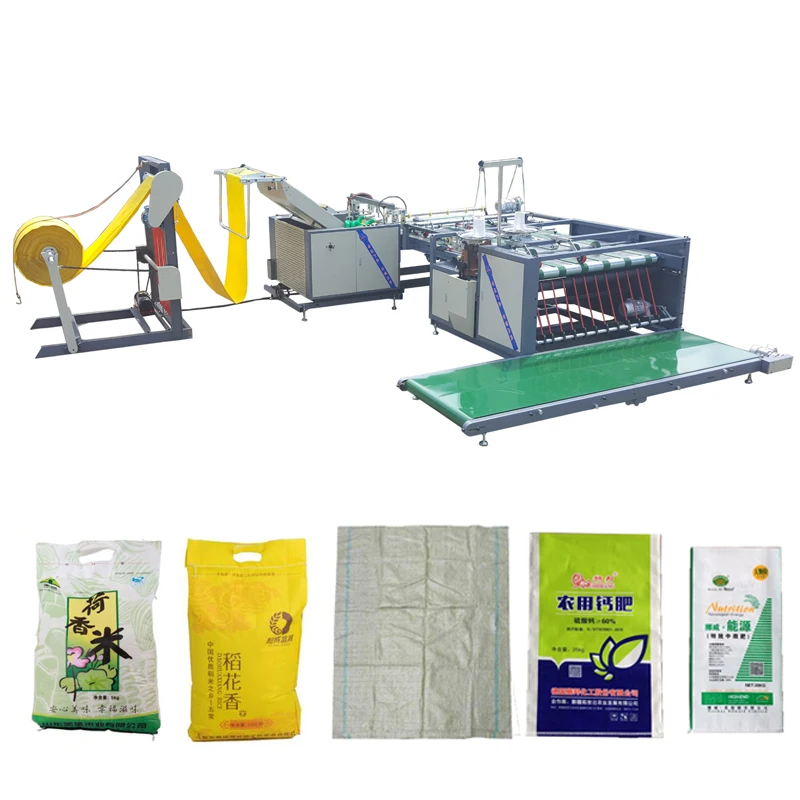

Machine Pics:
