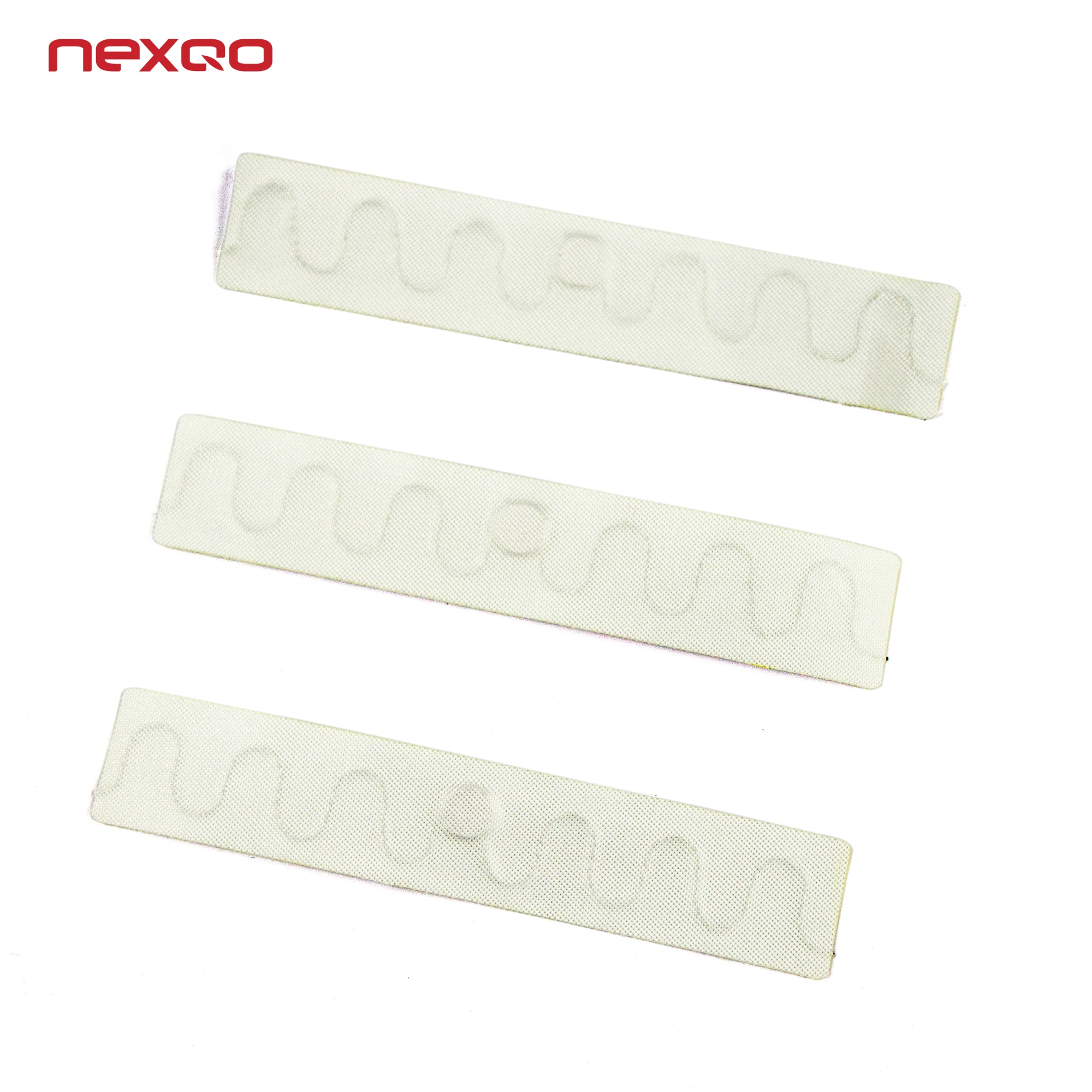

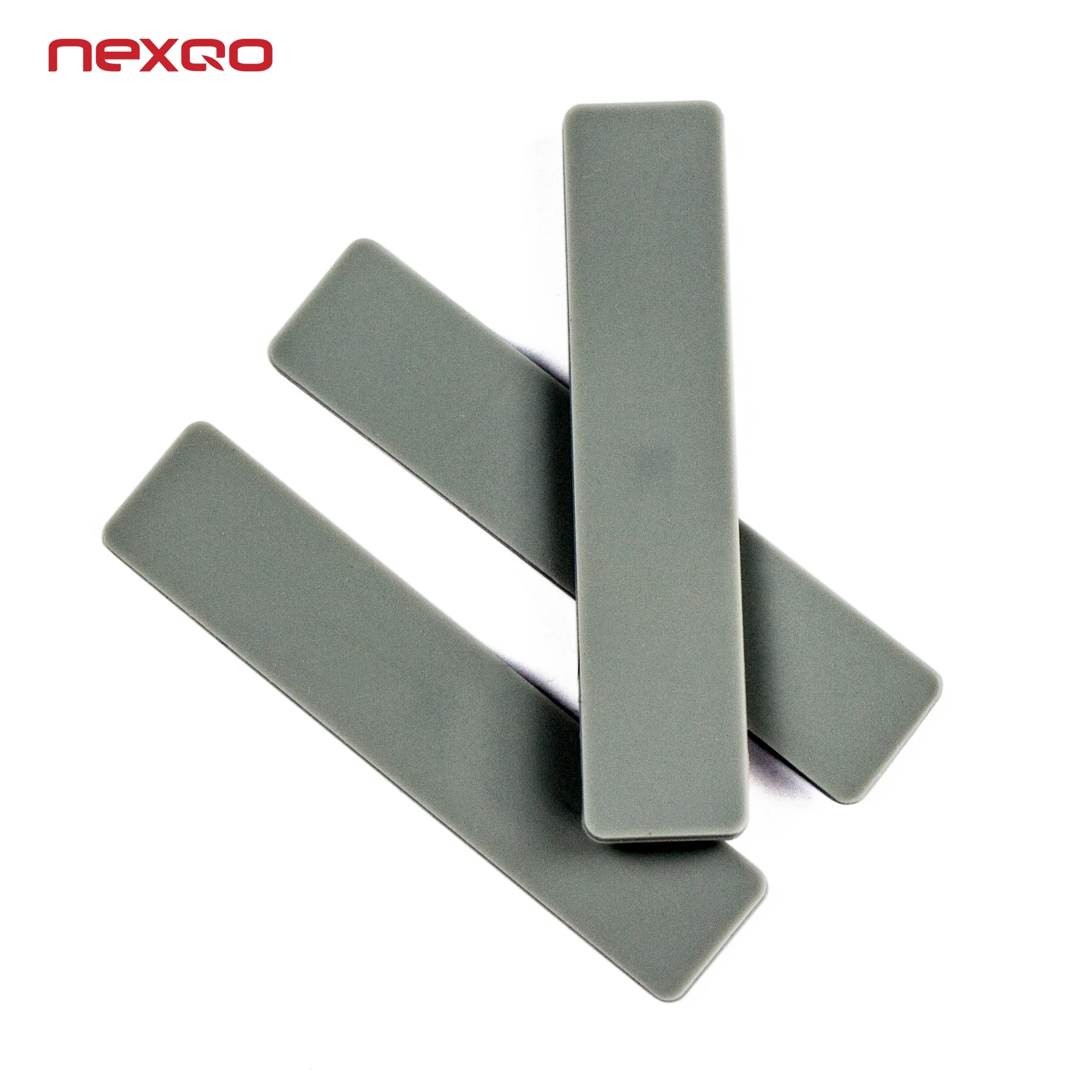

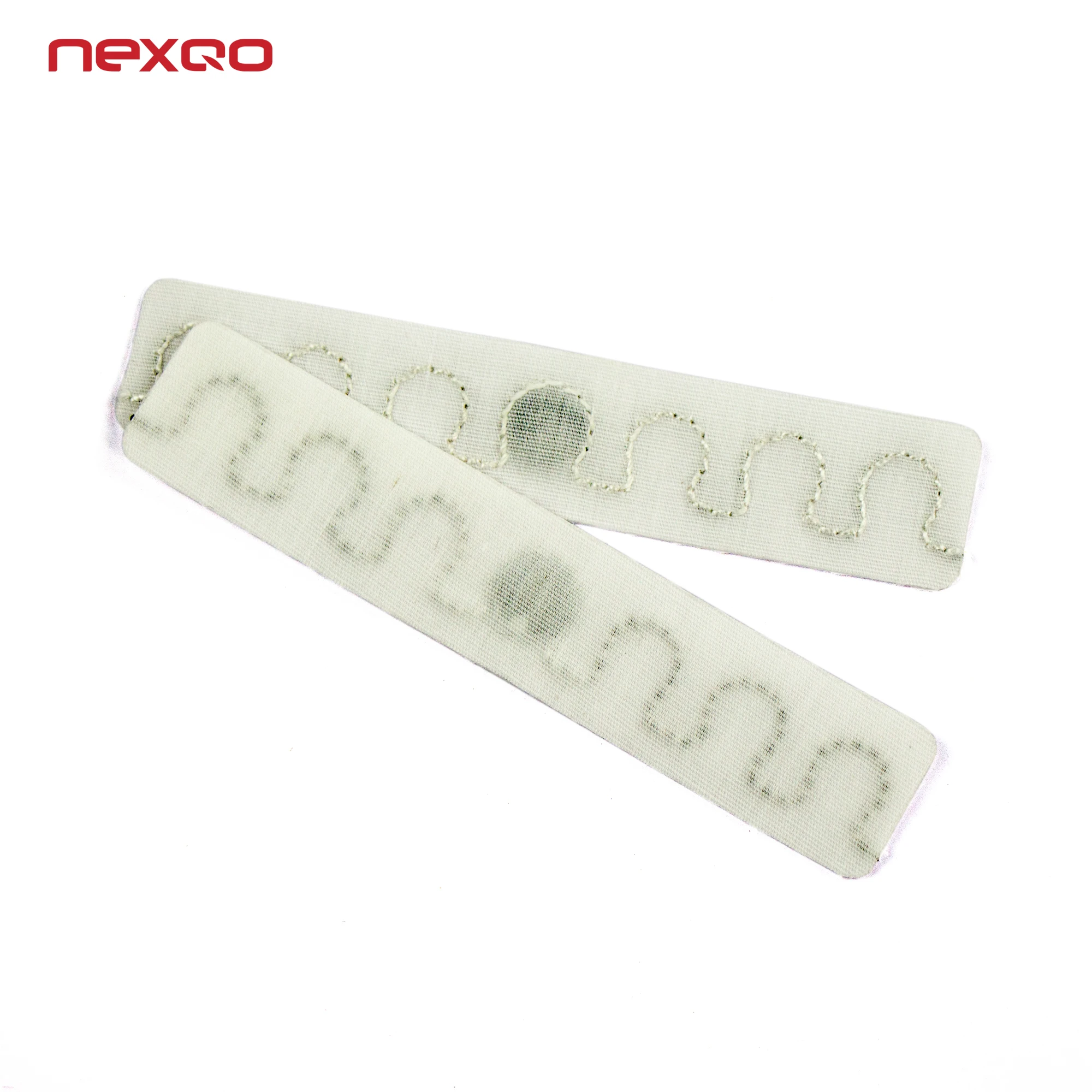

Passive NFC washable laundry tag with PPS/Silicone
- Category: >>>
- Supplier: Shenzhen Nexqo Smart Card Co. Ltd.
Share on (60650384064):
Product Overview
Description
Product Description
RFID laundry tag can be widely used in lots of applications:
1.Tracking management
2.Factory/warehouse/hotel/hospital/amusement park
3.Hospital uniforms
4.Linens/Pallets/Canvas bags
5.Drycleaners
6.Use in hotel sheet/Attached to textile/Work clothing
7.Laundry
Key Specifications of Nex-L001:
Protocol: | ISO 18000-6C EPC Class l Gen 2; ISO14443A |
Mode of operation: | Passive |
Frequency range: | Global (840~960MHZ) ; 125Khz; 13.56Mhz |
Chip available: | Alien H3, EM4200 or as customer's request |
Reading range: | 2cm-3m (depends on chip and reader) |
Antenna type: | Aluminum etching antenna; coil cooper |
Dimensions: | Diameter 20mm;25mm;30mm |
Color: | Black |
Printing: | Laser engraving |
Operating temperature: | -40 to +200℃ |
Drying resistance: | up to 100℃, up to 60mins/cycle |
Weight: | 1.5g |
Material: | PPS |
Lifetime: | 180-200 cycles |
Certification | CE; FCC; RoHS |
Key Specifications of Nex-L002:
Protocol: | ISO 18000-6C,EPC Class l Gen 2 |
Mode of operation: | Passive |
Frequency range: | Global (840~960MHZ) |
Chip available: | Alien H3, Impinj M4D, Impinj M4E, Impinj M4QT |
Reading range: | 1-3m(depends on reader) |
Antenna type: | Aluminum etching antenna |
Dimensions: | 55*10*2.2mm or customized |
Color: | red, black, white or customized |
Printing: | Laser engraving |
Operating temperature: | -40 to +160℃(maximum 20minutes under 160℃) |
Drying resistance: | up to 85℃, up to 60mins/cycle |
Weight: | 1.5g |
Material: | Silicone |
Lifetime: | 120-150 cycles; 70-90 cycles(Industrial washing) |
Certification | CE; FCC; RoHS |
Key Specifications of Nex-L003:
Protocol: | ISO 18000-6C EPC Class l Gen 2; ISO14443A |
Mode of operation: | Passive |
Frequency range: | Global (840~960MHZ) ; 125Khz; 13.56Mhz |
Chip available: | Alien H3,EM4200 or as customer's request |
Reading range: | 2cm-3m (depends on chip and reader) |
Antenna type: | Aluminum etching antenna; coil cooper |
Dimensions: | Diameter 20mm;25mm;30mm; with 2mm holes |
Color: | Black |
Printing: | Laser engraving |
Operating temperature: | -40 to +200℃ |
Drying resistance: | up to 100℃, up to 60mins/cycle |
Weight: | 1.5g |
Material: | PPS |
Lifetime: | 180-200 cycles |
Certification | CE; FCC; RoHS |
Key Specifications of Nex-L004:
Protocol: | ISO 18000-6C EPC Class l Gen 2; ISO14443A |
Mode of operation: | Passive |
Frequency range: | Global (840~960MHZ) ; 125Khz; 13.56Mhz |
Chip available: | Alien H3,EM4200 or as customer's request |
Reading range: | 2cm-3m (depends on chip and reader) |
Antenna type: | Aluminum etching antenna; coil cooper |
Dimensions: | Diameter 20mm;25mm;30mm; with punched hole |
Color: | Black |
Printing: | Laser engraving |
Operating temperature: | -40 to +200℃ |
Drying resistance: | up to 100℃, up to 60mins/cycle |
Weight: | 2g |
Material: | PPS |
Lifetime: | 180-200 cycles |
Certification | CE; FCC; RoHS |
Main features:
• High temperature resistant
• High performance reading range
• Available in high-yield volume with stable process
• Water proof, pressure resistance and alkali resistance
Our Services
Printing effect:
Nexqo understands Printing is key issue to meet client’s satisfactions. Therefore Nexqo prints products strictly according to client’s layout. Keeping the consistency between printing effect and approved layout is always the priority to Nexqo.
QC:
Every single tag will be checked carefully by machine or manual work before dispatched.
Packaging & Shipping
To make sure tags can be delivered without any damages, Nexqo uses top standard packaging. All Paper boxes and cartons are made of high-quality material.
Certifications
Nexqo delivers outstanding quality that has been certified in accordance with CE FCC and RoHS certificates
