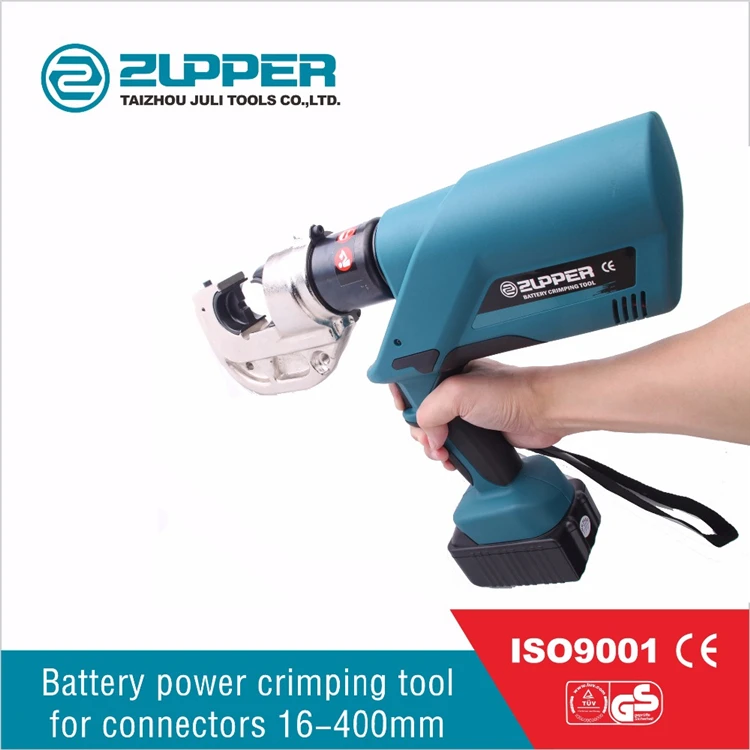

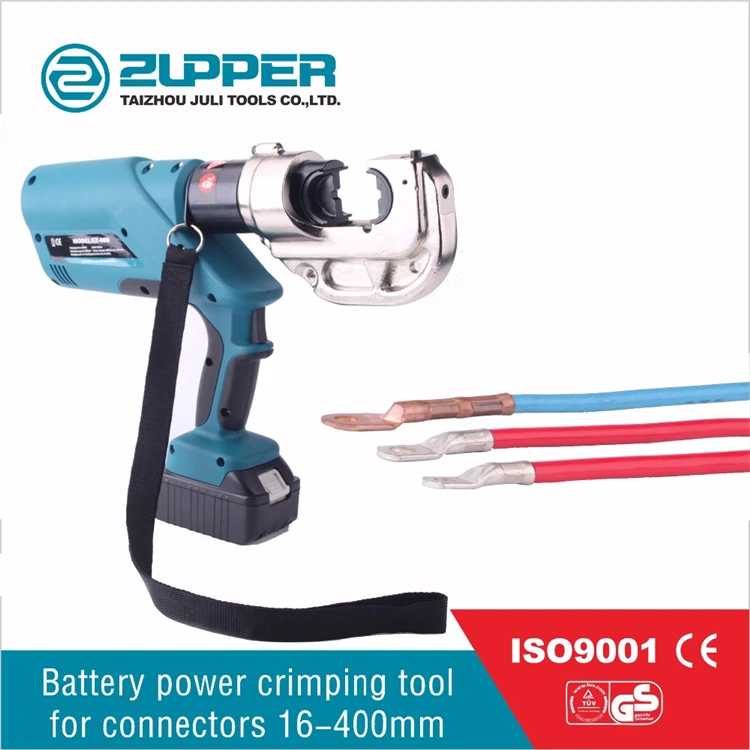

ZUPPER EZ 400 Battery Powered Electric Hydraulic Termination Wire Cable Crimping Tool For Terminal
- Category: >>>
- Supplier: Taizhou Juli Tools Co. Ltd.
Share on (60650507490):
Product Overview
Description
Why Choose Us
Products Description

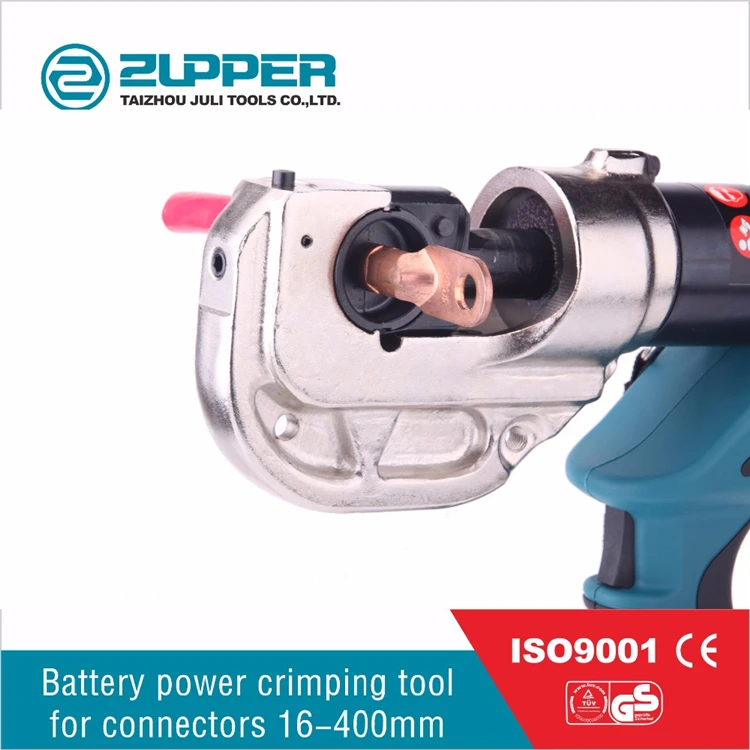

1. The unit is equipped with a double piston pump which is characterized by a rapid approach of
the dies forwards the connector and a slow crimping motion.
2. The hydraulic unit incorporates an automatic retraction which returns the piston into its starting
position when the maximum operation pressure is reached.
3. A manual retraction allows the user to return the piston into the starting position in case of an
incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the
piston& die when the button is pressed.

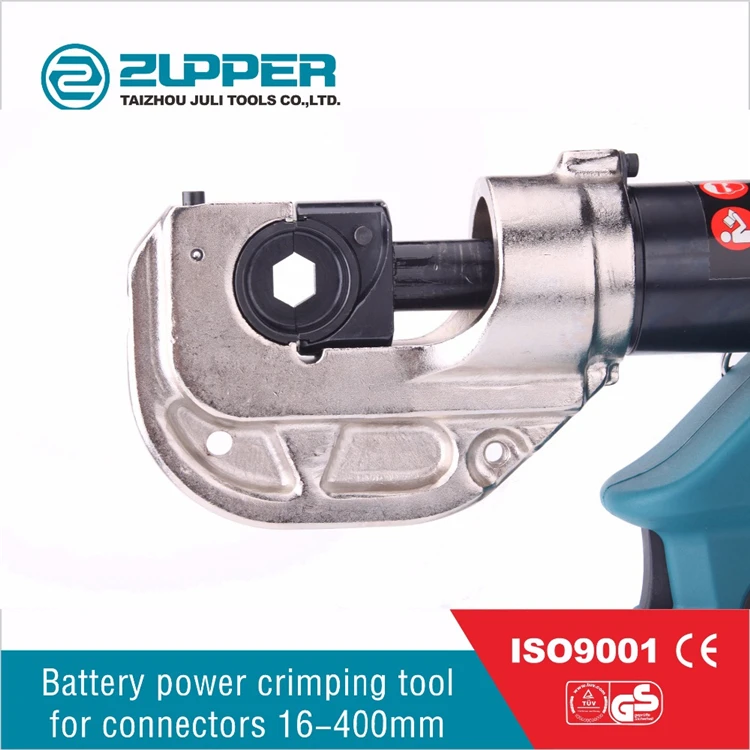

4. The crimping head can be smoothly turned by 360 degree around the longitudinal axis in order to
gain better access to tight corners and other difficult working areas.
5. Li-ion batteries do neither have a memory effect nor self-discharge. Even after long periods of
non operation the tool is always ready to operate. In addition we see a lower power weight ratio with
50% more capacity and shorter charging cycles compare to NiMH batteries.
6. If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal
sounds and a red display flashes.
the dies forwards the connector and a slow crimping motion.
2. The hydraulic unit incorporates an automatic retraction which returns the piston into its starting
position when the maximum operation pressure is reached.
3. A manual retraction allows the user to return the piston into the starting position in case of an
incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the
piston& die when the button is pressed.
4. The crimping head can be smoothly turned by 360 degree around the longitudinal axis in order to
gain better access to tight corners and other difficult working areas.
5. Li-ion batteries do neither have a memory effect nor self-discharge. Even after long periods of
non operation the tool is always ready to operate. In addition we see a lower power weight ratio with
50% more capacity and shorter charging cycles compare to NiMH batteries.
6. If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal
sounds and a red display flashes.
Output | 120KN |
Stroke | 42mm |
Crimping Range | Cu 400mm²/Al 300mm² |
Battery | 18V Li-ion 3.2Ah |
Battery Charger | AC 100-240V |
Charging Time | Approx. 1 hour |
Crimping dies | 16,25,35,50,70,95,120,150,185,240,300,400mm² |

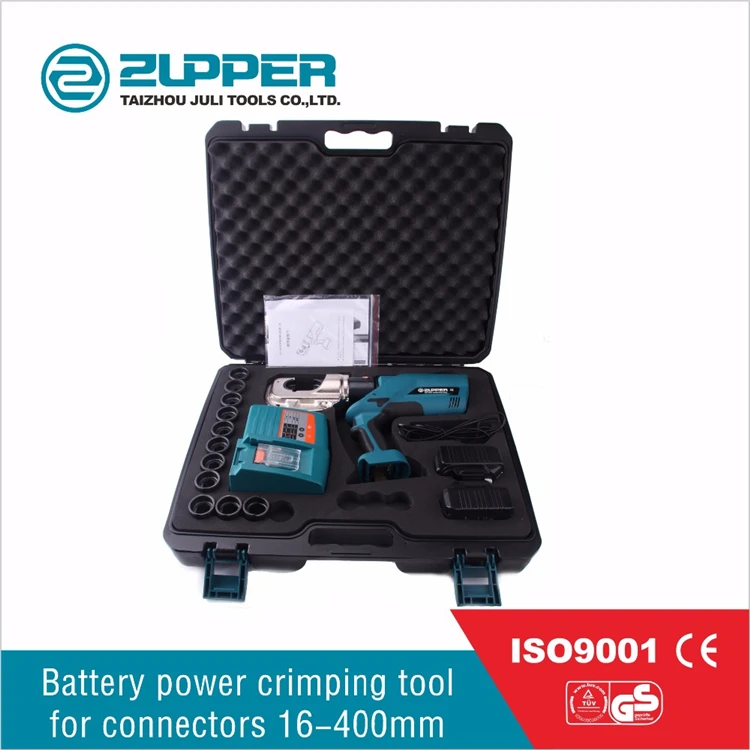

Battery | 2pcs |
Charger | 1pc |
Sealing ring of cylinder | 1set |
Sealing ring of safety valve | 1set |
Product Categories
Company Profile
Since the company began from 1983, ZUPPER TOOL has experienced from made in China"to "Created in China", We has become the leader of battery hydraulic tools in China more than 30 years.
We build the electrical tools and tools for plumbing and heating installation last for years, but what we do can last forever.
We manufacture best-in-class products by 300 strong highly trained team and sold over 100 countries.
We work continuously to improve the quality, efficiency and safety of our oroducts to meet global market expectations and requirements. Accordingly many of our products are patented and comply with various international standards
We build the electrical tools and tools for plumbing and heating installation last for years, but what we do can last forever.
We manufacture best-in-class products by 300 strong highly trained team and sold over 100 countries.
We work continuously to improve the quality, efficiency and safety of our oroducts to meet global market expectations and requirements. Accordingly many of our products are patented and comply with various international standards
ZUPPER products and you, together, WE BUILD
FAQ
Q 1: Is the whole working procedure finished by your workshop?
Re: Yes, the whole workinq procedure finished by our workshop.
Q 2: How about your stock?
Re: We always are not in stock, we produce as customer's requirement.
Q 3: What is your delivery time?
Re: It depends on your order. Normally3-7days for samples, 30-45days for standard,
30-60 days for customized.
Re: Yes, the whole workinq procedure finished by our workshop.
Q 2: How about your stock?
Re: We always are not in stock, we produce as customer's requirement.
Q 3: What is your delivery time?
Re: It depends on your order. Normally3-7days for samples, 30-45days for standard,
30-60 days for customized.
Q 4: How do you guarantee your quality?
Re: Firstly, we do quality test during every process. We produce most components by ourselves, it is started from cutting raw material , machining roughly in the first step.
casting , forging , punching , heat treatment finish machining , painting , assembling and finally packing , we will spot check for each steps. Secondly, we will collect all comments on our products from customers in time. And try our best to improving quality all the time.
Q 5: What's your warranty time?
Re: The warranty time is 2 years for battery tools, 1 year for manual tools.
Sample trial order is welcomed.
You can visit our factory at any time.
Re: Firstly, we do quality test during every process. We produce most components by ourselves, it is started from cutting raw material , machining roughly in the first step.
casting , forging , punching , heat treatment finish machining , painting , assembling and finally packing , we will spot check for each steps. Secondly, we will collect all comments on our products from customers in time. And try our best to improving quality all the time.
Q 5: What's your warranty time?
Re: The warranty time is 2 years for battery tools, 1 year for manual tools.
Sample trial order is welcomed.
You can visit our factory at any time.
