Excellent Light Uniformity Sign LED Backlight LED strips lighting 12V back lit module

Product Overview

Description

the best seller LED LATTICE backlight  flexible led strip curtain lightweight easy-to-install rolls



 product Description



  LED lattice backlight (LED curtain, LED bamboo slips) Patent No.:ZL201220134846. LATTICE LED Matrix Lighting System is the most versatile and practical illumination solution for indoor and outdoor sign cabinets and large area illumination. Innovative design of LATTICE system comes in lightweight easy-to-install rolls, which allows for easy population of perfectly spaced LEDs in minutes for uniform backlit lighting.





Features of product

1.High light efficiency 100Lm/W

2.High CRI >85

3.Single side or double side optional

4.Non-waterproof ( Optional conformal Coated IP66)

5.Low voltage Input DC12V /DC24V

6.Top SMD 2835+PCB strip Material

7.Perfect square Matrix

8.Minimal depth required at 60mm distance no hot spots on the graphic

9.Available in 500mm,125mm width and Max 2M/Rolls

10.Warranty 3 years

11.Meet CE RoHS FCC Certification

12.Ideal for advertising signs backlight,light boxes source,direct type backlight



Information  of product



	MODEL	BKT41S-41-12V
	Single-sided/Double-sided	Single-sided
	Brightness Level	Top Highest brightness
LED to LED 41.6mm/1.64”    CRI > 85 Luminous efficiency 100Lm/W DC12V   Bar to Bar 41.6mm/1.64” (Optional 60mm)   Brightness 12900Lm/m2 1200Lm/sqft   LED to face distance > 60mm/2.36”   Power Consumption 129W/m2 12W/sqft	Brightness	1200Lm/sqft
	Min. Cabinet Depth*	>60mm(2.36”)
	Default Colors	CW 6000~6500K
	Other Colors*	WW 2700~3200K NW 4000~4500K
	Waterproof Rating	Non waterproof (Optional Conformal Coated, IP66)
	Application Environment	Dry & Damp Locations
	Operating Temperature	-22oF~158oF (-30~70oC)
	Certification	CE RoHS FCC





picture display









 RGB led lattice version

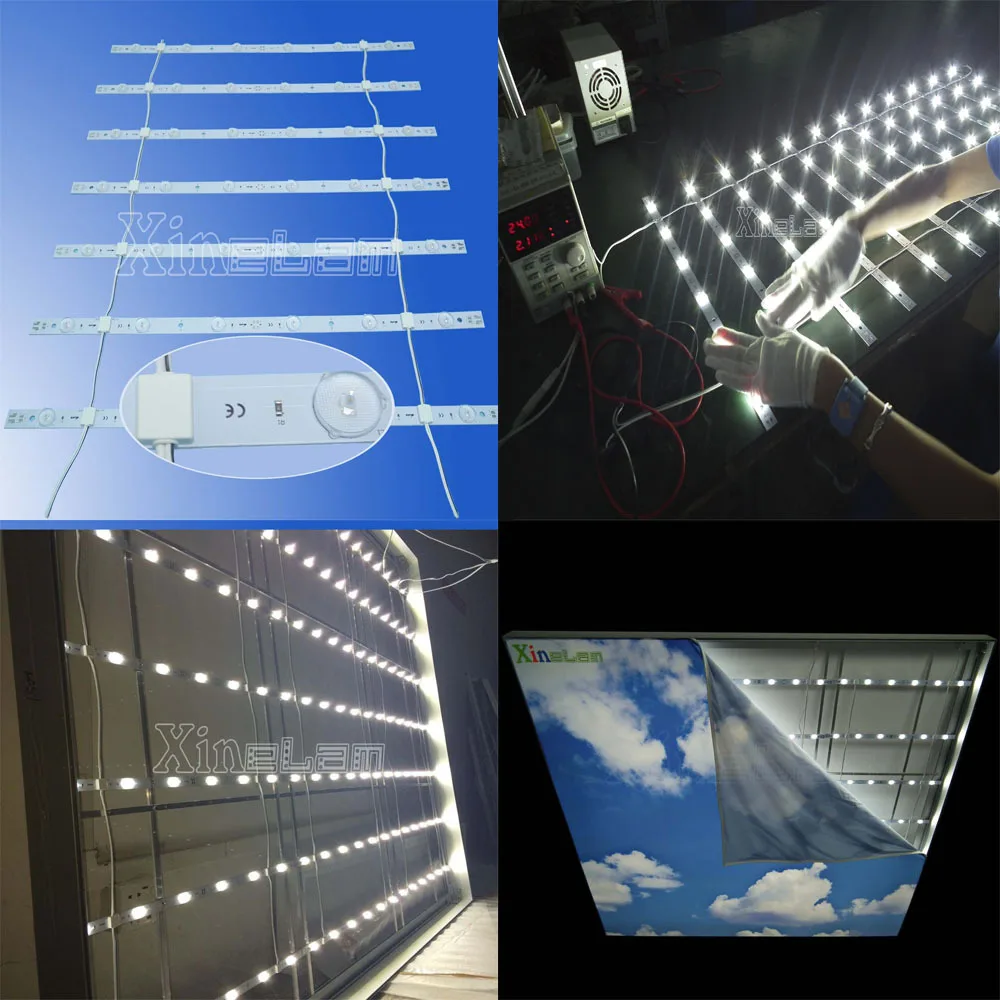

 led lattice with lens version


Application showcase



 Application:

Dedicated direct type backlight

advertising signs backlight,

Advertising light boxes.

















Company Information

XineLam - Ruixian Electronics Factory was founded in 2003, focusing on designing, developing and producing green LED lighting products.

Our team having strong R&D capabilities and 11 product patents included the invention, utility model and appearance design etc.

Company Culture: Technical Innovation, Quality-oriented, Credit Foremost, Professional Focus, Creating Value for Customers

Main products:

1-Waterproof aluminum led panel (Custom sizes and shape)
2-Lattice LED lighting( available double sided led, low cost)
3- LED sheet light (Slim, light weight, Sizes and shape cuttable service)
4-LED Module Light
