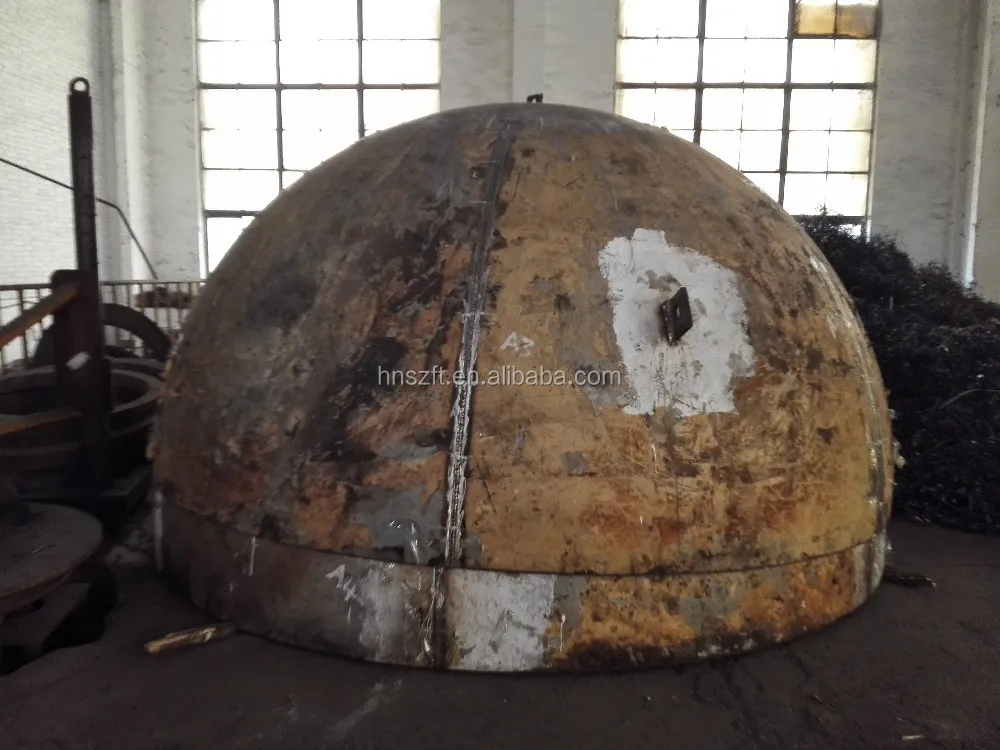

Pressure Vessel and Tank Fabricators Segmental Heads Hemispherical Heads Stress Relieving and Blasting after Cold Forming

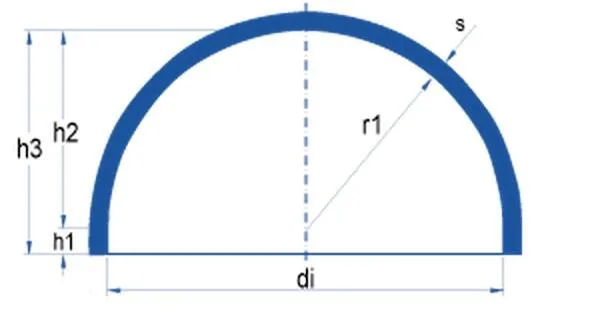

di\t= Inner diameter

h1 = Straigh Flange

h2 = Inner Height

h3 = Total height

s = Minimum thickness after formed


r1= Radius

Produce Capabilities

Process

1,Cold Formed

2,Hot Formed\tWelded (U stamp  partial data report)

Welding Processes

Stick-Electrode    Semi-Automatic    Submerged Arc    Gas Shielded

 Edge Prepped

Trimmed /Untrimmed /Beveled / Tapered



Material

carbon, alloy, and low alloy steels, stainless clad, titanium, nickel, Aluminum, Tantalum etc.

Testing & Inspection

1,Radiographic Test 2,Ultrasonic Test 3,Liquid Penetrant Test 4,Magnetic Particle 5,Charpy V-Notch Tests 6,Brinell Hardness



1,Radiographic Test 2,Ultrasonic Test 3,Liquid Penetrant Test 4,Magnetic Particle 5,Charpy V-Notch Tests

Partial Data Report

ASME U

Heat Treatment

1,Normalized

2,Annealed

3,Quenched and Tempered

4,Normalized and Tempered

Surfacce Treatment

 Carbon Steel---Sand Blasting     Stainless Steel----Acid Pickling

Industry Standards

ASME Section VIII, Division 1 (U stamp)

GB/T25198-2010

DIN28011 28013

Diameter

Manufacturing CONVENTIONAL TANK HEADS Com--- Diameter from 89mm to 7000mm，thickness from 3 to 40mm

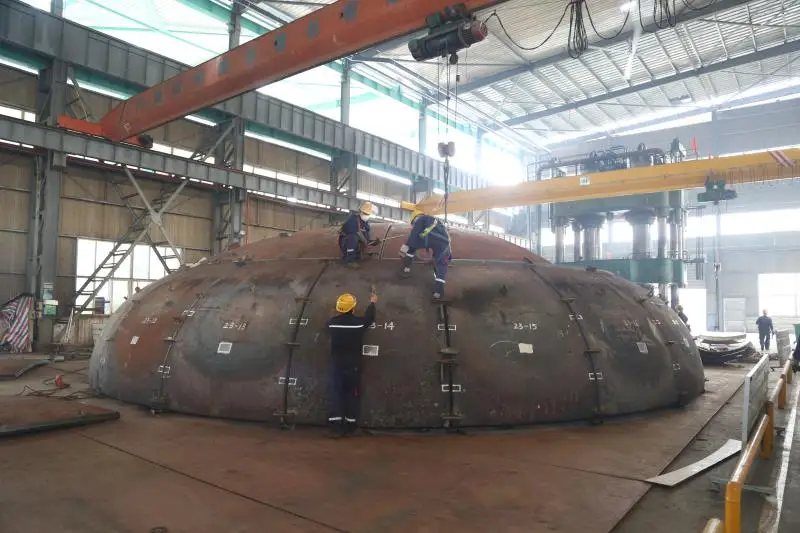

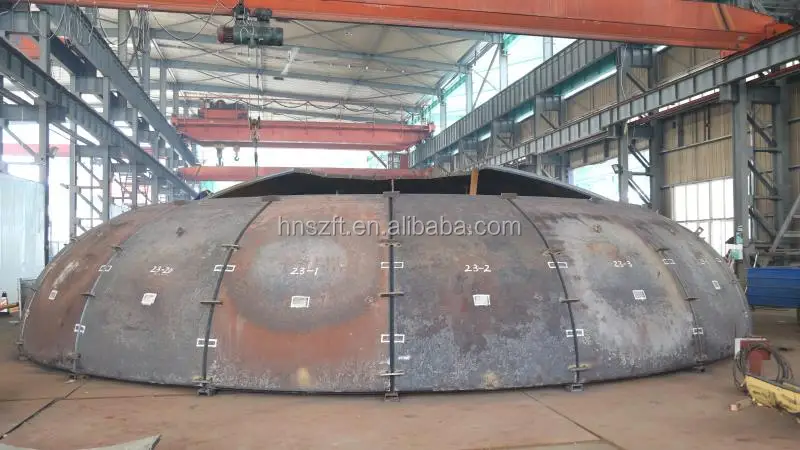

SEGMENTS HEADS ----Diameter from 3000—20000mm, thickness from 4 to 300mm
