6 lamps infrared paint dryer, IR lamp

Product Overview

Description

6 lamps infrared paint dryer, IR lamp





Technical parameters



Type:SG-6D/A

Input voltage:1PH220V
Frequency:50/60Hz
Rated power: 6KW
Adjustable height:400-2500mm
Preheating time:1-5min
Drying time:1-15min
Curing distance:600-800mm
Working current: 5-30A
Curing temperature:60-70℃
Curing area:1000x2000mm
Dimensions(LxWxH):1300x1200x2300mm
Weight:65KG



6 lamps infrared paint dryer, IR lamp



Functions and Features

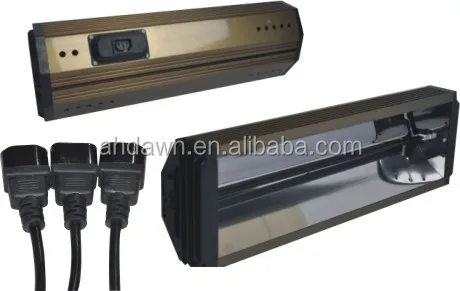

1,Made from aluminum alloy, 304 stainless steel mirror reflector and other special material;

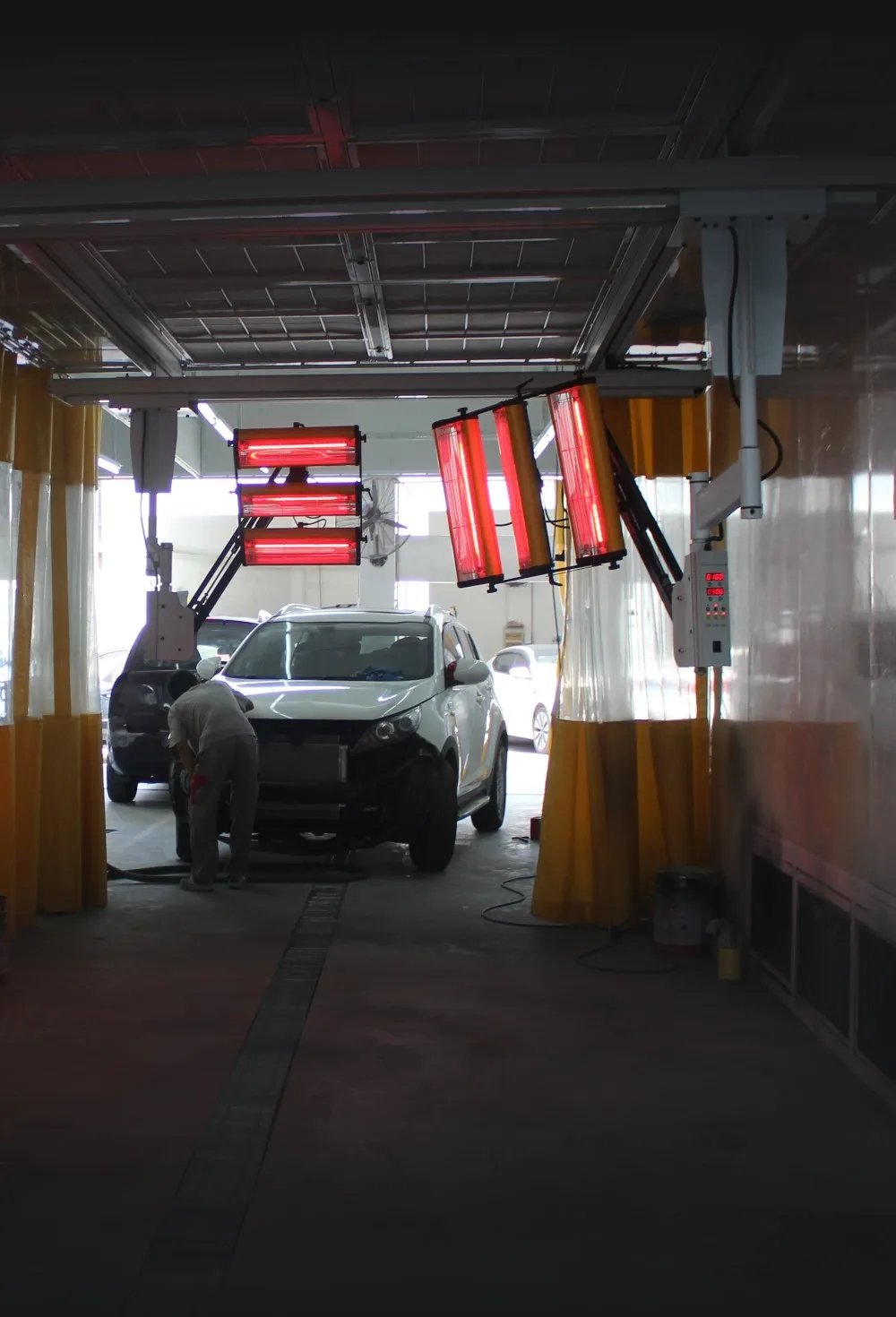

2,Applying to drying the painting work for spot damage from the car body, avoiding the heating up the whole spray booth which highly reduce the cost;
3,Curing area is 800*1000mm, suitable for drying the spot damage under one area of three panels.

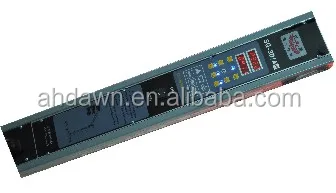

4,Unique electronic timing function, with an advanced digital control and display for half-power or full-power option, independent control of the lamp groups .







6 lamps infrared paint dryer, IR lamp



Constructed specification
