Входные двери для воздуховодов высокой температуры

Product Overview

Description

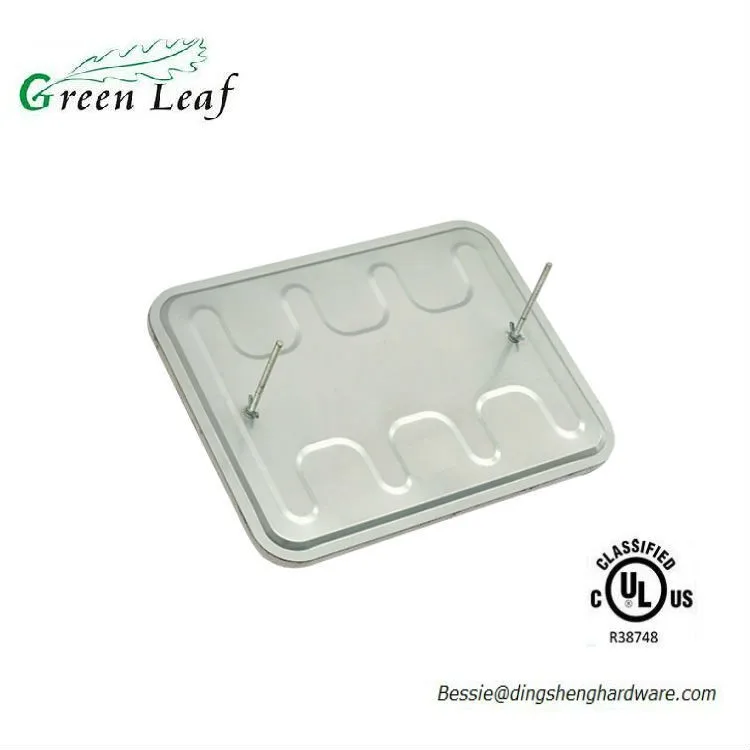

Hi-Temperature Grease Duct Access Doors

· Leak resistant and consists of two layers of stamped, hot dipped galvanized steel and one    16 g. black iron backing plate for ultimate safety and durability

· Hi-Temperature Ceramic Fiber Gasket (2300°F, 1260°C max) is permanently bonded to the outside panel of the access door to eliminate leakage

· Zinc plated conical springs between the inner and outer plates to facilitate opening

· Zinc coated wing nuts are easily turned by hand

· Easy to install

· No measuring needed - self-adhesive mounting template provided

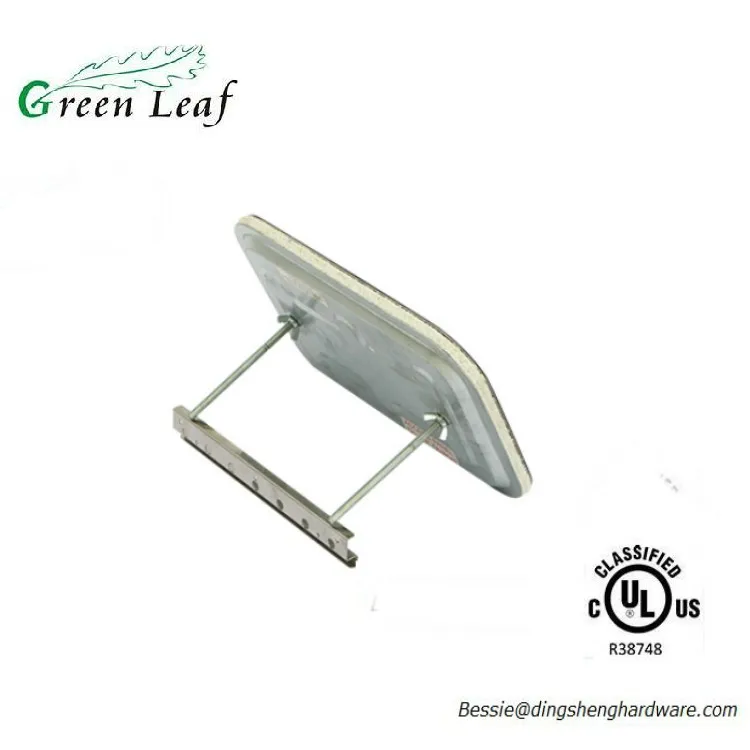

· Available with 6" (152mm) break-away mounting studs permit installations with fire wrap insulation

· Studs may be broken at 2" (102mm) for standard installations

· Meets NFPA #96 Standards



Model #                  Description

ACC-10X6           Access Panel, Hi-Temp, 10" x 6" (254mm x 152mm)

  ACC-12X8            Access Panel, Hi-Temp, 12" x 8" (305mm x 203mm)

  ACC-18X14           Access Panel, Hi-Temp, 18" x 14" (457mm x 356mm)
