316 stainless hplc capillary tubing for Industrial Chromatography
- Category: Stainless Steel Pipes >>>
- Supplier: Zhangjiagang,Channel,Int'l,Co.,Ltd.
Share on:
Product Overview
Description
316 stainless hplc capillary tubing for Industrial Chromatography
Product Description
1.Stainless Steel Main Feature:
Stainless steel is a production which not easy rust,acid resistance and corrosion resistance,so it is widely used in light industry,heavy industry,daily necessities and the decoration industry.My company long-term supply stainless steel products including:stainless steel tube&pipe, stainless steel bar, stainless steel plate&sheet, stainless steel wire etc.
Description | Stainless Steel pipe |
Supply Capacity | 10000 tons/year |
Process Method | cold drawn and cold rolled |
Out Diameter | 6-711mm |
Wall Thickness | 0.5-40mm |
Length | 6-25 meters |
Steel Grade | 200 (Ni : 0.8%), 201B (Ni : 3%), 201H (Ni : 5%) |
301 (Ni : 6%), 304, TP304, TP304L/304L, 321, TP321, 316, TP316L, 316L, 316Ti | |
317, 317L, 309S, 310S(2520), 347, Duplex 2205, Duplex 2207, etc. | |
Standards | ASTM / ASME, GB, DIN, JIS, T14975, etc. |
Specification | O.D: 1/4" - 32" (inch) |
W.T: SCH5S, SCH10S,SCH40S,SCH80S,SCH160S,etc. | |
Or non-regular size to be tailored as required. | |
Application | Heat exchanger,Liquid delivery,Structure,etc. |
1.with to protect both ends | |
2. bag wrapped outside the pipe | |
3.bundles to be covered by polythene & strapped securely . | |
4.if require ,then pack into wooden box. | |
Certificate | ISO 9001:2008 |
Delivery time | 30-60 days depend on Quantity |
Payment Term | T/T, Irrevocable L/C at sight |
Trade Term | FOB , CFR , CIF |
2.Application:
Application
| Architectural/Civil Engineer | Handrails, door and window fittings, steel furniture, structural sections etc |
Transport | Exhaust systems, car trim, road tankers, ship containers, ships chemical tankers etc | |
Chemical/Pharmaceutical | Pressure vessels, process piping etc | |
Oil & Gas | Platform accomodation, cable trys, subsea pipelines etc | |
Water | Water and sewage treatment, water tubing, hot water tankers etc | |
Medical | Surgical instruments, surgical implanets, MRI scanners etc. | |
Food & Drink | Catering equipment, brewing, food processing etc |
| Nominal Diameter(mm) | Outside Diameter(mm) | Nominal Wall Thickness (mm) | ||||||||||||
| N.B | NPS | SCH5S | SCH10S | SCH40S | ||||||||||
| 8 | 1/4″ | 13.72 | 1.65 | 2.24 | ||||||||||
| 10 | 3/8″ | 17.15 | 1.65 | 2.31 | ||||||||||
| 15 | 1/2″ | 21.34 | 1.65 | 2.11 | 2.77 | |||||||||
| 20 | 3/4″ | 26.67 | 1.65 | 2.11 | 2.87 | |||||||||
| 25 | 1″ | 33.4 | 1.65 | 2.77 | 3.38 | |||||||||
| 32 | 1-1/4″ | 42.16 | 1.65 | 2.77 | 3.56 | |||||||||
| 40 | 1-1/2″ | 48.26 | 1.65 | 2.77 | 3.68 | |||||||||
| 50 | 2″ | 60.33 | 1.65 | 2.77 | 3.91 | |||||||||
| 65 | 2-1/2″ | 73.03 | 2.11 | 3.05 | 5.16 | |||||||||
| 80 | 3″ | 88.9 | 2.11 | 3.05 | 5.49 | |||||||||
| 90 | 3-1/2″ | 101.6 | 2.11 | 3.05 | 5.74 | |||||||||
| 100 | 4″ | 114.3 | 2.11 | 3.05 | 6.02 | |||||||||
| 125 | 5″ | 141.3 | 2.77 | 3.4 | 6.55 | |||||||||
| 150 | 6″ | 168.28 | 2.77 | 3.4 | 7.11 | |||||||||
| 200 | 8″ | 219.08 | 2.77 | 3.76 | 8.18 | |||||||||
| Tolerance : | ||||||||||||||
| Standard | GB151 ASTM JIS DIN | |||||||||||||
| OD | I | II | ||||||||||||
| <Ø25---≥Ø50 | ±0.18 | ±0.30 | ||||||||||||
| ≥Ø25---≤Ø89 | ±0.30 | ±0.45 | ||||||||||||
| ≥Ø89---≤Ø129 | ±0.51 | ±0.80 | ||||||||||||
| Thickness | All specifications±0.5% | |||||||||||||
| Length | All specifications±6 | |||||||||||||
| Straightness | All specifications≤2/1000 | |||||||||||||
| Grade and Main chemical composition% | ||||||||||||||
| C | Si | Mn | P≤ | S≤ | Cr | Mo | Ni | Other | ||||||
| 201 | ≤0.15 | ≤1.00 | 5.5-7.5 | 0.06 | 0.03 | 16-18 | - | 3.5-5.5 | N≤0.25 | |||||
| 202 | ≤0.15 | ≤1.00 | 7.5-10.0 | 0.06 | 0.03 | 17-19 | - | 4.0-6.0 | N≤0.25 | |||||
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | - | 6.0-8.0 | - | |||||
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 8-10.0 | - | |||||
| 303 | ≤0.15 | ≤1.00 | ≤2.00 | 0.2 | ≥0.015 | 17-19 | ≤0.6 | 8.0-10.0 | - | |||||
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | - | 8-10.5 | - | |||||
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | - | 9-13 | - | |||||
| 305 | ≤0.12 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 10.5-13 | - | |||||
| 309S | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 22-24 | - | 12-15 | - | |||||
| 310S | ≤0.08 | ≤1.5 | ≤2.00 | 0.045 | 0.03 | 24-26 | - | 19-22 | - | |||||
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 10-14 | - | |||||
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 12-15 | - | |||||
| 317 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - | |||||
| 317L | ≤0.03 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | 3-4 | 11-15 | - | |||||
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 17-19 | - | 9-13 | Ti≥5×C | |||||
| 405 | ≤0.08 | ≤1.00 | ≤1.00 | 0.04 | 0.03 | 11.5-14.5 | - | ≤0.6 | AL0.1-0.3 | |||||
| 420F | 0.26-0.4 | ≤1.00 | ≤1.25 | 0.06 | ≥0.15 | 12-14 | ≤0.6 | ≤0.6 | - | |||||
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | 0.04 | 0.03 | 16-18 | - | ≤0.6 | ||||||
Mechnical Property:
| ASTM | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation (%) | Hardness (HRB) |
| 201 | ≥655 | ≥310 | ≥40 | ≤100 |
| 202 | ≥620 | ≥260 | ≥40 | ≤100 |
| 304 | ≥515 | ≥205 | ≥40 | ≤92 |
| 304L | ≥482 | ≥170 | ≥40 | ≤88 |
| 316 | ≥515 | ≥205 | ≥40 | ≤95 |
| 316L | ≥485 | ≥170 | ≥40 | ≤95 |
| 321 | ≥515 | ≥205 | ≥40 | ≤95 |
| 409 | ≥380 | ≥205 | ≥20 | ≤80 |
| 409L | ≥350 | ≥185 | ≥22 | ≤80 |
| 430 | ≥450 | ≥205 | ≥22 | ≤80 |

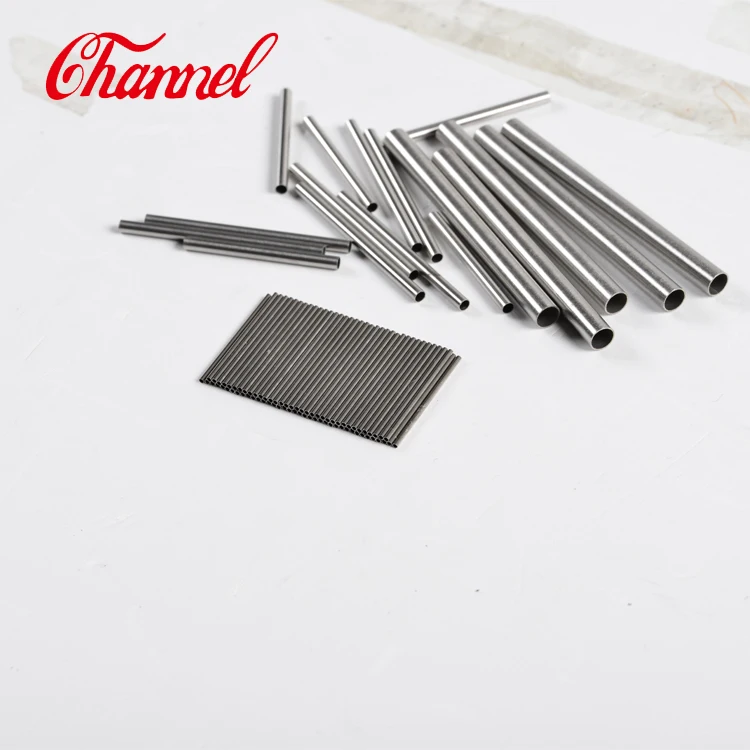

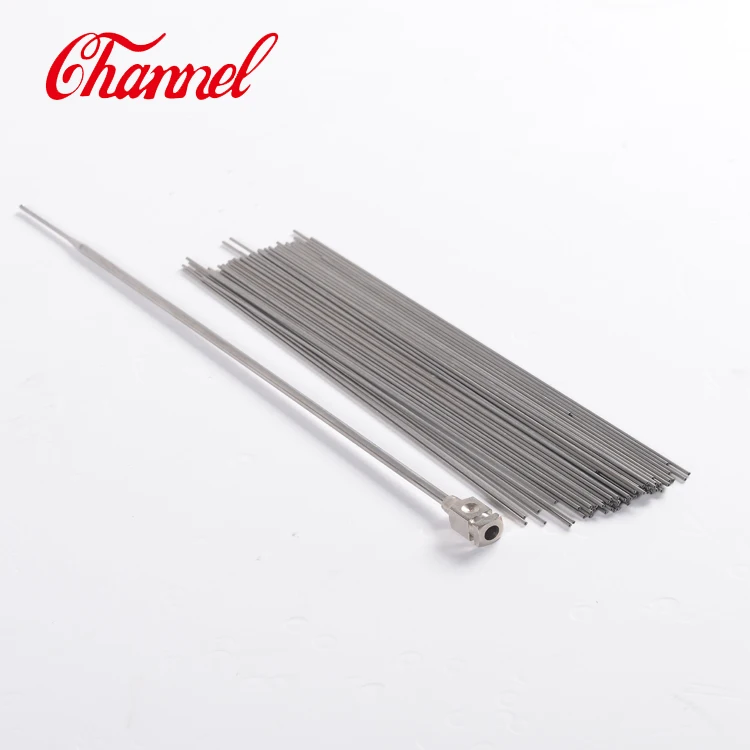

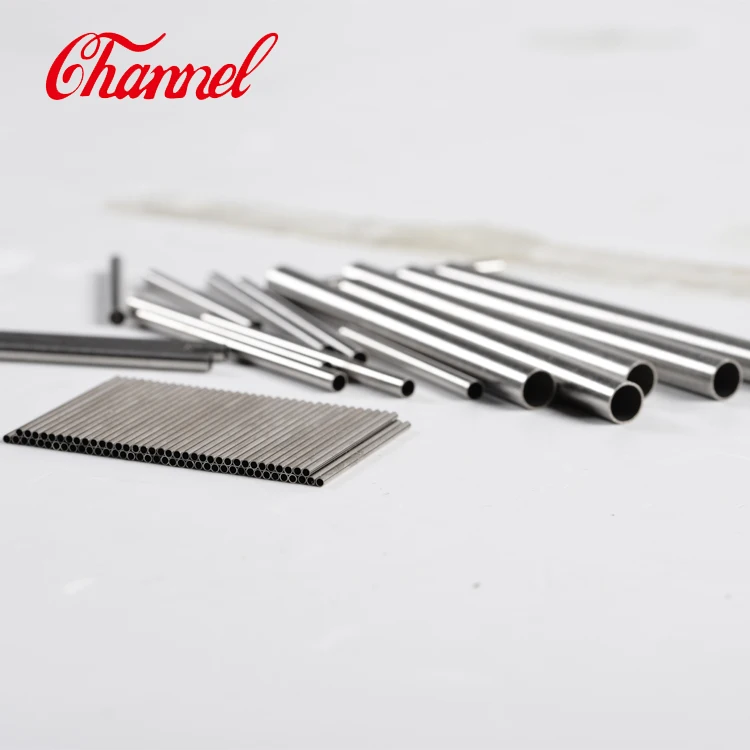

Products Show

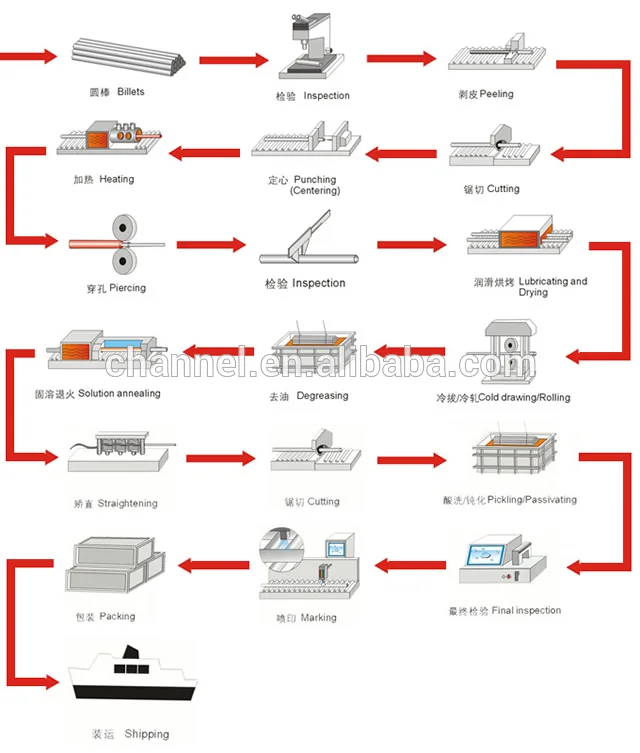

Production Flow
Quality Control
& Shipping
1. Wooden case, free of fumigating;
2. Steel pallet + wooden case (above 1 ton/case);
3. Available upon the client's request.
SHIPPING
1. Air express (FedEx, UPS, DHL & EMS);
2. Air transport;
3. Sea transport;
4. Sea-land transport
FAQ
Q: What is our factory product range?
A: We specialize in stainless steel tube/pipe, plate,elbow, fittings,coil, sheet etc.
Q: How to order?
A: Please send us your purchase order/specific inquiries by Email or Fax and Proforma Invoice will be sent back according to your order. Besides, following information will be needed:
1) Product information: Quantity, Specification(type of stainless steel pipe/tube such as round, square, rectangle or oval, dimension,such as diameter, length, width, thickness, etc.)
2) Delivery time required & requirement.
3)Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.
Q: What are the trade terms we be accepted?
A: EXW, FOB, CFR, CIF.
Q: What are the payment terms for sample cost and order amount?
A: T/T , L/C at sight , Western Union.
Q: What is the whole process for doing business with us ?
A: 1) Please provide details products information you need.
2) If price acceptable and sample needed, sample be customized via customers' requirement and be sent immediately.
3) If sample approved and bulk production required for order, proforma Invoice will be sent and products fabricating will be arranged at once when 30% deposit received.
4) Products photos, details, and will be sent to customers after products finished. Shipment will be arranged after the balance payment paid.
