Boost 384W 8a dc dc converter 12v 48v for electric golf cart
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (60651179620):
Product Overview
Description
Boost 384W 8a dc dc converter 12v 48v for electric golf cart
Product Description

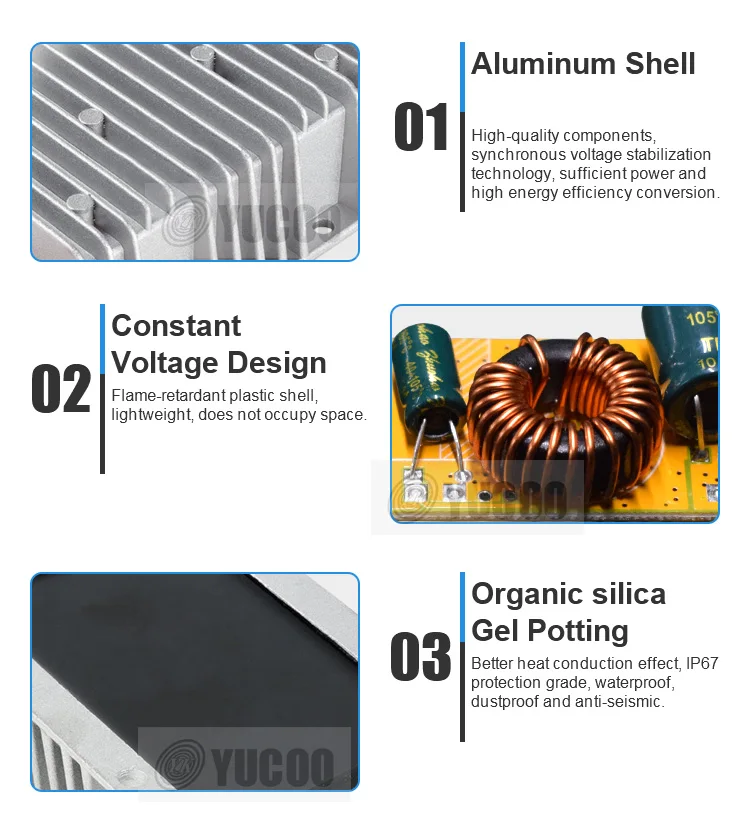

Product features:
1. Constant voltage design
2. SMT Process
3. Non-Isolated Module
4. 2:1 wide input range
5. Built-in EMI filter, low ripple noise
6. 100% full load burn-in test
7. Certificates :CE
8. Waterproof level : IP67
9. Protections: Short circuit/Over load /voltage / Automatic recovery work
10. Ultra compact size, light weight , high reliability
11. 1 year warranty, lifetime up to 100,000 hours
Product Parameters
| Product Name | DC DC Converter |
| Model | YK-DD12S4808 |
| Input voltage | 12Vdc (9-30V dc) |
| Output voltage | 48Vdc |
| Output current | 8A |
| Output power | 384W |
| Transfer efficiency | 90% |
| Working temperature | -35℃ - 80℃ |
| Waterproof rating | IP67 |
| Weight | 470g |

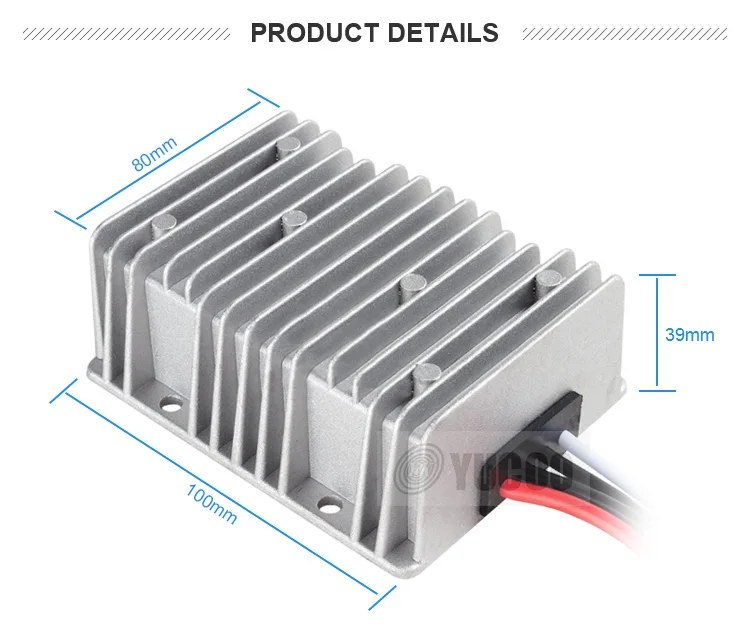

| Size | 100*80*39mm |
| Installation length | 13-15cm |

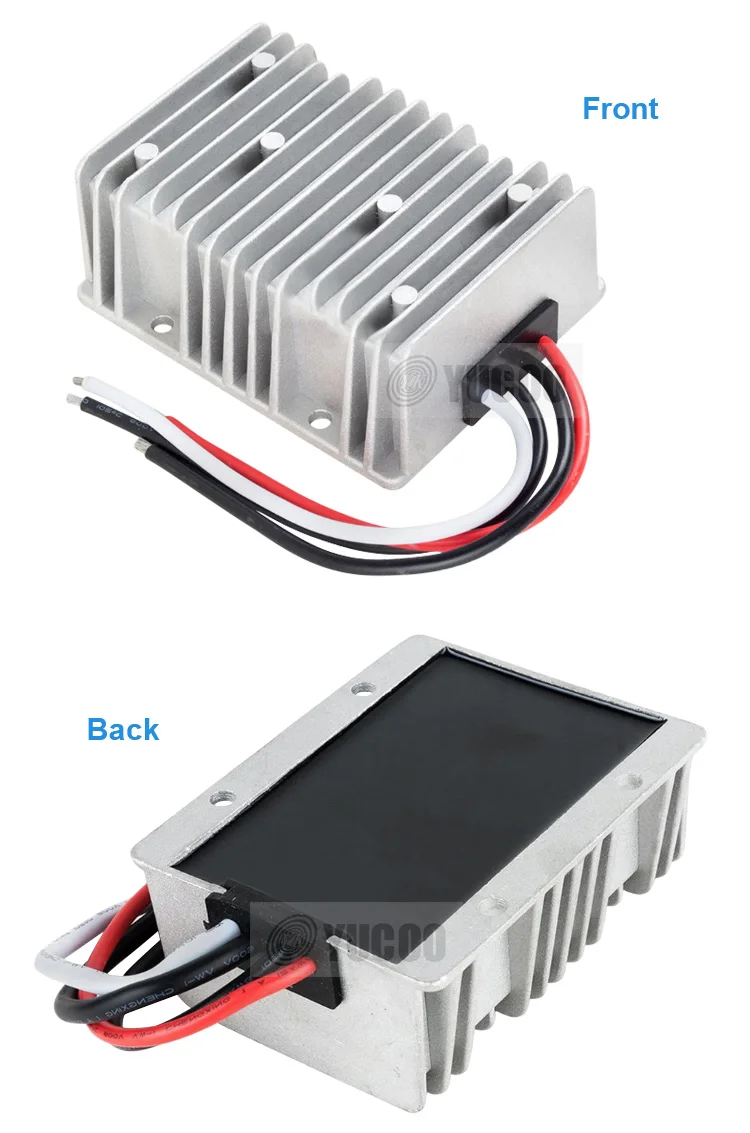

Product Details
Customized Range
| Model/ Series | DC-DC Conversion | Output Current (Be option) |
| Boost DC-DC Converter | ||
| YK-DD12S13.8** | 12v to 13.8v | 1/2/3/5/8/10/18A |
| YK-DD12S15** | 12v to 15v | 1/2/3/5/8/10/15A |
| YK-DD12S19** | 12v to 19v | 5/8/10/15/20A |
| YK-DD12S24** | 12v to 24v | 1/2/3/5/8/10/15/20/25/30/40/50A |
| YK-DD12S28** | 12v to 28v | 3/5/8/10/15/20/25/30/40A |
| YK-DD12S32/36** | 12v to 32v/36v | 1/2/3/5/6/10/12/15/20/30/40A |
| YK-DD12S48** | 12v to 48v | 1/2/3/4/5/8/10/15/20A |
| YK-DD24S48** | 24v to 48v | 3/5/10/20/32/42A |
| Buck DC-DC Converter | ||
| YK-DD1224S3.3-9** | 12v/24v to 3.3-9v | 1/2/3/5/10/15/20/30/50/60A |
| YK-DD24S12** | 24v to 12v | 1/2/3/5/8/10/15/20/30/40/50/60/85A |
| YK-DD3648S5** | 36v/48v to 5v | 5/10/15/20A |
| YK-DD3648S12** | 36v/48v to 12vdc | 5/10/15/20/25/30/50/60A |
| YK-DD3648S24** | 36v/48v to 24v | 8/10/15/18/21/30/40/50A |
| YK-DD48S36** | 48v to 36v | 5/10A |
| YK-DD60S5** | 60v to 5v | 5/10/15/20A |
| YK-DD60S12** | 60v to12v | 5/10/15A |
| YK-DD60S24** | 60v to24v | 60v to24v |
| YK-DD60S36 | 60v to 36v | 5/8A |
| Auto Buck and Boost DC-DC Converter | ||
| YK-DD12S12 | 12v to 12v | 1/2/3/4/6/8/10/12A |
| YK-DD12S13.8 | 12v to 13.8v | 3/5/10A |
| YK-DD24S24 | 24v to 24v | 1/2/3/5/8/10A |
| Isolated DC-DC Converter | ||
| YK-DD48S12 | 35-100v to 12v | 8A/10A |
| YK-DD48S5 | 36-75v to 5v | 15A/20A |
| YK-DD48S24 | 36-75v to 24v | 5A |
Note: 1. Output current be option only but not constant adjustable 2. Other Specification can customize base on user request. Please contact with YUCOO Sale team 3. Non-Isolated design 4. Constant voltage design 5. Waterproof 6. High efficiency | ||

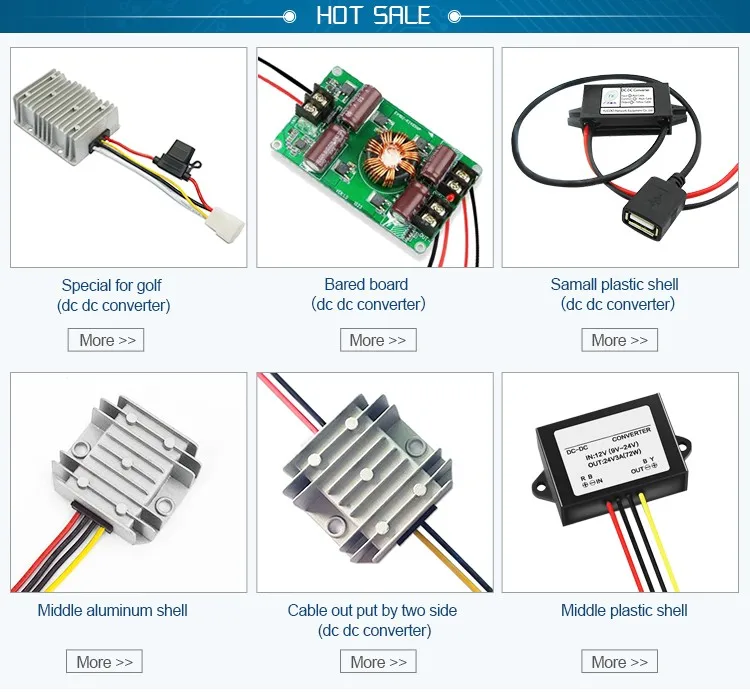

Hot Sale
