Protective Cover price per watt 1000V Maximum System Voltage 50w solar panel price india
- Category: >>>
- Supplier: Jiangxi Renjiang Technology Co. Ltd. [Jiangxi China]Jiangxi
Share on (60651198387):
Product Overview
Description
Protective Cover price per watt 1000V Maximum System Voltage pv panel 50w for solar power
>>>>>>>>>>>Contact us to get more project pictures of our solar panels applied in many districts.
| Technical Parameter | ||||
Rated Output (Wp) | Opencircuit voItage (Voc) | Maximum Power voItage (Vm) | Short circuit current (Isc) | Maximum Power current (Im) |
| 50 | 21.41 | 17.02 | 3.49 | 2.94 |
| Temperature Coefficient of Voc | -0.38%/℃ | CeII(mm) | 156*52 | |
| Temperature Coefficient of lsc | +0.04%/℃ | Weight(kg) | ||

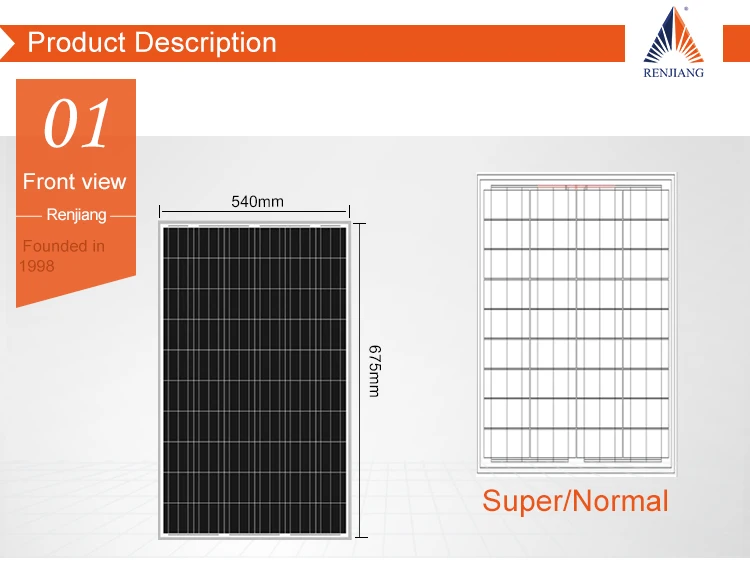

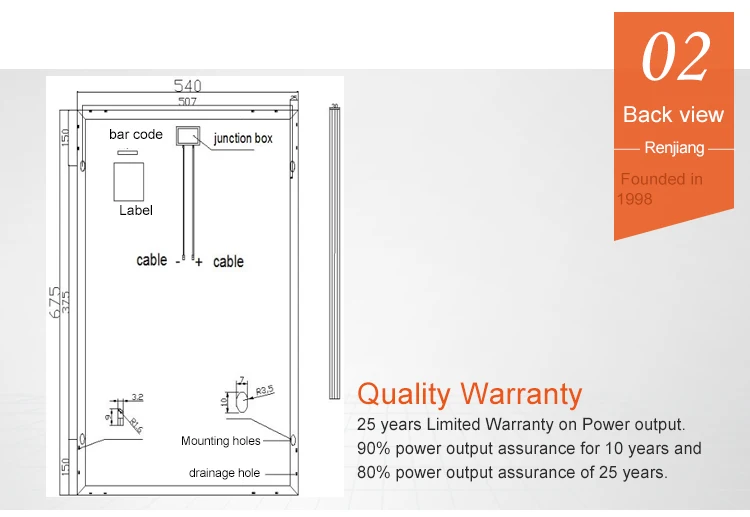

| Temperature Coefficient of Power | -0.47%/℃ | Dimensions(LxWxH)(mm) | 675*540*30 | |
| NOCT | 45±3℃ | Cable Cross Section Size (mm) | 2*1.5 | |
| Working Temperature Range | - 40℃~+85℃ | No.of Cells and Connections | 36(4*9) | |
| Maximum Permitted Load | 5400Pa | No.of Diodes | 1*10A | |
| Maximum Series Fuse Rating(A) | 10 | Monolithic power | 3.5 w-4.29 w | |
| Maximum System Voltage(V) | 1000 | The efficiency of single chip | 14.38%-17.6% | |
| Standard Test Conditions | 1000W/m2;25℃;AM1.5 | The packing way | 5pcs/Carton | |
>>>>>>>>>View more solar panels of different watts.
