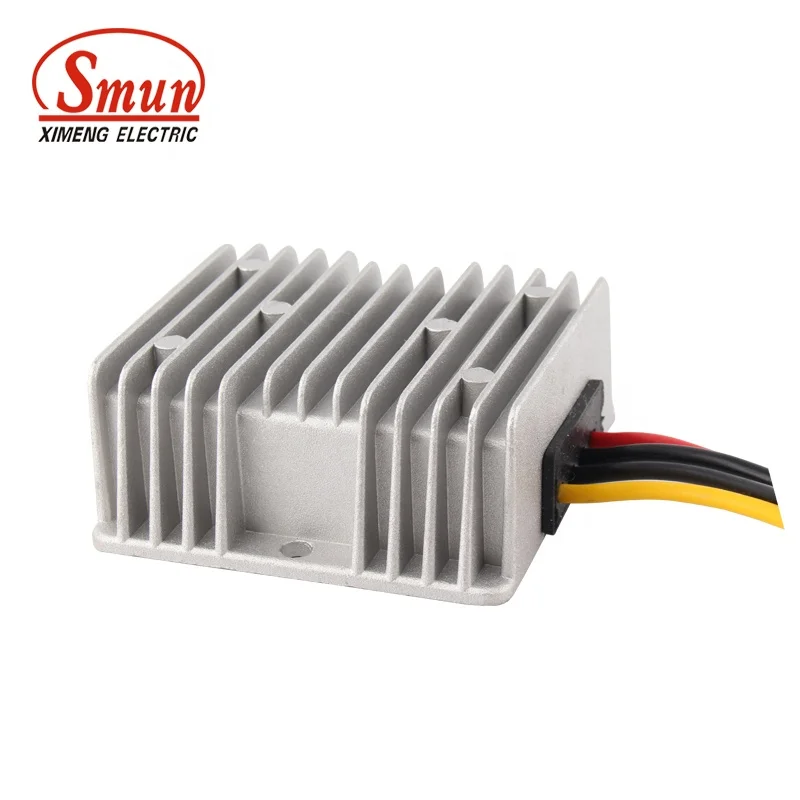

High Efficiency DC Buck Converter Regulator 24VDC to 12VDC 10A Step Down DC DC 120W Converter

Features

1. 100% full power & stable current output

2. 100% Imported components

3. Wide input voltage from 16-36Vdc

4. 100% waterproof & anti-shock protection, Ultra compact size, light weight

5. Industry grade DC24V to DC12V step-down converter, efficiency up to 92%

6. Certificates: CE

7. Waterproof level: IP68

8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,

9. Protections: Over-current, Over-voltage, Over-temperature, Over-load and

Short-circuit, Auto-recovery when device is back to normal operating

10. Non-Isolated Module

11. 1 year warranty, lifetime up to 100,000 hours.

Specifications

Model

SDJ-24S1210

Input rated voltage

24V DC

Input voltage range

16-36V DC

Efficiency

94% (half load) ; 92% (full load)

Output voltage

12V DC

Output current

10 Amps

Output rated power

120 Watts

Output peak power

125%

Voltage regulation

< 1%

Load regulation

< 2%

Ripple (full load test)

< 50mV

No-load current

< 25mA

Working Temperature

-40°c ~ +80°c

Waterproof rating

IP 68

Protections

Over-load, Over-current, Over-temperature, Over-voltage, Short-circuit

Machine size

74*74*32mm

Package size

98*82*34mm

N. Weight

290g

W. Weight

300g

Cooling way

Free air convection

Certifications

CE

Other

White box packing
