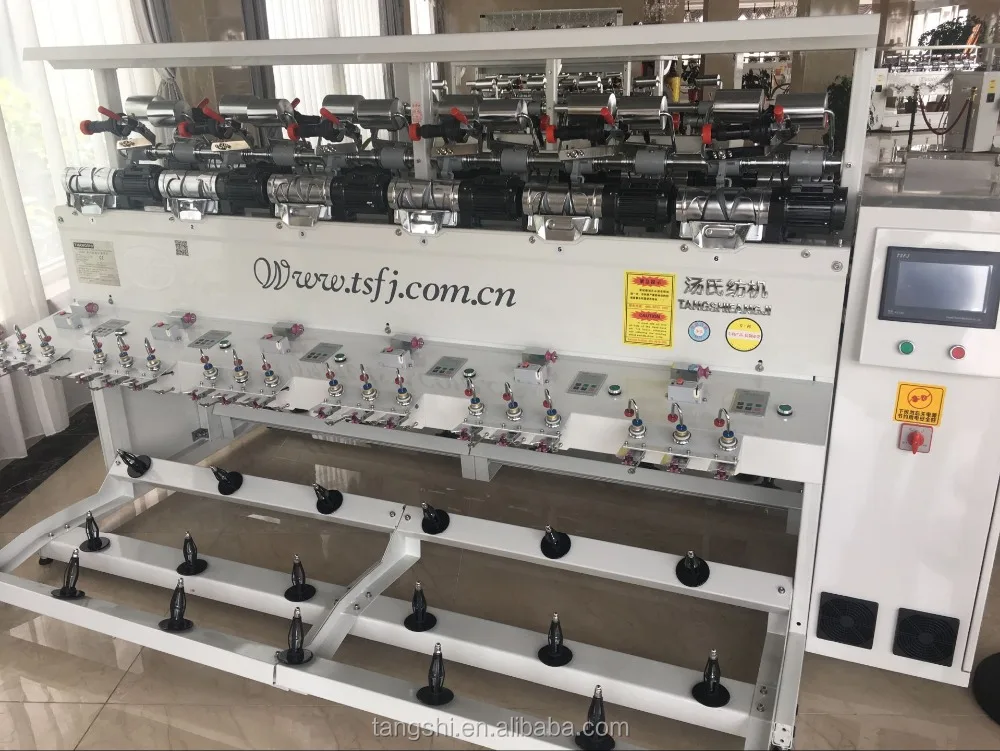

2 3 Ply Yarns Doubling WINDING MACHINE for TFO twisting using

Product Overview

Description



Machine Application:

TS008 Doubling Machine, it can winding 2-3 ply of Fiber yarns, Cotton yarns, Wool yarns, FDY, Polyester yarns and etc, it can take up with Tube bobbins for TFO twisting machine preparing, and also can take up with conical Cone for Weaving machine using . It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.



Parameters:



1. Driver: Every Spindle Per Motor ;



2. Winding speed: 300-800M/min



3. Has function of auto stop when yarn break.



4. Each spindle with length counter;



5. Advanced control panel;





Bobbin type:	6’(170mm)
Layout:	Double-side, can be 12-96 spindles
Spindle Gauge:	280mm
Power Consumption :	0.09KW/spindle
Doubling No. of yarns:	2-3 plys
Take-up package :	Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15
Package Size :	Max φ220
Auto Stop Device :	Each spindle install auto stop device
Electronic Anti-Stack:	Inverter control
Air Splicer :	Optional installed
Blower cleaner :	Optional installed
Lighter System:	Optional installed
Dimension	L 16800 x W 1350 x H 1600 mm
