Product Overview

Description


Company Profile

Taizhou Jetstar Machinery Equipment Co., Ltd. is a professional manufacturer engaged into designing and producing logistic and industrial equipments for more than 15 years. Our supply scope covers pallet truck, pallet stacker, electric forklift, drum lifter and scissor lift.

Our team are always ready to provide not only quality products but also perfect customer service.

Product Description

Product Application

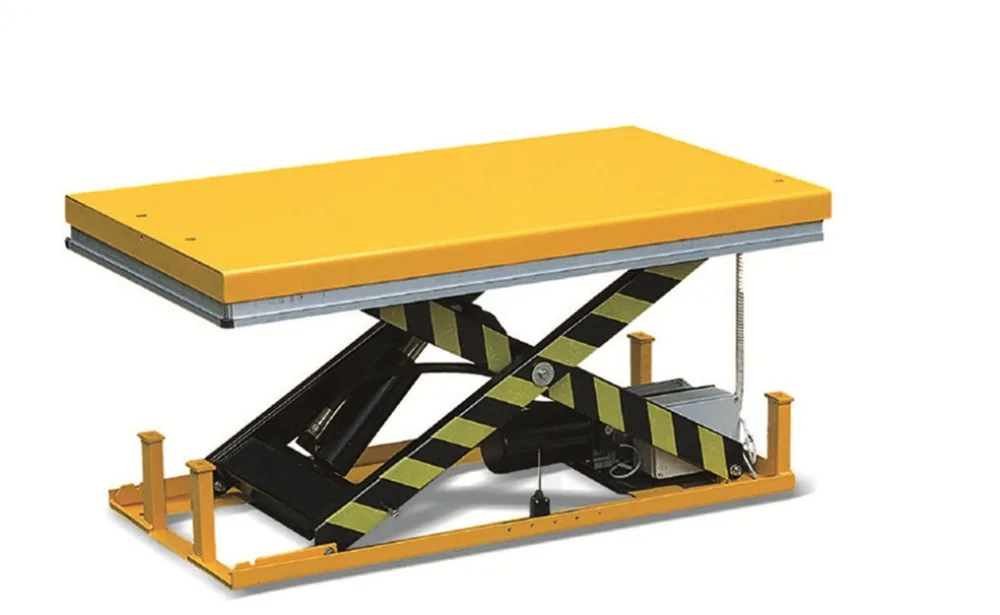

Hydraulic Lift Table HW Series

Heavy Duty Design

HW series lift tables meet EN norm and ANSI/ASME safety standards.

These models can be used in above-floor or in-floor pit applications

Standard Safety Features

Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.

Low-tention (24V) control box with up-down buttons.

Internal power pack equipped with relief valve against overloading and compensated flow valve for controller lowering speed.

Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

Safety clearance between scissors to prevent trapping during operation.


\t
SPECIFICATIONS FOR ElLECTRIC STATIONARY  HYDRAULIC LIFT TABLE HW2004
\t
Model
\t
HW2004
\t
Load Capacity
\t
kg
\t
2000
\t
Lowered Height
\t
mm
\t
250
\t
Raised Height
\t
mm
\t
1300
\t
Platform Size
\t
mm
\t
1000x1700
\t
Base Frame Size
\t
mm
\t
785x1220
\t
Lift Time
\t
sec.
\t
25-35
\t
Power Pack
\t
\t
380V/50HZ, AC 1.1kw
\t
Net Weight
\t
kg
\t
300

Main Features

Other Standard Features
Self lubricating bushings on pivot points
Removable lifting eye to facilitable handling and lifting table installation.
High quality AC power packs are made in Europe

Certifications
Packing & Delivery
\t
Packaging
\t
Size
\t
 1800(L) *1100 (W) * 450 (H)
\t
Weight
\t
450kg
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
