V34 best free tracking software long standby 9000mah waterproof solar collar cow cattle horse camel gps tracker for animal
- Category: Navigation & GPS >>>
- Supplier: Shenzhen,Vjoy,Car,Electronics,Limited
Share on:
Product Overview
Description
Popular GPS Tracker
 |  |  |
 |  |
|
V34 best free tracking software long standby 9000mah waterproof solar collar cow cattle horse camel gps tracker for animal
Product Description
Product Highlights
1) Big battery 9000mAh, can last for over 400 days if under sleeping mode;
2) GSM four frequency bands +GPS tracking+WiFi tracking;
3) Solar power charge automatically (Power on under the sunlight itself.);
4) Waterproof IP67, enables the device to work in rainy days;
5) Anti-remove alarm, Once removed from its holder, device will send alerts to pre-set telephone number;
6)SOS alarm;

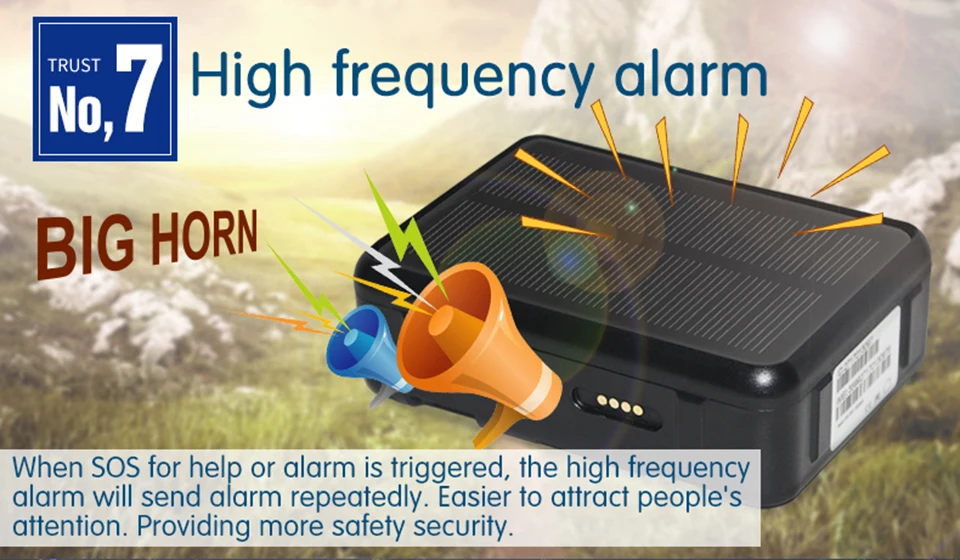

7) High frequency alarm with loudspeaker;
8) Historical route display/ Geo-fence;
9) Voice monitoring;
10) Low battery alarm/SIM card changing alarm;

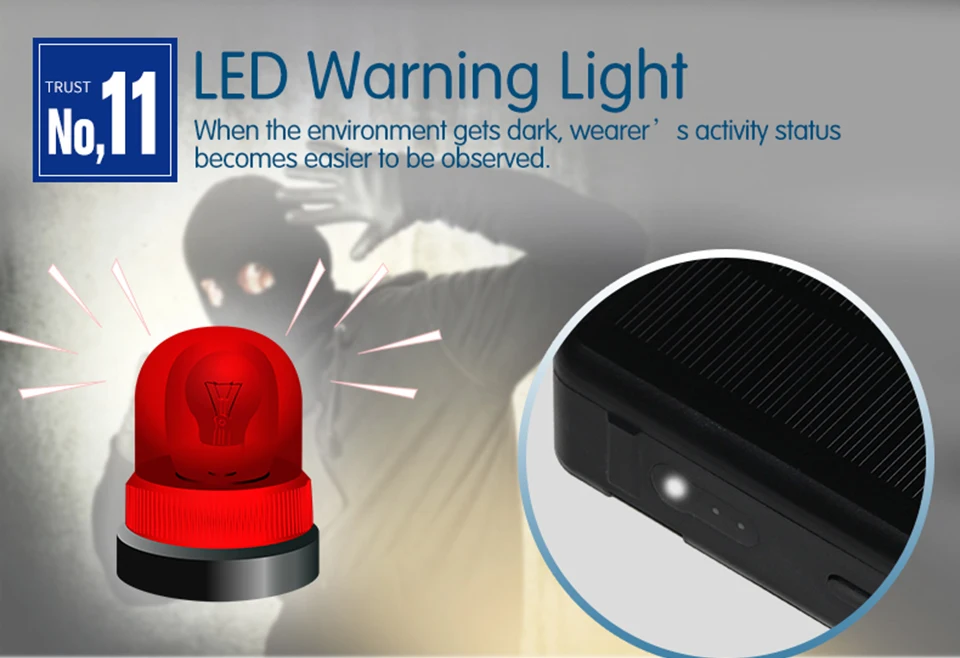

11) High-power LED Warning Light;
12) Track with Web platform/ APP/ WeChat/ SMS commands;
13) Geo-fence: when the device is run out of the safe zone, you will got an alarm;
14) Multifunctions: holder for collar, for magnet surface, for collar, for wooden...
Collar for optional: contact us
Tech Specification
| Size of GPS tracker | 97*69*31 (mm), Weight: 190g |
| Battery | 9000mAh Long Standby Battery |
| GPRS | MTK 6260D, Quad band; GSM 850/900/1800/1900 MHz |
| Antennae | Internal, GPRS Class 12 |
| Battery | Rechargeable, 9000mAh, Lithium-Polymer Battery |
| Storage Temp | -40°C-80°C |
| Operating Temp | -10°C-55°C |
| GPS | G7020-ST, 50 channel |
| A-GPS | AssistNow Online and AssistNow Offline services |
| Sensor | Built-in Vibration/motion sensor |
| Position Accuracy | <=5m |
| Sensitivity | (R)C161 dB, Cold starts:(R)C148 dB, Hot starts: (R)C156 dB Cold start:<27s, Warm Start: <5s, Hot Start:1s |
T500S cow gps 4g solar powered collar gps trackingsolar powered collar gps tracking
Product Photos
camel tracking camel tracking camel tracking camel trackingcamel tracking camel tracking camel tracking
VJOYCAR T500S Best Solar Powered Silicone Collar GSM GPS Positioning Cow GPS Animal Tracker
Fast Guide
3 Steps to set up
Preparation: A. Device Charged first
B. SIM card with SMS, Call & GPRS
C. Check your APN’s name
D. Place the device outdoors
Set up your device before using server or APP
Step 1-- Insert the SIM card
After inserting the SIM, dial the SIM’s number.
If get through with no answer, the device works.
Step 2-- Set Master Number
Send the following command by you phone:
pw,123456,center,number#
Step 3-- Set APN
Send the following command by your phone:
apn,apndata,username,user password,network code#
-- Set Ip
Send the following command by your phone:
ip,ip number,port number#
Preparation: A. Device Charged first
B. SIM card with SMS, Call & GPRS
C. Check your APN’s name
D. Place the device outdoors
Set up your device before using server or APP
Step 1-- Insert the SIM card
After inserting the SIM, dial the SIM’s number.
If get through with no answer, the device works.
Step 2-- Set Master Number
Send the following command by you phone:
pw,123456,center,number#
Step 3-- Set APN
Send the following command by your phone:
apn,apndata,username,user password,network code#
-- Set Ip
Send the following command by your phone:
ip,ip number,port number#
Notice: All commands be correct forms & don't go to next step before receiving reply from the device

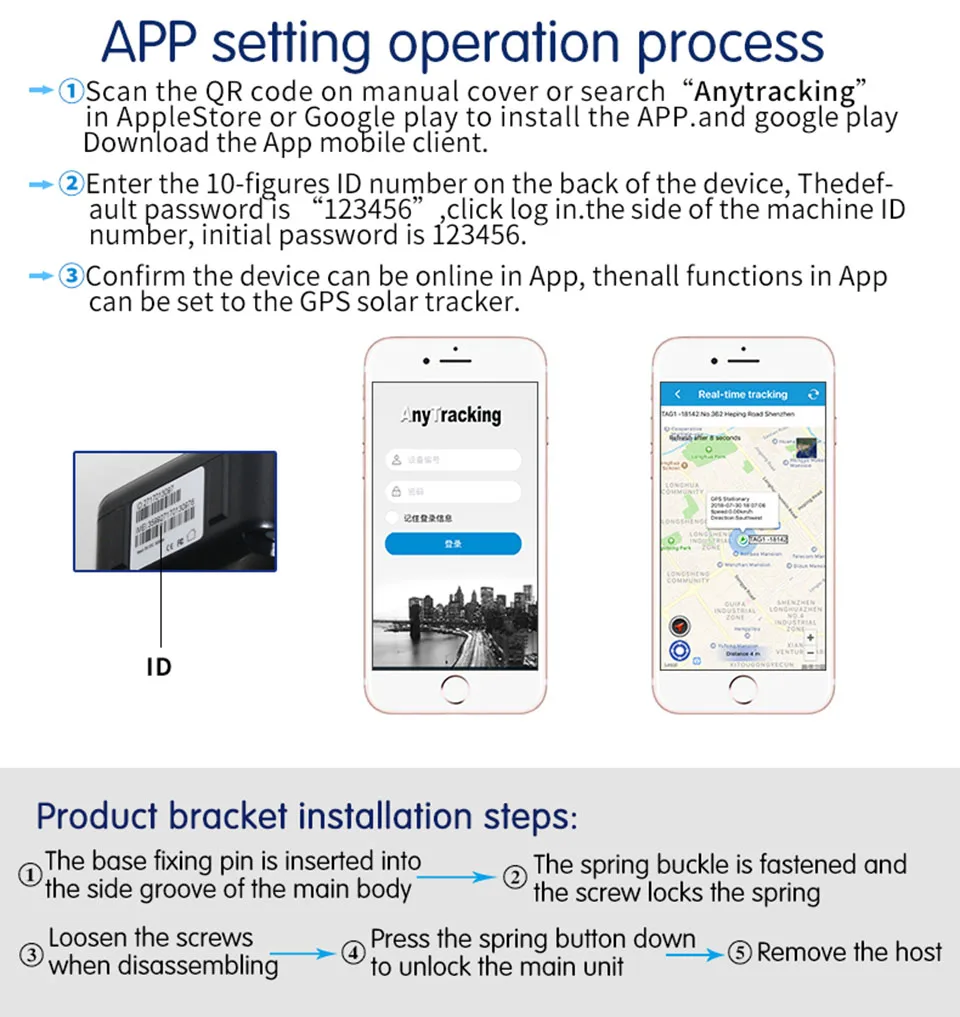

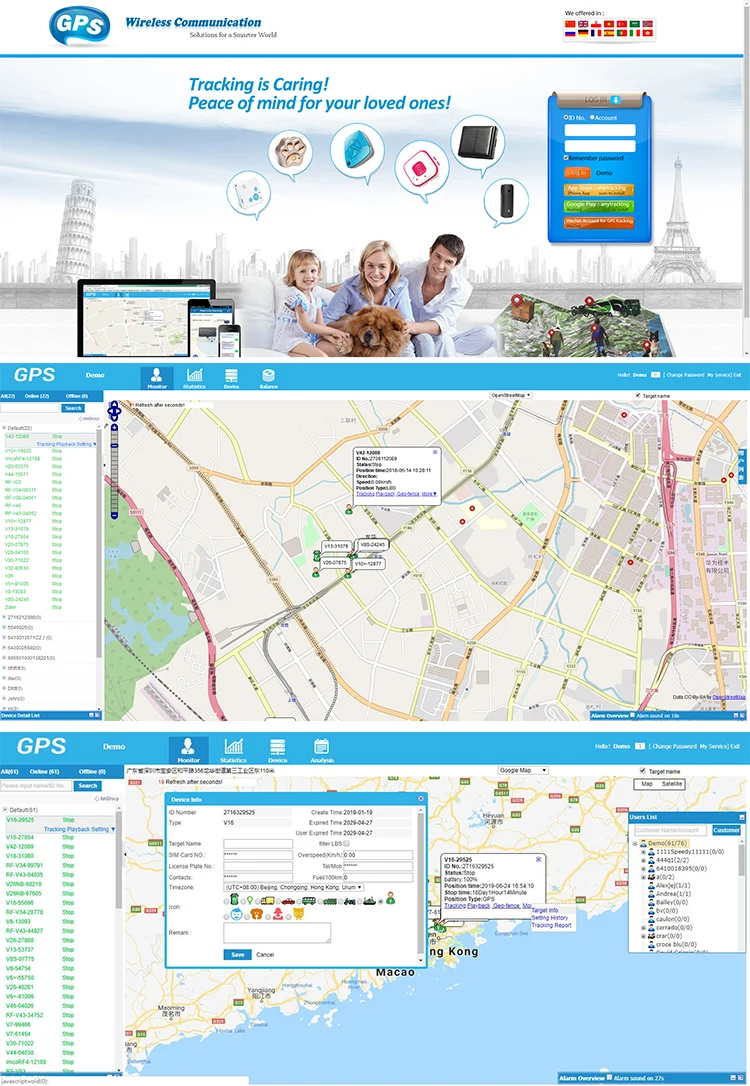

Free Platform
Free Web server & APP
After setting APN and master phone number successfully, you could try to log in our free Web server or APP. Our Web server & APP are life long free. And the data is available forever.
You could use as many devices as you like in one account.
On the Web server, you could read the history, add geo-fence and so on. On the APP
you could observe the real time tracking of the objects
Here are our free Web server & APP:
Web server: www.gps123.org
APP: AnyTracking
You could contact us and ask for a demo account to try them.
After setting APN and master phone number successfully, you could try to log in our free Web server or APP. Our Web server & APP are life long free. And the data is available forever.
You could use as many devices as you like in one account.
On the Web server, you could read the history, add geo-fence and so on. On the APP
you could observe the real time tracking of the objects
Here are our free Web server & APP:
Web server: www.gps123.org
APP: AnyTracking
You could contact us and ask for a demo account to try them.
FAQ
1) Q: Can your gps trackers work in our country?
A: As long as your country has regular 2G GSM network. If you use 3G SIM card or 4G SIM card, before testing,make sure it has 2G GSM service.
2) Q: Does your web platform/ APP have monthly or yearly subscription fees?
A: No, our web platform and APP are life-long free for our customers.
3) Q: Can I choose to use other platforms or my own servers?
A: Yes. We have long-term cooperation with many third-party platforms such as Wialon, Traccar and Gpsgate. Also, we could send our open communication protocols to you if necessary.
4) Q: How many devices can I have in one account on your platform or APP?
A: There is no limit to the number of devices used in one account. So, you can add as many devices as you like to your account.
5) Q: How do your gps trackers work?
A: We use sms to command the devices. The gps trackers would alert you by SMS/ Call in unusual cases. Also, you can monitor the devices on our free platform or APP.
6) Q: Should the devices work with SIM card?
A: Yes, you need to use a SIM card with SMS, Call and GPRS functions.
7) Q: Do you have warranty for your products?
A: Yes, we have 12-month warranty for all our products, except for unnatural damage. And we provide good after-sales service for many years.
8) Q: Do you have any certificates for your products?
A: Yes. We have EC-RED, CE and RoHS certificates; If you need other certificates, we can apply it for you after order accept.
Packaging & Shipping
Payment Terms
Alibaba(credit card), Paypal(5% transaction fees), T/T(30$ transaction fees), Western Union/Money Gram
Delivery Terms
DHL/FEDEX/UPS, 3~7 days
Special Line with customs clearance, 10~18 days
Post Delivery: 15~60 days (cheap method)
Our Services
1. Reply Time: All inquiries will be answered within 24 hours.
2. Payment Terms: We accept payment by Visa Card, Master card, Alipay, Qiwi Wallet, Western Union and Bank Transfer T/T.
3. Shipment Terms: All orders can be shipped out within 1-3 working days normally. Once the order is shipped out, we will send an email to you include the track number and the package photos.
4. Customize and Sample: OEM & ODM services are accepted if you place an order with enough quantity, and sample first is highly welcome.
5. Protocol Open: With it, you could integrate with your own platform directly.
6. MOQ Limitation: No MOQ limit, 1 pc for sample checking is available.
7. Warranty:
7.1. All orders will be in good quality, package condition and will be strictly checked before shipment. We will try our best to avoid any unhappy problem from quality or package, therefore, please kindly let us know if you are not satisfied when receive the orders.
7.2. All orders enjoy 12months quality warranty since shipment. We offer free repair always whether it’s with or without warranty period, but buyers need to pay for the accessories cost and shipping cost.
7.3. Please kindly note that, because different display and/or computer monitor, the color will be a little aberration. Therefore, hope your understanding. If you are not happy with the orders, please feel free to let us know.
Company Information
VJOY CAR ELECTRONICS LIMITED (hereinafter called as VJOYCAR/VJOY) established in 1999,is a worldwide group of companies that is committed to being your best China supplier & partner in the field of "In-Car" electronics and vehicle safety items.
In the past years,we have been pushed out many unique products to the market and widely accepted by our cutomers.Current now,our main products are GPS tracker & GPS tracking software,car alarm & motorycle alarm system,parking sensor and vehicle rearview system.Our products are widely exported to USA, UK, Germany, Poland, Denmark, Brazil, Chile,Russia, UAE, India, South Africa,Nigeria and so on.All of our products are with "Industy Standard" and have passed CE full testing(Health,Safety,EMC and Radio) and got the Certifiations.
In our peak time, we ever had around 2000 workers. After 2008 economy crisis, our factory have shut off 8 producation lines, and only 200 workers left now. However, our hardware engineer, software engineer, producation manager, skilled workers...all are here still. Around 20 years working experience, we are open and professional on your project, from OEM to ODM. Wish have chance to cooperate with you.
Detailed CE certification and testing reports, please don't hesitate to let us know. THANKS.
