ICarvisions internal sync IP67 super mini SSD MDVR GPS 3G 4CH 12v car cctv dvr system
4 CH SSD MDVR (Waterproof IP67, Hand-sized)
ICarvisions internal sync IP67 super mini SSD MDVR GPS 3G 4CH 12v car cctv dvr system
4 CH SSD MDVR (Waterproof IP67, Hand-sized)
★ Waterproof & Dustproof IP67
★ 4 x 720P AHD / 960H / D1 / HD1 / CIF + 1 x IPC (720P / 1080P)
★ Internal G-Sensor, with GPS, 3G / 4G, Wi-Fi (5.8 Ghz ) optional
★ storage unlimited with 2.5'' SSD + SD Card slot×1 (up to 128GB)
★ On board UPS 8 seconds delay power-off for data protection
★ 8V-36V wide voltage power supply
★ Dimensions :146*155*38mm
Our Mobile DVR with 3G / 4G, GPS, WiFi modules optional, according to different demands.
GPS: For map, location and route tracking
3G / 4G: For real-time video and monitoring
Wi-Fi: For automatically downloading video file
JH0 series model names:
| Model Name | JH0-GNN | JH0-GNW | JH0-GWN | JH0- GWW | JH40-GFN | JH- GFW |
| Details | GPS | GPS WIFI 5.8G | GPS 3G(WCDMA) | GPS 3G(WCDMA) WIFI 5.8G | GPS 4G FDD | GPS 4G FDD WIFI 5.8G |
| Function | JHO | |
| System | Language | English / Chinese |
| Operation Interface | Graphical User Interface(OSD menu) | |
| Password Security | 2 Levels: Administrator & User | |
| Video | Video Input | |
| Video Output | 1 Channels (Rear Panel on RJ45&AV-OUT Port) | |
| Video Display | Single picture, 1~5 pictures | |
| Signal System | PAL / NTSC ( PAL@100 frame 720P/sec; NTSC@120 frame 720P/sec ) | |
| Image Compression | H.264 Main profile | |
| Audio | Audio Input | 4 Channels |
| Audio Output | 1 Channel | |
| Record Format | Synchronized A/V recording | |
| Recording & Storage | Image Resolution | CIF / HD1 / D1 / 960H / 720P/1080P optional |
| Video Coding | ISO14496-10 Industry Standard | |
| | CIF: 1536Kbps ~ 128Kbps, | |
| HD1/D1: 2048Kbps ~ 400Kbps, | ||
| 960H: 2048Kbps ~ 400Kbps, | ||
| 720P:4096Kbps ~ 400Kbps | ||
| 1080P:4096Kbps ~ 400Kbps | ||
| Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest) | ||
| Audio Bit Rate | 40Kbps | |
| Storage | 1 SSD and 1 SD card | |
| Alarm | Alarm Input | 4 Channels, Select Trigger for either less than 1VDC or greater than 5VDC |
| Alarm Output | 2 Channel, 12V output | |
| Communication Ports | RS485 | 1 Port for PTZ control or Data Device usage |
| RS232 | 1 Port for communication or data usage | |
| RJ45 Network | 1 Port of RJ45, For connection to an IP camera with maximum of 1080P | |
| USB | 1 Ports for USB 2.0, download video files & upgrade firmware | |
| Wireless Communication | 3G* | 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module |
| 4G* | 4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier | |
| Wi-Fi* | Internal Wi-Fi 802.11b/g/n ( 2.4 /5.8 Ghz) optional | |
| GPS* | Int'l Standard GPS | Internal GPS module. Real-time geographic coordinates, speed information |
| G-Sensor | Internal G-Sensor | Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates |
| Software | PC Playback | A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR |
| IVMS | Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. | |
| Software Upgrade | Local or Remotely | Upgrade through the USB2.0 or remotely via IVMS platform |
| Voltage Input | +8~+36V | |
| | 12V | 12V(+/-0.2V),Max 3A |
| ACC Detection | ≤4V | Power-off |
| ≥6V | Power-on | |
| Video Input Resistance | 75Ω | 75Ω |
| Video Output Voltage | 2Vp-p | 2VP-P CVBS output analog signal, screen input requires 75Ω resistance |
| I / O Port | <1V | Low voltage trigger |
| >5V | High voltage trigger | |
| Operational Temperature | -25℃~80℃ | Install in well ventilated area, protected from moisture, heat, dust and vibration. Confined by SSD temperature also. |
| Dimensions | dust and vibration. Confined by SSD temperature also. | |

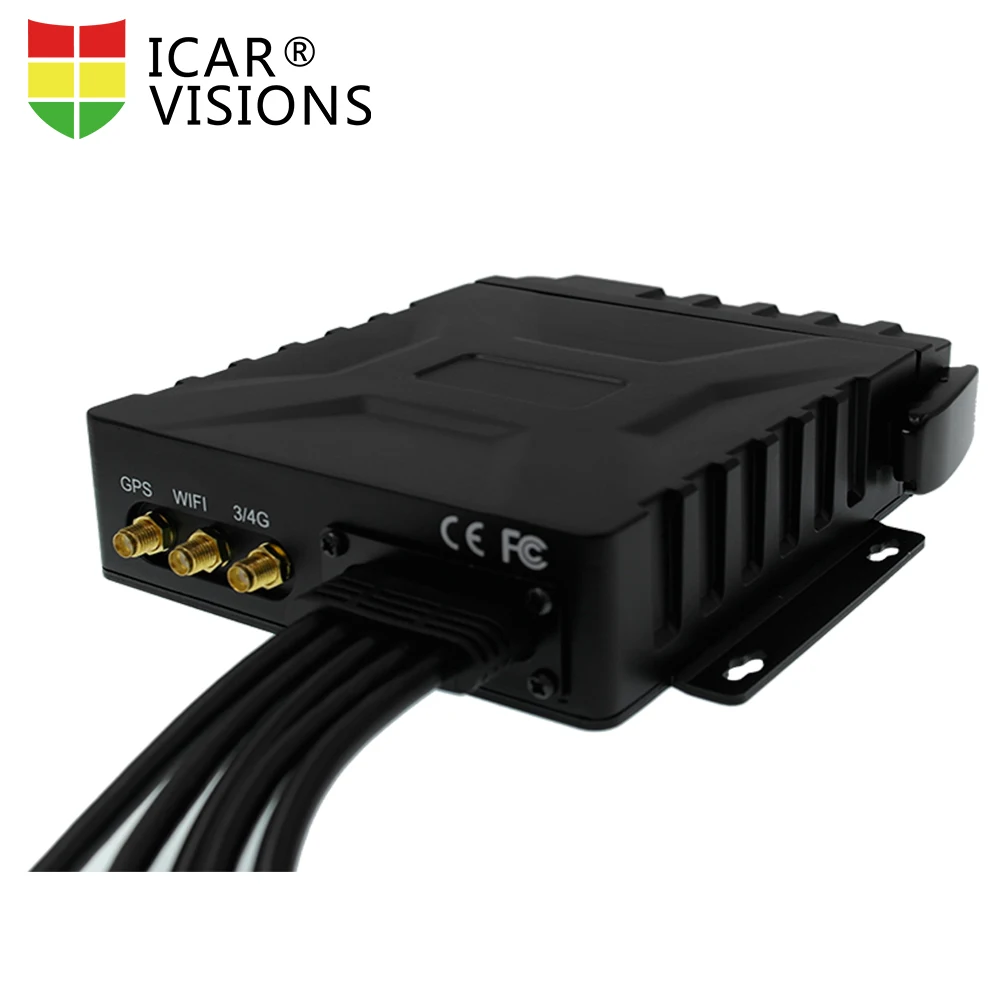

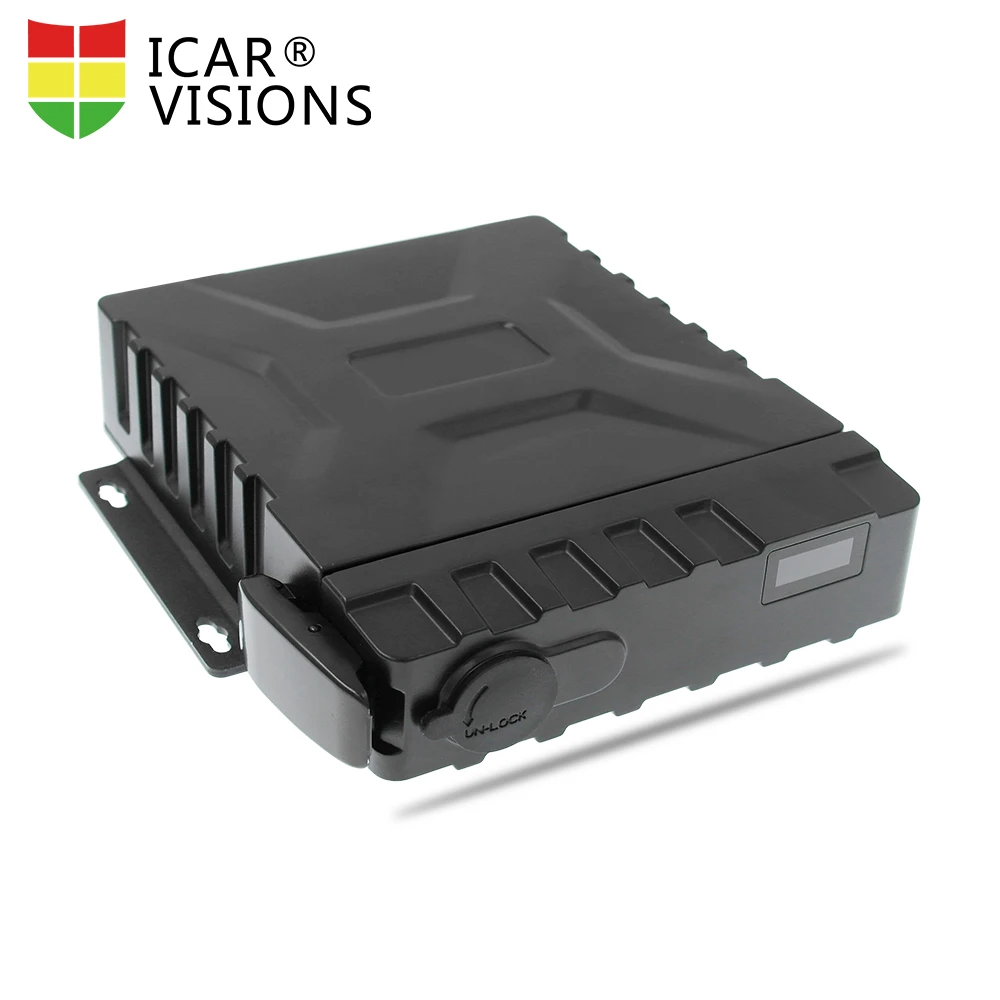

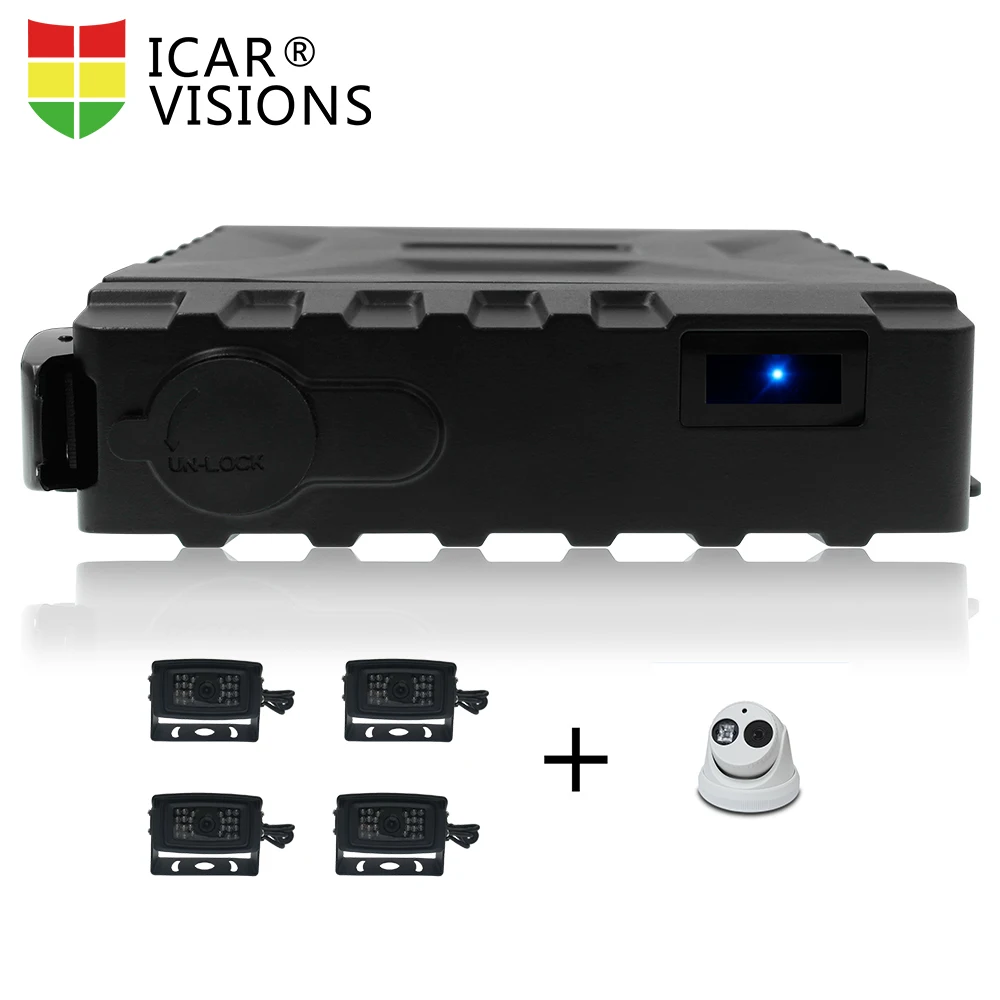

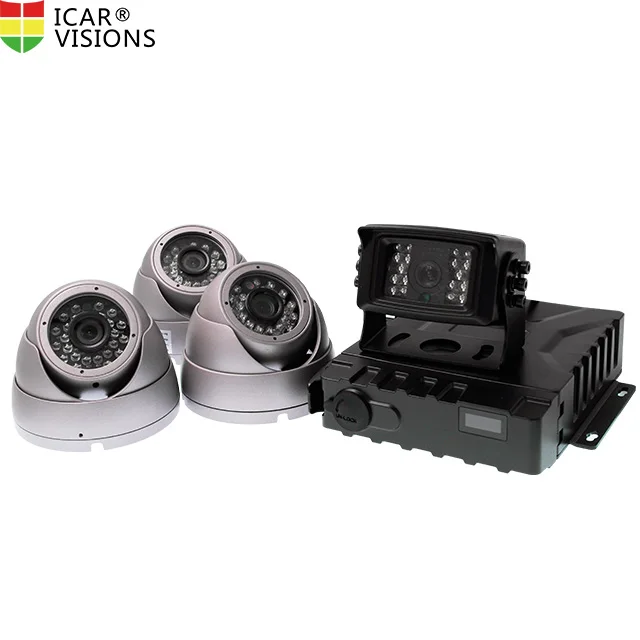

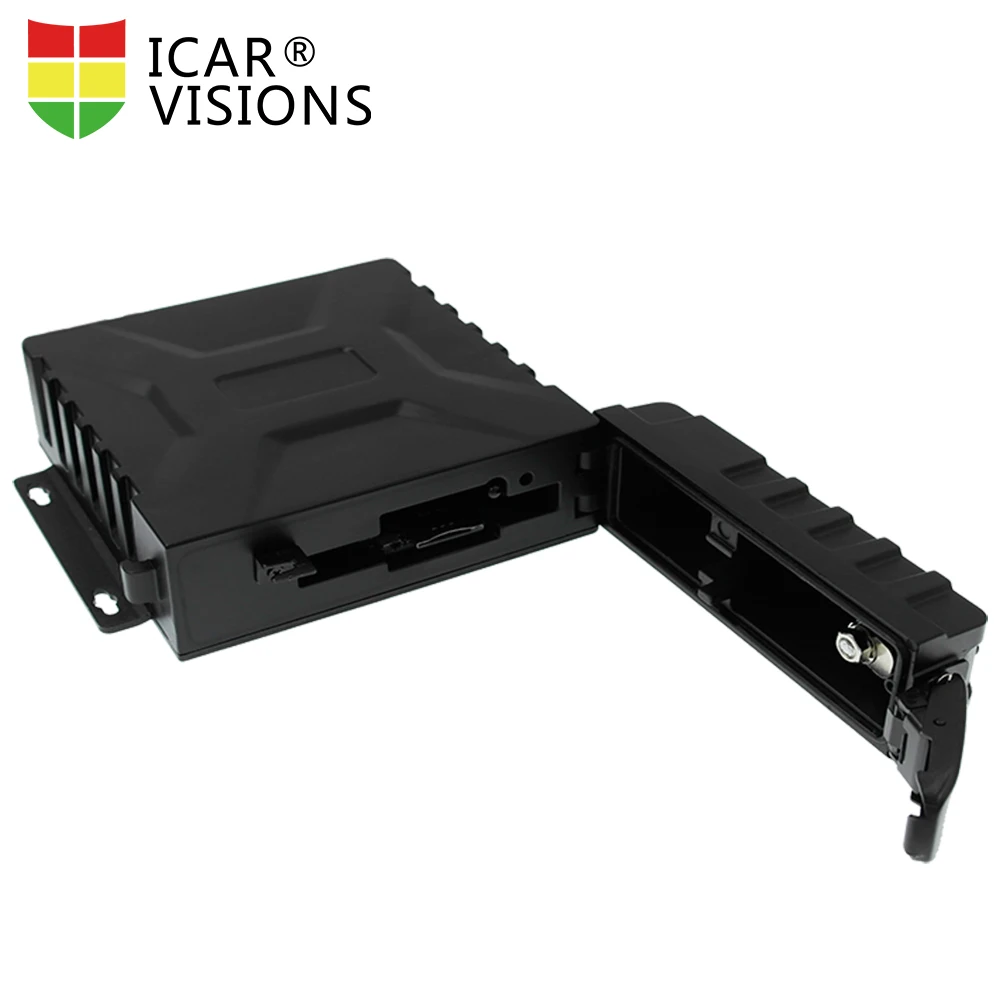

Detailed Images
Related Products
Customized IVMS Server,Client and APP are all available,which developped by ourselves.
ICARvisions is a solutions based, global leader specializing in vehicle related hardware and software design, manufacture and deployment of Mobile Digital Video Recorders (MDVR), Mobile Network Video Recorders (MNVR) and Sensors, Cameras, Cables, and Accessories.And we have a strong RnD team so we have developped our own server and software for any OEM & ODM projects.
Our Company
ABOUT ICAVISIONS
ICARvisions was established by a group of senior R&D software and hardware engineers who have specialized in MDVR development internationally for over 10 years with one goal in mind; we are a solutions based, global leader specializing in vehicle related hardware and software design, manufacture and deployment of Mobile Digital Video Recorders (MDVR), Mobile Network Video Recorders (MNVR) and Sensors, Cameras, Cables, and Accessories.
Contact us today for a comprehensive solution tailored to your company's need.
Certifications
FAQ
How to order from us
1. Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
Payment Terms: T/T,
1. Under T/T, there will be USD35.00 bank charge for each individual remittance.
2. If order value less than 10,000USD, we should get 100% payment before production;
If order value more than 10,000USD, we accept 40% deposit before production and the balance should be paid off before delivery.
Lead Time
Normally 1~15 working days based on order quantity.
Technical Support
We have ONE to ONE FREE technical support after you take the goods, and if you have any question for the technology of our products, please email to us, reply will be sent to you immd;
