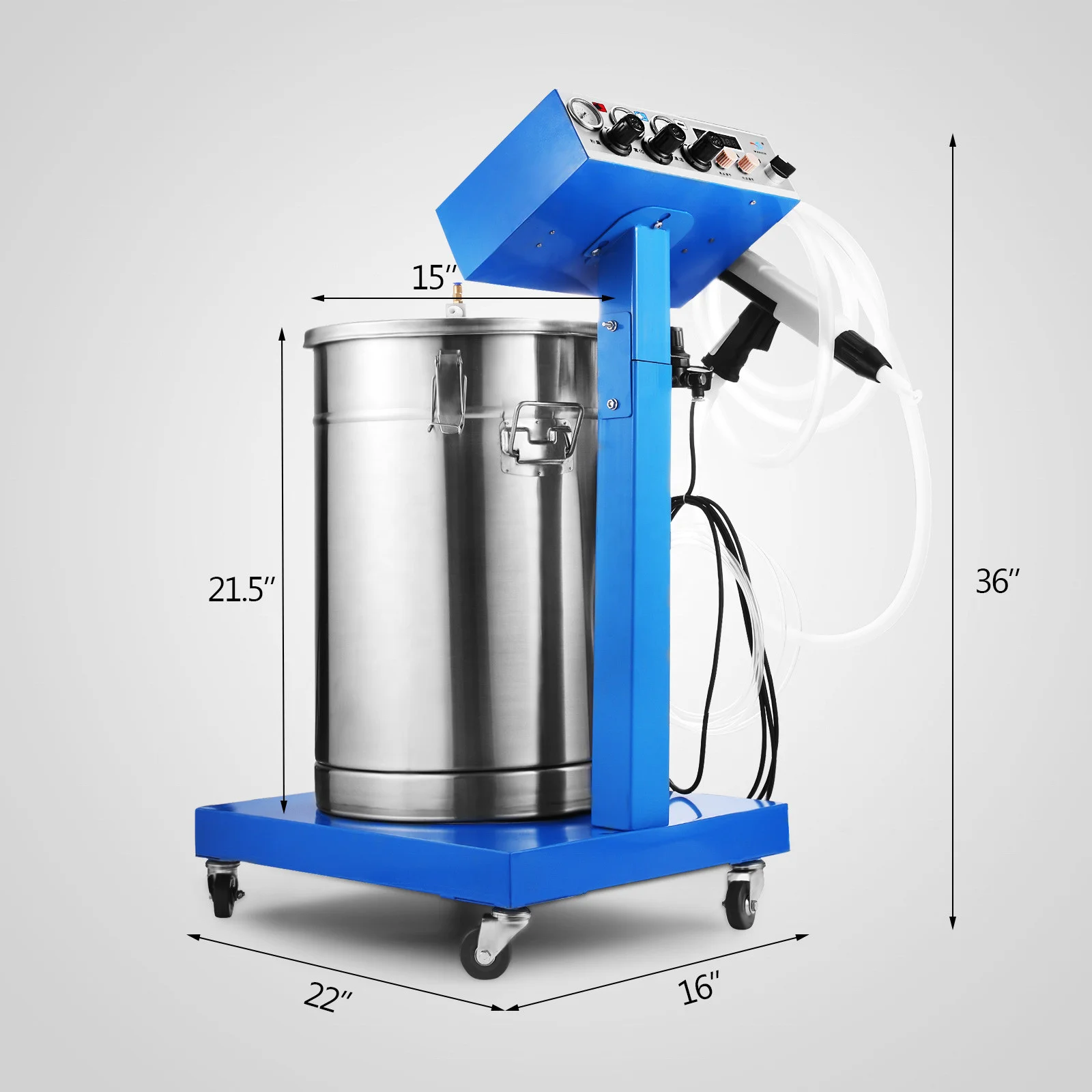

WX 958 Digital Display type Electrostatic Powder Coating Machine with 45L powder hopper

Product Overview

Description

ELECTROSTATIC POWDER COATING MACHINE/EQUIPMENT

TYPE: WX-958





BRIEF INTRODUCTION



The WX-958 electrostatic powder coating machine is one kind of Powder Coating Equipment which is suitable for custom shaped or structured products finishing job ,wehad manufacturued and sold it for more than 15 years, Because of its economic price and good quality with low repairing ratio. It is wil usually used globally and becomes more and more popular by our both domestic and abrod customers;

The electrostatic powder coating machine can apply in all kinds of powder but without malal element.

APPLICATION

1. Material :Thermoplastic or a thermoset polymer.

2. Workpiece : Metals such as household appliances, aluminium extrusions, drum hardware, and automobile and bicycle parts.

3. Note: The normal WX-958 spray gun can't be sprayed Metallic powder except the speical processing ,so if any speical requirement for metallic powder ,please kindly tell us in advance.



WORKING PRINCIPLE



This electrostatic powder coating machine is typically applied electrostatically and is then cured under heat to allow it to flow and form a "skin". Applying the electrostatic powder coating to objects is to give negative electric charge to the powder, which is then sprayed towards your workpiece by high voltage electrostatic and then the power will be attracted onto the workpiece.





OPERATION STEPS



1. Install all the connector ,lines, cables & hose correctly;

2. Ensuring the good gournding effect;

3. Turning on switch of power ;

4. Pressing the button of spray gun and testing the High voltage, if required, adjust it;

5. Pouring into the powder to powder feeding hopper:
6.  Starting powder spraying operation by worker;



TECHNICAL PHARAMETER



Input Voltage	Power	Protection Grade	Output HV	Output Current
220V/50HZ	45W	IP-54	0~100KV	0~150μA
Compressed Air-in	Air Consumption	Injection Capacity	Polarity	Working Temperature
0.4~0.6Mpa	Max. 13.2m3/h       (At 0.4Mpa)	Max. 550g/min	Negative	-10℃~45℃







 ADVANTAGES & CHARACTERISTICS



1. This Powder Coating Machine has good quality with best price, easily operate.

2. The highest voltage can be up to 100 KV and the output current is only 150uA, so we can use the electrostatic powder coating machine safely.

3. The maximum volume of the powder can reach 550 g/min, which greatly improved the production efficiency.

4. Powder hose and inside powder hose are utilizing Anti-electrostatic material so that all kinds of powder won’t stick to around.

5. Current and voltage can be separately adjusted, the Powder Spraying performance can achieve the best effect.



CONFIGURATION & DELIVERY

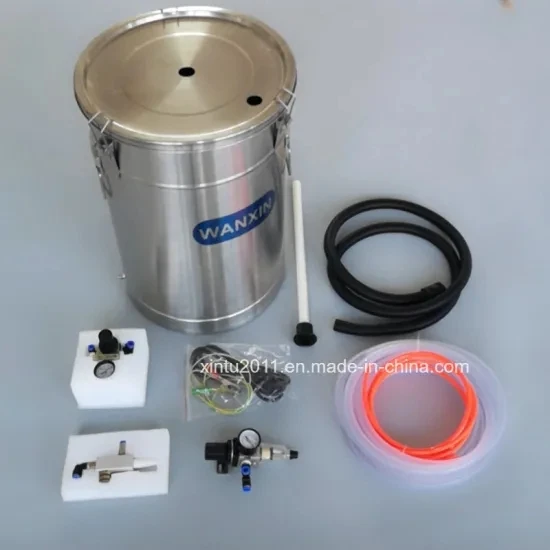

Configuration:

• 1× Control generator


• 1× Powder spray gun


• 1× Stainless fludizing hopper (45L)


• 1× Trolley


• 1× Spray gun accessories package


• 1× Powder injector


• 1× Spray gun cable  5m


• 1× Powder feeding hose 5m


• 1× Powder cleaning hose 5m


• 1× Oil-water separator


• 1× Air pressure regulator


• 1× Operation manual





Delivery :

• Order quantity ≤10 sets : Generally ,we arrange delivery within 2~3 days;


• Order quanity >10 sets: Netotiable according to factory actual production conditions;
