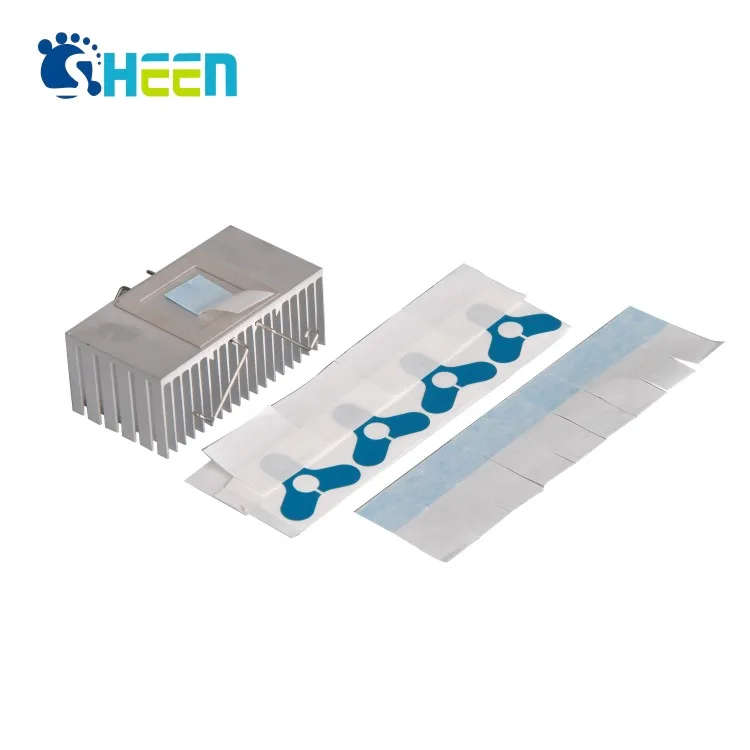

Sheen pcm Phase Change Material For communications equipment and wireless stations
- Category: >>>
- Supplier: Dongguan Sheen Electronic Technology Co. Ltd.
Share on (60651596696):
Product Overview
Description
Sheen pcm Phase Change Material For communications equipment and wireless stations
Recommend Products
Product Description
SP205A is a thermal phase change Materials(PCM).The phase change Temperature is 50℃.SP is solid sheet At room temperature ,and it begins to Soften and flow at temperature above Its transition temperature. SP is inherently tacky, flexible and withe inherently tacky, flexible and with Cut and used between the radiator and Power consumption electronic devices To reduce the thermal resistance. SP is easy to operate and has high reliability
Product Name | Thermal Phase Change Material | ||
Color | Gray | Test Method | |
Construction & compostionn | Silicone elastomer, thermally conductive ceramic | Visual | |
Thickness (inch/mm) | 0.005-0.127mm | / | |
Specific Gravity, (g/cc) | 2.85g/cc | ASTM D792 | |
Shelf life(month) | 12 | ASTM D2240 | |
Phase Change Temperature | 50℃ | ASTM D412 | |
Continuous Use Temp °F/ °C | -40 to 125°C | ASTM D575 | |
Dielectric Breakdown Voltage,(V) | >2500 | ASTM D412 | |
Dielectric Constant, (1000 Hz) | 3.0 | / | |
Volume Resistivity ohm-meter | 2.0 X 1010 | UL 94 | |
Fire rating | 94 V0 | ASTM D5470 | |
Thermal Conductivity,(W/m-K) | 3.0 | ASTM D5470 | |
Dielectric Breakdown Voltage | >200 VAC/mil | ASTM D149 | |
Volume Resistivity | 1*10^13ohm-cm | ASTM D257 | |
Dielectric Constant @1MHz | 5.8 | ASTM D150 | |
Features and Benefits | - 3.0W/mK thermal conductivity - High thermal conductivity, low thermal resistance - Solid state at room temperature and liquid state after phase change temperature - Inherently tacky and easy to use - High reliability | ||
Customization Ability
Different thermal conductivity can be customized
1.0~3.0w/mk
Different mechanical properties can be customized
•Hardness SHORE 00 50~80
•Heat conducting silica gel resistant to friction, breakdown and toughness
Various colors and shapes can be customized
•Customize different colors according to customers' requirements
•Customized roll
•Customized roll
Reliability Test
1000 hours cold and hot shock test
1000 hours High temperature and humidity test
1000 hours high temperature aging test
Our products have passed 1000 hours cold and hot shock test,1000 hours double 85 test,1000 hours high temperature aging test,Committed to providing more reliable heat conduction solutions for automobile, communication, security and other industries.
Sertifications
ISO9001:2015
ISO14001:2015
IATF16949:2016
UL
REACH
ROHS

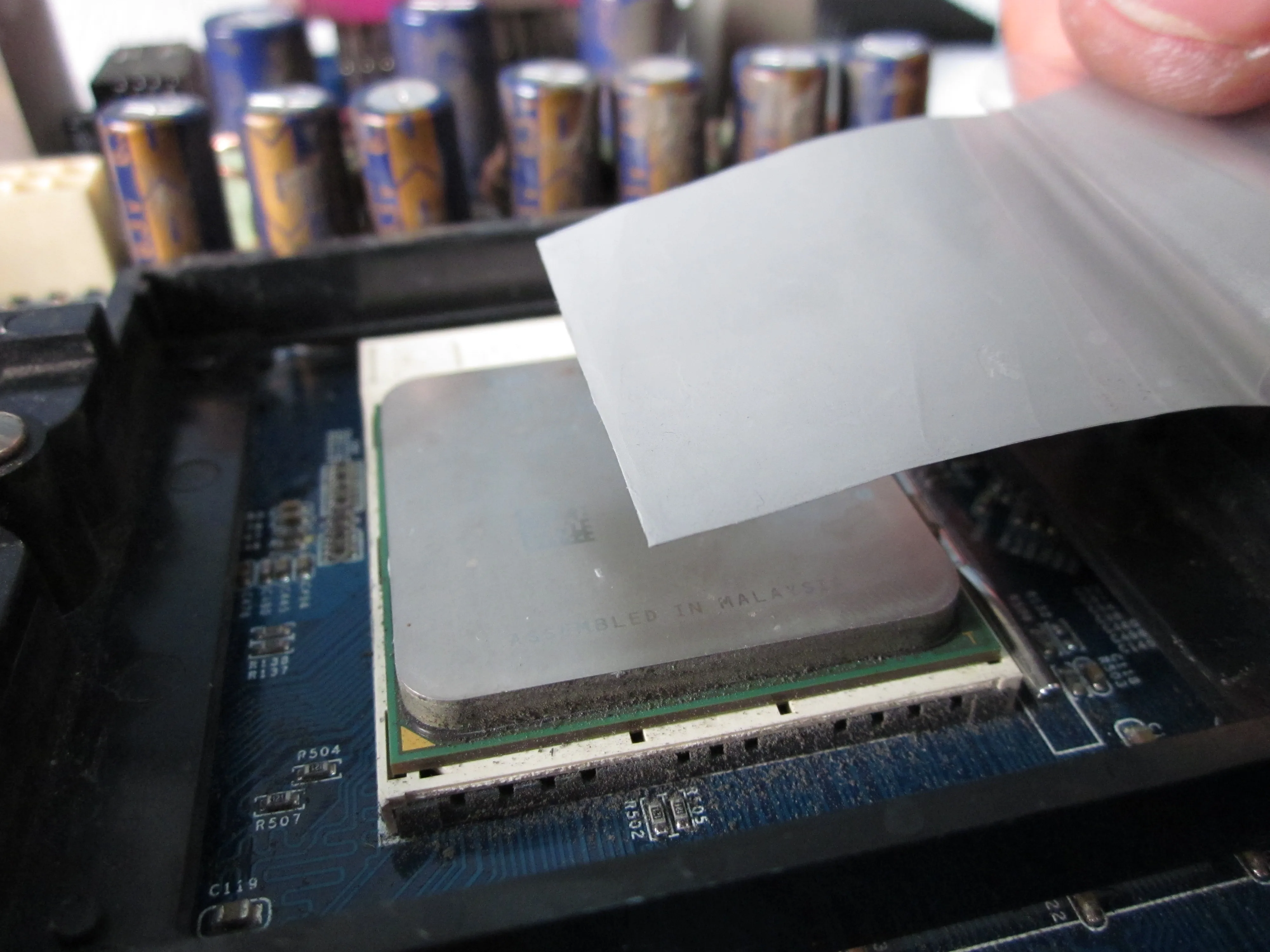

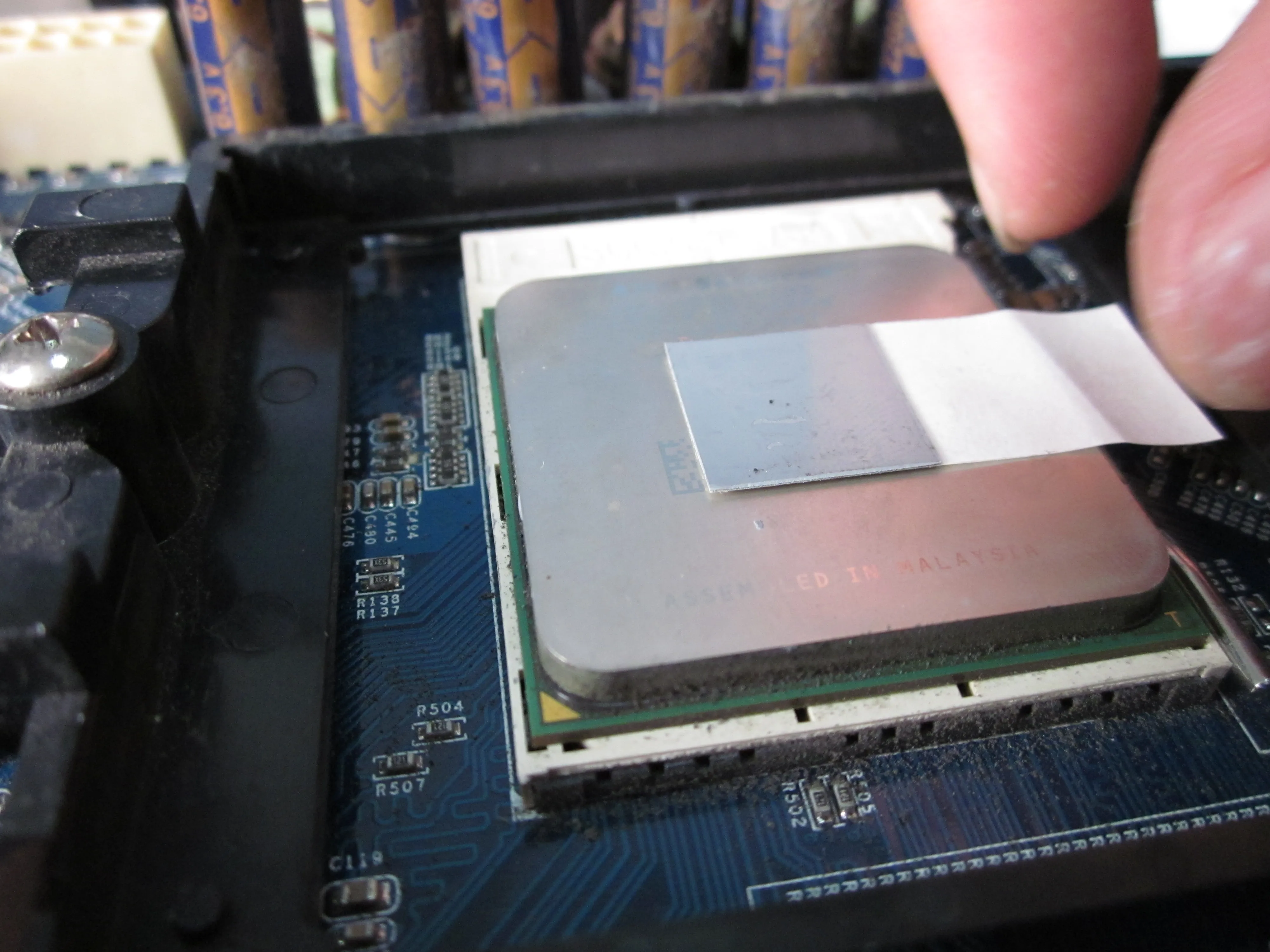

Details Images
Applications
- High Frequency Microprocessors
- Notebook and Desktop PCs
- Computer Serves
- Memory Modules
- Cache Chips
-LED lighting
- Notebook and Desktop PCs
- Computer Serves
- Memory Modules
- Cache Chips
-LED lighting
Company Introduction
Dongguan Shengen electronic / Shengyuan New Material Co., Ltd. was founded in 2008. It is a manufacturer specializing in R & D and customization of high reliability thermal conductive materials. We are committed to providing more reliable heat conduction solutions for automobile, communication, security and other industries. The company has a professional R & D team and complete testing equipment. The company's main products are SF thermal conductive silicone sheet, SE thermal conductive gel, SP thermal conductive phase material, AF silicon free thermal pad and SG thermal conductive paste. At present, it has become the main supplier of many well-known manufacturers at home and abroad. The company has obtained iatf16949:2016, iso14001:2015, iso9001:2015 system certification and the title of national high-tech enterprise.
