stainless steel water pump foot valve with strainer
- Category: >>>
- Supplier: Tianjin Tanggu Jinbin Valve Co. Ltd.
Share on (60651756769):
Product Overview
Description

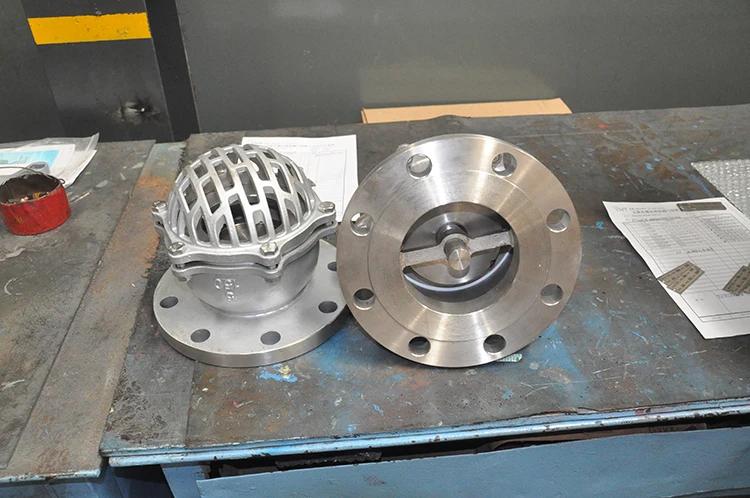

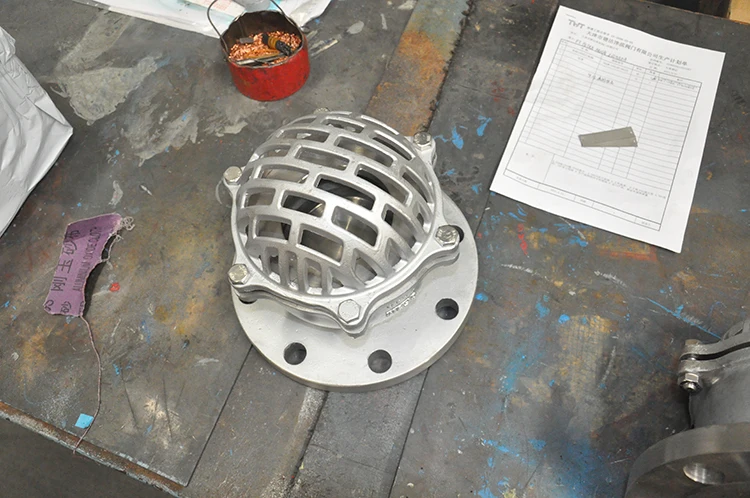

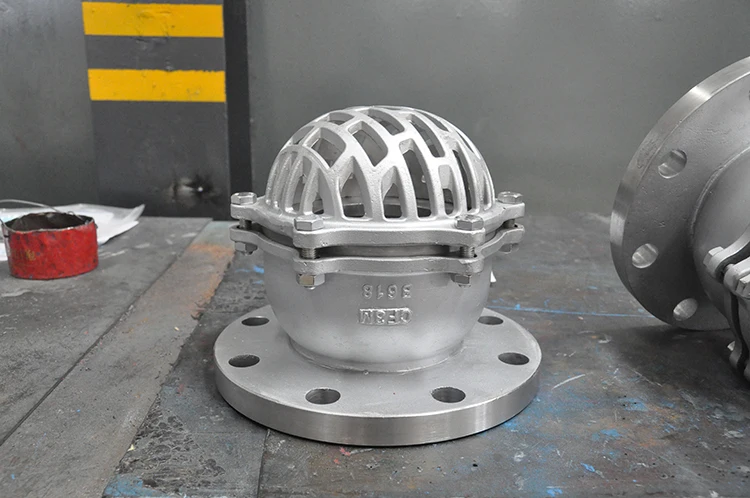

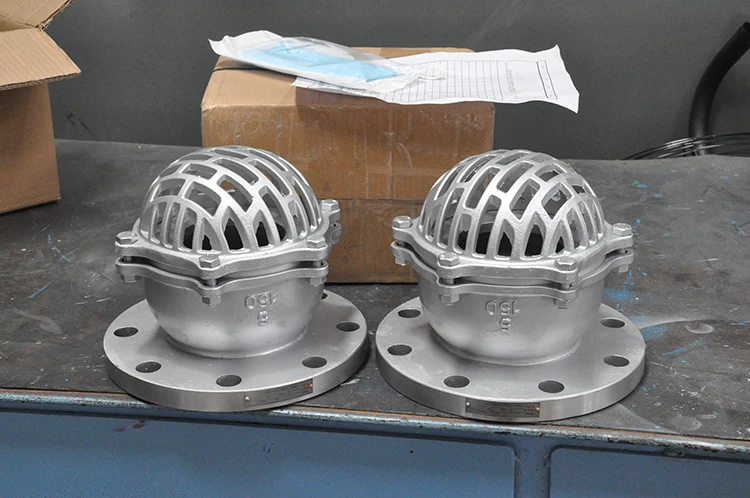

stainless steel water pump foot valve with strainer
Product Description
Brief introduction:
Foot valve is a kind of low-pressure flat-plate valve. Its function is to ensure the unidirectional flow of liquid i, to make the pump work normally when the pump stops working for a short time, so that the liquid can not return to the water source box, to ensure that the suction pipe is filled with liquid, so as to facilitate the start-up of the pump.
Application:
Foot valves are mainly used for slurry treatment of pumps etc.. Usually, bottom valves are installed at the bottom of underwater suction pipes of pumps to prevent slurry backflow.
Pressure and temperature
| working pressure | PN6, PN10, PN16 |
| testing pressure | Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. |
| working temperature | -10°C to 80°C (NBR) -10°C to 120°C (EPDM) |
| suitable media | slurry |
Main material list
| part | material |
| body | stainless steel |
| disk | stainless steel |
| sealing ring | rubber |
| gasket | asbestos board |
Product Process
Related Products
Company Information
Certifications
Our customers
Contact Us
FAQ
Q1: Can I have my own customized product?
A: Yes, your customized requirements for color, size, package, mark, etc.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment
