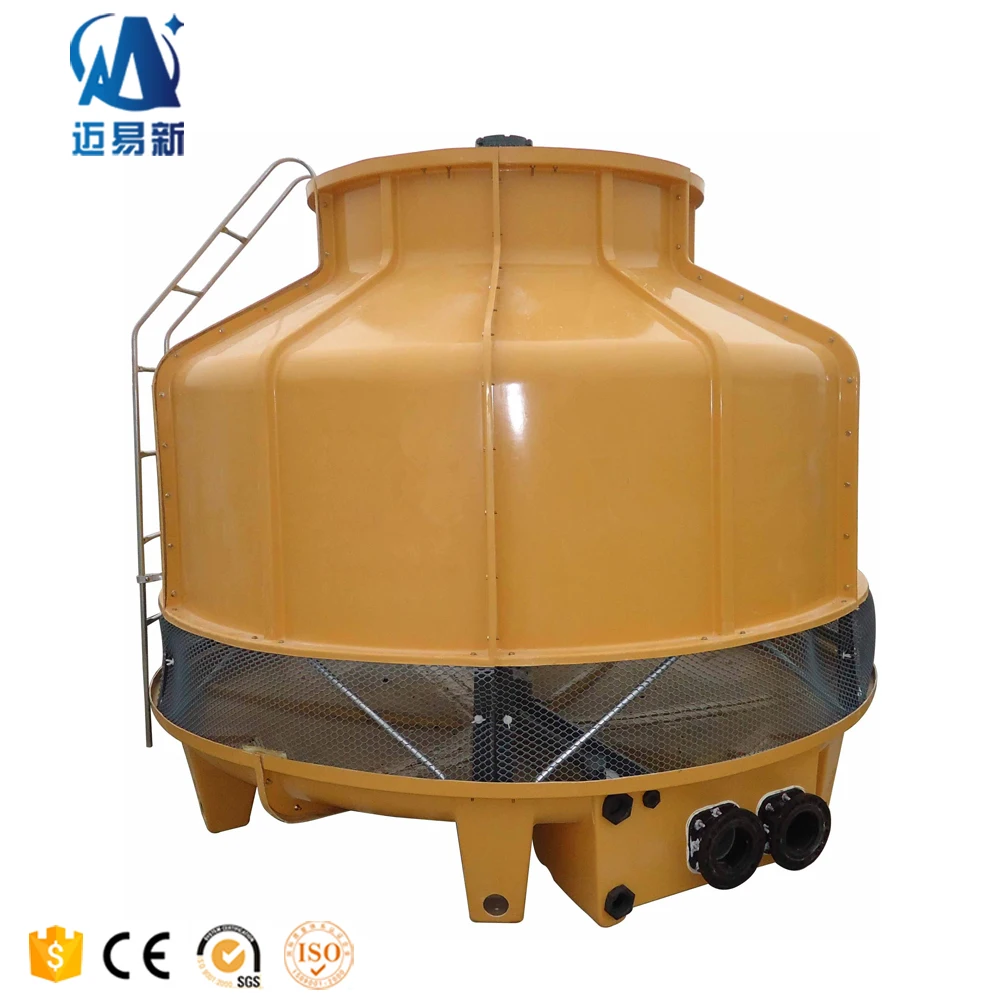

10ton fiber reinforced plastic Cooling tower for water chiller
- Category: >>>
- Supplier: Zhangjiagang MC Machinery Co. Ltd.
Share on (60651942687):
Product Overview
Description
Product Description
Product Application
10ton fiber reinforced plastic Cooling tower for water chiller is mainly used for cooling hot water in different field like
plastic manufacturing,building and so on.In plastic field,it always used together with industry water chiller.
plastic manufacturing,building and so on.In plastic field,it always used together with industry water chiller.
Main Features
1)Body structure
The tower body is made of special glass fiber reinforced plastic.
2)Wind tunnel
For the high strength compound materials power recycling wind tunnel, the air current organization is reasonable, the efficiency
is high, the weight is light, anti-corrosive.
3)Air blower
Uses the wing epoxy glass fiber reinforced plastic leaf blade, the amount of wind is big, the efficiency is high, the noise is
low, anti-corrosive, the assembling and dismantling is convenient. May request according to the user to select the Baoding
Propeller Factory or the Shanghai chemical industry machinery two factory air blowers...
4)Motors
The fully hermetic three-phase motors are used to ensure large torque force and good property in water resistance.
5)Units are equipped with specially-designed muffler cover and noise absorption screens.
The tower body is made of special glass fiber reinforced plastic.
2)Wind tunnel
For the high strength compound materials power recycling wind tunnel, the air current organization is reasonable, the efficiency
is high, the weight is light, anti-corrosive.
3)Air blower
Uses the wing epoxy glass fiber reinforced plastic leaf blade, the amount of wind is big, the efficiency is high, the noise is
low, anti-corrosive, the assembling and dismantling is convenient. May request according to the user to select the Baoding
Propeller Factory or the Shanghai chemical industry machinery two factory air blowers...
4)Motors
The fully hermetic three-phase motors are used to ensure large torque force and good property in water resistance.
5)Units are equipped with specially-designed muffler cover and noise absorption screens.
Technical Parameter
Model | Flow m³/h | Diameter mm | Height mm | Power KW | Fan Diameter mm | Air Volume cmm | Water Pressure Kpa | Weight KG | Running Weight KG |
MCT-8T | 6.2 | 945 | 1380 | 0.18 | 525 | 70 | 13 | 42 | 180 |
MCT-10T | 7.8 | 945 | 1530 | 0.18 | 600 | 85 | 13 | 46 | 190 |
MCT-15T | 11.7 | 1195 | 1415 | 0.37 | 600 | 140 | 13 | 54 | 290 |
MCT-20T | 15.6 | 1195 | 1590 | 0.55 | 730 | 160 | 14 | 67 | 300 |
MCT-25T | 19.5 | 1400 | 1820 | 0.75 | 730 | 200 | 16 | 98 | 500 |
MCT-30T | 23.4 | 1650 | 1705 | 0.75 | 730 | 230 | 16 | 116 | 530 |
MCT-40T | 31.2 | 1650 | 1775 | 1.5 | 890 | 280 | 16 | 130 | 550 |
MCT-50T | 39.2 | 1830 | 1805 | 1.5 | 890 | 330 | 17 | 190 | 975 |
MCT-60T | 46.6 | 2145 | 1955 | 1.5 | 1150 | 420 | 17 | 240 | 1250 |
MCT-80T | 62.6 | 2145 | 2035 | 1.5 | 1150 | 450 | 18 | 260 | 1280 |
MCT-100T | 78.1 | 2900 | 2370 | 2.2 | 1410 | 700 | 21 | 500 | 1600 |
MCT-125T | 97.5 | 2900 | 2555 | 2.2 | 1410 | 830 | 23 | 540 | 1640 |
MCT-150T | 117 | 2900 | 2555 | 2.2 | 1410 | 950 | 23 | 580 | 1680 |
MCT-200T | 156 | 3310 | 3165 | 4 | 1750 | 1250 | 30 | 880 | 1960 |
MCT-250T | 195 | 4120 | 3580 | 5.5 | 2100 | 1750 | 33 | 1080 | 2800 |
MCT-300T | 234 | 4730 | 3680 | 7.5 | 2400 | 2000 | 34 | 1760 | 3930 |
Detailed Images
Machine Parts

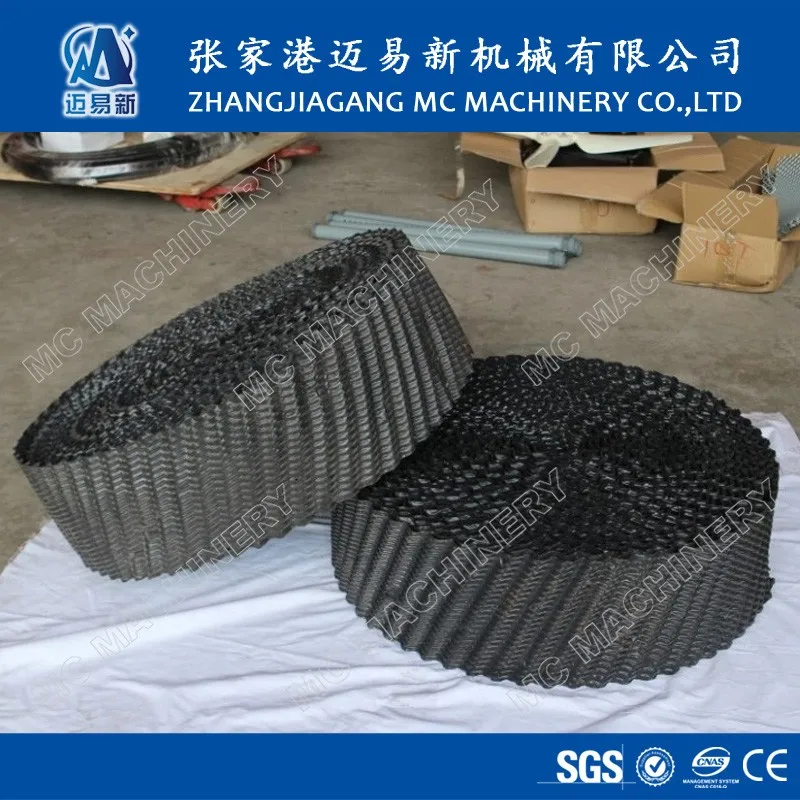

Name: Film
Brand: MC
Main Machine Part

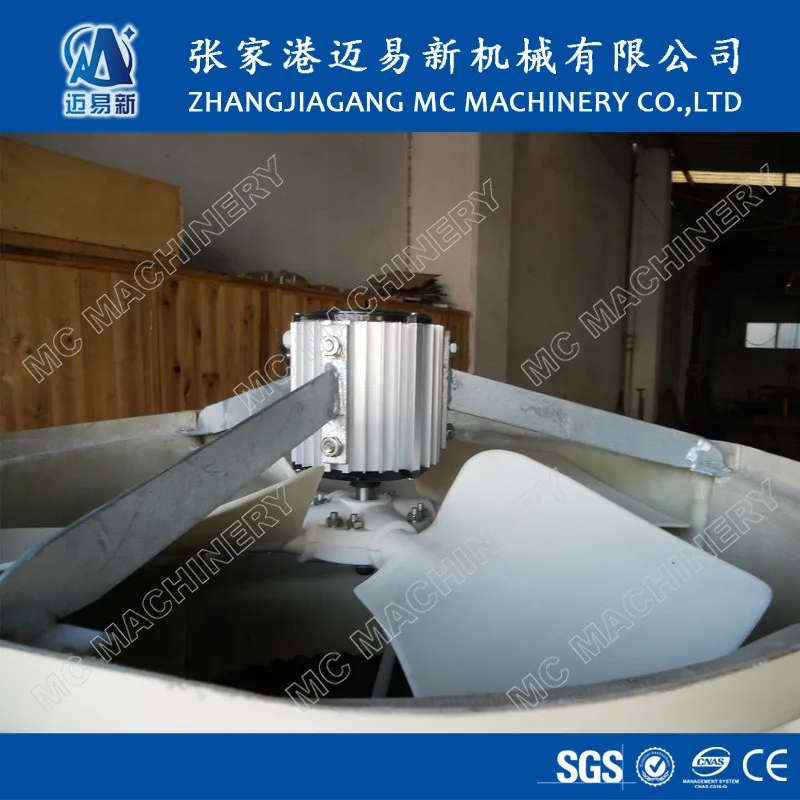

Name: Cooling Fan
Brand: MC
Fan motor power:670W
Machine Parts

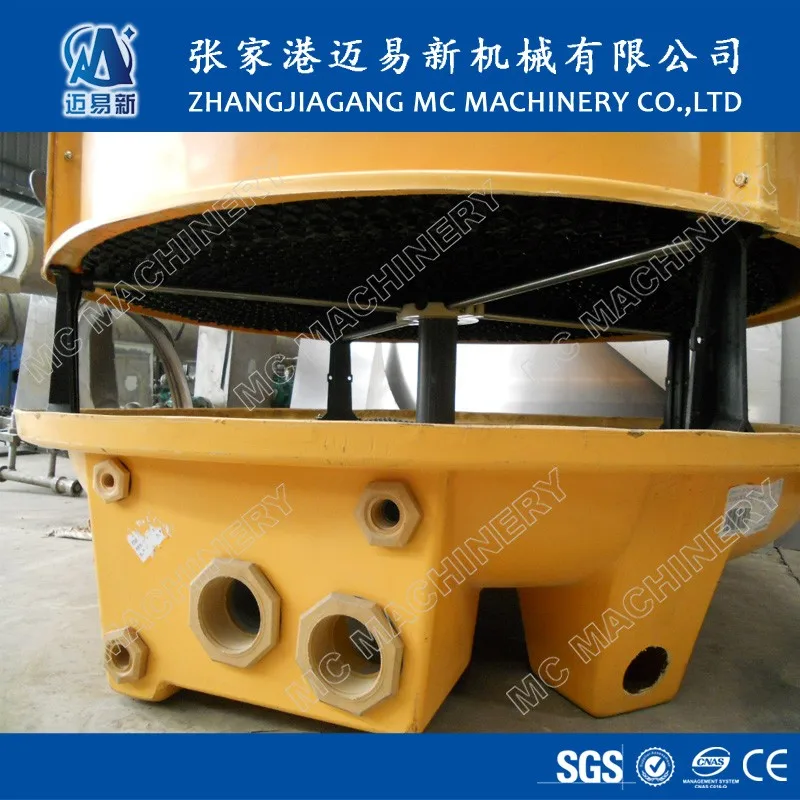

Name: Tower Bottom and all pipes
Brand: MC
Machine parts

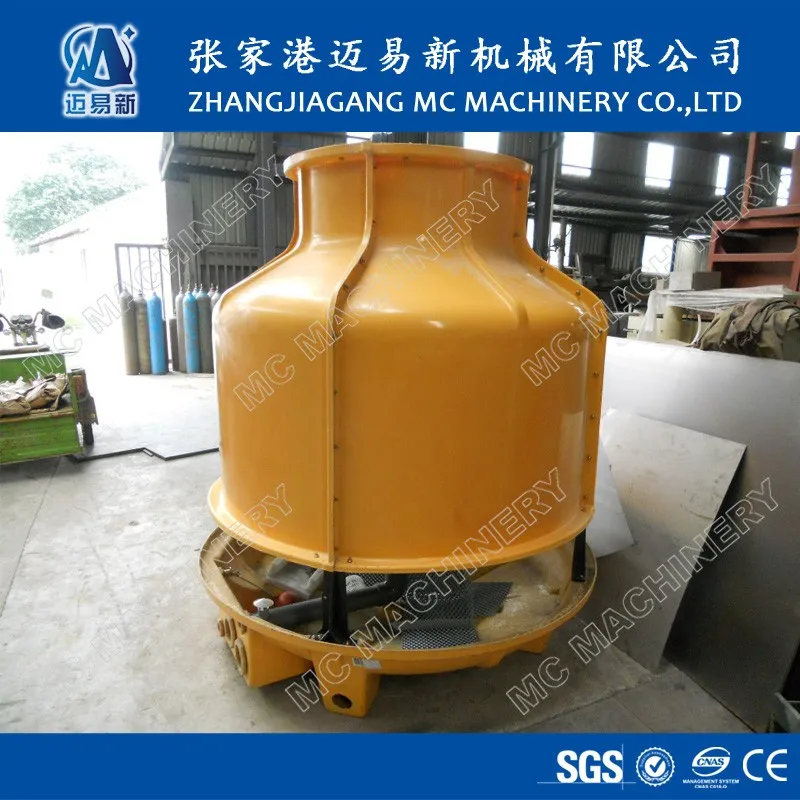

Name:Barrel
Material is fiber reinforced plastic
Our Service
Pre-Sales Service
* We given client the details technician offer.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.
After-Sales Service
* We arrange engineer to install the machinery and training the workers for client abroad if clients required.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
* We always up date the new technology to every customer.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
* We always up date the new technology to every customer.
Packing & Delivery
Packaging | ||
Size | 1500mm*1500mm*1600mm(L*W*H) | |
Weight | 46KG | |
Packaging Details | The normal package is fumigated wooden box(Size: L*W*H).Or we will use pe film for packing or pack it according to customers special request. | |
Related Products
Water Cooling Chiller
91.2% Response Rate
Plastic Pellet Hopper Dryer
72.6% Response Rate
Plastic Pellet Vacuum Loader
70.8% Response Rate
High Speed Color Mixer
Plastic Pellets Mixer
Plastic Pellets Drying Mixer
Our Company
FAQ
1.How about the quality of your product?
Marksim:
1)Our products manufactured strictly according to national and international standard
2)We have CE ,ISO,BV,SGS certification
3)We take testing on every product before delivery.
4)Our quality supervision department oversees the whole process during manufacturing and machine testing before machine made
shippment.
2.What is the MOQ?
2)We have CE ,ISO,BV,SGS certification
3)We take testing on every product before delivery.
4)Our quality supervision department oversees the whole process during manufacturing and machine testing before machine made
shippment.
2.What is the MOQ?
Marksim:1 set.
3.If you can make machine custom-made?
Marksim:Yes,we can make products special design according to customer's requirements.
4.What is the machine voltage?
Marksim:Normally 380V,50hz,3 phase.But we can change it according to customer's requirement, like 220V,240V,415V,440V,600V and so on.
5.What is this machine guarantee time?
Marksim:1 year
6.When the machine can be deliveried?
3.If you can make machine custom-made?
Marksim:Yes,we can make products special design according to customer's requirements.
4.What is the machine voltage?
Marksim:Normally 380V,50hz,3 phase.But we can change it according to customer's requirement, like 220V,240V,415V,440V,600V and so on.
5.What is this machine guarantee time?
Marksim:1 year
6.When the machine can be deliveried?
Marksim:Normally 30 working days.
7.We want to visiting your factory first before order,if it is avaliable?
7.We want to visiting your factory first before order,if it is avaliable?
Marksim:Yes,welcome to visit our factory any time,our factory normally have ready machines in stock,you can see real machine by your eyes and it will be the best for you to know our machine and our company.
8.If we finally buy your machine,you can send engineers to our country and help installation and training our workers?
Marksim:Yes,of course,if you needed,we will send engineer to your country to your factory to help installation and training your workers,but you have to bear our engineer's flight charge around,take responsibility of engineer's food and hotel during his visiting and pay salary USD100 per day for one person.
9.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you?
8.If we finally buy your machine,you can send engineers to our country and help installation and training our workers?
Marksim:Yes,of course,if you needed,we will send engineer to your country to your factory to help installation and training your workers,but you have to bear our engineer's flight charge around,take responsibility of engineer's food and hotel during his visiting and pay salary USD100 per day for one person.
9.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you?
Marksim:If the machine part is broken,during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or whatsapp or video.If out of warranty,we will also provide you spare part but with raw material cost,and we also will help you change to new instead of broken part.We provide spare parts and technical service whole machine lifetime.
