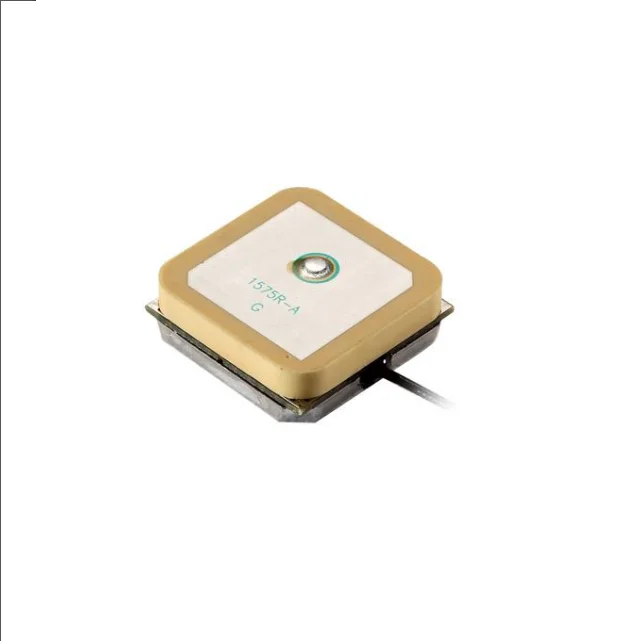

High quality free samples gps glonass internal antenna with fakra/sma connectors

Item

Specifications

Antenna

Center Frequency

1590MHz

Frequency

1575/1602MHz

VSWR

< 1.5:1

Bandwidth

±5MHz

Impedance

50Ω

Peak Gain

>3dBi Based on 7cm×7cm ground plane

Gain Coverage

>-4dBi at -90°<0 <+90°(over 75% Volume)

Polarization:

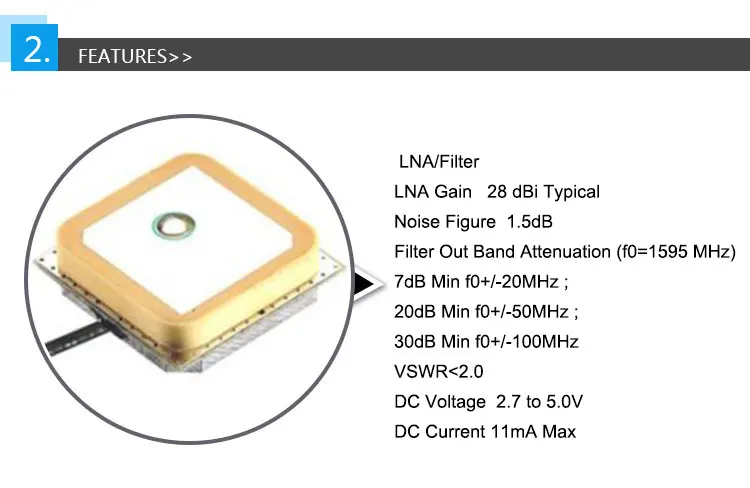

LNA

LNA Gain

28 dB Typical

Noise Figure

1.5dB

Filter Out Band Attenuation

(f0=1595 MHz)

7dB Min f0+/-20MHz

20dB Min f0+/-50MHz

30dB Min f0+/-100MHz

VSWR

<2.0

DC Voltage

2.7 to 5.0V

DC Current

Mechanical

Weight(gram)

<60

Size

25*25*9mm

Cable

RF1.13/RF1.37 or others

Cable Length

 5-20cm

Connector

U.FL/IPEX/GSC/H.FL etc.

Environmental

Working Temp

-40℃~+85℃

Storage Temp

-45℃~+100℃

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
