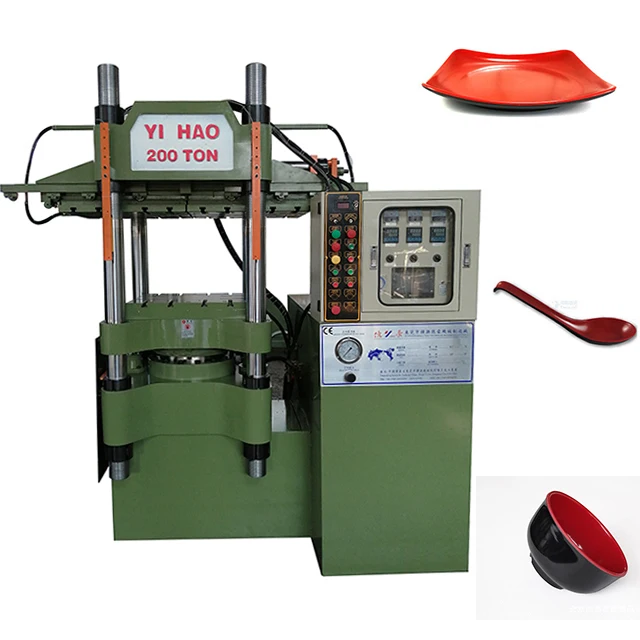

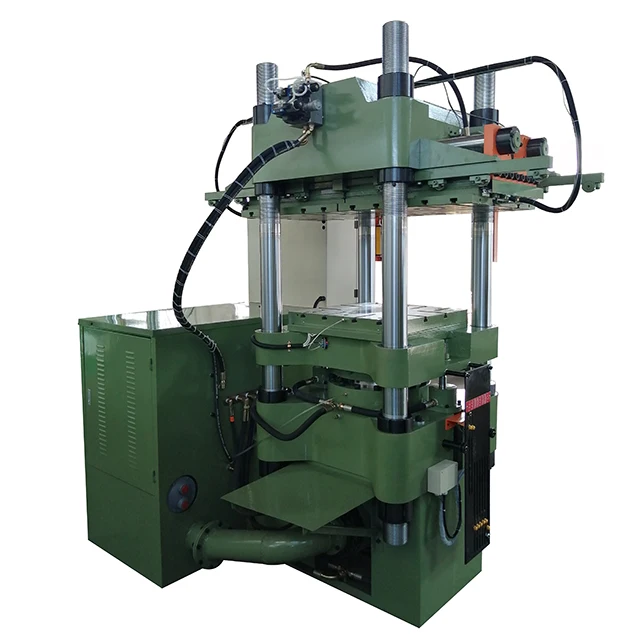

200 ton double color hydraulic press melamine dinner set dishes making machine
Product Description

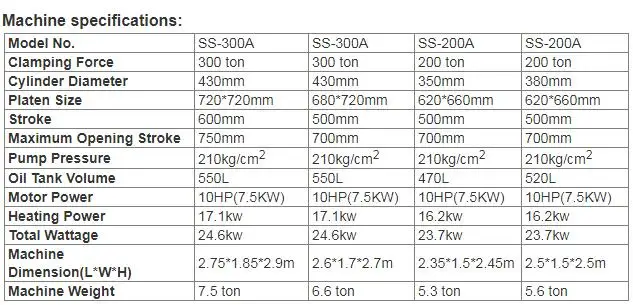

Specifications
clamping force
200 ton
piston diameter
380mm
bed size
620*660mm
stroke
500mm
daylight
700mm
pump pressure
210kg/cm2
oil tank volume
520L
motor power
10hp(7.5kw)
heating power
16.2kw
total wattage
23.7kw
machine dimension
2.5*1.5*2.5m
machine weight
5.6 ton
More Options
Machine Features
1. Equipped with PLC control system, easy to operate, low failure rate, easy maintenance. 2. Equipped with high and low pressure loop system, the machine runs smoothly without noise, high and low speed could be adjusted freely. 3. Equipped with sliding column shift mold and bearing, ensures precise movement of upper plate. 4. Equipped with safety grating, ensures safety operation. 5. The main structure conforms 3D mechanical design, strong and durable. 6. Suitable material: melamine, urea, bamboo fiber, bakelite and other thermosetting materials.
Packaging & Shipping
Our Services
1. for small problems, we offer online video technical support.
2. for big problems, we will send engineer to your factory to repair machines for you
3.for new machine installation and commissioning, we will send engineer to your factory.
FAQ
Our Advantages
Company Information
In June 2003, due to business expansion, we set up factories in Dongguan Hengli town. Dongguan Hengli Yihao Mechanical Manufacture Factory engaged in professional R & D and manufacturing high precision hydraulic rubber forming machine, toilet seat cover forming machine, melamine tableware molding machine, melamine tableware molding machine, double color melamine forming machine, cup mode melamine tableware molding machine, double-Layer toilet seat cover forming machine, mahjong forming machine, and the like.
After several years of development, the factory has professional production and technical personnel to ensure that products could meet the customer demand.
The spirit of Yihao Mechanical Manufacture Factory is quality first, service first, customers first. The purpose is customer demand is our pursuit, the interests of customers is our interests.
We adhering to the modern enterprise scientific management methods, pioneering and innovative, forge ahead, has developed into a machinery manufacturing industry star enterprise. The customer on my Yihao machinery manufacturing plant products praise, achieve economic and social benefits. Yihao mechanical Manufacture Factory will be combined with the mechanical structure of the oil control system, circuit control system, production and service of professional R & D and manufacturing technology to manufacture in line with the needs of the hydraulic machinery and equipment.
We are willing to work with new and old customers to create a better future.
