1. CURTIS electronic control, multiple automatic protection system controllers for Forklift Stacker.
2. EPS swerve can reduce 20% of the energy consumption.
3. Vertical AC drive, no carbon brush, free maintenance.
4. Forklift temporary parking ramp adopt both electronically controlled and the foot brake.
Name
Unit
Forklift Stacker
Model No.
EFD10B-16
Load Capacity
Kg
1000
Max. Lifting height
H(mm)
1600
Load center
C(mm)
500
Wheel type
Polyurethane solid tires
Brake type
Electromagnetic
Pedal length
mm
470
Fork size
mm
1070*100
Fork spread
mm
210-650

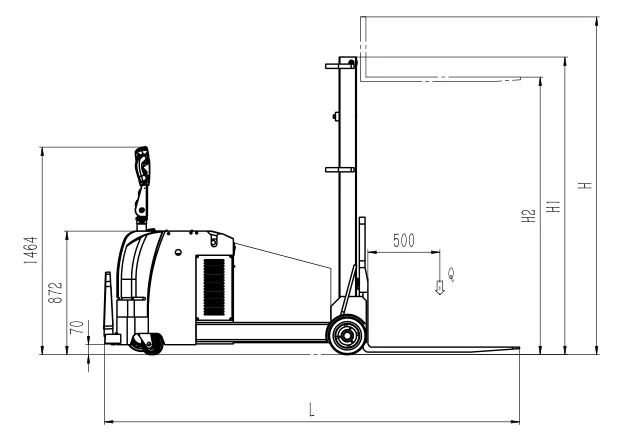

Overall length(include fork, when the pedal fold)
L(mm)
2935
Overall width
S(mm)
983
Height--Mast Lowered
H1(mm)
2100
(Maximum height when fork lifting)
H2(mm)
2516
Turning radius (outward when the pedal fold)
WQ(mm)
1740
Min. stacking aisle(1000*1000 pallet)
mm
3300
Max. travel speed
Km/h
4.0~5.0
Grade ability
%
5~8
Total weight with battery
Kg
~1700
Driving Wheel
mm
Ø230*75
Front wheel
mm
Ø267*114
Balance wheel
mm
Ø150*50
Battery capacity
V/Ah
24/210
Charger-Intelligent
V/A
24/30
Driving motor
Kw
1.5
Lifting motor
Kw
2.2
Walking Adjustable Type
Holzer type accelerator
Packaging & Shipping
Export standard package; Full set documents including spare parts list, operate maintenance manual and engine operate manual; One set of inspeciton certificate issued by manufacturer; One set of common use tools; All above mentioned will be put in tool box for Forklift Stacker.
Delivery Detail:
Whole machine by sea and spare parts by delivery or according to your demand,Shipped in 25 days after payment
Company Information
About our company
1. Anhui Yufeng Equipment Co.,Ltd. is a high-tech enterprise professionally specialized in R&D, production, sales, service of electric storage and intelligent industrial system.
2. It is located in Feixi Huagang industrial park in Anhui, with advanced forklift manufactory technology, processing equipment and perfect product testing center. Our company is the China Automobile Industry Association member unit.
3. We won the honorary title such as “Outstanding Enterprise of Quality Management, Credibility and Service AAA level”, "National Enterprise of Good Creditworthiness", "National Quality Management Advanced Enterprise" and "Anhui Famous Brand" etc.
4. The company has already passed the safety production standardization and the quality authentication of ISO9001 and European Union CE certification, fit-out national patent certificate.
5. Our main storage equipment are electric truck,stacking car,reach forklift trucks,towing vehicle, order picker, AGV pilotless truck, counter balanced weight forklift and so on.They are widely used in various places of modern logistics.
FAQ
1. How long it will take to deliver the products after I pay for it?
Above delivery time is 26 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, tow tractor, order picker etc?
Our equipment quality warranty is 1 year or 1000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Electric motor, CURTIS controller. Absolutely high quality.
5. How many colors of forklift you can supply?
Green, Orange, Yellow, Red. Or As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat, direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
Our Services
Professional R&D team provide consumers the most comprehensive and reasonable technology integrated solutions.
Customized order can be met upon drawing and sample confirmed.
One-to-one 48 hours full-time service to solve customers’ problem.
