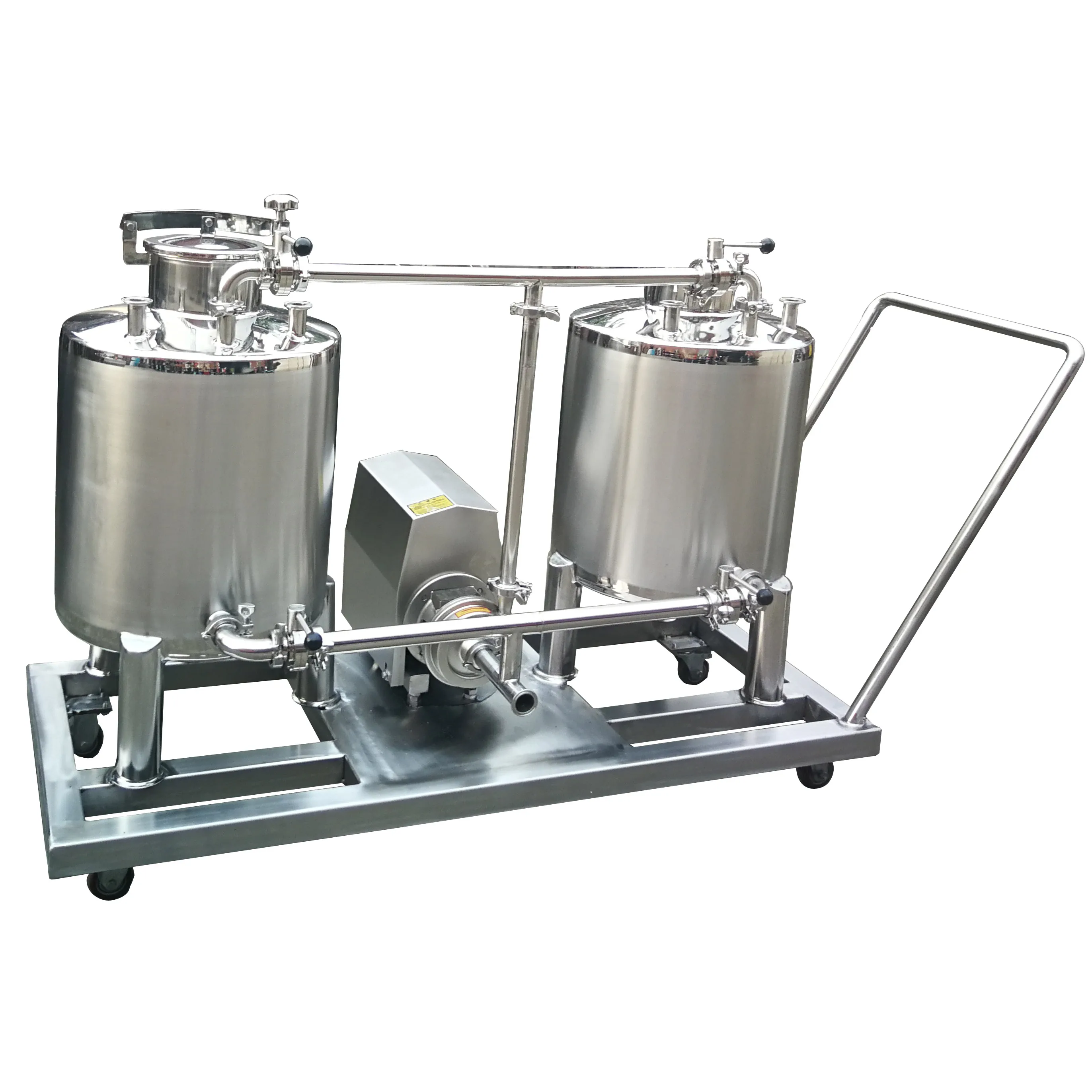

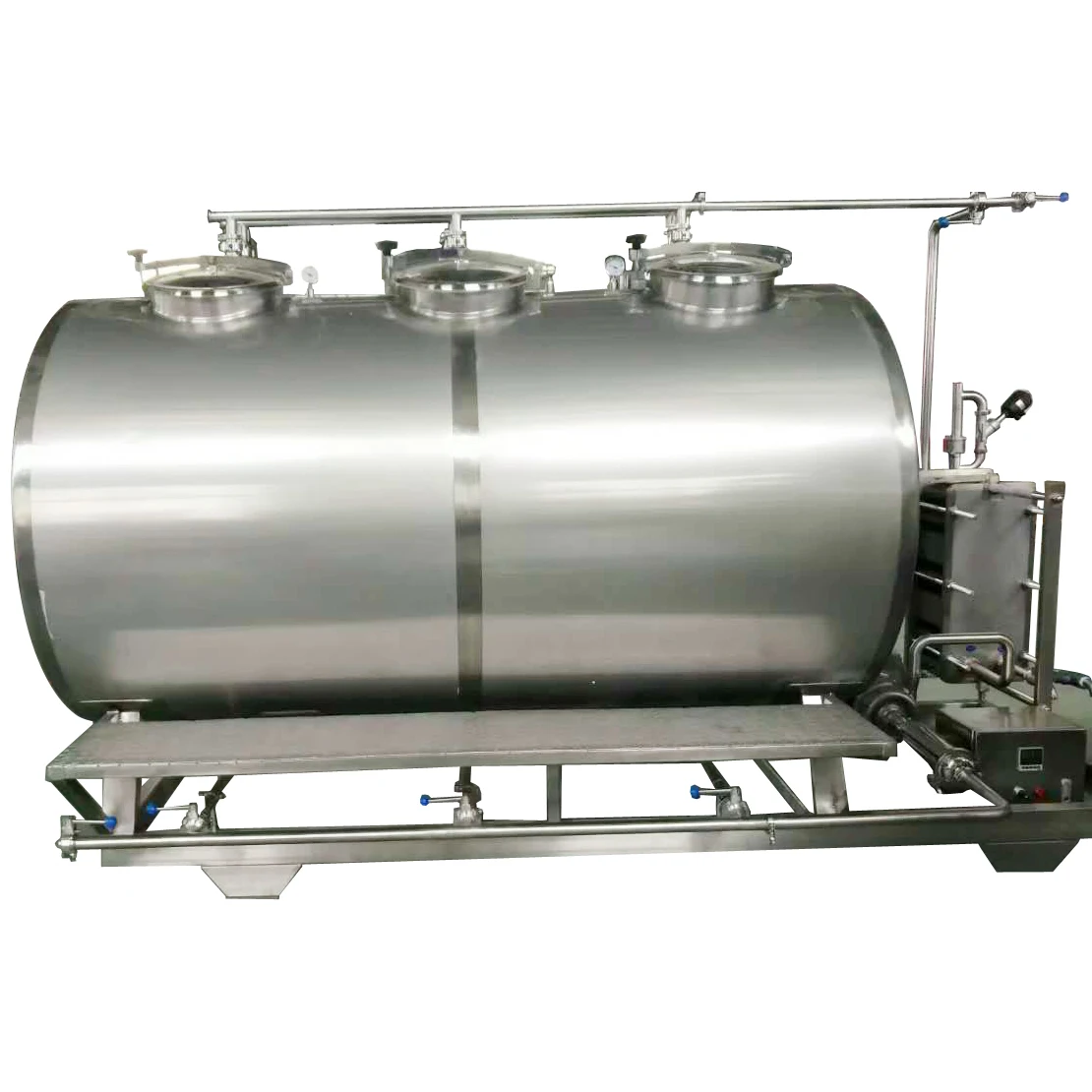

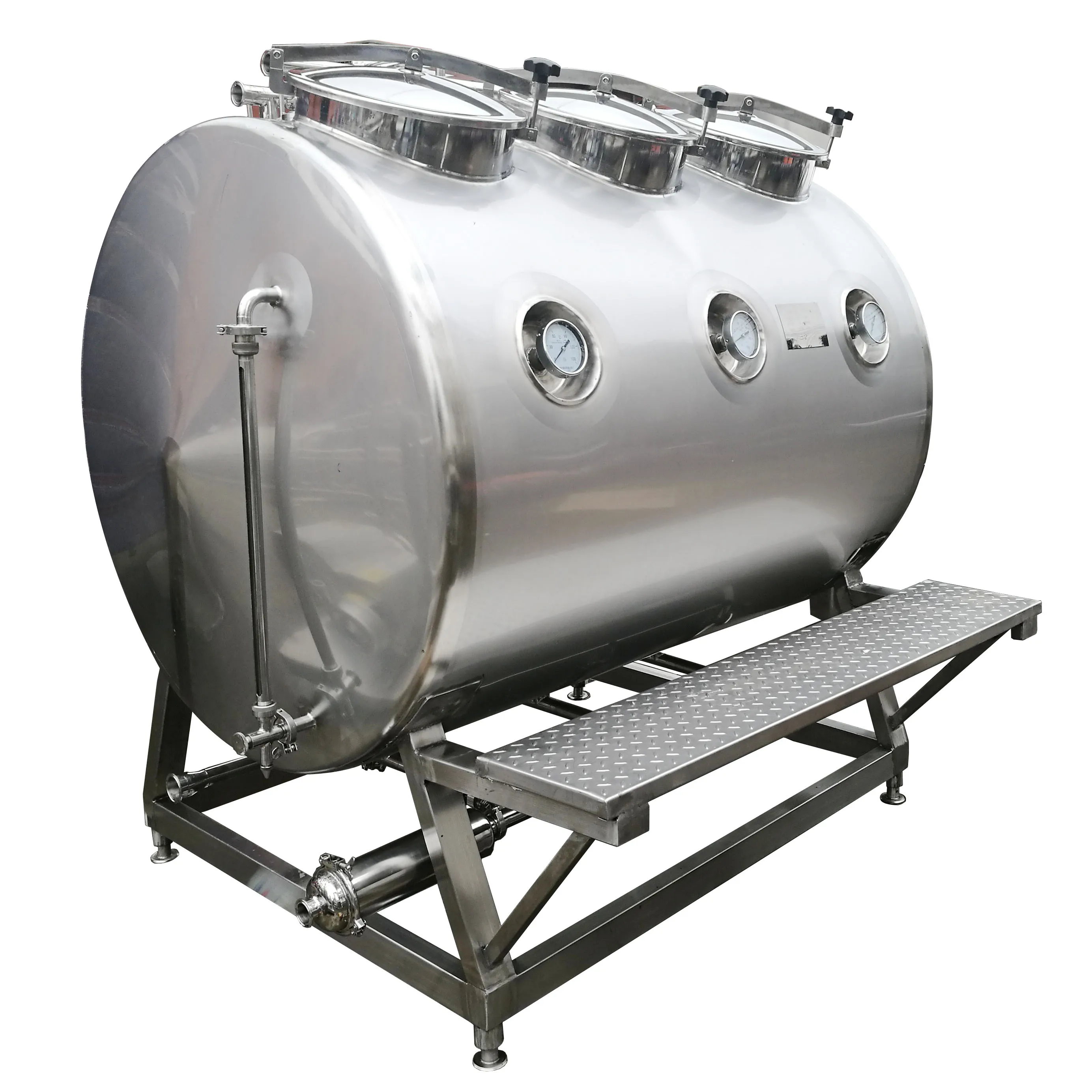

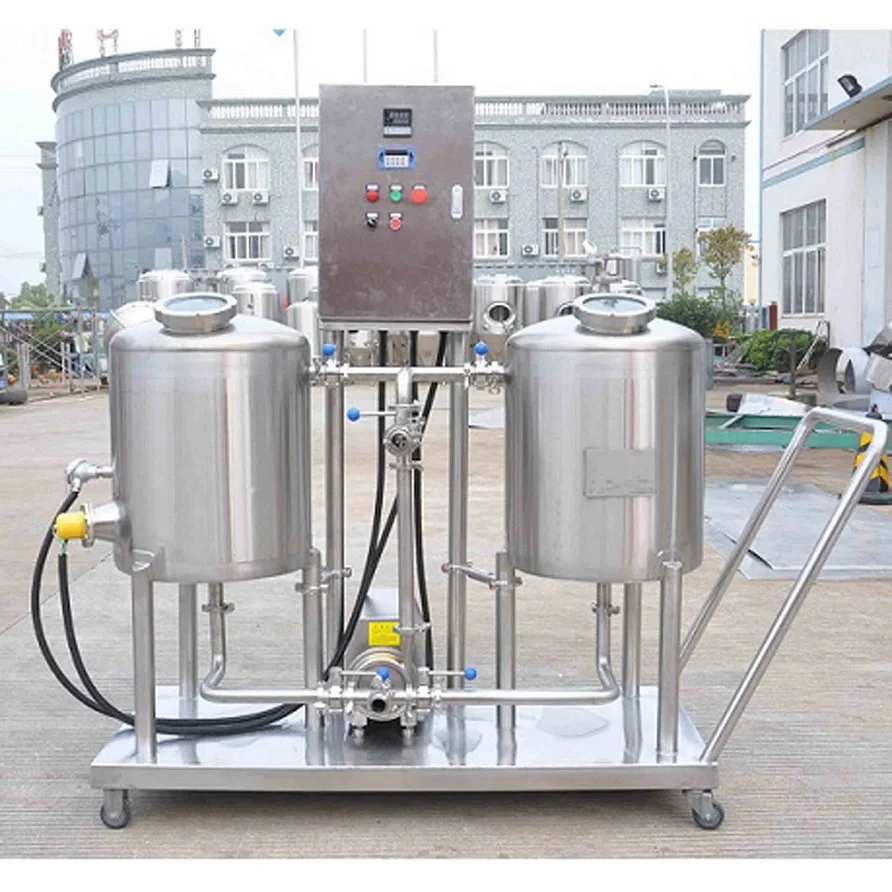

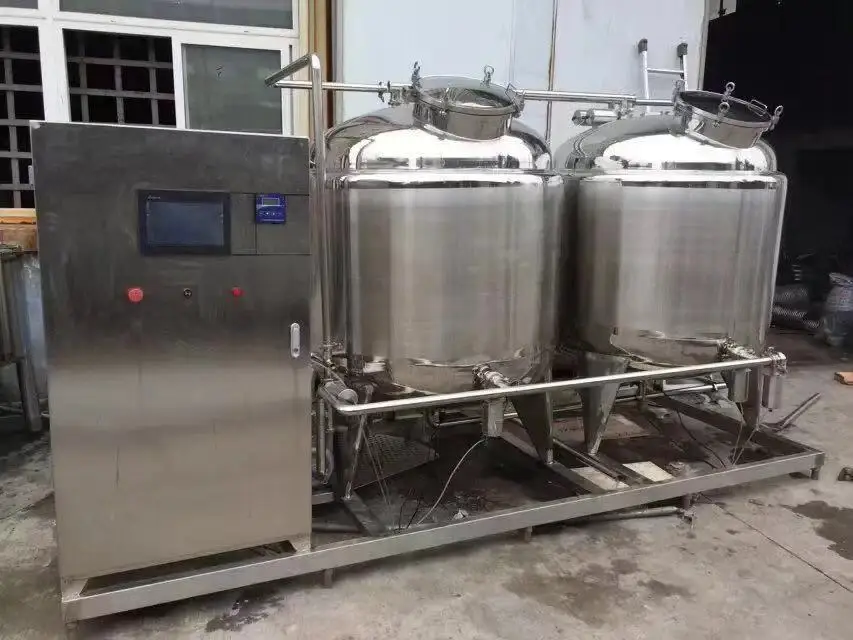

Food grade semi automatic brewery washing machine cip cleaning system cleaning the pipeline
- Category: >>>
- Supplier: Wenzhou Chinz Machinery Co. Ltd.
Share on (60652143020):
Product Overview
Description
Products Description
Food grade semi automatic brewery washing machine cip cleaning system cleaning the pipeline
This CIP cleaning station is automatically controlled. All cleaning process parameters (cleaning time, acid-base concentration, cleaning solution temperature, cleaning method) can be set on the operating touch screen. When cleaning is required, specify the required cleaning device on the touch screen, select the cleaning method (three-step cleaning or five-step cleaning), and start the system, then the CIP device automatically completes the cleaning process according to the preset program. Automatic recovery by acid, alkali and water.
Machine Features:
1 / Temperature self-control, control the opening size of the steam flow regulating valve by the outlet temperature probe detection value to ensure that the cleaning temperature is within the allowable range (control accuracy ± 2 ° C).
2 / The cleaning fluid supply and the self-circulation switching automatic control are realized by the two-position three-way valve of the cleaning liquid outlet.
3 / With a flow meter, the flow rate can be observed by observing the flowmeter value.
4 / Add chemicals with a pneumatic diaphragm pump
5 / The sampling valve and the manual valve that needs to be operated frequently are installed on the operation surface for the operator to operate.
6 / A sampling valve is provided on each tank and return line to facilitate manual detection of the concentration of the cleaning solution.
7 / All cleaning process parameters can be set on the touch screen on the electric control cabinet. The system automatically cleans according to the setup program. Several different cleaning programs have been set up inside the machine and can be selected according to the actual situation.
8 / All pneumatic valves have a manual opening function.
1 / Temperature self-control, control the opening size of the steam flow regulating valve by the outlet temperature probe detection value to ensure that the cleaning temperature is within the allowable range (control accuracy ± 2 ° C).
2 / The cleaning fluid supply and the self-circulation switching automatic control are realized by the two-position three-way valve of the cleaning liquid outlet.
3 / With a flow meter, the flow rate can be observed by observing the flowmeter value.
4 / Add chemicals with a pneumatic diaphragm pump
5 / The sampling valve and the manual valve that needs to be operated frequently are installed on the operation surface for the operator to operate.
6 / A sampling valve is provided on each tank and return line to facilitate manual detection of the concentration of the cleaning solution.
7 / All cleaning process parameters can be set on the touch screen on the electric control cabinet. The system automatically cleans according to the setup program. Several different cleaning programs have been set up inside the machine and can be selected according to the actual situation.
8 / All pneumatic valves have a manual opening function.
Product Paramenters
Model Specification | CIP-0.5 | CIP-1 | CIP-2 | CIP-3 | CIP-4 | ||||
Acid tank | 500 | 1000 | 2000 | 3000 | 4000 | ||||
Alkali tank | 500 | 1000 | 2000 | 3000 | 4000 | ||||
Hot water tank | 500 | 1000 | 2000 | 3000 | 4000 | ||||
Heating method | Coil pipe, plate type, tubular heating, electric heating | ||||||||
CIP pump | 10T/h | 15T/h | 20T/h | 10T/h | 30T/h | ||||
Pump lift | 24 | 24 | 36 | 36 | 36 | ||||
Pump power | 2.2 | 2.2 | 4.0 | 4.0 | 5.5 | ||||
Product features
◆100% TIG welding with pure argon gas shield；
◆The pipe mouth stretch technology and automatic tank welding equipment ensure the tank with no dead angle,no material residue and
easy to clean;
◆Tank polishing precision ≤0.4um,no distortion, no scratches;
◆Tanks and cooling devices are tested for water pressure;
◆The pipe mouth stretch technology and automatic tank welding equipment ensure the tank with no dead angle,no material residue and
easy to clean;
◆Tank polishing precision ≤0.4um,no distortion, no scratches;
◆Tanks and cooling devices are tested for water pressure;
Product packaging
Company Profile
Wenzhou Chinz Machinery Co., Ltd. is a specialized high technology enterprise integrating the design, manufacture and service of biochemical pharmaceutical equipment, dairy food and beverage equipment, chemical equipment and sanitary fluid equipment. Our company is devoted to technology investment and culture construction. We have modern workshops and complete manufacturing facilities. We absorb and train various talented people. We have one batch of capable, specialized and talented persons of design, manufacture and installment. Our company establishes a machinery R&D center, a fluid equipment machining and inspecting center and a machinery manufacturing center. After more than ten years of continuous development, our company has formed a troop of scientific and innovative team. Many of our products have obtained national invention patents. Our company has been awarded many titles, including Zhejiang High-Tech Enterprise, etc. Wenzhou Chinz Machinery Co., Ltd. is always devoted to the research and development of machinery project and high precision sanitary fluid equipment. Through several years of efforts, our company has successfully designed and developed various specifications of methanol and ethanol reclaimers, low temperature concentrators, heat hump type water-alcohol concentrators, multi-purpose countercurrent extraction tank groups, integral functional application machine sets, dynamic counter-current adsorption resin units, and so on.
Certifications
Exhibition
FAQ
1. Q : How can customer visiting our factory? |
A : We are in Wenzhou city, Zhejiang Pr.China.which is very near to Shanghai. From Shanghai,China to our city, it will take 1 hour by air, and 4 hours by fast train. The name of airport is Wenzhou Longwan International Airport. The name of fast train station is Wenzhou Nan train station. And our factory is very close to airport only 15 minutes by car, and 1 hour by car from fast train station. |
2. Q : How can customer know the processes of order? |
A : We will take photo or video during manufacturing every two weeks to make customer clear about the order. When goods is finished,we will take more detailed photos or video for inspect. You can also come to our factory to inspect by yourself. |
3. Q : Do you supply installation equipment in oversea? |
A : Yes, if need, we can also send our installation engineer to your factory to help you do installation and testing. And you need to provides round-trip ticket and accommodation for our engineer. The extra salary of one installation engineer is 200USD/day. |
4. Q : How to control quality? |
A : All material we use has material certification. Before any piece of equipment leaves CHINZ. It goes through a complete quality and assurance control inspection. This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door. |
