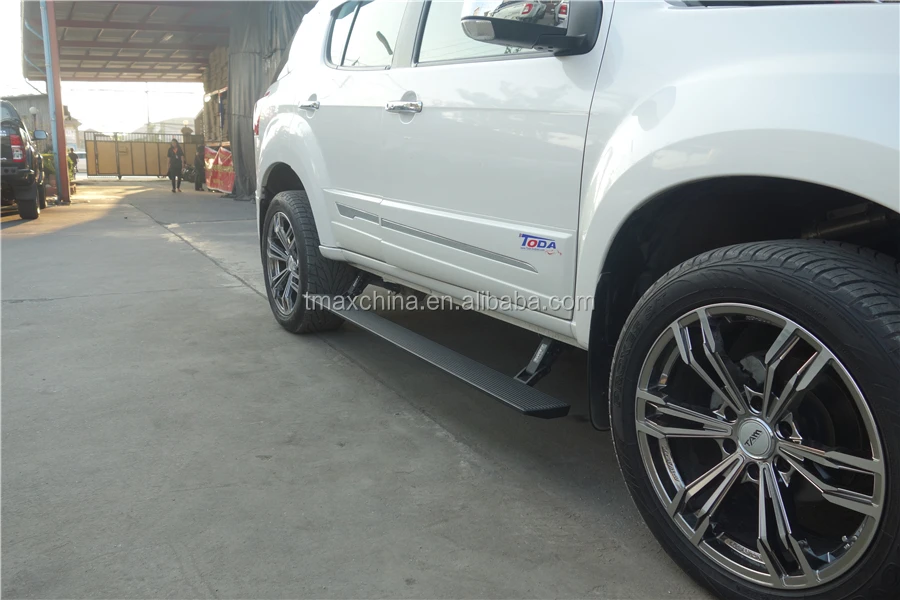

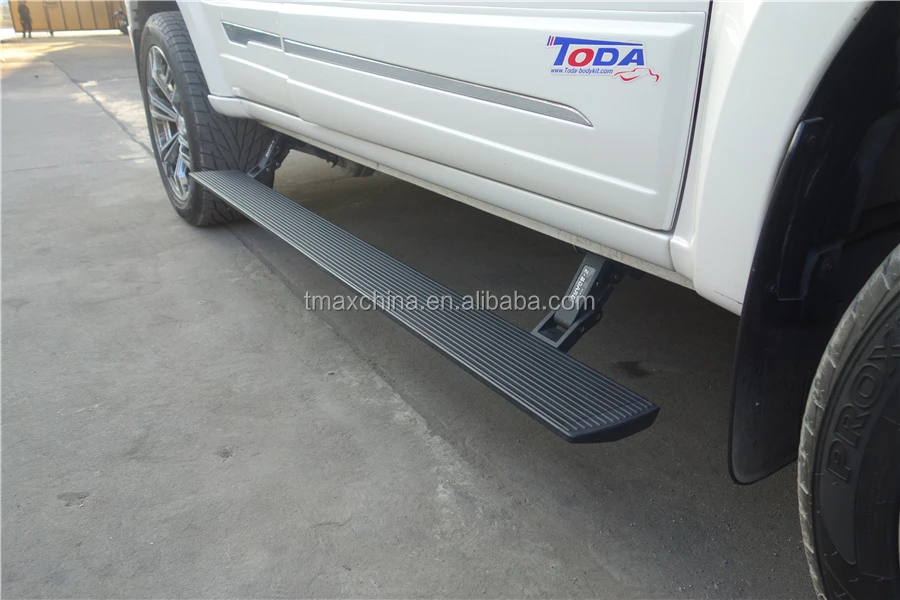

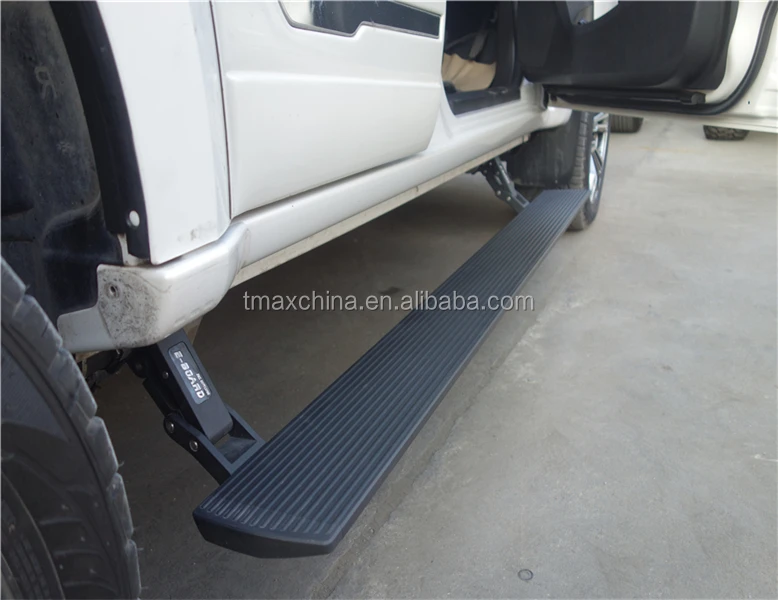

Auto exterior accessories electric side steps for Isuzu MUX

Product Overview

Description

Welcome to T-max(Hangzhou) Technology Co.,Ltd

T-max E-board other exterior accessories electric side steps for ISUZU MUX



Advantage:

A Max Load:300Kg

B Double motor System

C Extension Working Time:≤1.5s

D Working Noise: ≤70db

E Control: Vehicle Door Signal Control

1     Double motor Drive

Each side design: Unique design if double motor drive each side to keep enough power for E-board working, completely avoid the unilateral sag. Upgraded motor adapt the imported material and the over-heat  protector; the outer cover structure, material and processes are fully optimized, the intensity of motor cover is increased 1 times, much stronger output power, lower current, more reliability; add the tensional assist system can offset the board self weight, mark the board work much more smooth and stable. Moreover, the upgraded motor can work normally from -40℃ to over  80℃.



2      Safety intelligent

Control System design, the E-board can stop automatically when have obstacles. Load sensitivity, block sensitivity, anti-skid and anti-theft.



3     International Patents (six-bar linkage), ten international and domestic patents, unique six-bar linkage can achieve optimized trajectory control, much more reliable, completely avoid the board cannot retract. Small size, low noise.

4     Improved control system, adapt the improved and military component, make E-board work much more smooth and stable.

5     Durability passed 100000 times loading testing.

Certified by TS16949,automotive industry production and service management system certification.

6     2 years or 50000km warranty

7     PICC million RMB insurance

8     Suitable Individuation design makes the vehicle appearance perfect. It is a perfect integration of international design and practicability is a model of ergonomics.

 Parameters

Product Name	T-max E-board other exterior accessories electric side steps for ISUZU MUX
No.	PST03-0410	MOQ	even 1 pcs is available
Size	L190.5*W44.5cm*H26cm	Delivery time	5 days
Weight	39kg	Port	Shanghai or Ningbo
Usage	Enjoy the up and down	Payment terms	T/T, L/C, D/A, D/P, West Union, Paypal





Isuzu
Vehicle Application	Part No	Board Length/Wide	N.W.
Mu-X	PST03-0410	186cm/16cm	22kg
D-max V-Ross 4D	PST05-1410	186cm/16cm	21kg
D-max V-Ross 4D	PST05-1510	175cm/16cm	20kg
