2100*4500 Wet Mining Plant Magnetite Ore Ball Mill

2100*4500 Wet Mining Plant Magnetite Ore Ball Mill

Category: >>>
Supplier: Zhengzhou Hengxing Heavy Equipment Co. Ltd.

Price:$5,500.00

Quantity:

Product Overview

Description

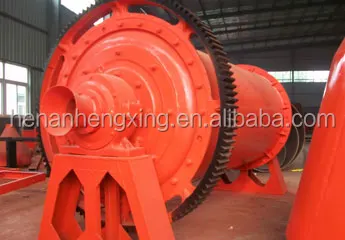

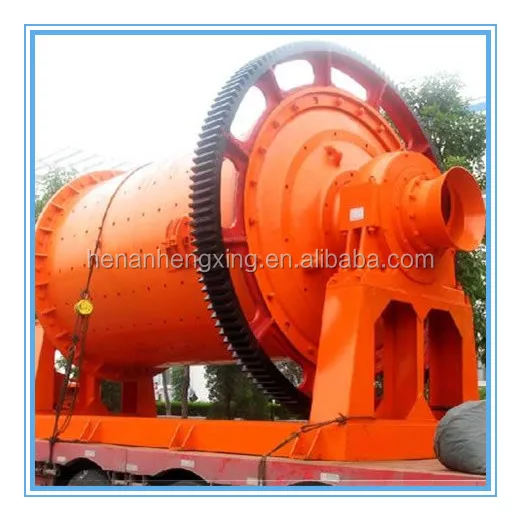

21004500 Wet Mining Plant Magnetite Ore Ball Mill

Product Description

Ball mill application:

Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc.There are two waysof grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine. our ball mill prices is reasonable base on the good quality, we support the Trade Assurance Online Order.for the magnetite ball mill,it is wet type for the iron ore mining plant.

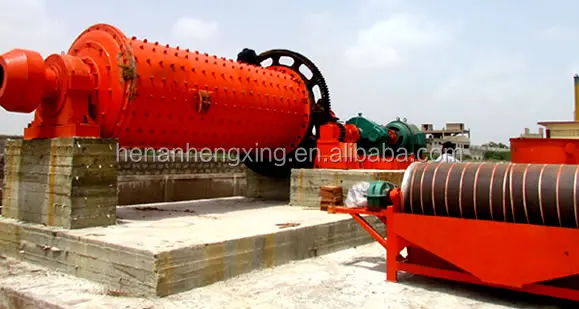

Magnetite ball mill site with magnetic separator :

mineral ball mill .jpg

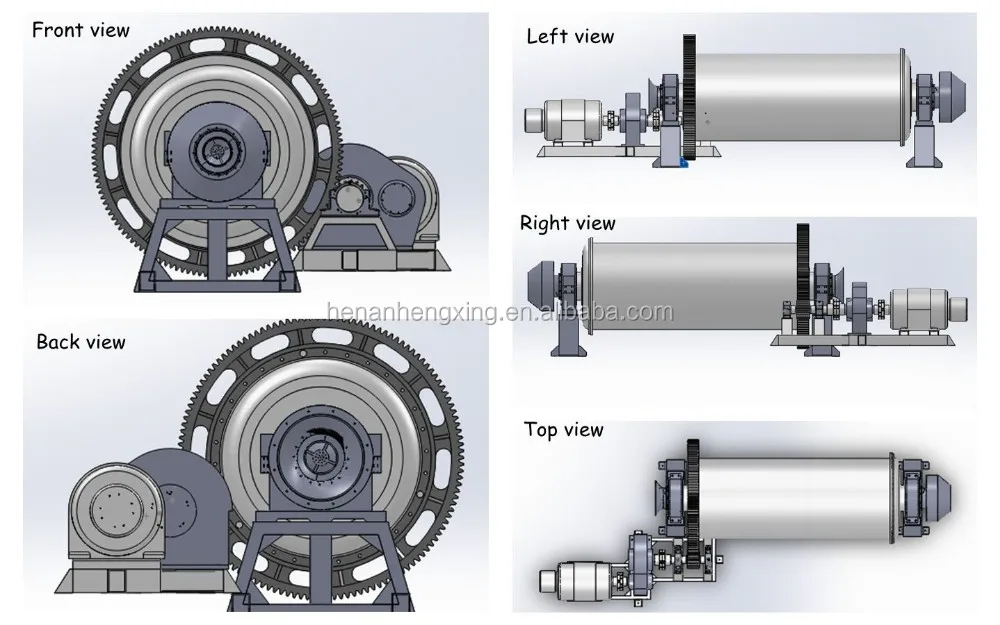

Magnetite Ball mill strucuture:

magnetite Ball mill is made up of feedisng part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, motor, electrical control) and so on.

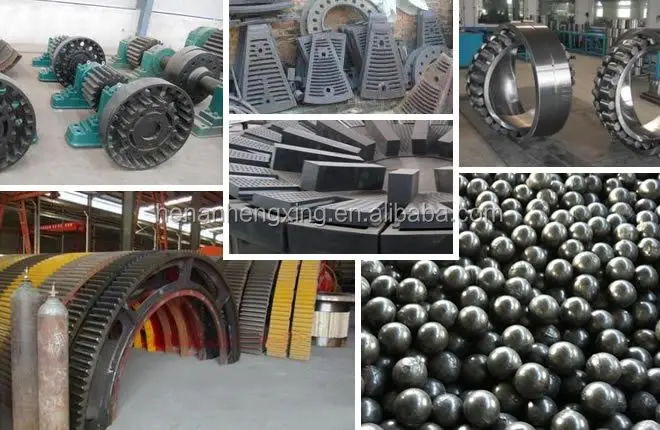

The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably.

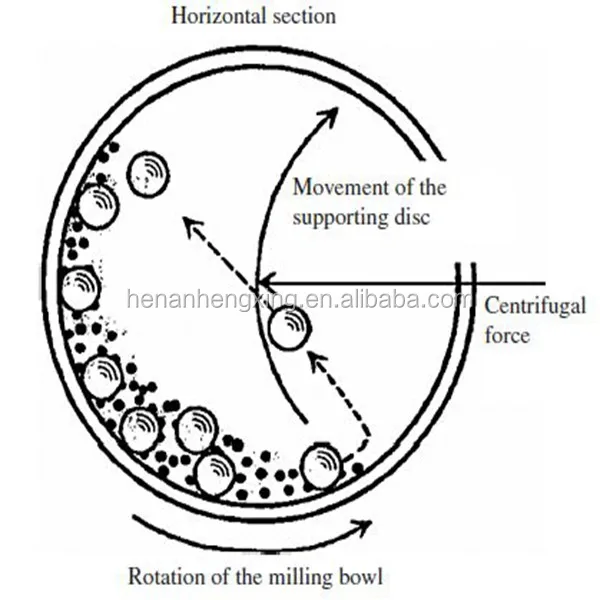

Ball mill Working Principle:
The magnetite ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Ball Mill Strucuture 0086 137 8347 1727 .jpg

Ball Mill Prices/Ball Mill Machine Competitive Price From China.JPG

Ball Mill Featurers:

1.Large application range, simple structure and convenient maintenance;

2.Large capacity and continuous work are very obvious;

3.Barrel lining and grinding media can apply various abrasive materials;

4.Installation and adjustment are very convenient and easy to be operated.

Please feel free to contact us for the ball mill machine technology ,ball mill price,etc.the ball mill has different bearing for use's choice.

wet ball mill (3).jpg

Ball mill technical parameters:

Model	shell rotation speed (r/min)	Ball load (t)	Feeding size(mm)	Discharging size(mm)	Capacity (t/h)	Power (KW)	Weight (T)
900×1800	38	1.5	≤20	0.075 -0.89	0.65 -2	18.5	3.6
900×2100	38	1.3-1.4	≤15	0.075 -0.83	0.7-3.5	18.5	3.9
900×3000	38	2.7	≤20	0.075 -0.89	1.1-3.5	22	4.5
1200×2400	32	3.8	≤25	0.0745-0.6	1.5-4.8	30	11.5
1200×2800	32	3.3-3.5	≤25	0.0745-0.6	2-6	30	12.8
1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	13
1200×4500	32	7	≤25	0.074 -0.4	1.6-5.8	45	13.8
1500×3000	27	8	≤25	0.074 -0.4	2-5	75	17
1500 ×3500	27	6.75-6.4	≤25	0.075 -0.4	3-7	75	17.5
1500×4500	27	14	≤25	0.074 -0.4	3.5-12	110	21
1500×5700	27	15	≤25	0.074 -0.4	3.5-8	115	24.7
1830×3000	24	18	≤25	0.074 -0.4	4-10	130	28
1800×3600	24	10.6-11.35	≤25	0.075 -0.4	5-22	130	30
1830*4500	25.4	15	<=25	0.074-0.4	4.5-12	155	32
1830×6400	24.1	21	≤25	0.074~0.4	6.5-15	210	34
1830×7000	24	25	≤25	0.074 -0.4	7.5-17	210	36
2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	155	39
2100×3600	22	14-15.2	≤25	0.075 -0.4	15-36	370	42
2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	43.8
2100×7000	23.7	26	≤25	0.074-0.4	8-48	280	56.6
2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	45.5
2200×5500	21	30	≤25	0.074 -0.4	10-20	210	48.5
2200×6500	21	31	≤25	0.074 -0.4	14-26	380	52.8
2200*7000	21.7	35	<=25	0.074-0.4	15-28	380	54
2200×7500	21	33	≤25	0.074 -0.4	16-29	380	56
2400×3000	20.6	15.5-16.6	≤25	0.075 -0.4	22-24	245	59
2400×4500	21	30	≤25	0.074 -0.4	8.5-60	380	65
2700×3600	20.6	39	≤25	0.074 -0.4	12-70	400	91.3
2700×4000	20.7	40	≤25	0.074 -0.4	12-80	400	94
2700×4500	20.7	48	≤25	0.074 -0.4	12-90	430	102
3200×4500	18	65	≤25	0.075 -0.4	according to the technology	800	137
