doubling assemble winding machines before yarn twisting using

Product Overview

Description





Machine Application:

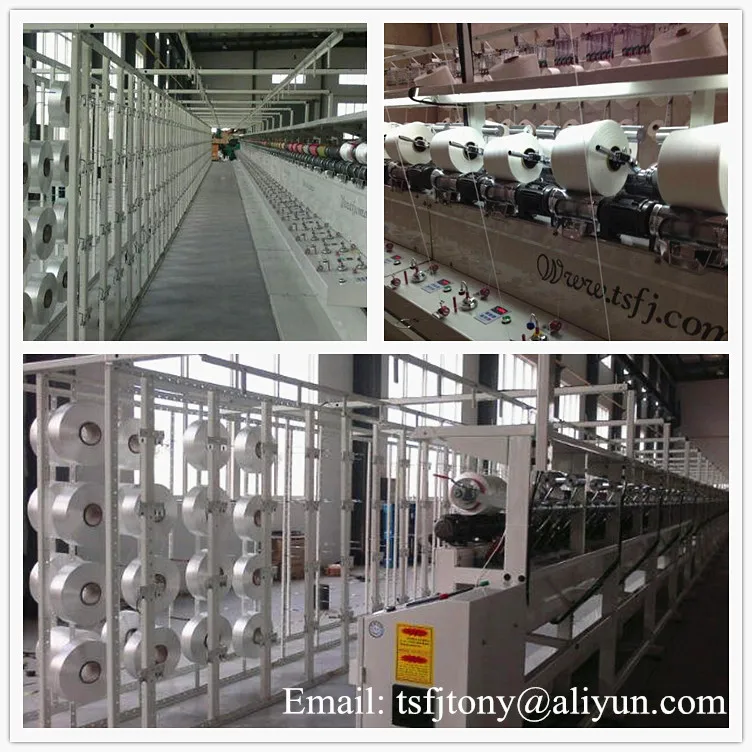

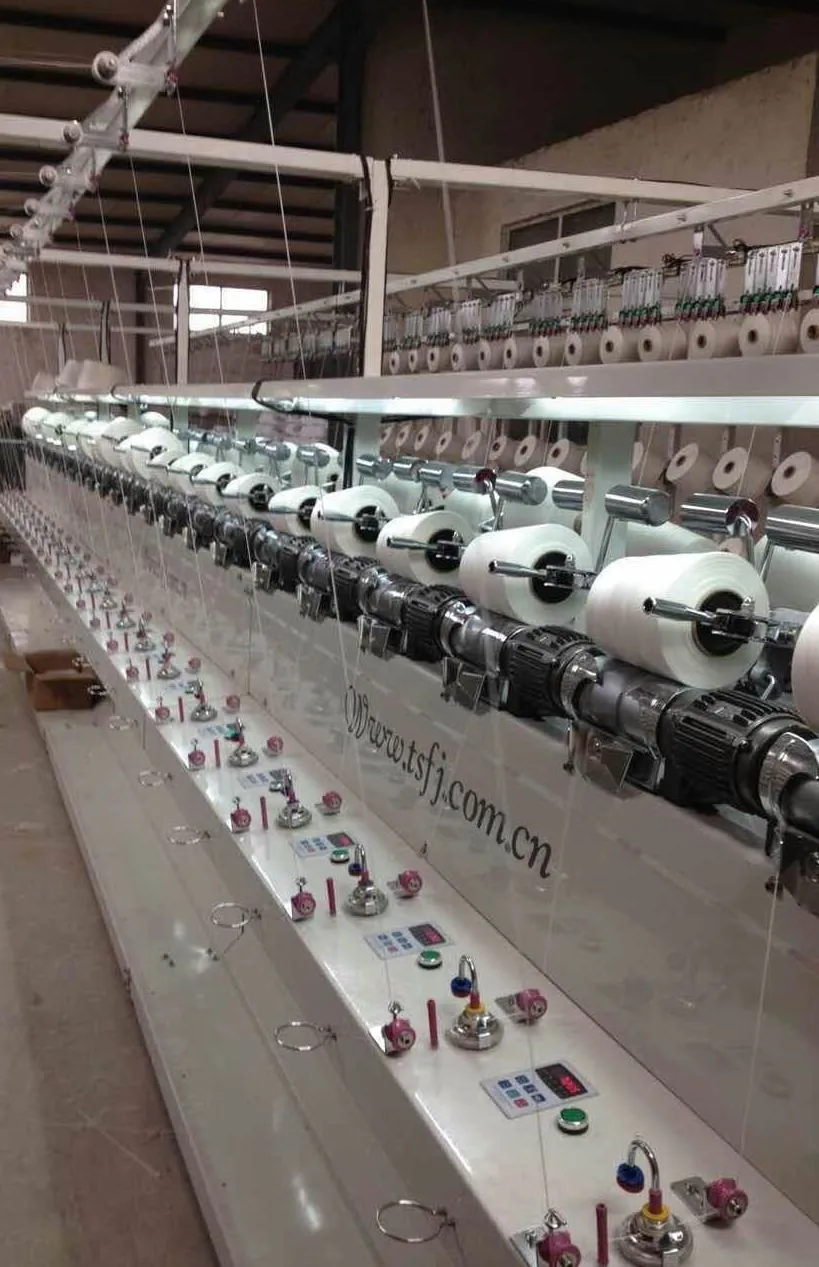

TS008A Multi-ply Yarn Winding Machine, it's for multi ply yarns mixing winding together, can wind like 2-12 plys yarns on the bobbin, can suit like cotton yarn, wool yarn, fiber yarn, polyester yarn and etc.



Parameters:

1. Master digital controller;

2. each spindle run separately with a motor drive;

3. Length counter installed on each spindle;

4. Auto stop device;

5. adjust speed by inverter;

6. uniform tensioner;



Specification:

Technical parameters:



Spindle No.	Max 36 spindles
Spindle Gauge	420MM
Spindle NO. per group	4 spindles
Winding yarn Plys	2-12 plys
Winding Speed	≤500m/min
Driver:	Each spindle with a motor driving
Tensioner:	tabletting tension
Auto Stop Device	Yarn sensor
Traverse Gauge	6-10' inch
Air Splicer	Optional installed
Blower cleaner	Optional installed
Brake system	Optional installed
Dimensions	L 1920 x W 850 x H 1600 mm (one group size)
