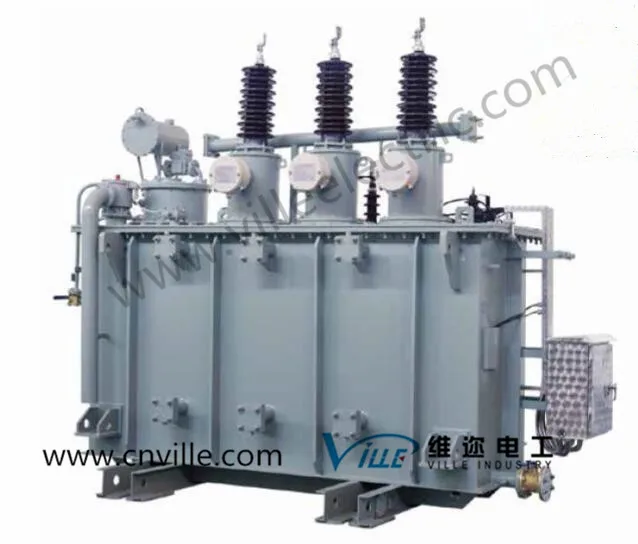

SZ11 Oil Immersed electrical transformers parts, Non excitation Tap changing Transformer of 35kV and Below 200kv transformer
- Category: Transformers >>>
- Supplier: Ningbo Ville Electric Co. Ltd.
Share on (60652420201):
Product Overview
Description

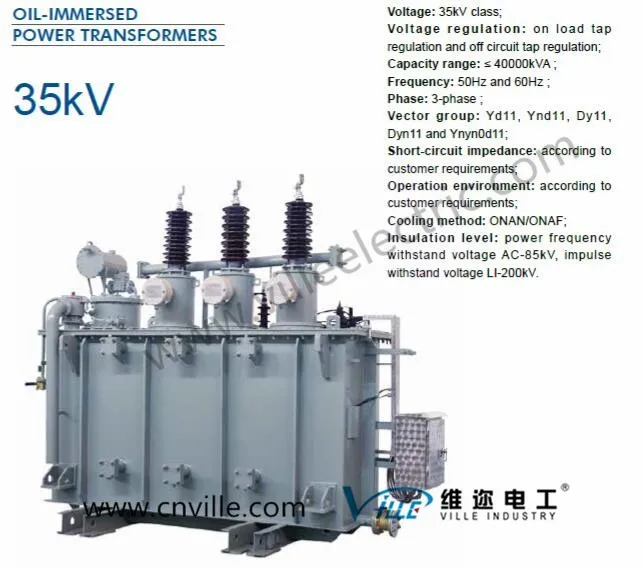

54mva SZ11 Series 35KV Oil-immersed Power Transformers with on load tap changer

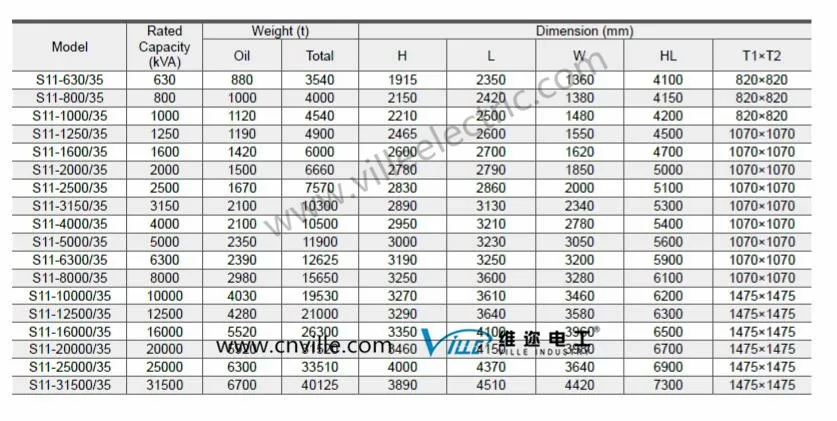

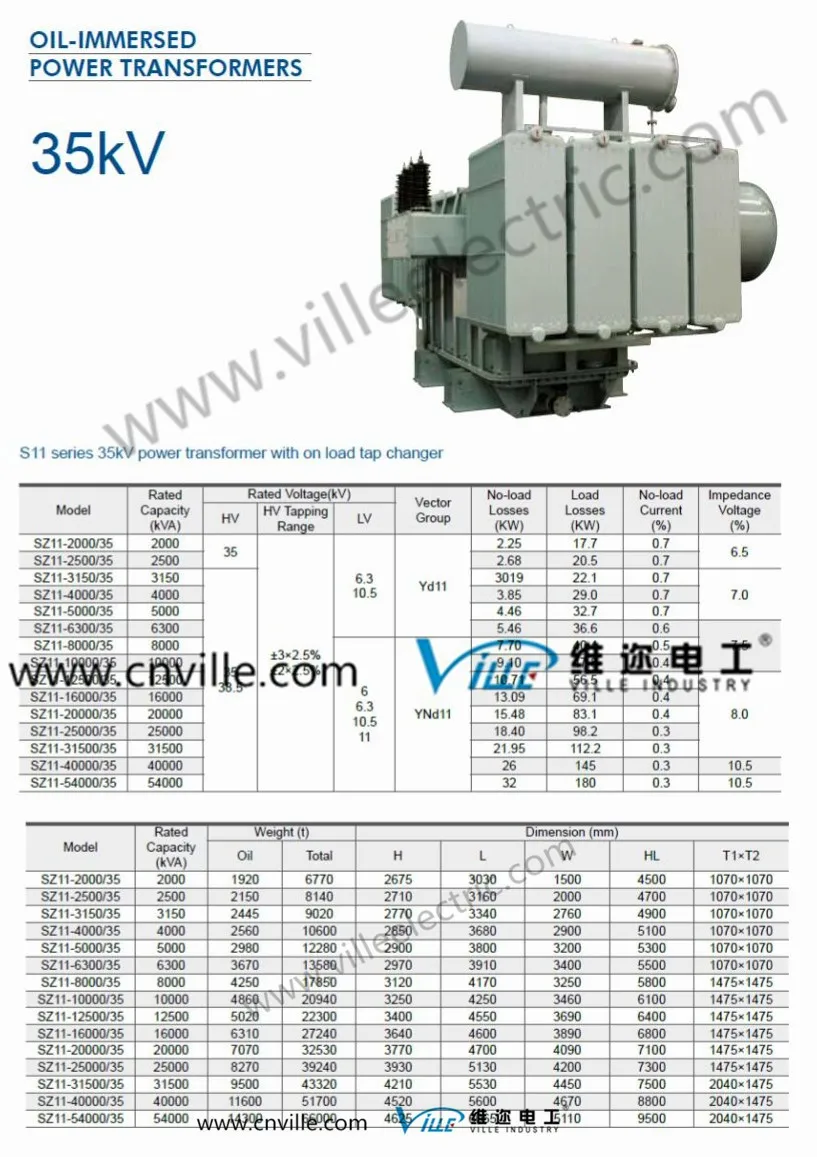

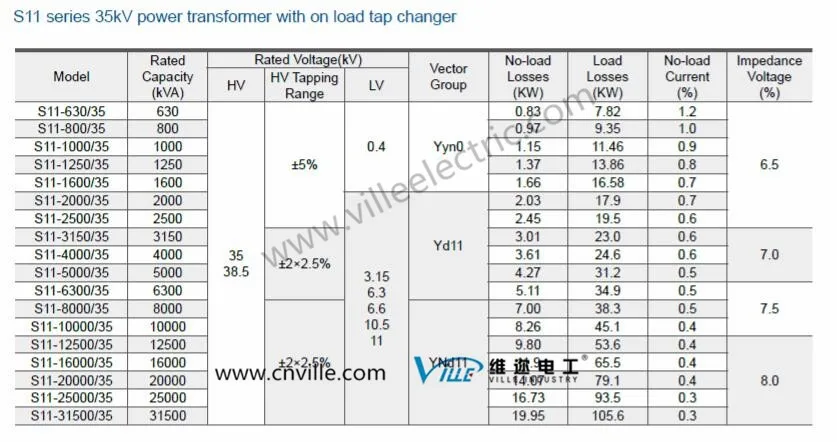

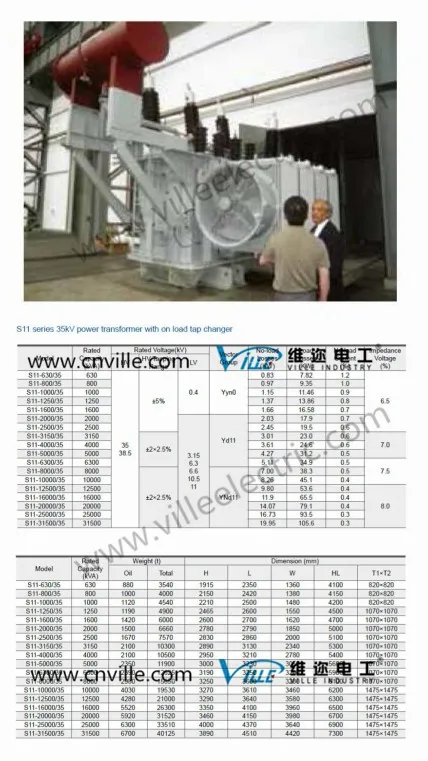

Technical Parameters
Model:SZ11-54000/35
Rated Capacity(KVA):54000
Rated Voltage HV(KV):35/38.5
Rated Voltage LV(KV):6
HV Tapping Range:±3x2.5% ±2x2.5%
Vector group:YNd11
No-load Losses(KW):32
Load Losses(KW):180
No-load Current(%):0.3
Impedance Voltage(%):10.5
Oil Weight (t): 14300
Total weight(t): 66000
Dimension(mm): HxLxW=4625x6065x5110
HL=9500 T1xT2=2040x1475

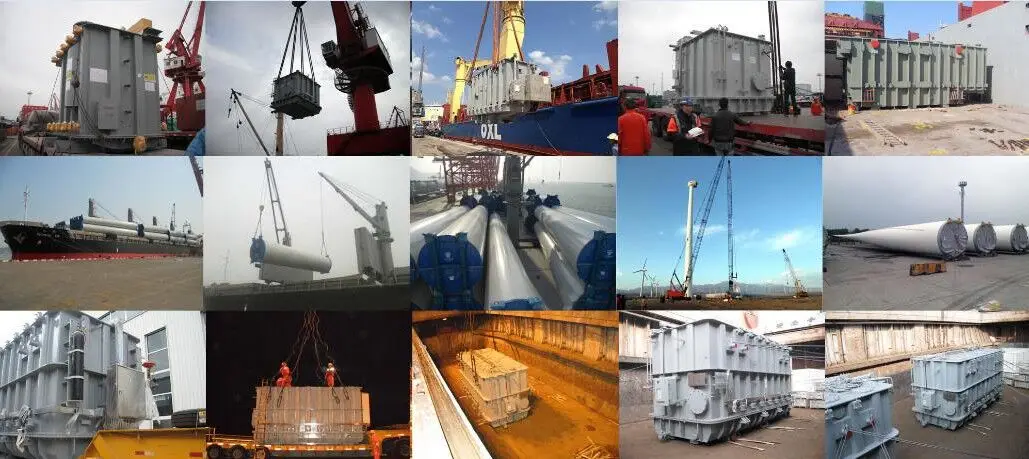

Packaging & Shipping
Trade Shows
Our Services
Pre sale service | |
a. | make technical solution |
b. | send quotation, technical data sheet and drawing |
c. | prepare power transmission plan, testing plan and shipment plan |
2. | In sale service |
a. | supervise the manufacturing schedule totally in accordance with the plan |
b. | send photos to customer during every manufacturing process(hold point) |
c. | inform the customer one week before testing. |
3. | After sale service |
a. | installation and commissioning, training the workers |
b. | quick response within 12 hours any time |
c. | provide 12 months guarantee period normally. |
FAQ
What is your delivery time ? | |
A: | Depend on the type of transformer. |
2. Q: | What is your payment term? |
A: | 30% advance by T/T , 70% before delivery by T/T or L/C or we can discuss about it. |
3. Q: | What kind of standard you follow? |
A: | IEC, ANSI, CSA, GB, etc |
4. Q: | What kind of supporting documentation you can provide normally |
A: | Quotation, outline drawing, manufacturing plan, quality control plan |
5. Q: | What is your normal warranty period? |
A: | 12 months after transformer operation. |
6. Q: | Can u do installation and commission in user's site? |
A: | Yes, we can send our installation team to user's country for service. |
7. Q: | Do you have any experience in this kind of transformer? |
A: | Yes, we can provide reference list for check. |
