GH6266A Chinese high precision engine metal gap bed lathe machine
- Category: >>>
- Supplier: Tengzhou Uni-Tech Co. Ltd.
Share on (60652428557):
Product Overview
Description

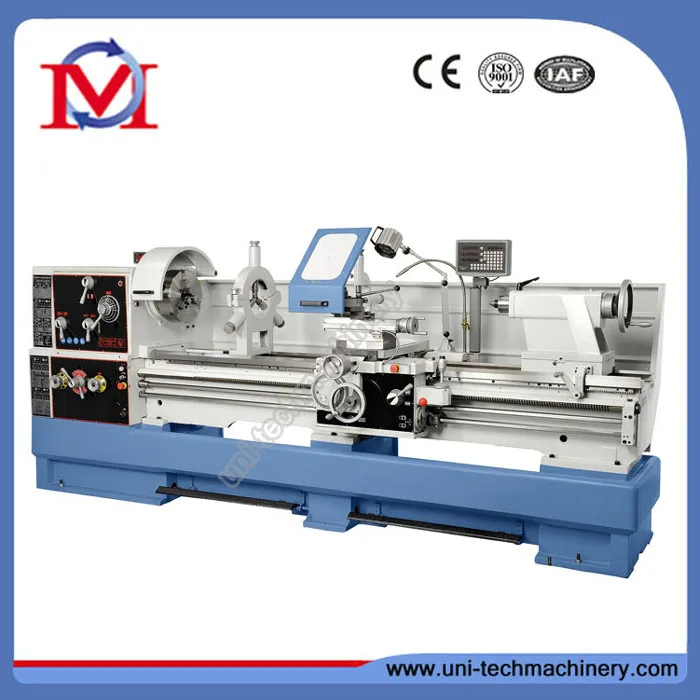

GH6266A Chinese high precision engine metal gap bed lathe machine
Product Description
GH6266A is Chinese high precision engine metal gap bed lathe machine, it with the big spindle bore diameter 105mm, and bed width is 400mm, it has good stability and rigidity. Different distance between centers 1500/2000/3000mm for your choice. And whole or segregate foot stand can be ordered according to your requirements.
1.Main Features of our GH6266A Chinese high precision engine metal gap bed lathe machine:
1.2 Axis digital readout system
1.3 2.Taper turning attachment fitted to saddle
1.4 3.Triple bearings supporting headstock spindle
1.5 4.Quick change toolpost with additional holders
1.6 Adjustable taper roller bearings providing spindle accuracy
1.7 Precision 'V'-beds & headstock gears are all hardened & ground
1.8 Multiple discs forward and reversing clutch system
1.9 Overload protection on drive motor and coolant system
1.10 Universal enclosed gearbox incorporating metric & imperial thread capabilities
1.11 Foot operated spindle brake with safety cut out switch
1.12 X & Z axis rapid traverse selection lever incorporated on the saddle @ 4.5m/min
1.13 400mm wide induction hardened heavy duty cast iron bed
1.14 Removable gap bed allowing work piece to swing up to 900mm
1.15 Cross slide handle disengages when auto feed is used
1.16 Saddle hand wheel disengages when auto feed is used
1.17 Adjustable clutch for auto feeds protects machine from overloading during machining
1.18 Chuck guard fitted with safety micro switch
1.19 Micro switch on side access door
1.20 Powered longitudinal and cross feeds
1.21 Metric / imperial calibrated feed dials
1.22 Coolant system with flexible hose enabling flow control & direction
1.23 Oil sight glass for head stock and gearbox & apron
1.24 Lubrication pump on saddle oiling slides
1.25 Low voltage halogen work light
1.26 D1-8 camlock spindle for quick chuck removal
1.27 16 spindle speeds 25-1600rpm
1.28 Large 105mm spindle bore
1.29 7.5kW / 10HP 415V main motor
Main specification
2.Main Specification of GH6266A Chinese high precision engine metal gap bed lathe machine:
| MACHINE TOOL TYPE | GH-6266A | GH-6280Q |
| CAPACITY | ||
| Swing Over Slide | Φ660mm | |
| Swing Over Cross Slide | Φ440mm | Φ570mm |
| Swing in Gap Diameter | Φ900mm | Φ1035mm |
| Length of Gap | 250mm | |
| Center Height | 330mm | |
| Distance Between Centers | 1500mm/2000mm/3000mm | |
| Width of Bed | 400mm | 400mm |
| Max. Section of Tool | 25mm × 25mm | |
| Max. Travel of Cross Slide | 368mm | 420mm |
| Max. Travel of Compound Rest | 230mm | 230mm |
| HEADSTOCK | ||
| Spindle Bore | Φ105mm | |
| Spindle Nose | D1-8 | |
| Taper of Spindle Bore | Φ113mm(1:20)/MT5 | |
| Spindle Speed Number | 16 | |
| Range of Spindle Speed | 25~1600rpm | 25~1600rpm |
| FEEDS AND THREADS | ||
| Leadscrew Pitch | Φ40mm×2T.P.I. or Φ40mm×12mm | |
| Inch Threads Range | 7/16~80T.P.I. (54 kinds) | |
| Metric Threads Range | 0.45~120mm (54 kinds) | |
| Diametrical Pitches Range | 7/8~160DP (42 kinds) | |
| Module Pitches Range | 0.25~60MP (46 kinds) | |
| Longitudinal Feeds Range in Metric Lead Screw | 0.044~1.48mm/rev (25 kinds) | |
| Longitudinal Feeds Range in Inch Lead Screw | 0.00165"~0.05497"/rev (25 kinds) | |
| Cross Feeds Range in Metric Lead Screw | 0.022~0.74mm/rev (25 kinds) | |
| Cross Feeds Range in Inch Lead Screw | 0.00083"~0.02774"/rev (25 kinds) | |
| TAILSTOCK | ||
| Quill travel | 235mm | |
| Quill diameter | Φ90mm | |
| Quill taper | MT5 | |
| MOTOR | ||
| Main motor power | 7.5kW(10HP) | |
| Coolant pump power | 0.09kW (1/8HP) | |
| DIMENSION AND WEIGHT | ||
| Overall Dimension (L×W×H) | 321x123x160cm(1500mm) 371x123x160cm(2000mm) 471x123x160cm(3000mm) | 321x123x167cm(1500mm) 371x123x167cm(2000mm) 471x123x167cm(3000mm) |
| Packing Size (L×W×H) | 324x114x184cm(1500mm) 374x114x184cm(2000mm) 474x114x184cm(3000mm) | 324x114x191cm(1500mm) 374x114x191cm(2000mm) 474x114x191cm(3000mm) |
| Net Weight | 3060/3345/3710kg | 3220/3505/3870kg |
| Gross Weight | 3535/3835/4310kg | 3705/4005/4480kg |
Standard Accessories:
3-Jaw chuck, 4-Jaw chuck, steady rest, follower rest, work lamp,
face plate, longitudinal automatic trip, oil gun, coolant system, brake system,
operation manual
Optional Accessories:
SINO DRO 2-axis
Quick change tool post
Live center
Turning tools
Lead screw cover
Toolpost cover
Chuck cover
CE standard
Detailed Images

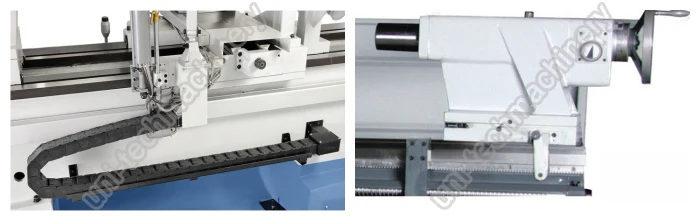

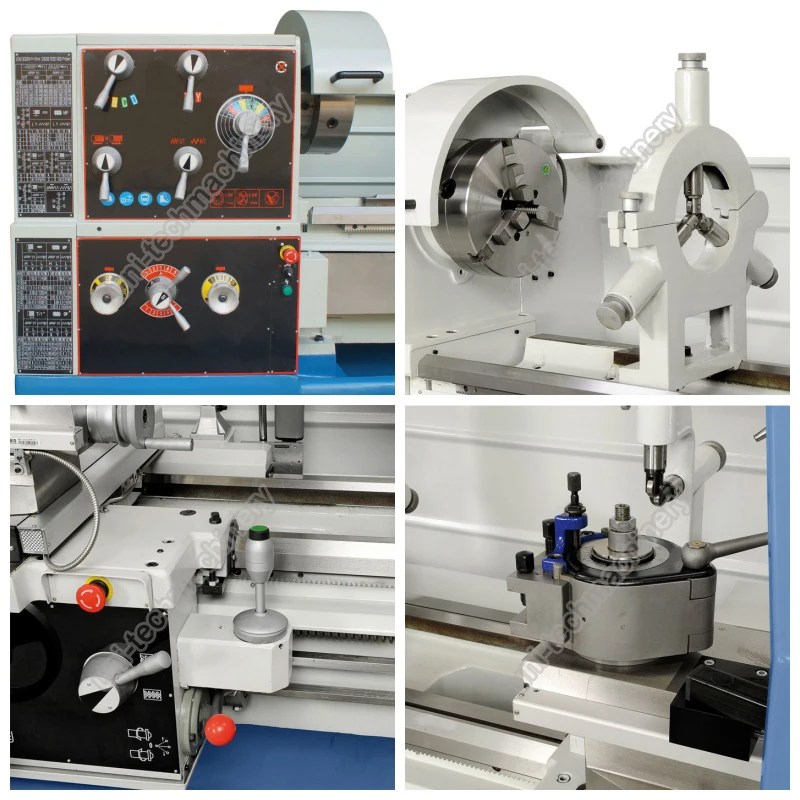

3.Detailed Images of GH6266A Chinese high precision engine metal gap bed lathe machine:
Packaging & Shipping
Packing size:
324x114x184cm(1500mm)
374x114x184cm(2000mm)
474x114x184cm(3000mm)
Package: standard export lathe machine package plyw/case
Our Services
We also would like to let you know our warranty about GH6266A Chinese high precision engine metal gap bed lathe machine.
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
Company Information
Every month, we will export almost 500 sets machine in the worldwide. We think we can give you the most comprehensive support not only service but also techniques.
FAQ
PAYMENTS: 1.TT 30% advance payment product,pay the balance before delivery.
2.L/C at sight.
COLOR, VOLOTAGE, POWER according to the client's requirement .
