high speed grooved drum polyester filament winder / winding machine manufacturer
- Category: >>>
- Supplier: Jiangsu Tangshi Textile Machinery Group Co. Ltd.
Share on (60652541224):
Product Overview
Description
Product Description
Bobbin type: |
5"(170mm) |
Layout | Double-side, can be 12-96 spindles |
Power Supply | Three phases 380V 50/60HZ |
Driving | Every spindle per motor |
Power Consumption | 0.09KW/spindle |
Take-up package | Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15 |
Yarn tension and waxing device | Every spindle has a yarn tension and waxing device |
Auto Stop Device | Each spindle install auto stop device |
Electronic Anti-Stack | Inverter control |
Cleaner device | Every spindle has a Mechanical Knife yarn cleaner |
Electronic Yarn Cleaner | Optional installed |
Air Splicer | Optional installed |
Blower cleaner | Optional installed |
Lighting System | Contain |
Dimensions | L 11850 x W 1150 x H 1500 mm |
EQUIPMENTS:
Inverter (MITSUBISHI Brand), Drum(Super plastic Alloy),
Motor(Ning bo), Controller(Hang Zhou )
PARAMETERS:
1. Drive: every spindle per motor
2. Winding speed: 300-1000 M/min
3. Has function of auto stop when yarn break.
4. Package Dia≤ 250mm; Take-up Traverse: 150mm.
5. Each spindle with length counter;
6. Advanced control panel.

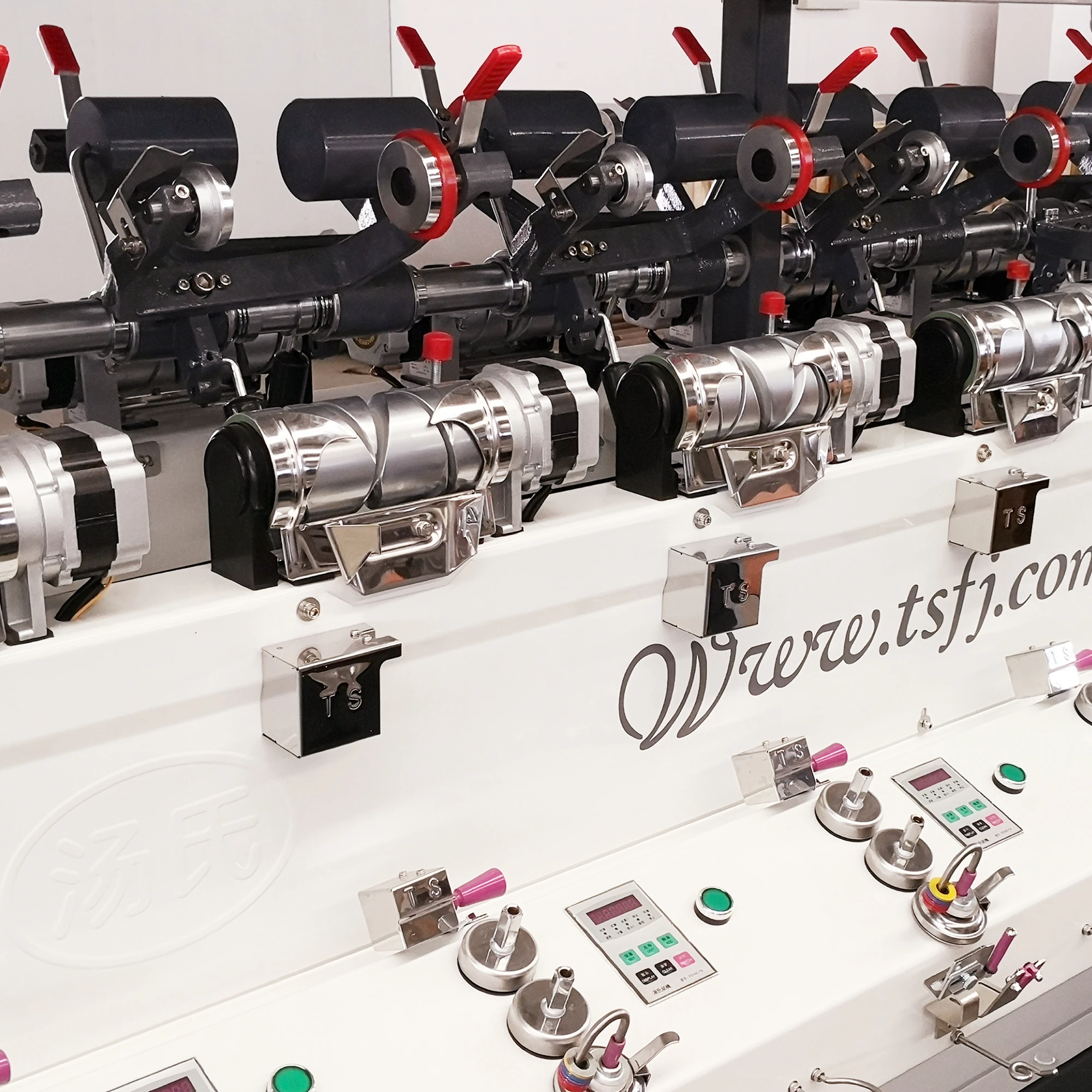

Drum
Spindle head
Motor
Liquid crystal display
Power master switch
Fan
Tensioner
Creel
Switch button
Sensor

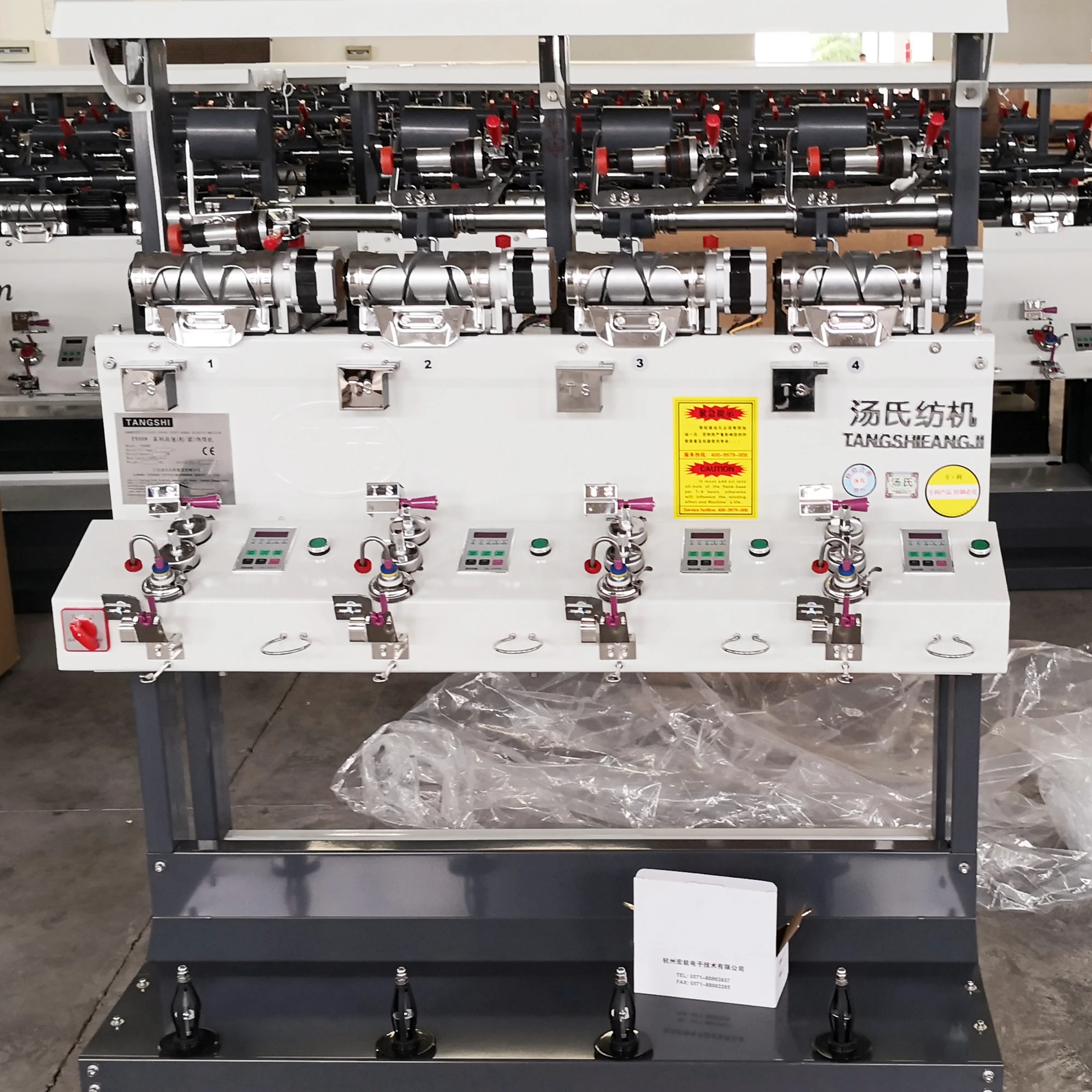

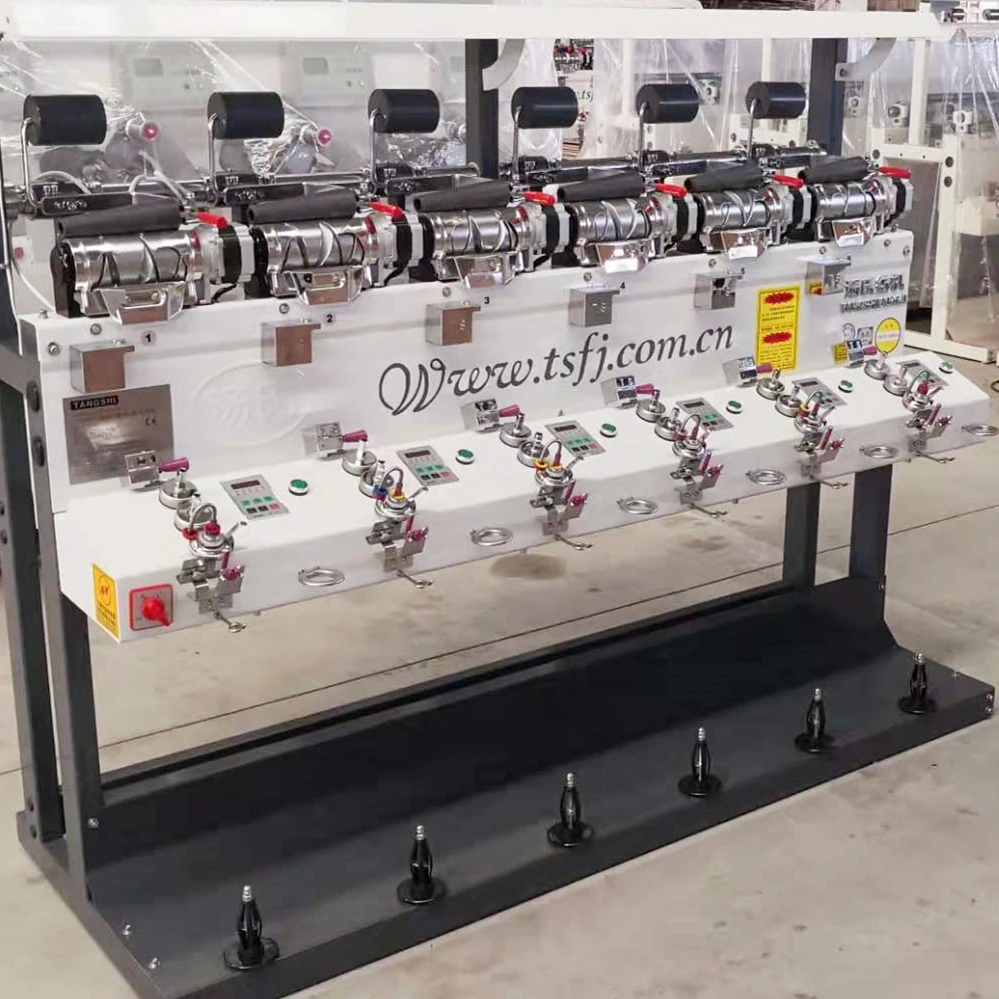

TS008M High Speed Tight(Hard) winding machine, it’s mainly for the yarn After Dyeing
rewinding or yarn rewinding using cone to cone directly, suit for winding like Fiber yarns,
Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or
Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can
alleviate the intensity of labour for next processing work.
Comparison
FAQ
Q: What is the real winding speed for this machine
A: It's depends on how the performance and take up package formed, if the take up package formed well, then you can increase the speed, normal winding machine is 600-800m/min
Q: My bobbin is some kind of special, is that workable on the machine?
A: We will make the spindle head base on the bobbin that customer provide.
Q: The yarn always break, how to solve it?
A: 1. Check the tension first, if the tension is too big, just reduce some weight
2.Check the yarn whether it's in the right path.
3.Check the quality of yarn, sometimes yarn breakage due to the weak yarn
Q: How to solve the problem if the package become too hard and start bounce?
A: Try to reduce the tension or speed
Q: Does your machine shake when full load running?
A: No, our machine frame is very strong, it's quite stable

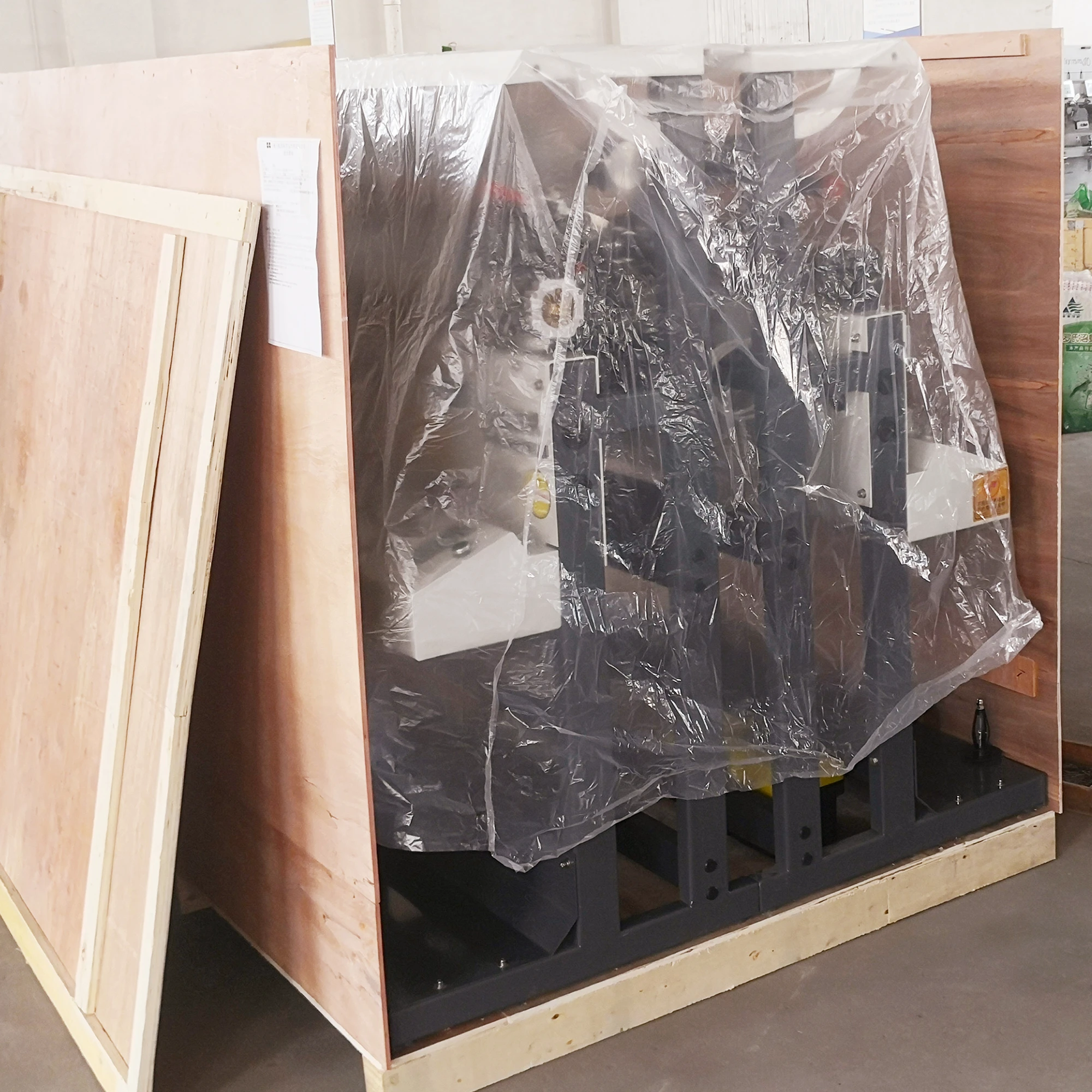

Packaging & Shipping
Company Information
Jiangsu Tangshi Textile Machinery Group Co., Ltd was an experienced and professional manufacturer, it already has 30 years' experience of producing drum winding machines, with advanced technics and production equipments it can output more one thousand winding machines annually. after these years hard work and faith cooperation, Jiangsu Tangshi Textile Group Co., Ltd got a good reputation. our products like GA014 series soft and tight winding machine, TS008 semi-automatic soft and tight winding machine, TS230,280,290,300 big take-up winding machine. and we also can customize machines according to the customers' special demands. we service the textile industry in conformance with the aim of “professional produce, faith operation, reputation brand ”. The products are widely sold at domestic and also export to south-east asia countries gradually.To supply all kinds of winding machine is our company's feature, good quality and in time deliverly is our promise. sincerely hope we can go forward hand in hand and set up bright life together!Winding machine------------Jiangsu Tangshi Textile Machienry Group Co., Ltd will be your best choose!
