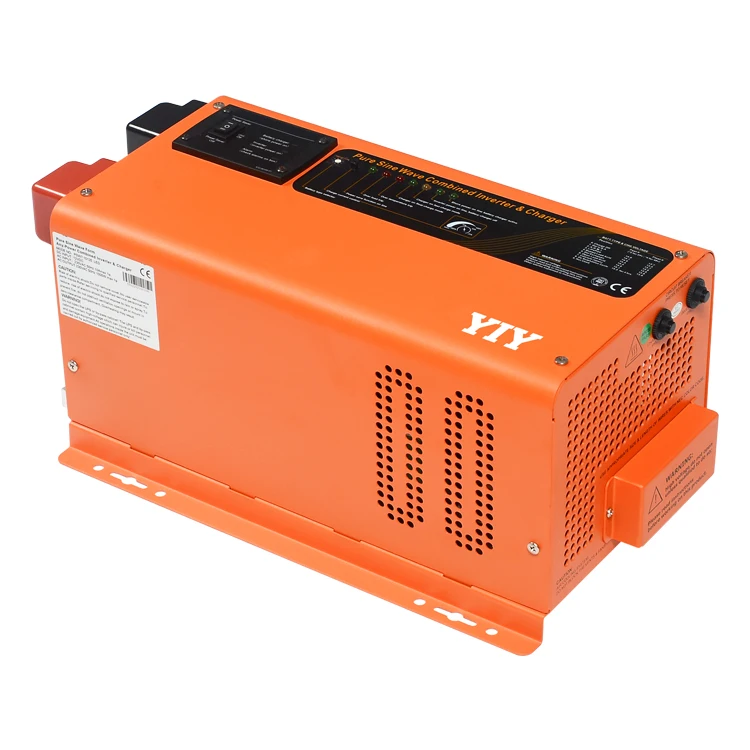

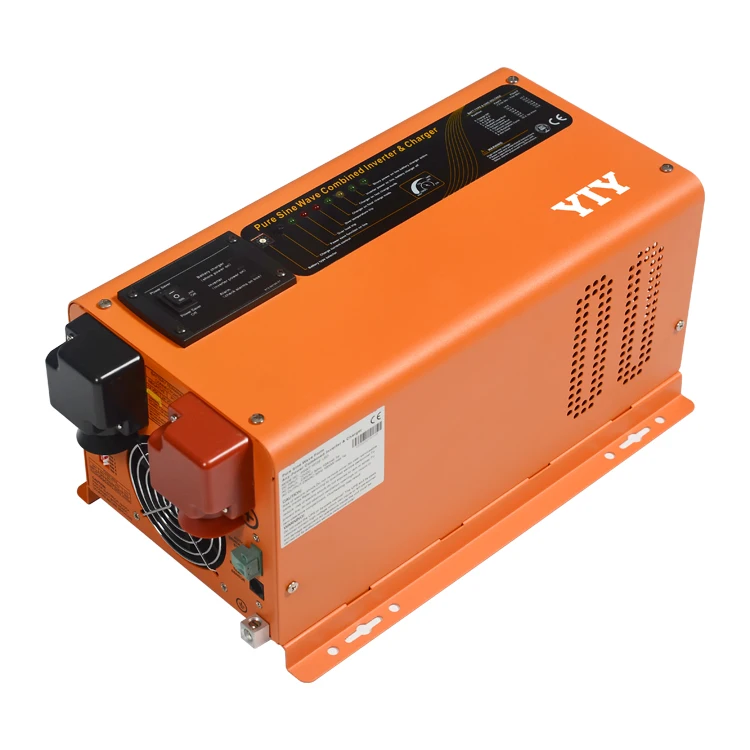

YIY Power Star W7 pure sine wave inverter 6000W 24V/48V
- Category: >>>
- Supplier: Shenzhen,Yiyuan,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Single and Split Phase Pure Sine Wave DC to AC Inverters & Converters 1000W 1500W 2000W 3000W 4000W 5000W 6000W with Charger
The PSW7 inverter family firmly holds our tradition of reliability and durability. By employing YIY's mature electric technologies, our PSW7 series features high overload capacity, three intelligent battery charging modes, and power saver mode, and fits various small-scale application scenarios, such as home solar power system, electric energy storage and conversion, RV, yachts, and residential/workplace appliances.
Product Description
Specification
PSW7 Pure Sine Wave Inverter/Charger | ||||||||||||||||
Inverter output | Model | PSW7 | PSW7 | PSW7 | PSW7 | PSW7 | PSW7 | PSW7 | ||||||||
1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | ||||||||||
Output Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |||||||||
Surge Rating (20S) | 3000W | 45000W | 6000W | 9000W | 12000W | 15000W | 18000W | |||||||||
Capable Of Stating Electric Motor | 1HP | 1.5HP | 2HP | 3HP | 4HP | 5HP | 6HP | |||||||||
Output Waveform | Pure Sine Wave/Same as input (Bypass Mode) | |||||||||||||||
Nominal Efficiency | >88% | |||||||||||||||
Line Mode Efficiency | >95% | |||||||||||||||
Power Factor | 0.9-1.0 | |||||||||||||||
Nominal Output Voltage | 100-110-120V/220-230-240V | |||||||||||||||
Output Voltage Regulation | 10%RMS | |||||||||||||||
Output Frequency | 50Hz/60Hz | |||||||||||||||
Short Circuit Pretection | Yes , Current Limit Function (Fault after 1Sec ) | |||||||||||||||
Typical Transfer Time | 10ms (Max) | |||||||||||||||
THD | <10% | |||||||||||||||
DC-Input | Nominal Input Voltage | 12.0Vdc(*2 for 24Vdc,*4 for 48Vdc) | ||||||||||||||
Minimum Start Voltage | 10.0Vdc | |||||||||||||||
Low Battery Alarm | 10.5Vdc/11.0Vdc | |||||||||||||||
Low Battery Trip | 10.5Vdc/10.0Vdc | |||||||||||||||
High Voltage Alarm | 16.0Vdc | |||||||||||||||
High DC Input Recovery | 15.5Vdc | |||||||||||||||
Low Battery voltage Recovery | 13.0Vdc | |||||||||||||||
Idle Consumption-Search Mode | 25W When Power Saver On | |||||||||||||||
Mounting | Wall Mount | |||||||||||||||
Mechanical Specification | Mounting | 382*218*179mm | 442*218*179mm | 598*218*179mm | ||||||||||||
Inverter Weight (L*W*H) | 16KG | 17KG | 20KG | 24KG | 35KG | 45KG | 45KG | |||||||||
Inverter Dimension | 520*315*300mm | 580*315*300mm | 740*315*300mm | |||||||||||||
Shipping Wegiht(L*W*H) | 18KG | 19KG | 22KG | 26KG | 37KG | 47KG | 47KG | |||||||||
Display | Status LEDs/Status LEDs +LCD | |||||||||||||||
Standard Warranty | 1 Year | |||||||||||||||
Certifications
Company Profile
Shenzhen Yiyuan Technology Co., Ltd
Shenzhen Yiyuan Technology Co., Ltd was established in 2011. As a branch of Yiyuan Electric Co.,Ltd founded in 2008, it is a high and new tech enterprise specialized in manufacturing electrical power products for power supply systems and renewable energy system.
Our main products are Inverters, MPPT Solar Controllers, UPS, ESS and Automatic voltage regulators (AVR).
Our inverters are widely used in Commercial, Residential, Industrial applications including UPS market, utility market, RV market, renewable energy systems.
As a result of our focus on quality and reliability, our products have been approved by CE, UL and ETL certificates. In addition to our economical prices and customer service, it has helped our products to gain popularity and good reputation globally.
Operation principle: Strive for efficiency on basis of quality ; science & technology to seek development. We will keep promoting management level; improving production technology; perfecting product quality and variety.
Ten years of specializing production has made our products best-selling in the world market, like North America, South America, Europe,Southeast Asia, Africa, Mid-east regions etc, and have enjoyed good reputation from the customers all over the world.
We dedicate ourselves to serve all customers, societies and partners to maximize the mutual benefits. We are ready to establish long-term business with your esteemed company.
Packing & Delivery
FAQ
Q1.Does YIY battery include BMS?
A.Yes, our battery pack include BMS system。
Q2. tell me the standard of package?
A. For the small quantities, we use standard export carton; and for big quantities and sizes, we use strong wooden case/pallet for extra protection.
Q3.Do you accept OEM/ODM?
A. Yes. We can prepare relative documents to the foreign affairs office or other offices to apply for this certificate.
Q4. Would you accept to use our logo?
A.Yes, it is available. But we have MOQ for that.For details, pls talk to the customer service.
Q5.Where is your market?
A. Our products are popular in Russia, Indonesia, Philippines, Italy, America, Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q6.What kind of certificate do you have?
A.We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 as customer requires.But for details and fee, we need to talk in detail with the sale manager.
A.Yes, our battery pack include BMS system。
Q2. tell me the standard of package?
A. For the small quantities, we use standard export carton; and for big quantities and sizes, we use strong wooden case/pallet for extra protection.
Q3.Do you accept OEM/ODM?
A. Yes. We can prepare relative documents to the foreign affairs office or other offices to apply for this certificate.
Q4. Would you accept to use our logo?
A.Yes, it is available. But we have MOQ for that.For details, pls talk to the customer service.
Q5.Where is your market?
A. Our products are popular in Russia, Indonesia, Philippines, Italy, America, Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q6.What kind of certificate do you have?
A.We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 as customer requires.But for details and fee, we need to talk in detail with the sale manager.
