Remote Control Smart Building Fancoil wireless Hotel Thermostat with ZigBee

Product Overview

Description

Introduction

FC270z series thermostats,use microcomputer control technology to detect the different temperature between roomTemperature and setting temperature,then through controlling the fan of fan coil and electric water valve,to keep the room at comfortable and constant temperature.This series apply to the control of two-pipe or four-pipe fan coil,two-wire or three -wire motorized valve and water heating floor system,you can control your thermostats anyway where you are ,via to your moblie APP or Weixin .Widely used in high-grade office building,venues,residential buildings, and so on.



Technical data



Features

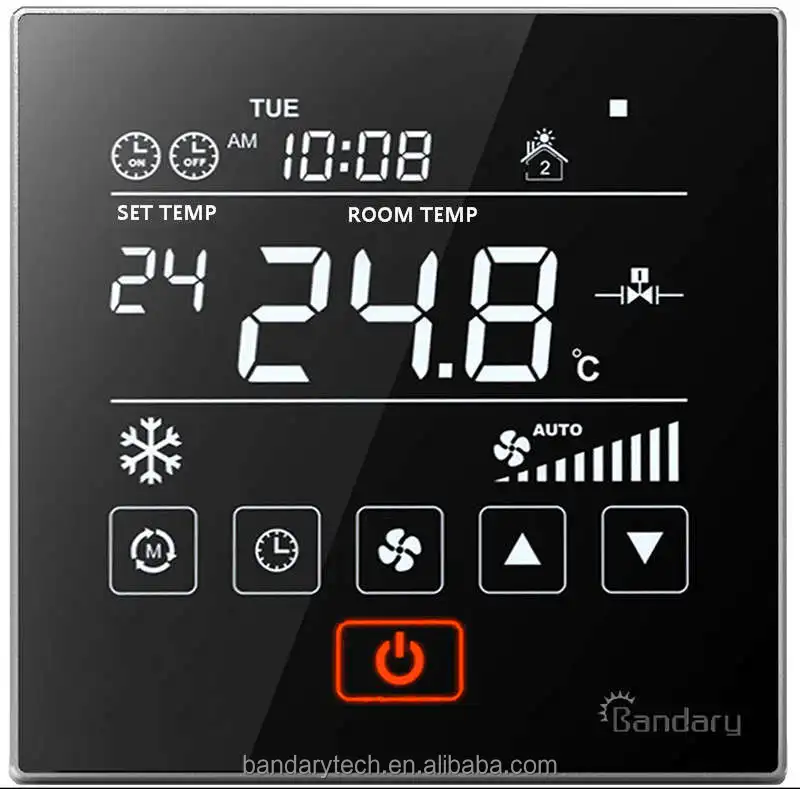

• High-grade  Large  reverse LCD display with white  backlight


• Sensing element: NTC 10K


• Key: Capacitive touch screen


• Types: cooling only/cool &heat 2pipe/floor heating /cool&heat 4pipe/water floor heating (Optional)


• Adjustable cooling/fan/heating/auto mode


•  Adjustable fan speed hi/med/low/auto


• 7 Days 4 Periods Programmable:


  7 Days 4 Periods Programmable Function: one week is divided into 7 days with four periods in each day,  each temperature can be set separately to meet the user’s different room temperature need in different time periods





• Reliable output by relays


• Detect Room Temperature


• Memo while the power failure


• real clock (optional)


• Remote Control


• Lock/Unlock keypad to avoid any mistake operations (optional)


• Adjustable minimum and maximum setting point  temperature limits


• Auxiliary electrical heating


• Frost protection


• ZigBee communication


• Display adjustable between ℉and℃

Dimension

• Display unit

• Base plate



Wiring Diagram
