SZPH PHF150 series Wave Absorbing Materias Technical Specification

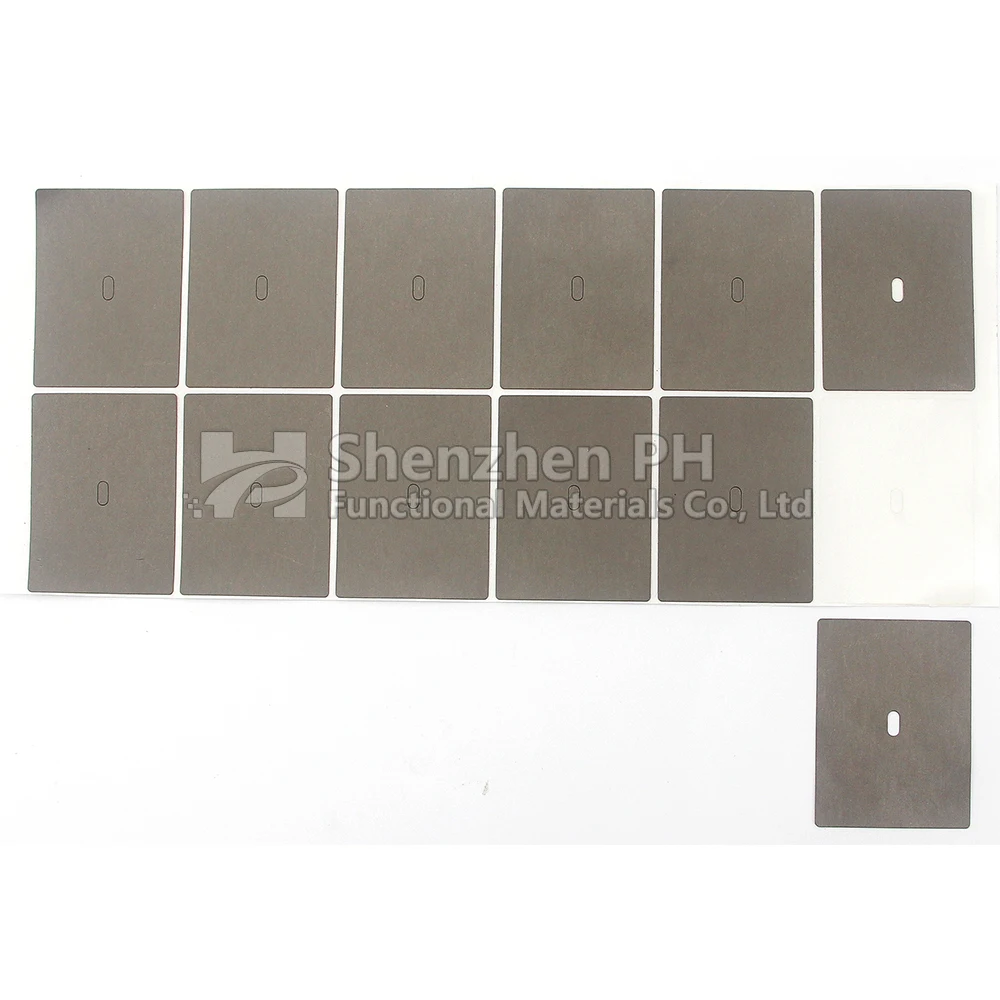

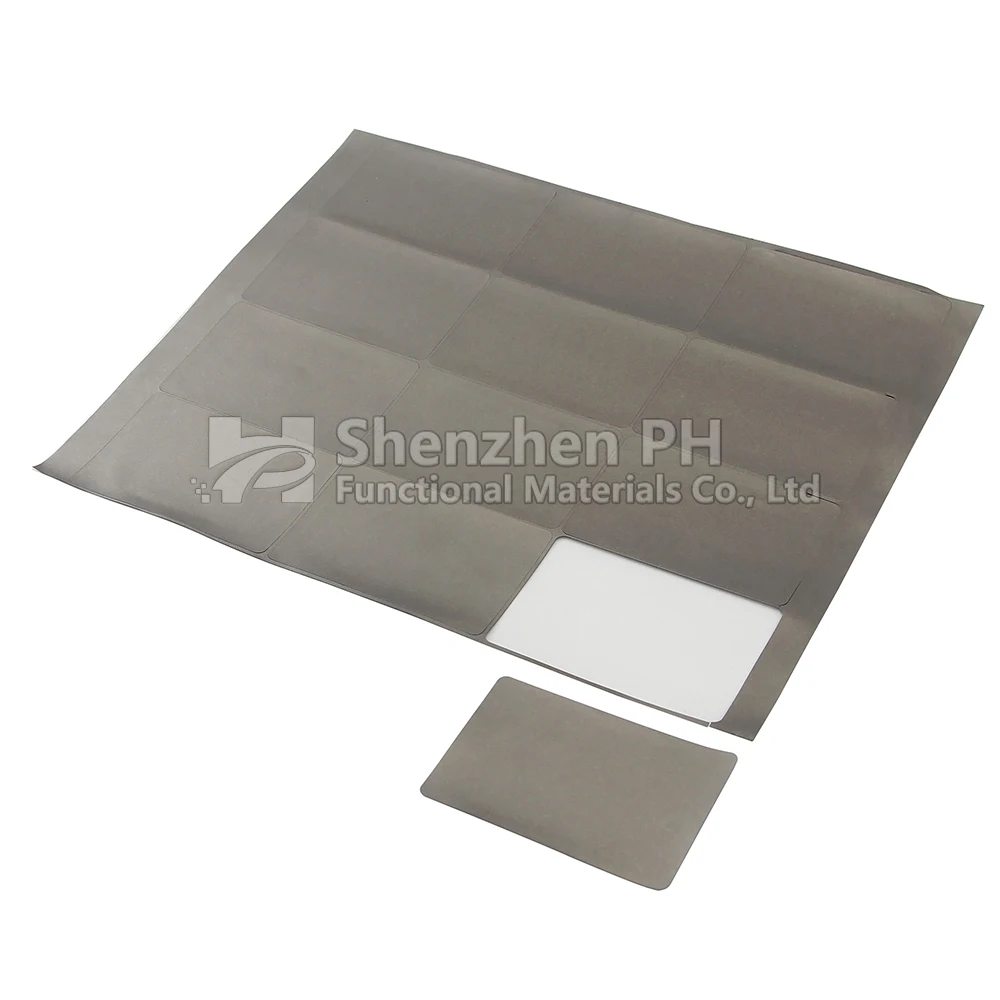

meterial appearance and structure

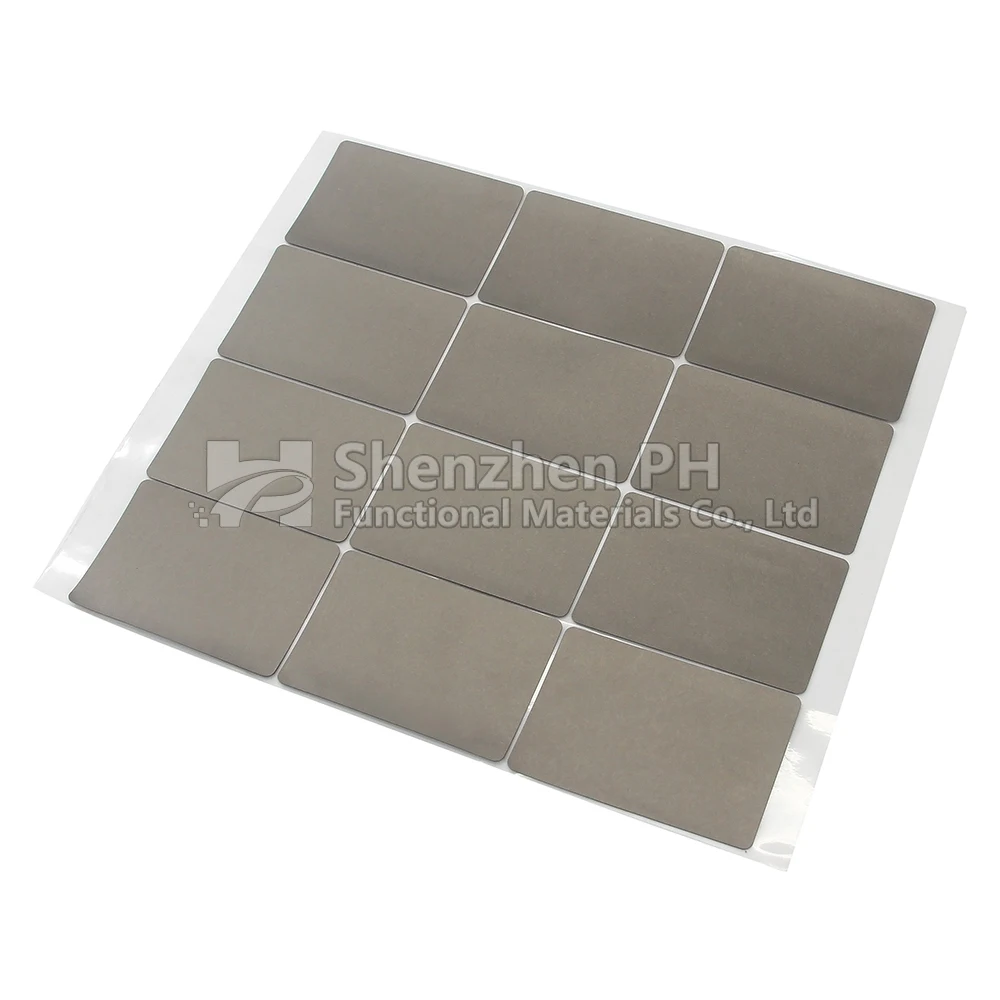

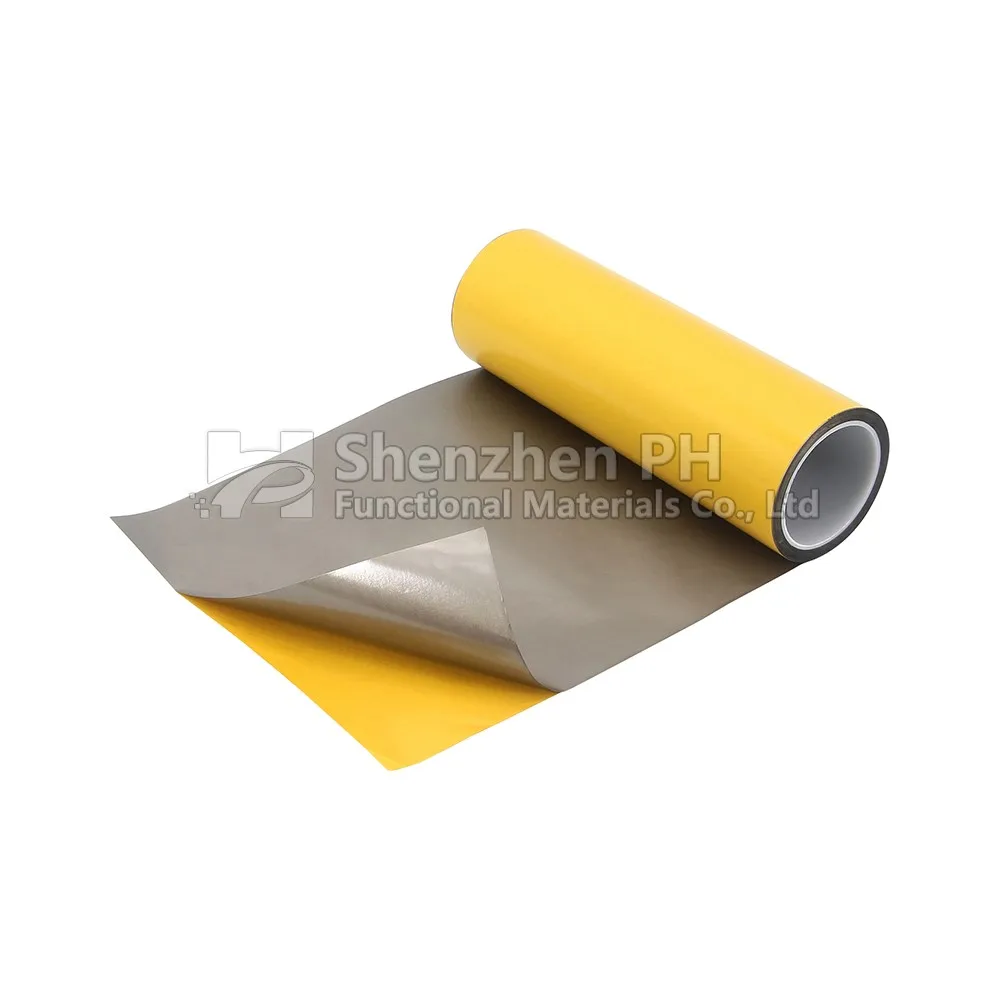

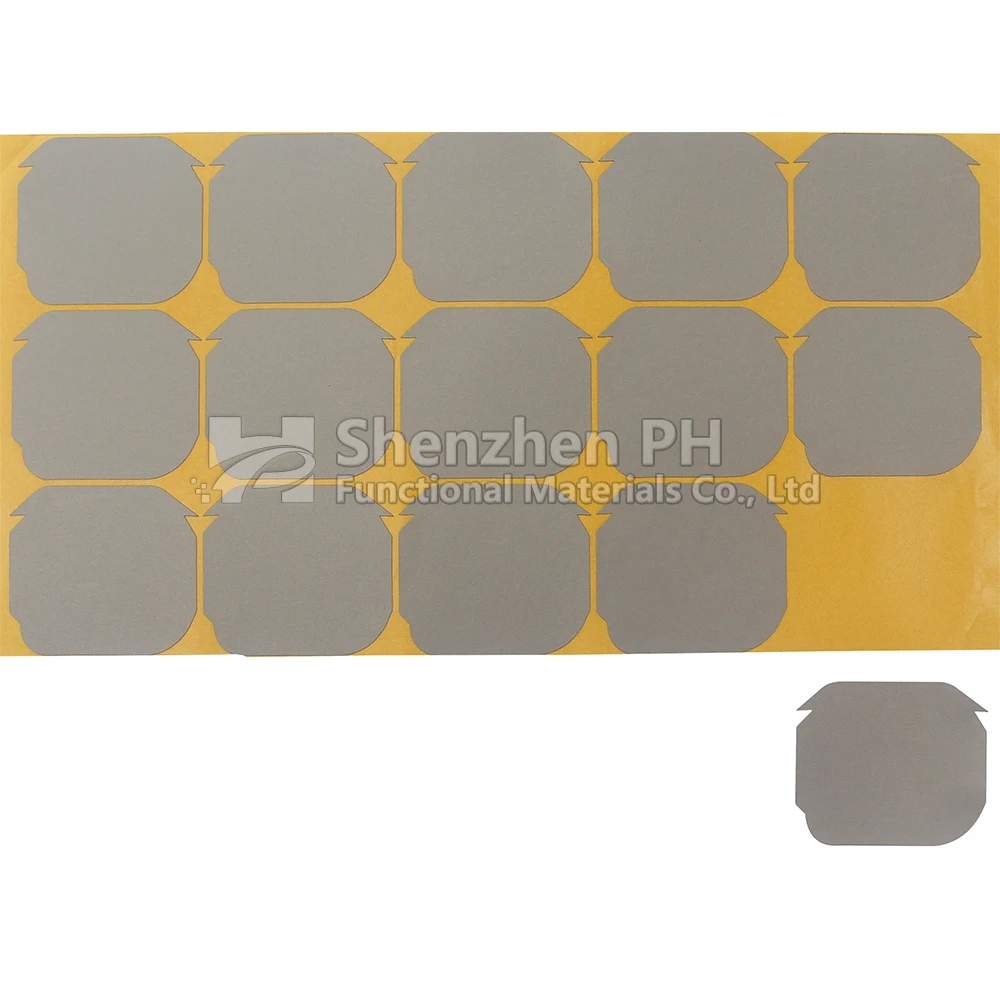

The structure characteristics of PHF150 series sintered ferrite slices

Consists of soft magnetic ferrite sintering films, double-sided tape and protection film those 3 layers, soft and easy cutting , customized size and shape is available;

One side of which coated with double-sided tape so that it's easy to install.

The ultra-thin thickness convenient for used in narrow space.

Performance characteristics of PHF150 series sintered ferrite sheet

Improving the problem of eddy current generated by the RX&TX of the wireless charger near the metal ,for increased charging efficiency.

Improving the read and write failure of rf electronic product while Encounter metal such as the RFID electronic tag, antenna, reader and writer device, IC card,bus card, Play a role in metal interference.

High surface resistance can be used in more complex circuits;

High viscosity laminating effect leads to Higher reliability in application;

 Passed ROHS and HFcertification, with flame retardant and aging characteristics

Technical parameter of PHF150 series sintered ferrite sheet

Category	PHF150 series sintered ferrite sheet
Item No.	PHF15010
Basis	soft magnetic ferrit
Frequency	0~100MHz
Standard double-sided tape	Thickness:0.01mm material: PET
Standard protective film	Color: black Thickness:0.02mm material: PET
Material thickness	0.1
standard size	125*125
Permeability	150
Surface resistance(Ω*m)	≥1.0*106
Density(g/cm³)	4.9
(enviroment requirements)	ROHS,HF
Temperature limitation	-40~120
Tensile strength(Mpa)	6.3
Adhesion strength  kgf/inch	>1.0
Thermal conductivity(W/m.k)	0.9
Flame retardant	UL-94V2

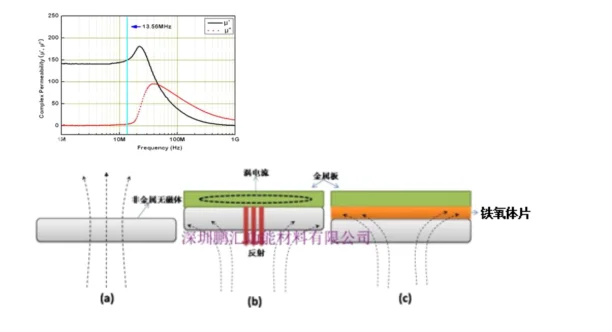

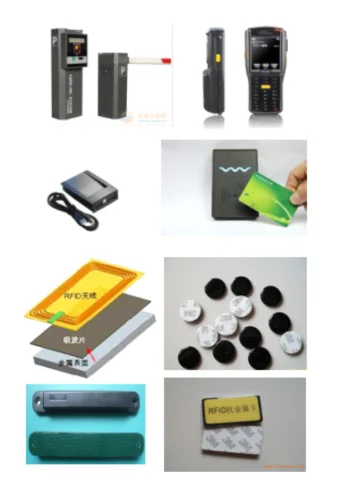

Principle and performance diagram of metal interference resistance for PHF150 series sintered ferrite sheet





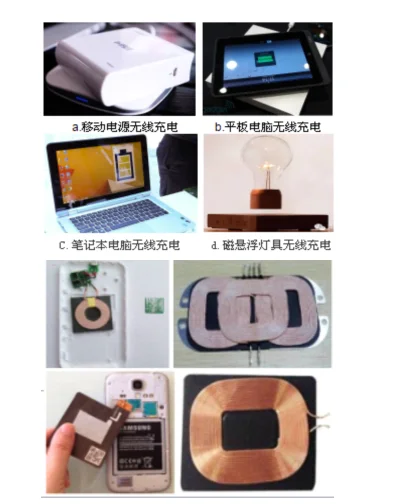

The application of PHT150 series sintered ferrite





a.Wireless charging of mobile power

b. Wireless charging of tablet pc

c. Wireless charging of laptop

d. Wireless charging of magnetic levitation lamps





Notice:

1) This product should be kept under normal temperature, avoid direct sunlight, avoid high temperature and high humidity;

 2) The data above is taken from the average test data of our company, our company ownes the final right to intepret.

3) The purchaser shall determine whether the product is suitable for your particular purpose and application, many factors can affect the product performance in the specific use, if you have any doubts about our products, please feel free to contact us, so that we can serve you better.
