Combination type of stainless steel emergency eye washer and shower station, safety shower eye wash
- Category: >>>
- Supplier: Wuxi Huanawell Metal Manufacturing Co. Ltd.
Share on (60652713053):
Product Overview
Description
Product Description
This product can be used in field of petroleum, chemical, laboratory, medical treatment etc., and flushing the chemistry liquid sputtered eye and face rapidly, so reduce the level of injury to the minimum.
Piping Material | Stainless Steel 304 |
Shower Head | Stainless Steel 304 |

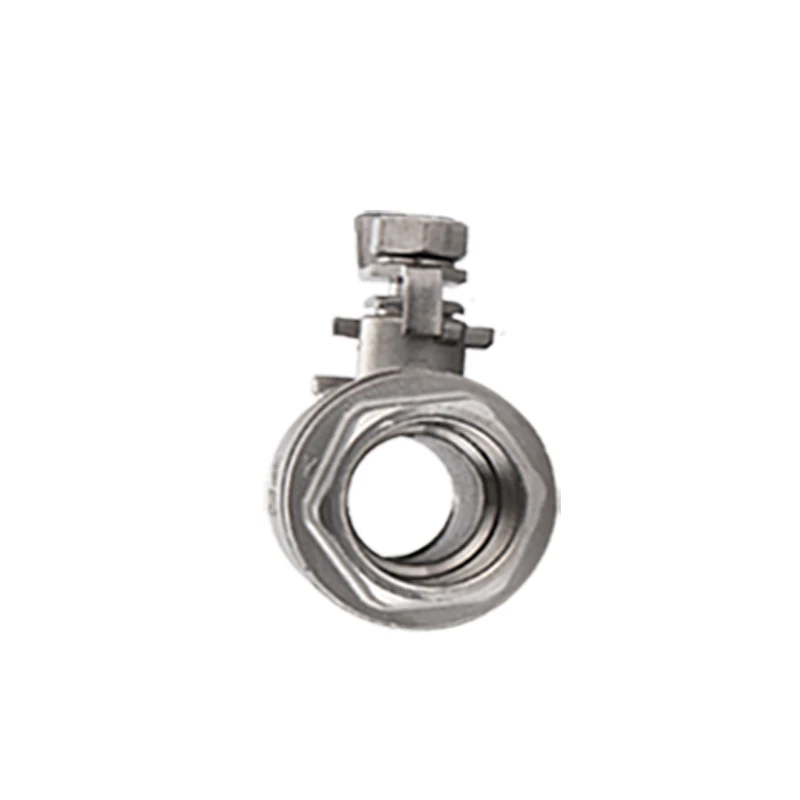

Shower Valve | 1″ stainless steel 304 ball valve |
Shower Activation | By pull rod stainless steel 304 |
Eyewash Bowl | Stainless Steel 304 |
Eyewash Head | 2 Sprayers with dust cover |
Eyewash Valve | 1/2″ stainless steel 304 ball valve |
Eyewash Activation | By push handle or foot pedal |
Water Supply/Outlet | 1-1/4”IPS |
Flow Control | 75.7L/Min |
Detailed Images
1. Material: stainless steel 304 with thickness of 3mm.
2. The working pressure is 0.2-0.4MPA.
3. Manufacturing processes: the whole pieces takes blasting treatment to increase the surface brightness anti-corrosive ability.
4. Eye wash bowl: size: the diameter is 260mm, and the thickness is 0.6mm, it is used for collecting the used water.

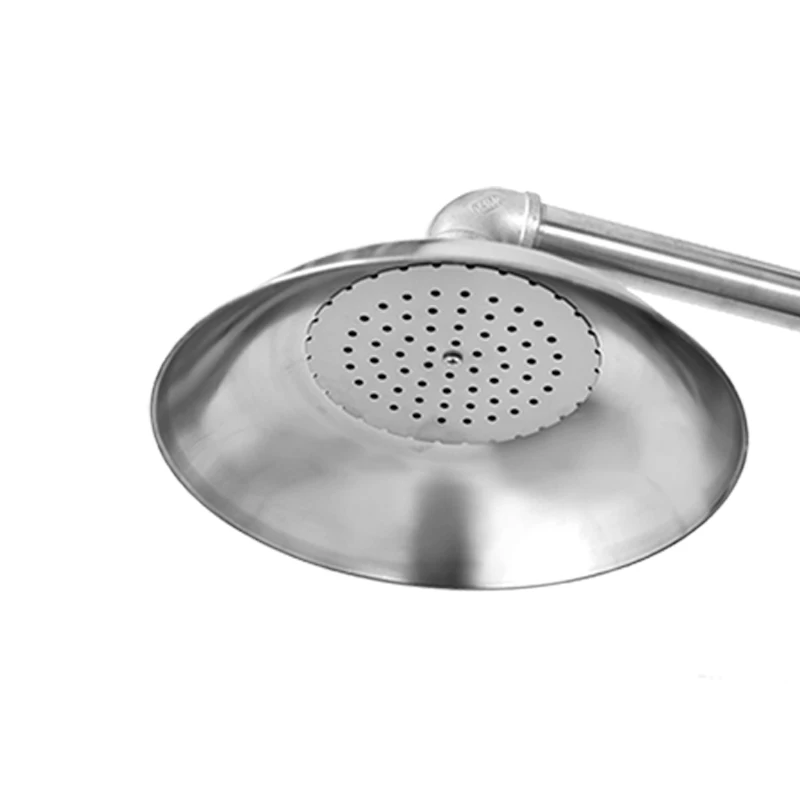

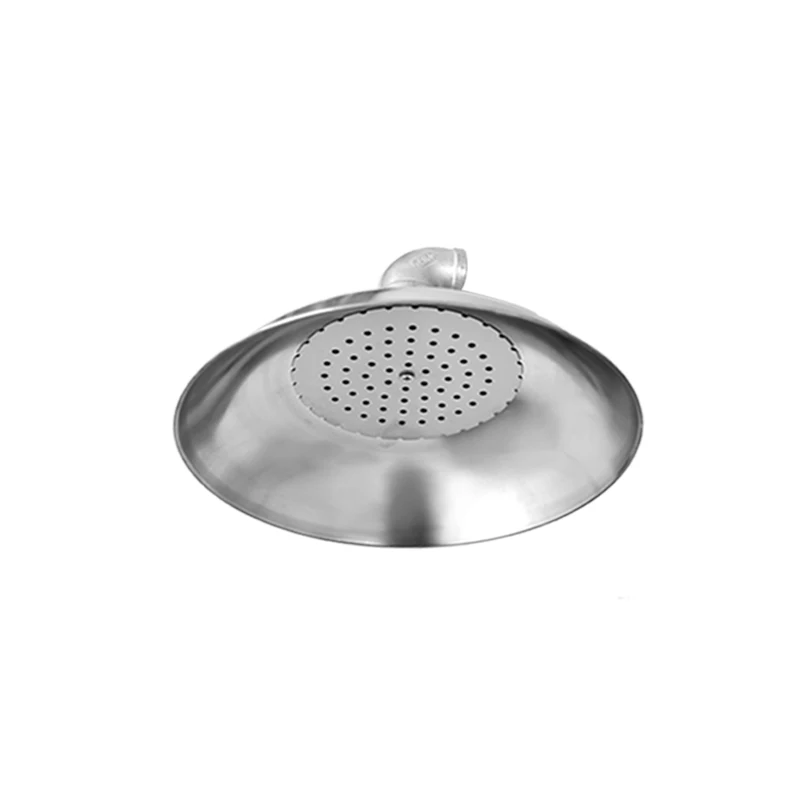

Shower bowl: the diameter is 250mm, and the thickness is 0.6mm. The edge of bowl is 2100mm high to the ground. This bowl is used for shower spray. Manufacturing process: multiple punching through rotate molding, the bowl edges are flipped without blurs, the brightness after polishing is high and this appearance guarantees the long lifetime.
5. Eye wash nozzle covers: made of stainless steel 304, put the covers on the nozzles, in order to prevent dust and avoid water gets polluted when needed.

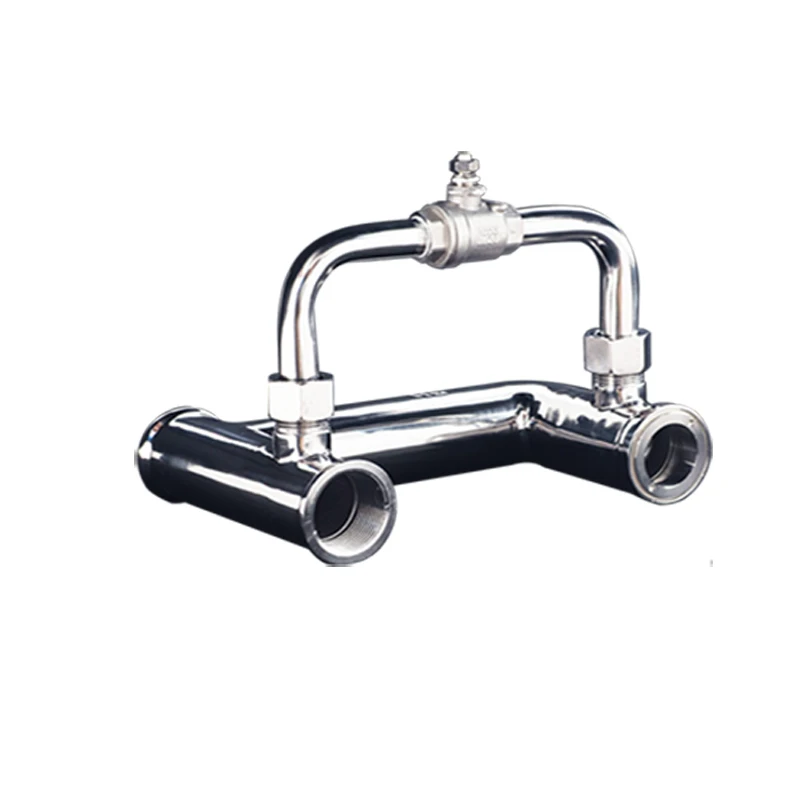

6. Pipe: 5/4” threaded connection. Made of stainless steel 304.
7. Water inlet pipe: 5/4” threaded connection, about 1580mm high to the ground.
8. Waste water outlet pipe: 5/4” threaded connection, about 150mm high to the ground.
9. Switch board: hand push switch board controlled with ball valve, and the puller controls the shower system.
10. Eye wash nozzles: made of stainless steel 304. The filtering nets are high density double layer nets (PP + stainless steel), which can be used to filter the impurities, the sprayed water is like fog, soft and wet.
11. Base: made of aluminum alloy (model number 6060, with better anti-corrosive ability), or it can be changed to stainless steel 304. It is fixed on floor with 3 pieces of plug bolts.
12. Foot pedal: it is used to control the open/close of eye washer valve, which is more convenient.
13. Advantages: stainless steel 304 with more than 8 units of Nickle. It would be strongly against acid, alkaline and mineral salt.
14. Function: strongly against corrosive liquid such as acid, alkaline, salt, oil, etc.
15. Used for: industries such as gasoline, chemical, beverage, medical, etc, when there is accident like chemical liquid, hazard material or fire injects to the body, face, eyes of people, this equipment can reduce the injure level with water washing.
16. Standard: Complied with US ANSI Z358.1.2004.
17. Optional config: pipe emptying device, flange connection; reducer connection, water filter, overflow regulator, foot pedal, ABS bowls, etc.
18. Packing method: carton package (74*28*23cm), 1 set/carton, gross weight: 14KG.
Warranty: high quality stainless steel 304 (above 8 units of Nickle).
2. The working pressure is 0.2-0.4MPA.
3. Manufacturing processes: the whole pieces takes blasting treatment to increase the surface brightness anti-corrosive ability.
4. Eye wash bowl: size: the diameter is 260mm, and the thickness is 0.6mm, it is used for collecting the used water.
Shower bowl: the diameter is 250mm, and the thickness is 0.6mm. The edge of bowl is 2100mm high to the ground. This bowl is used for shower spray. Manufacturing process: multiple punching through rotate molding, the bowl edges are flipped without blurs, the brightness after polishing is high and this appearance guarantees the long lifetime.
5. Eye wash nozzle covers: made of stainless steel 304, put the covers on the nozzles, in order to prevent dust and avoid water gets polluted when needed.
6. Pipe: 5/4” threaded connection. Made of stainless steel 304.
7. Water inlet pipe: 5/4” threaded connection, about 1580mm high to the ground.
8. Waste water outlet pipe: 5/4” threaded connection, about 150mm high to the ground.
9. Switch board: hand push switch board controlled with ball valve, and the puller controls the shower system.
10. Eye wash nozzles: made of stainless steel 304. The filtering nets are high density double layer nets (PP + stainless steel), which can be used to filter the impurities, the sprayed water is like fog, soft and wet.
11. Base: made of aluminum alloy (model number 6060, with better anti-corrosive ability), or it can be changed to stainless steel 304. It is fixed on floor with 3 pieces of plug bolts.
12. Foot pedal: it is used to control the open/close of eye washer valve, which is more convenient.
13. Advantages: stainless steel 304 with more than 8 units of Nickle. It would be strongly against acid, alkaline and mineral salt.
14. Function: strongly against corrosive liquid such as acid, alkaline, salt, oil, etc.
15. Used for: industries such as gasoline, chemical, beverage, medical, etc, when there is accident like chemical liquid, hazard material or fire injects to the body, face, eyes of people, this equipment can reduce the injure level with water washing.
16. Standard: Complied with US ANSI Z358.1.2004.
17. Optional config: pipe emptying device, flange connection; reducer connection, water filter, overflow regulator, foot pedal, ABS bowls, etc.
18. Packing method: carton package (74*28*23cm), 1 set/carton, gross weight: 14KG.
Warranty: high quality stainless steel 304 (above 8 units of Nickle).
Size Information
ZOYET Model | Description | Weight (kg) | Packing Dimension (mm) H*L*W |
ZYES01-S | Stainless Steel combination eye washer | 13 | 250*750*300 |
ZYES02-S | Stainless Steel combination eye washer with foot pedal | 13 | 250*750*300 |
ZYES03-A | ABS coated Stainless Steel combination eye washer | 14 | 250*750*300 |
ZYES04-A | ABS coated Stainless Steel combination eye washer with foot pedal | 14 | 250*750*300 |
ZYES05-S | Stand type Stainless Steel eye washer | 6 | 250*750*300 |
ZYES06-S | Desktop Stainless Steel eye washer | 5 | 160*350*330 |
ZYES07-S | Wall-mounted Stainless Steel eye washer | 5 | 230*330*290 |
ZYES08-S | Flip Cover Stainless Steel combination eye washer with foot pedal | 14 | 250*750*300 |
ZYES-H01 | electric heating compound eye wash station | 48 | 2700*550*380 |
ZYES-ME01 | combination eye wash station with manual emptying function | 14 | 280*730*300 |
