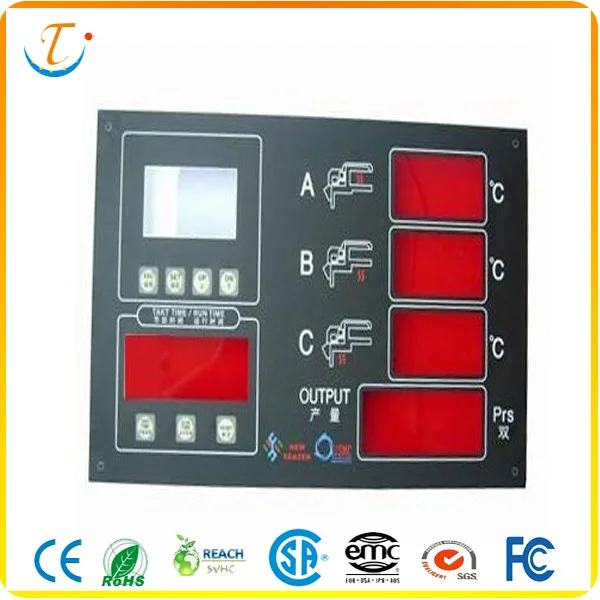

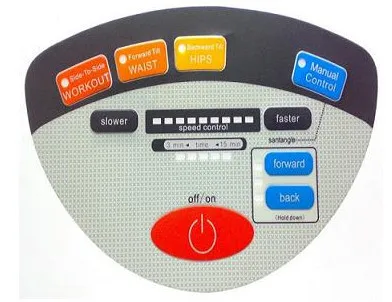

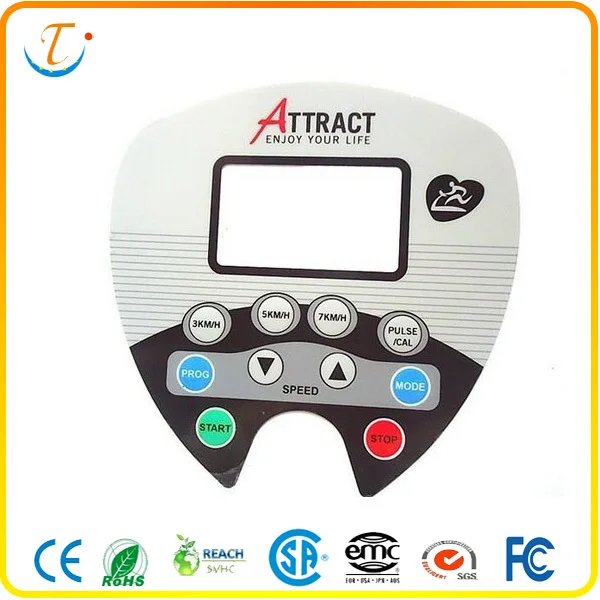

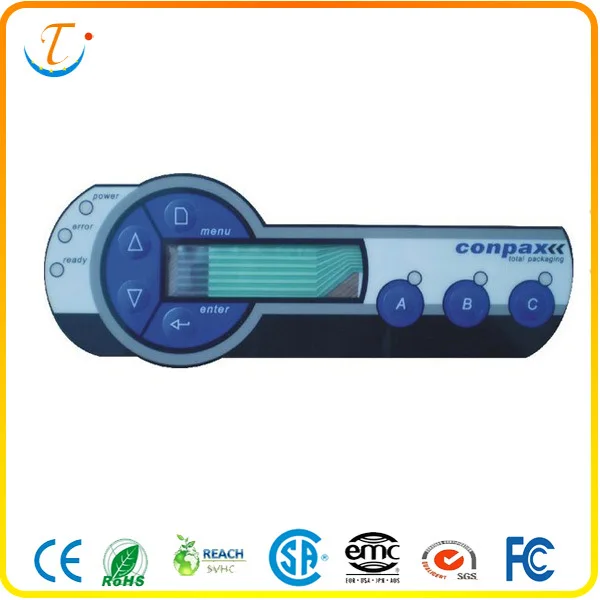

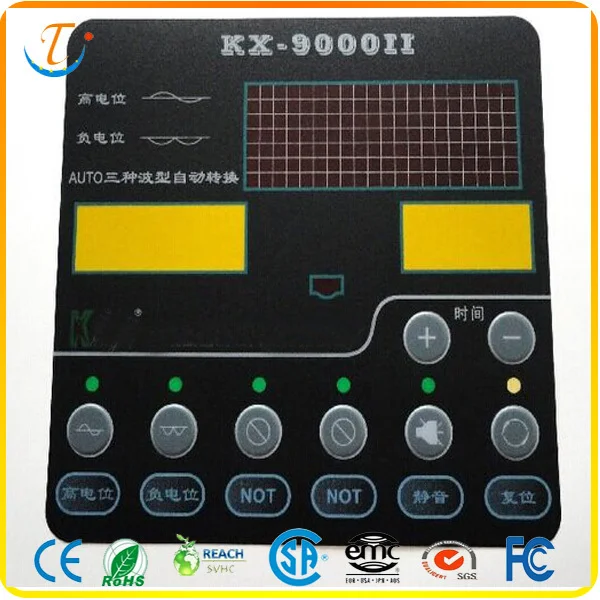

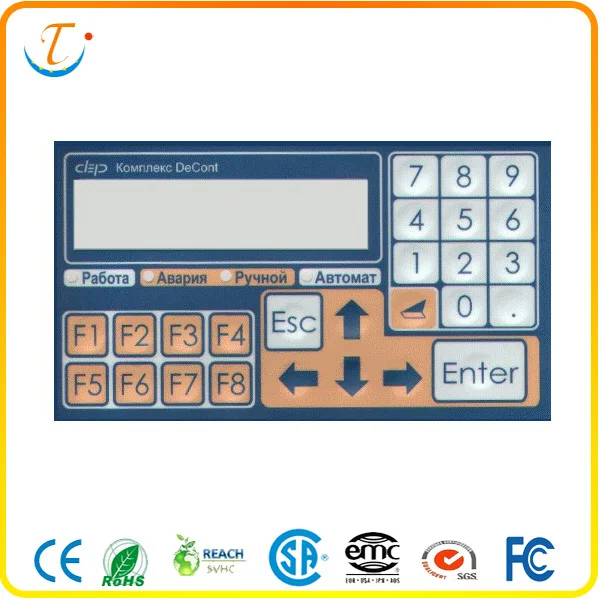

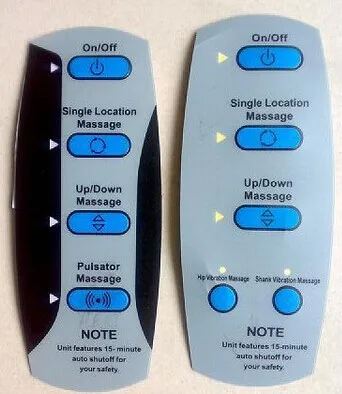

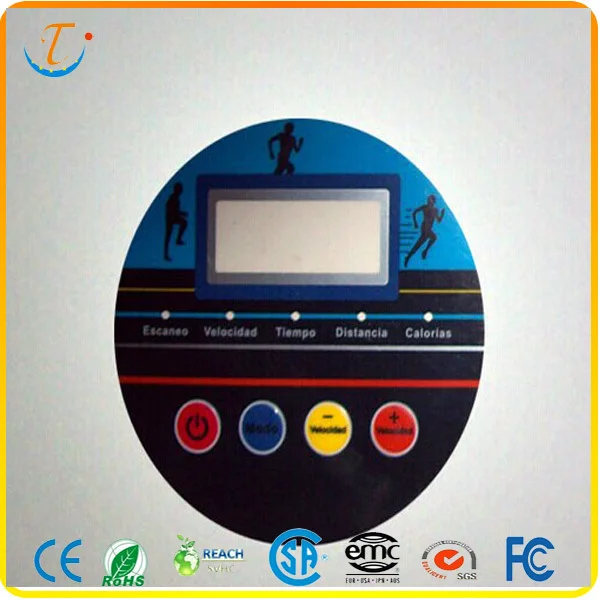

Our factory uses subsurface printing techniques that are used to screen legends and background colors (on the back/reverse side) of the graphic layer. This graphic overlay process ensures the long-lasting durability of the keyboard as well as creating an accurate and impressive reproduction of color and graphics. Depending on the customer’s needs, we uses polycarbonate films or polyester films to create control panel overlays. Some advantages of graphic overlays constructed of polyester films include being highly resistant to chemicals, longer flex life, use in high temperature environments, and ability to withstand harsh conditions. Both polycarbonate film graphic overlays and polyester film graphic overlays are available with textured surfaces.
Package: graphic overlay will be packed by paper carton( outer) and plastic bubble bag (inner),usually size :24.5*24.5*29
Shipping: DHL/UPS/EMS/TNT/Fedex
Our Services
Wide variety of Polyester and Polycarbonate finishes
Materials suitable for extreme or harsh conditions
Chemical resistant materials
Anti-microbial materials
UV resistant materials
ATEX approved materials
Embossing; rim, pillow, braille, dome or combination
RFI/ESD/EMC shielding through ITO sputter coatings
Interchangeable legend and inserts
Selective textures via UV Lacquer coatings
‘Secret-until-lit’ legends and graphics
Filter windows
Ul Approved Graphic Overlays

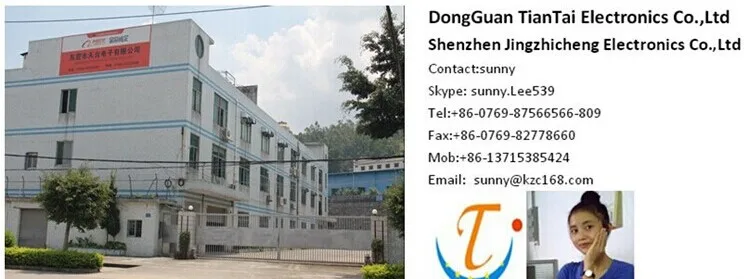

Company Information
Our tiantai electronic is a ISO9001 certified manufacturer of membrane switches, graphic overlays,custom
nameplates and control panels , touch panel, back light LED displays and valve added assemblies.We have
the capacity to provide you membrane switches with otherspecial requirements, such as waterproof,Shielding
backlighting, Windows/Lens Coating, Embedded LEDs, UV glossy/matte/textured, etc. For those embedded
with too many LEDs and other SMT components, we can use PCB or FPC as static circuit sheet, which can
make the embedded SMT components have better fastness.
FAQ
Blueprints – Provide drawings that clearly dimension all physical characteristics including color breaks and copy.
Colors – Identify colors by using Pantone (PMS) color number or a color sample. It is important to supply the exact standard for which our color match will be evaluated.
Background – Dark backgrounds and light text will provide greater clarity and show less wear and dirt.
Artwork – It is possible for customers to supply useable artwork.
Borders and Outlines – Avoid outlines close to cutouts or outer edges.
Text – Block lettering provides the most legible copy. Try to use common fonts. When logos or symbols are used, it is best to supply film positives or accurate black and white artwork
