Product Overview
Description

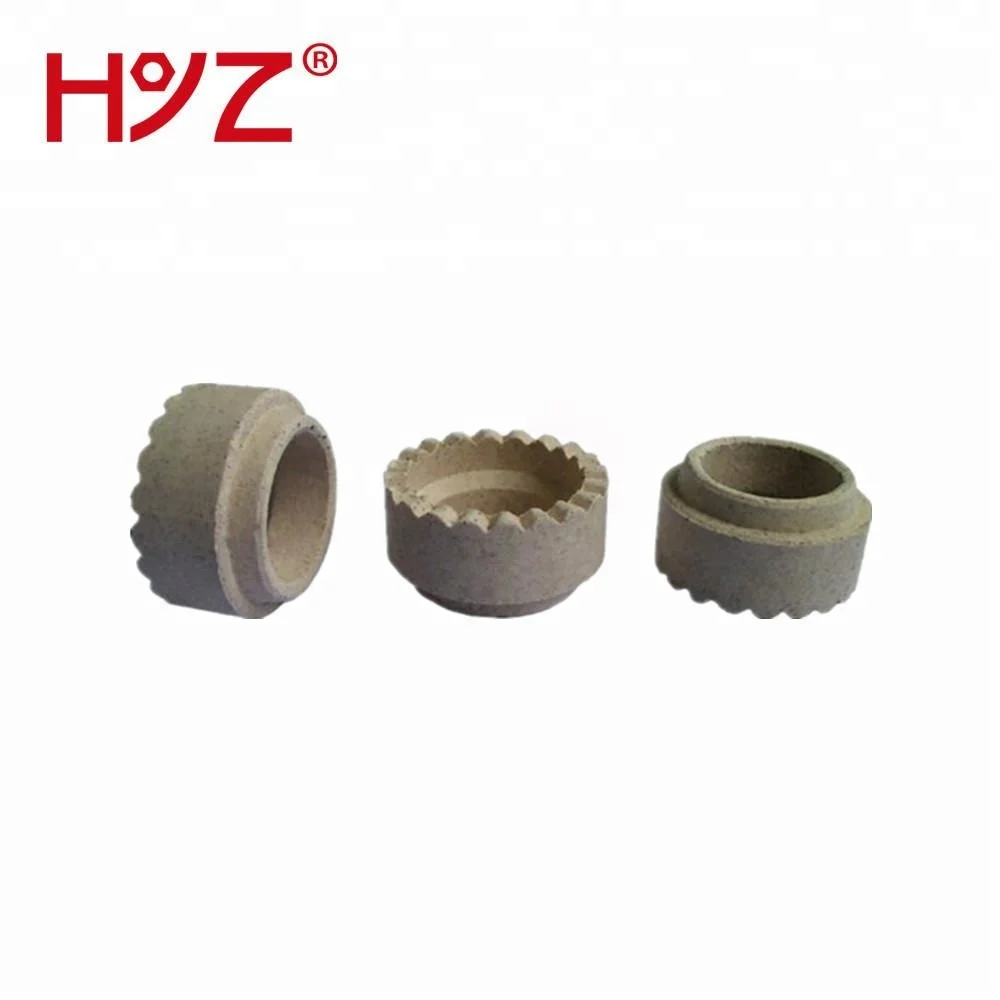

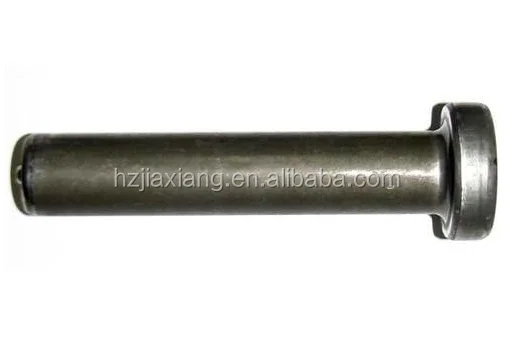

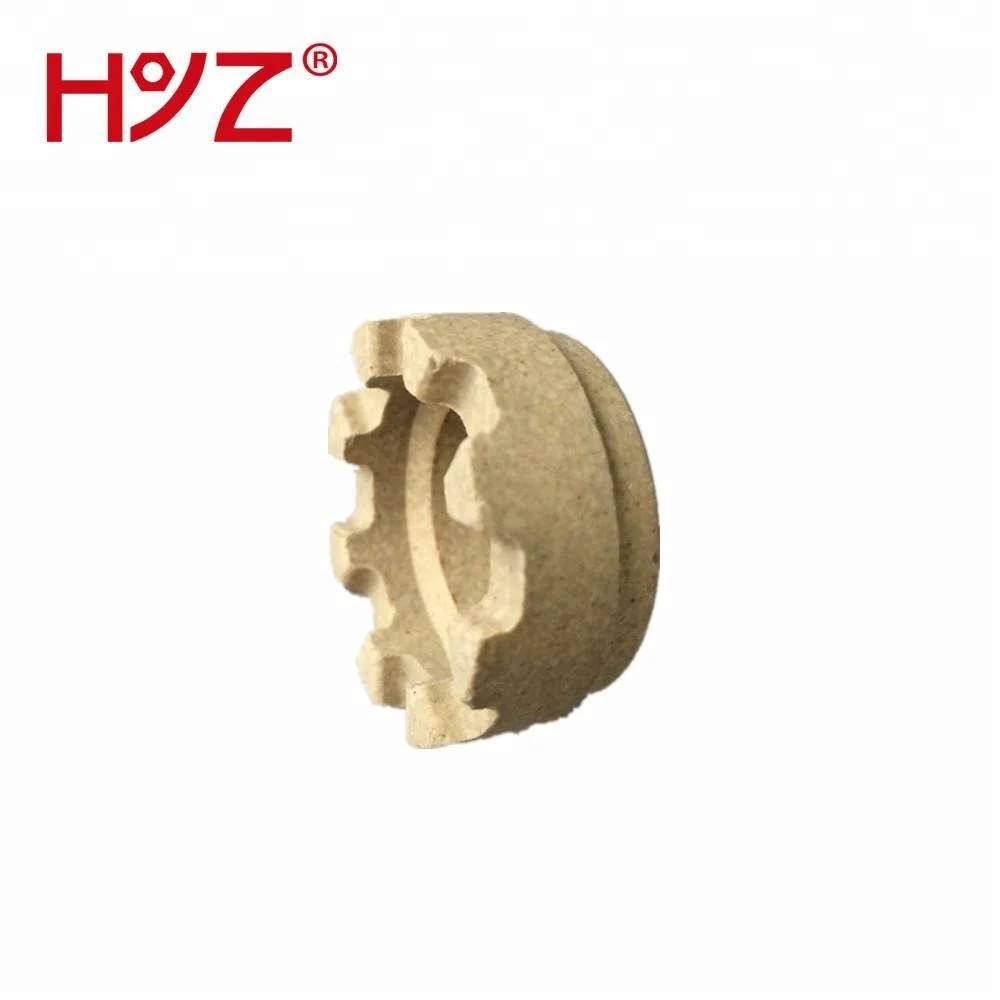

SHEAR STUD WITH CERAMIC FERRULE
1.Products
Materials: | High quality carbon steel SWRCH18A(SAE1018) |
Other materials: | SWRCH18A, SWRCH22A |
Specs.: | EN BS5400 |
Other available specs.: | EN BS5950, EN ISO13918, AWS D1.1(ASTM A108),JIS B1198,GB/T10433, AS/NZS1554,ECT. |
Size range: | DIA.: M13-M25 Length: 40-300mm |
finish: | polish or plain |
Bottom treatment: | chamfer or slightly curve |
Head marking brand: | HYZ or customer brand |
Certification: | CE, BV, FPC BC1, 3.1 certification |
2.Packing way:
1. plastic bag+carton+wooden pallet(normal packing way)
2.plastic bag+carton+wooden case
3.plastic barrel+wooden pallet
4.metal barrel+wooden pallet
3.products drawing
4.Mechanical properties for different standards:
Specs.: | Tensile strength | Yield strength | Elongation |
AWS D1.1(A108) | ≥450MPA | ≥350MPA | ≥15%/20% |
BS 5400 | ≥495MPA | ≥385MPA | ≥18% |
BS 5950 | ≥450MPA | ≥350MPA | ≥15% |
EN ISO13918 | ≥450MPA | ≥350MPA | ≥15% |
JIS B1198 | ≥400MPA | ≥235MPA | ≥20% |
GB/T 10433 | ≥420MPA | ≥340MPA | ≥14% |
AS/NZS1554 | ≥410MPA | ≥345MPA | ≥12%: |
5. factory
Fast order channel(you just need help confirm follow question):
1.which standard specs.?
2. what length will you order, before or after welding?
3. which type ceramic ferrule will you order?
4. which type bottom treatment?
5. which packing way?
