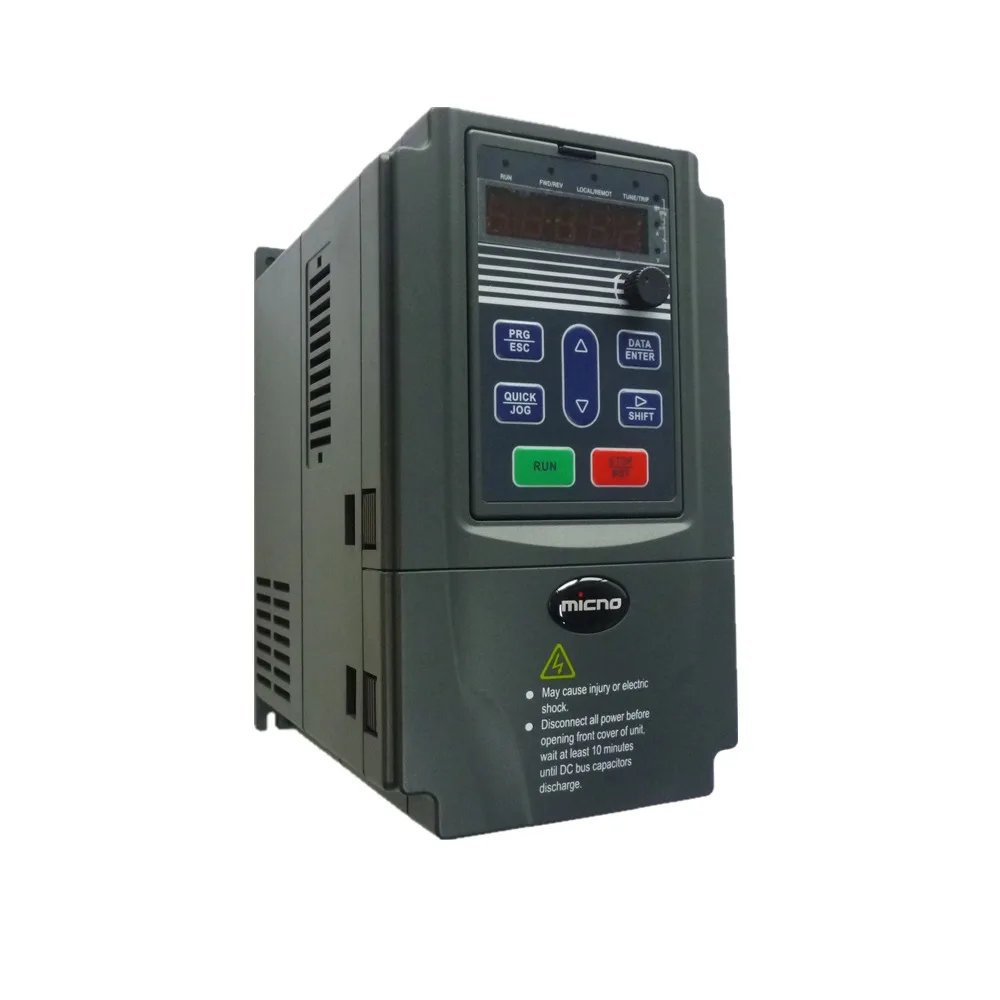

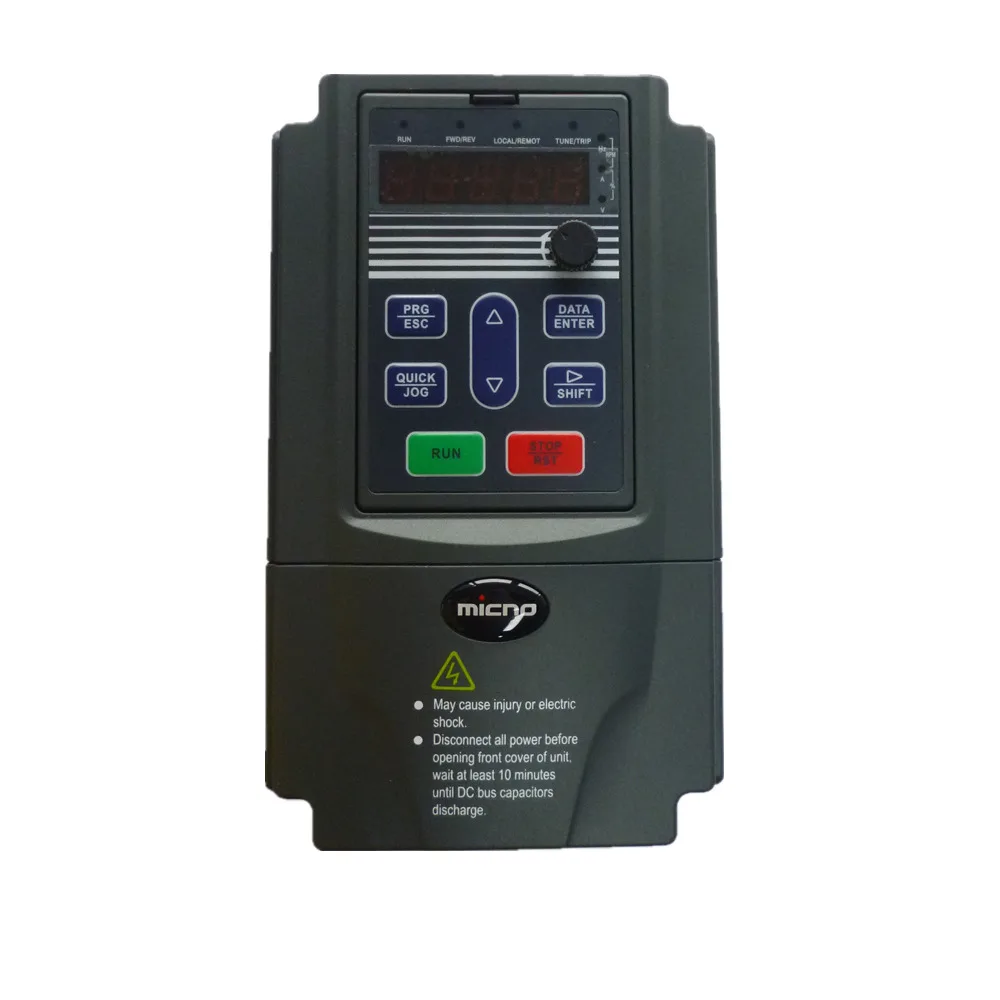

micno solar pump inverter 7.5kw 10hp 380V 220V with mppt and vfd hybrid
- Category: >>>
- Supplier: Shenzhen Micno Electric Co. Ltd.
Share on (60652771667):
Product Overview
Description
Company Profile
Company Information
Shenzhen MICNO Electric Co., Ltd. is a Professional manufacturer which specializes in R&D, manufacture, sale and service of electrical drive, industrial automation products. Our products have also been exported to more than 80 countries all over the world.
MICNO masters the leading synchronization, asynchronization current vector control technology, torque control technology and solar pump driving technology, including the main products such as general inverter/ VSD/ solar vfd, various kinds of inverters of special industries and solar pump inverter.
Our products cover 220V, 380~ 460V voltage level with 0.4kW--200KW power range, which are widely used in argriculture, farm, irrigation , water pool ect.
Workers who carefully install the inverters.
R&D personnel focus on testing machines
MICNO participated in AUTOMATIION EXPO 2018 in MUMBAI, INDIA.
Our honor Australian client visits us many times.
Product Overviews
Selection Guide
| Model of inverter | motor | Rated output current | Suggested open circuit voltage | |
| kW | HP | (A) | (V) | |
| Single phase ouput 220V | ||||
| KE300A-01-04-0R4G-S2 | 0.4 | 0.5 | 4 | 350~400 |
| KE300A-01-04-0R7G-S2 | 0.75 | 1 | 7 | 350~400 |
| KE300A-01-04-1R5G-S2 | 1.5 | 2 | 9.6 | 350~400 |
| KE300A-01-04-2R2G-S2 | 2.2 | 3 | 15 | 350~400 |
| KE300A-01-04-004G-S2 | 4 | 5 | 23 | 350~400 |
| KE300A-01-04-5R5G-S2 | 5.5 | 7.5 | 32 | 350~400 |
| Three phase ouput 220V | ||||
| KE300A-01-0R4G-S2 | 0.4 | 0.5 | 2.3 | 350~400 |
| KE300A-01-0R7G-S2 | 0.75 | 1 | 4 | 350~400 |
| KE300A-01-1R5G-S2 | 1.5 | 2 | 7 | 350~400 |
| KE300A-01-2R2G-S2 | 2.2 | 3 | 9 | 350~400 |
| KE300A-01-004G-S2 | 4 | 5 | 17 | 350~400 |
| KE300A-01-5R5G-S2 | 5.5 | 7.5 | 25 | 350~400 |
| KE300A-01-7R5G-S2 | 7.5 | 10 | 32 | 350~400 |
| KE300A-01-011G-S2 | 11 | 15 | 45 | 350~400 |
| KE300A-01-015G-S2 | 15 | 20 | 60 | 350~400 |
| KE300A-01-018G-S2 | 18.5 | 25 | 75 | 350~400 |
| KE300A-01-022G-S2 | 22 | 30 | 91 | 350~400 |
| KE300A-01-030G-S2 | 30 | 40 | 112 | 350~400 |
| Three phase ouput 380V | ||||
| KE300A-01-0R7G-T4 | 0.75 | 1 | 2.1 | 625~750 |
| KE300A-01-1R5G-T4 | 1.5 | 2 | 3.8 | 625~750 |
| KE300A-01-2R2G-T4 | 2.2 | 3 | 6 | 625~750 |
| KE300A-01-004G-T4 | 4 | 5 | 9 | 625~750 |
| KE300A-01-5R5G-T4 | 5.5 | 7.5 | 13 | 625~750 |
| KE300A-01-7R5G-T4 | 7.5 | 10 | 17 | 625~750 |
| KE300A-01-011G-T4 | 11 | 15 | 25 | 625~750 |
| KE300A-01-015G-T4 | 15 | 20 | 32 | 625~750 |
| KE300A-01-018G-T4 | 18.5 | 25 | 37 | 625~750 |
| KE300A-01-022G-T4 | 22 | 30 | 45 | 625~750 |
| KE300A-01-030G-T4 | 30 | 40 | 60 | 625~750 |
| KE300A-01-037G-T4 | 37 | 50 | 75 | 625~750 |
| KE300A-01-045G-T4 | 45 | 60 | 90 | 625~750 |
| KE300A-01-055G-T4 | 55 | 75 | 110 | 625~750 |
| KE300A-01-075G-T4 | 75 | 100 | 150 | 625~750 |
| KE300A-01-090G-T4 | 90 | 125 | 176 | 625~750 |
| KE300A-01-110G-T4 | 110 | 150 | 210 | 625~750 |
Product Description
FAQ
Q1: What is the MOQ?
A: no MOQ, 1 pcs can be shipped.
Q2: Can l get some samples for test?
A:Sure, you can take a trial order to test our quality.
Q3: Do you accept OEM?
A: Yes, we accept OEM as you like.
Q4: What's your warranty time?
A: We offer 18 months warranty service, life time technique support.
