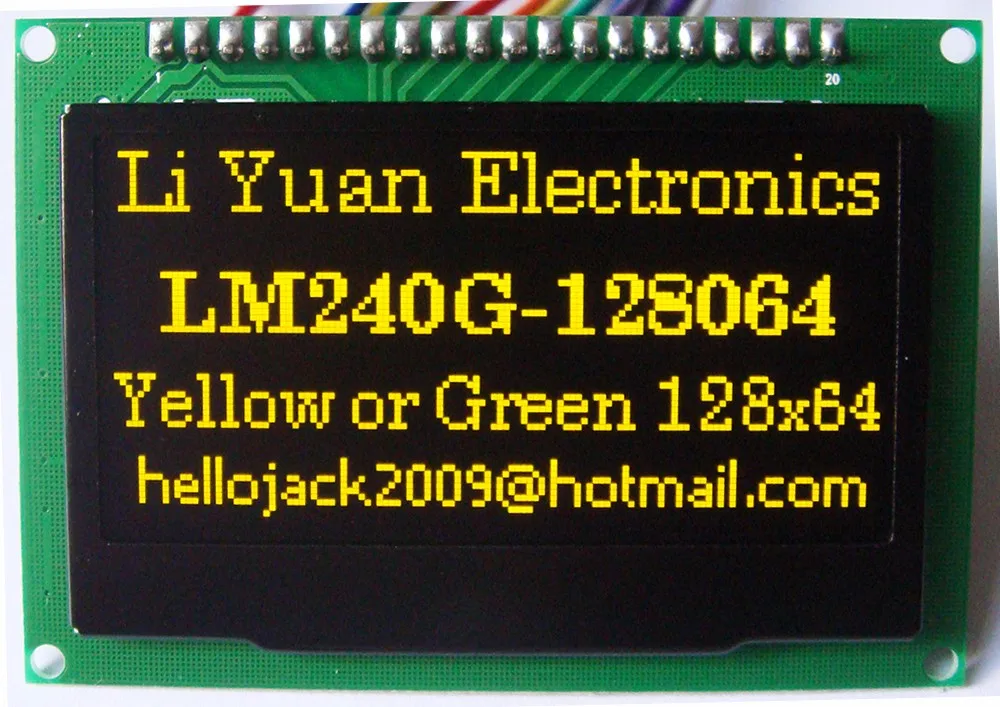

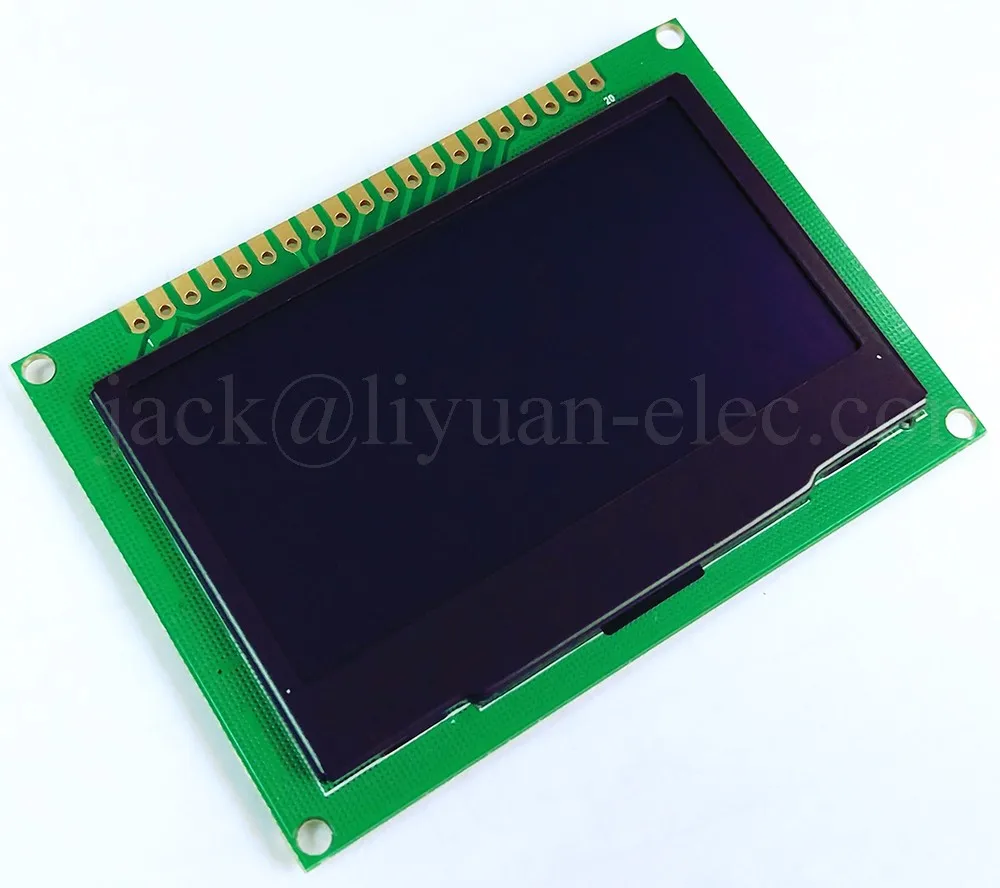

2,4 2,42 дюймов 128*64 LM240 плата контроллера, модуль ЖК дисплея oled
- Category: OLED\/E-Paper Module >>>
- Supplier: Shenzhen Liyuan Huida Technology Co. Ltd.
Share on (60652839691):
Product Overview
Description
Product Type: oled
Product Description
Part Number: LM240Y-128064
1. Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Area Color (Yellow)
3) Drive Duty: 1/64 Duty

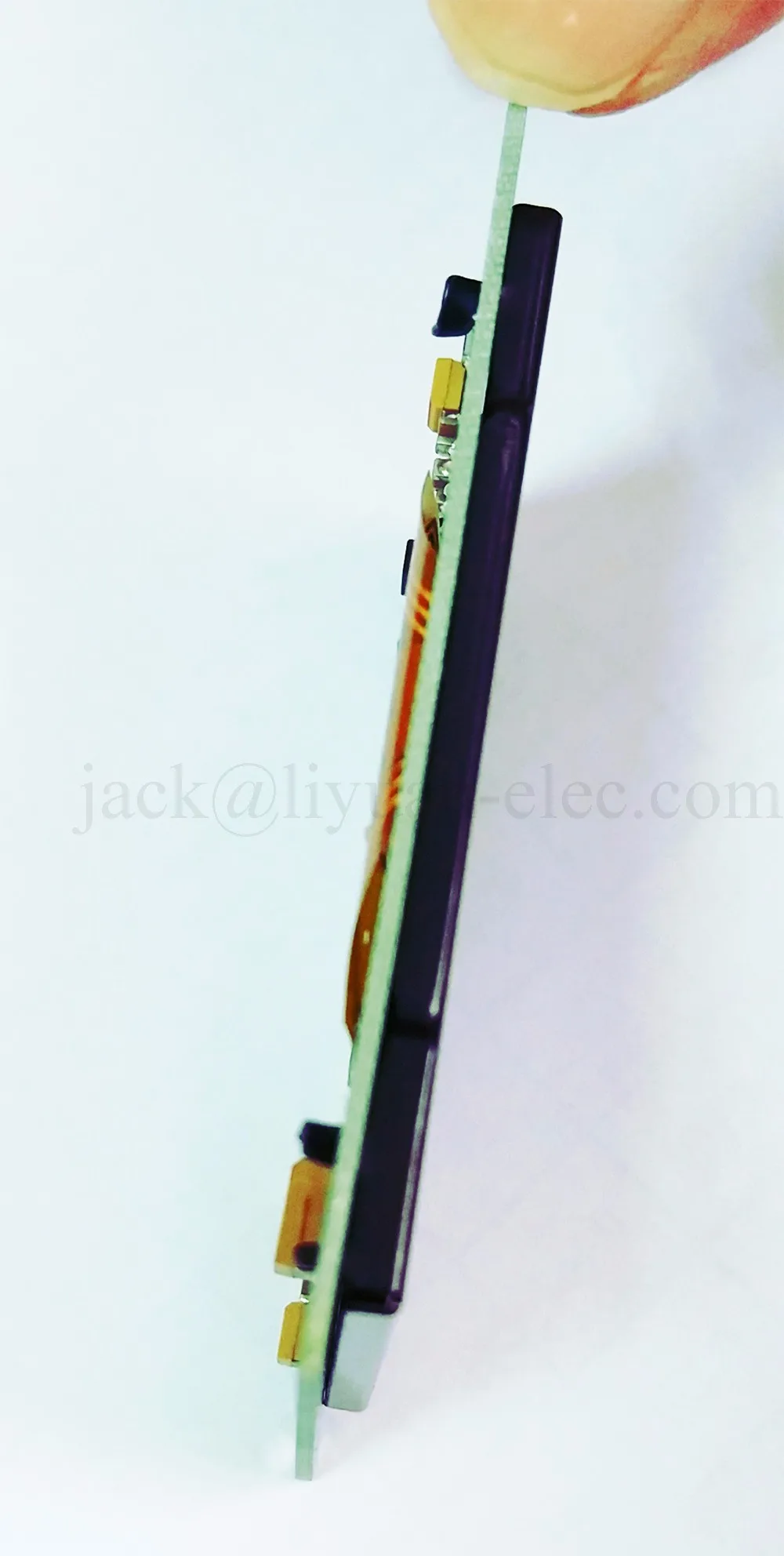

2. Mechanical Specifications
1) Number of Pixels: 128 × 64
2) Module Size: 70.5(W) x 49.6(H) x 6.5max(T)(mm)
3) View Size: 57.01(W) × 29.49(H) (mm)

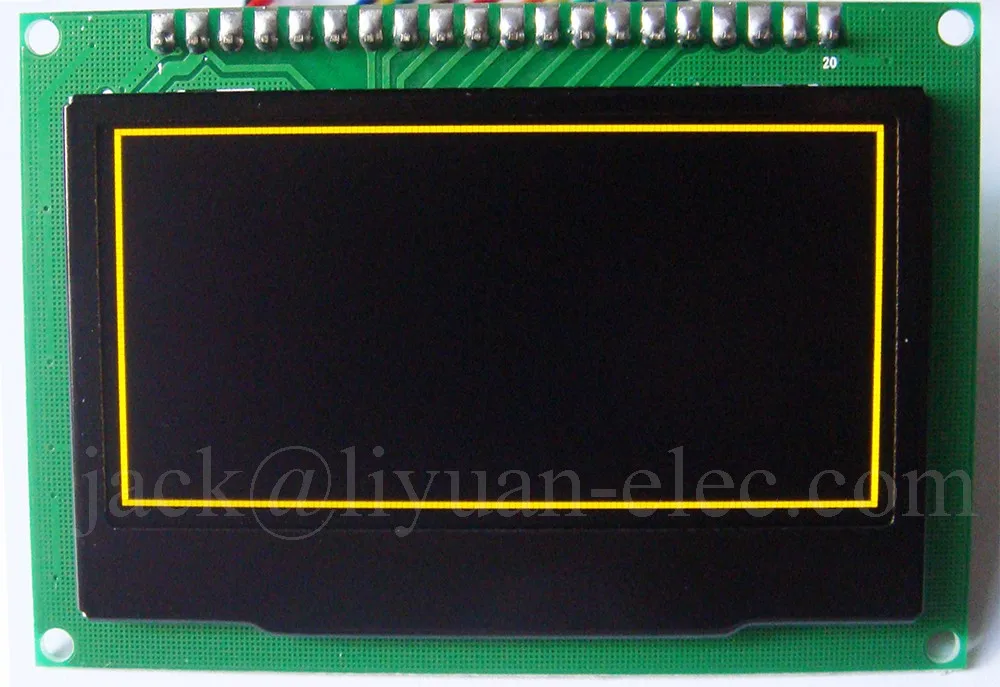

4) Active Area: 55.012(W) × 27.49(H) (mm)
5) Pixel Pitch: 0.43 × 0.43 (mm)
6) Pixel Size: 0.4 × 0.4 (mm)

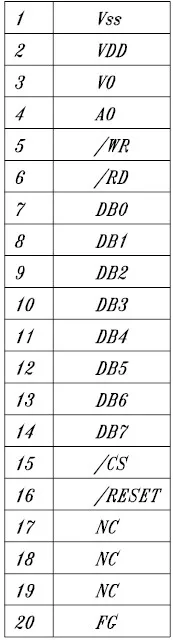

3. Pin: 20pin
4. Driver: SSD1305
5. Interface: 8-bit 68xx/80xx parallel, 4-SPI, IIC

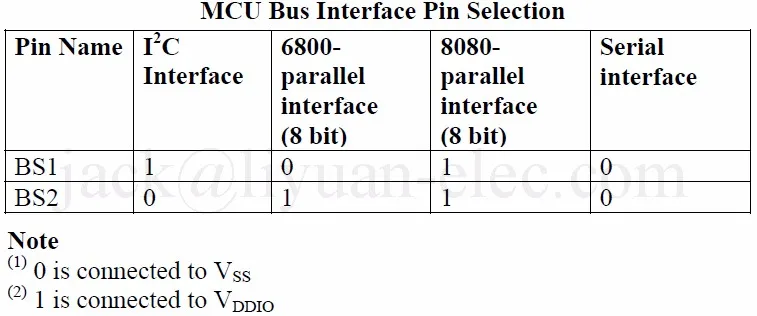

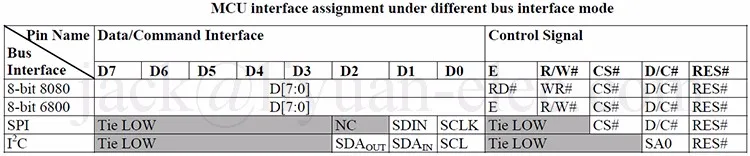

According to the following table to choose suitable interface for your product.

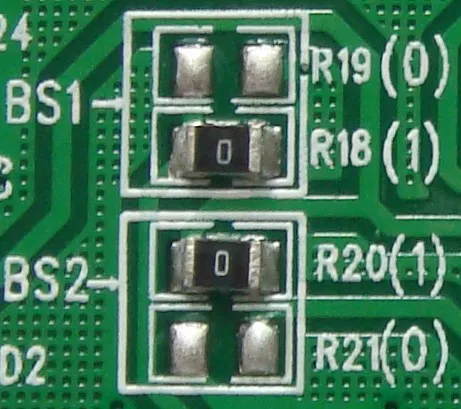

On PCB, the positions of BS1/BS2 here:
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD
(3) Default interface is 8080-parallel.
(4) Please tell us the specific requirement of your company,we will provide appropriate interface to you.
When you choose one type interface,the other pins can be connected according to this table.
Note
Tie LOW means connected to VSS.

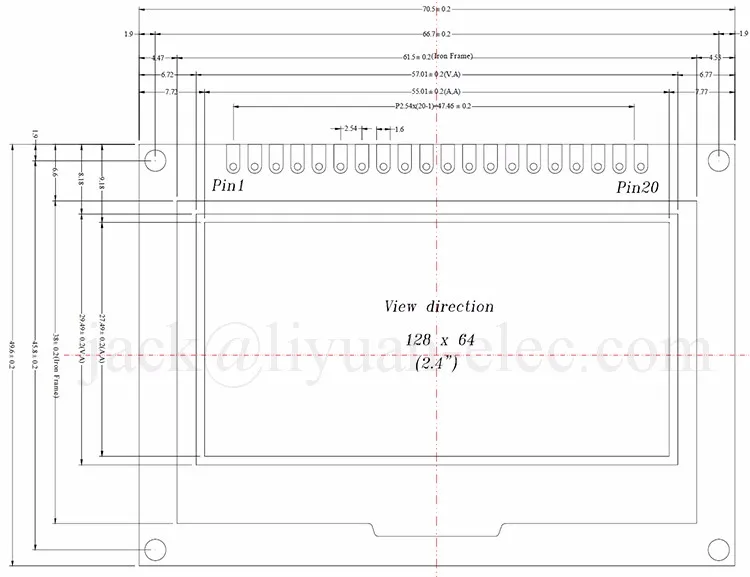

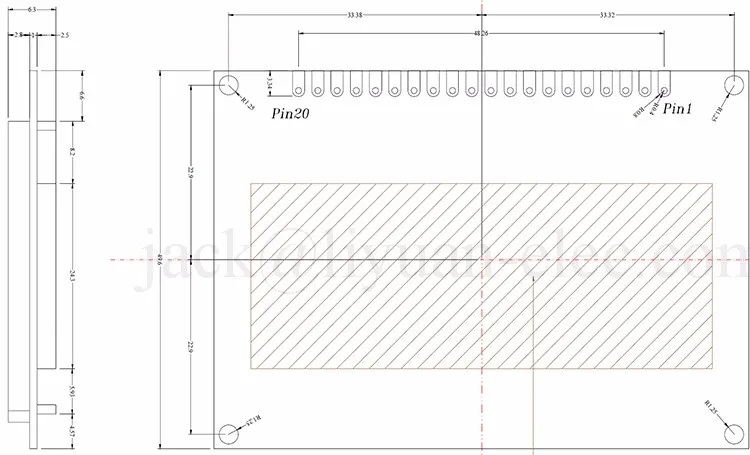

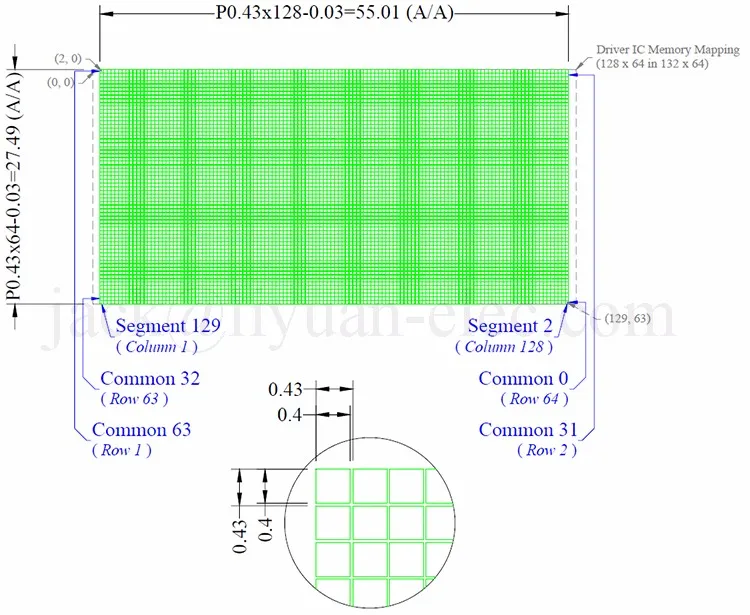

6.Drawing:
Detailed Images
Our Advantages
1). Datasheets
We will provide detailed datasheets of screen/module/driver IC and application circuit to you.
2). Source Code
We can provide whole source code (C51 or STM32) or initial code to you.
3). Technical Support
We have experienced engineers and they will provide you comprehensive technical service.
4). Customizable
We provide customizable service. For example custom FPC, custom PCB, custom module and so on.
5). Solution
If you need a solution with some special function, tell us,we can meet your requirement.
