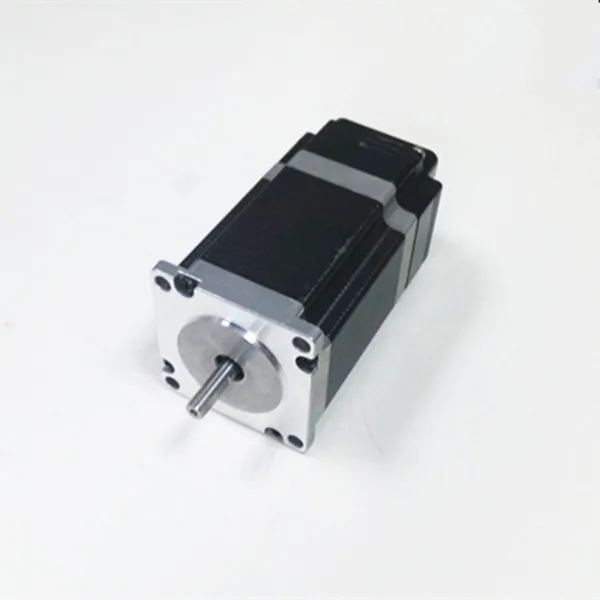

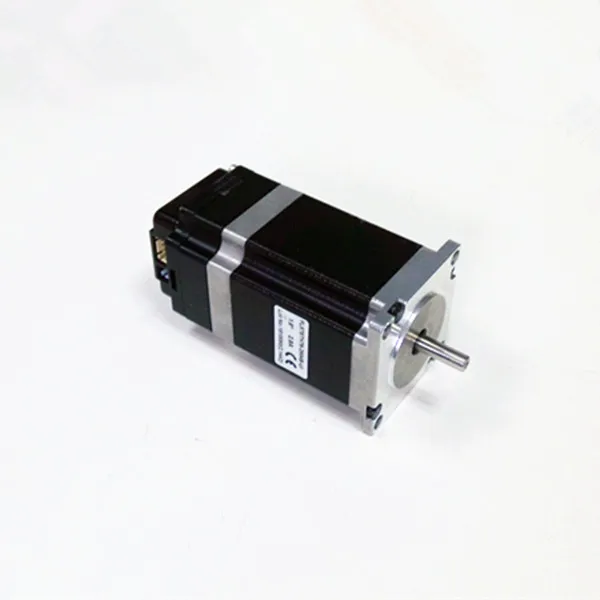

Servo stepper motor NEMA 23 closed loop stepper motor with encoder

 Servo stepper motor NEMA 23 closed loop stepper motor with encoder

NEMA 23 closed loop stepper motor with encoder and driver controller, It's an intelligent integrated CAN bus control all in one stepper motor, it integrated 2 phase stepper motor,  encoder and CAN bus control controller, simple wiring.

nema 23 stepper motor specifications:

Electrical Specification

Physical Specification

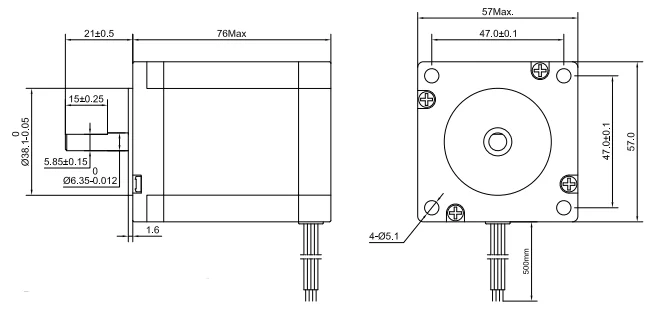

Dimension :

CAN bus stepper motor driver and controller specifications:

• Ø Wide range of 12-48V single voltage supply
• Ø 0-256 microstepping resolution is adjustable by instruction.
• Ø Output phase current 0.5A ~ 6A, Adjustable by instruction
• Ø Communication interface:CANOPEN  DS301

• Ø Burning and off-line automatic execution of custom program
• Ø Automatic control of S curve/trapezoid acceleration and deceleration, max speed control
• Ø Encoder closed loop control input interface
• Ø 10 GPIO ports
• Ø Sensorless stall dection
• Ø Precision aluminum shell, improving to the protection and heat dissipation
• Ø Miniature size 42mm*42mm*18mm
• Ø Control routines and the underlying driver based on VC++

Technical parameters:

• Type: Stepper motor drive controller
• Working Voltage:12-48V
• Persistent current: 4.5A,Peak value is 6.5A.
• Microstepping resolution: 0-256 Microstepping resolution, adjustable by instruction.
• Applicable motor type: Open loop or close loop 2 phase biopar stepper motor
• Operation mode: Location mode, speed mode, off line automatic operation mode
• Input output ports: 10 general IO ports, 2 limit input ports
• Communication interface: CANOPEN  DS301
• Protection circuit: over temperature, over current, over voltage.

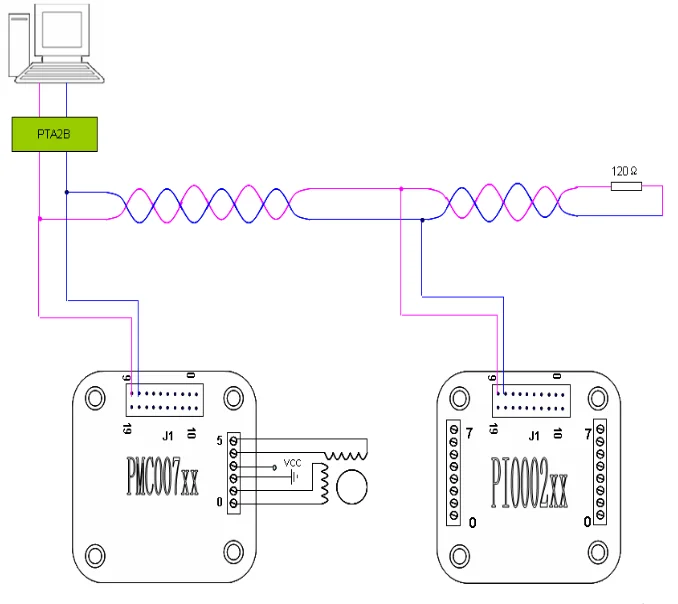

Typical application of connection:

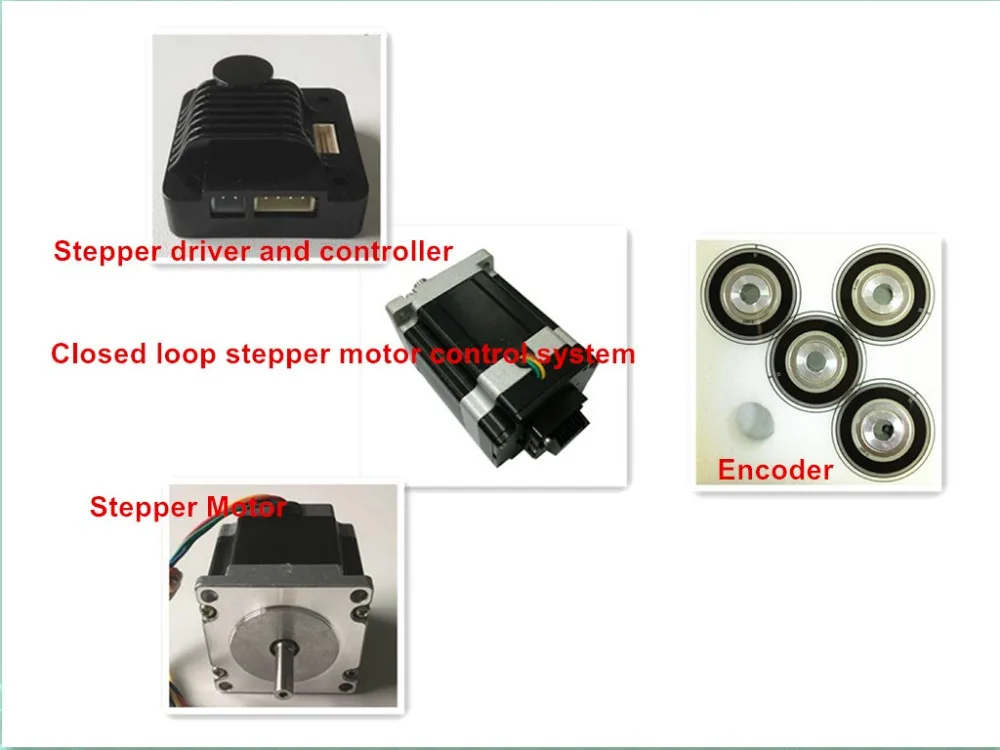

 Components :

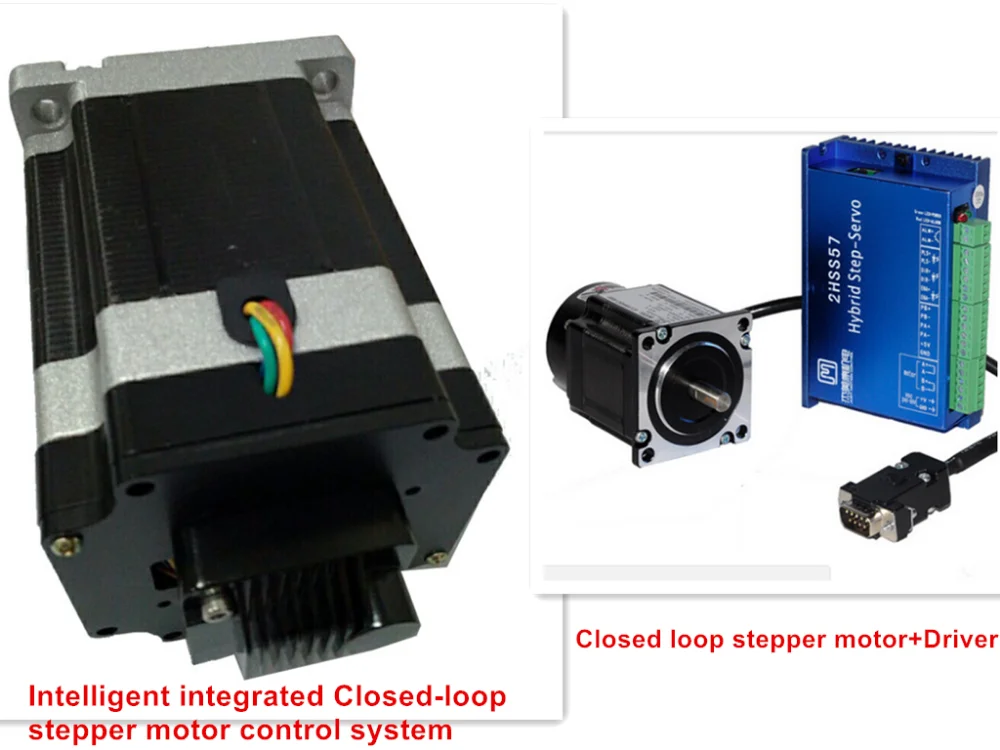

Compare with other step-servo:

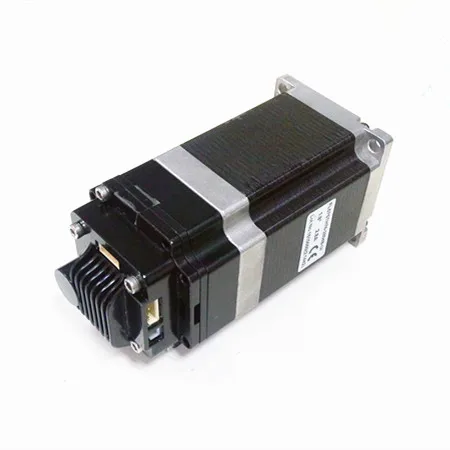

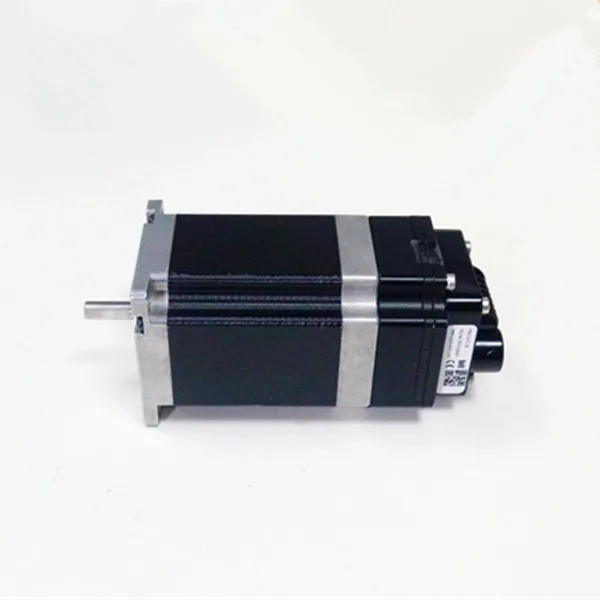

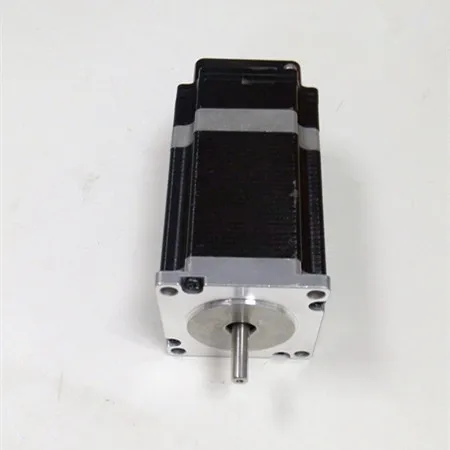

Product show :

About the shipping methods ,  for samples or small batch , air shipping  is recommended .

For mass production or big batch, ocean shipping is recommended .

Our Main Product:

Certification:

Application:

Our service for products and delivering :

1. Sample order lead time is in 2 days. Mass quantity order lead time is 7-10 days.

2. We can accept payment via paypal, Western Union,  T/T,

3. We can provide you professional  technical support. And our products quality gurantee is 18 months.

4. We accept products customize.

Company introduction:

JUGETEK Co., Ltd. Our factory producing stepper driver, stepper motor, linear motion related products. products include from size NEMA 8 to NEMA 42 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake.  In addition, we can produce suitable drivers for all  motors, and linear motion,  such as linear rail , ball screw, linear stages, etc. Of couse , we always research and develop new products.
