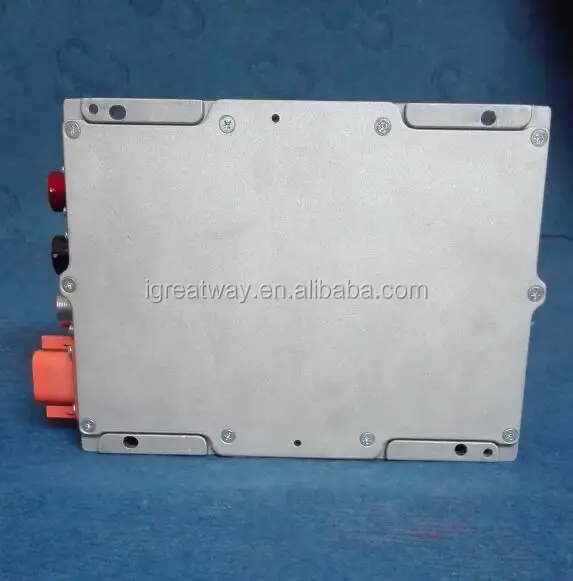

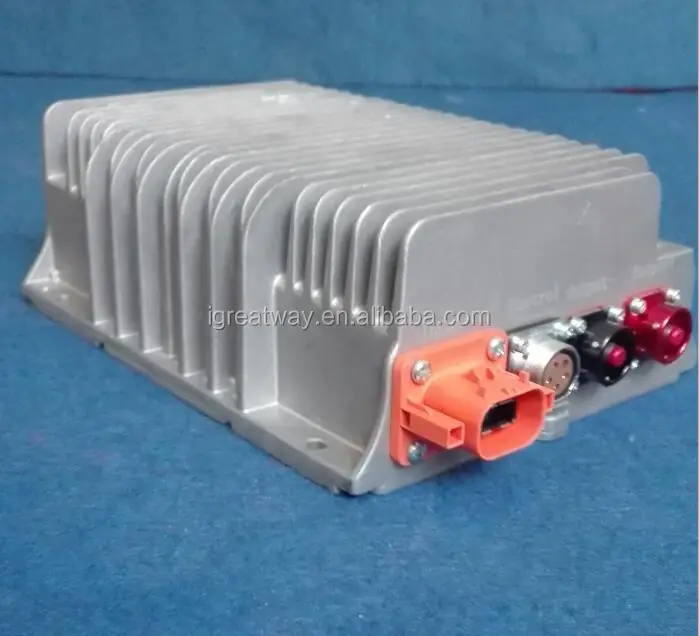

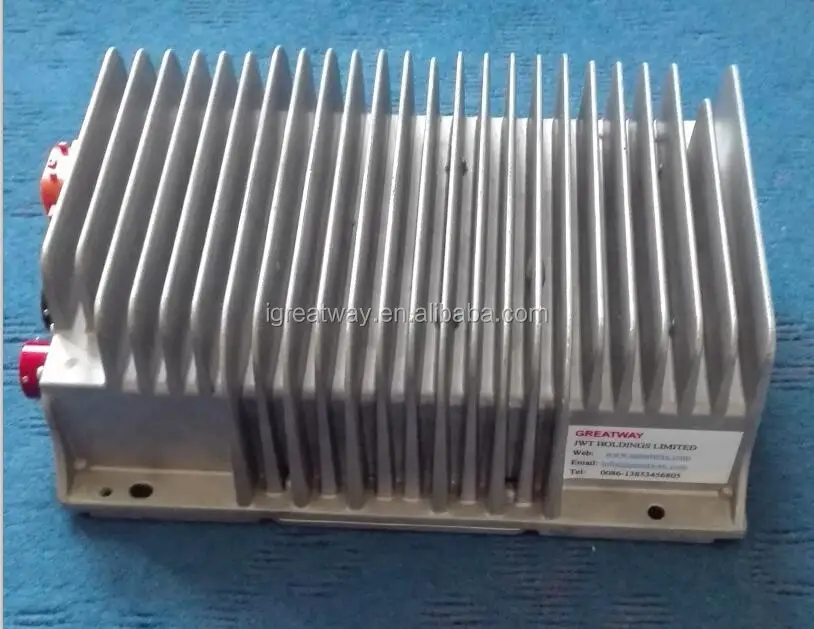

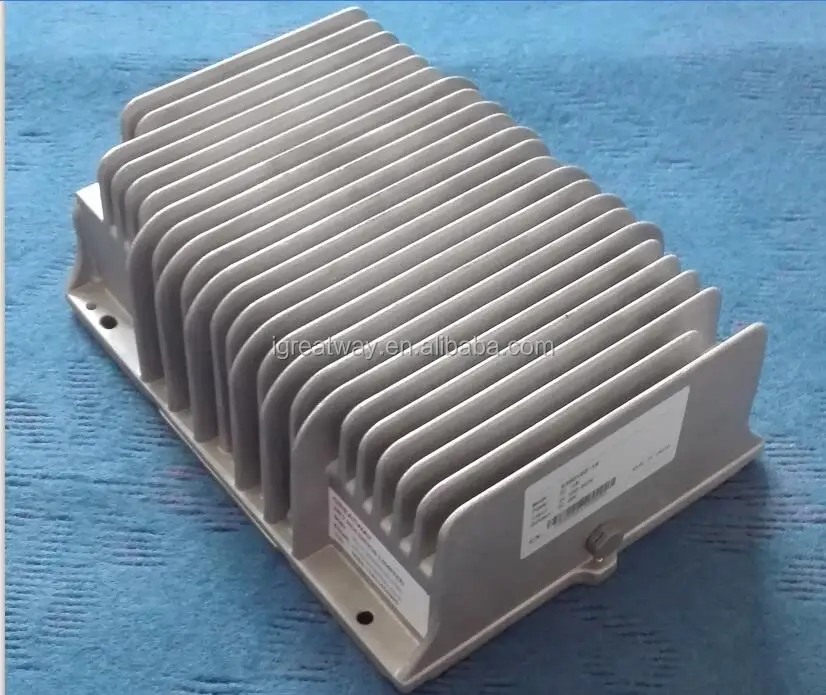

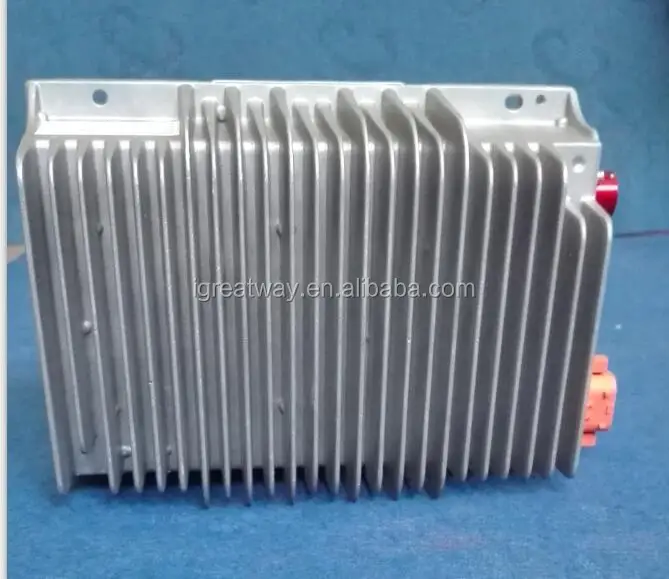

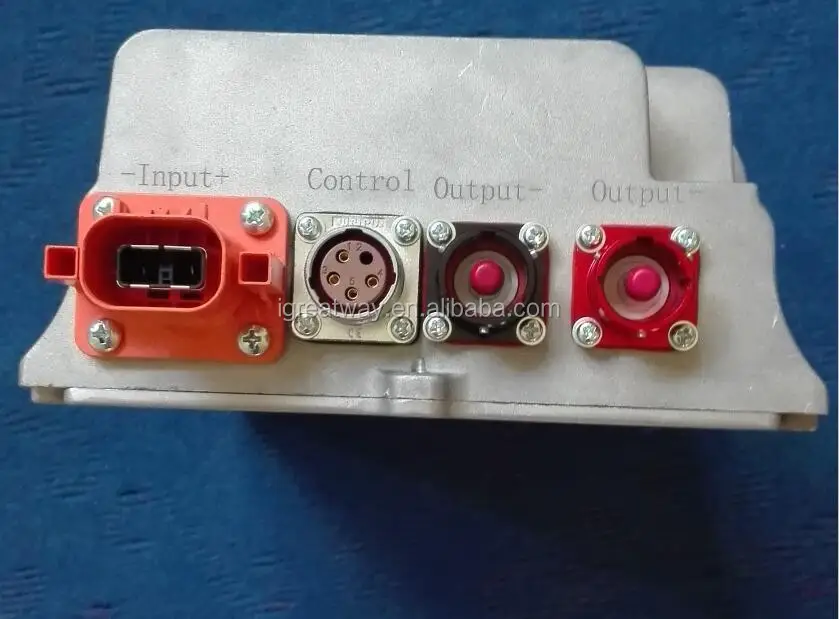

2500W/3000w DC DC converter 200v 450v to 48v,50A
- Category: >>>
- Supplier: Qingdao Greatway Technology Co. Ltd.
Share on (60652897321):
Product Overview
Description
The DC-DC converter is optimized and designed for electir car ,air conditioning of electric car or battery , it uses natural cooling, can work at high temperatures without derating. It have ultra-small size (size: 252 * 188 * 90mm), over-temperature automatic derating, over-current, short circuit and other multiple protection, also have input and output status and other parameters of the monitoring and self-diagnostic function. input volt. range 200-500Vdc DC input, single Circuit 48Vdc output. With input undervoltage alarm and protection, output overcurrent alarm and protection, output overvoltage protection, output short circuit protection, over temperature alarm and protection, output reverse polarity protection
Strengthen the production process design, strict selection of devices, to ensure product reliability and the mechanical s
Small volume, light weight, save space for the user greatly
System environment to a wide temperature range -40 ℃ ~ + 65 ℃, intelligent temperature derating; overtemperature protection
Soft switching control technology, the system for maximum efficiency ≥ 95%.
Program online upgrade function, Convenient customer online debugging program and real-time updates, online self-diagnostic function, easy system maintenance.
Input characteristics | ||||||
| Item | Technical requirements | unit | Remarks | ||
1.1 | Rated input voltage | 330-400 | Vdc |
| ||
Input voltage range | 200—450 | |||||
1.2 | Maximum input current | 9 | A | Continuous Current | ||
1.3 | Static state battery drain current | ≤10 | mA | Battery drain current shutdown state | ||
1.4 | Input control voltage | 20~35 | Vdc |
| ||
Output characteristics | ||||||
2.1 | Rated output voltage | 48 | Vdc |
Rated input and output half load | ||
2.2 | Output voltage setting | 48±0.3 | Vdc | |||
2.3 | Output Current Range | 0-50 | A |
| ||
2.4 | Maximum output current | 60 | A |
| ||
2.5 | Output Power | 2500/3000max | W | Peak power:5000w | ||
2.6 | Overall efficiency | ≥96 | % | Rated input half load | ||
2.7 | Temperature Coefficient | ≤±0.02 | %/℃ |
| ||
2.8 | Output ripple and noise | ≤300 | mVp-p |
Oscilloscope bandwidth would be 20MHz, the probe capacitance in parallel 10u + 104 | ||
2.9 | Starting time | ≤2 | S |
Power input voltage to the output voltage established to 48Vdc | ||
2.10 | Voltage regulation accuracy | ≤±1 | % |
| ||
2.11 | Static loss current | ≤10 | mA |
| ||
2.12 | control method | Hardwired / software control(CAN control) |
|
| ||
3, Protective properties | ||||||
3.1 | Input overvoltage protection | 450-465 | Vdc |
| ||
3.2 | Input Overvoltage recovery | 445-455 | Vdc |
| ||
3.3 | Input under voltage protection | 180-200 | Vdc |
| ||
3.4 | Input voltage recovery | 195-210 | Vdc |
| ||
3.5 | Output overvoltage protection | 58-62 | Vdc | Shutdown hiccups | ||
3.6 | Output under voltage protection | ≤30 | Vdc | Shutdown protection, self-recovery | ||
3.7 | Overcurrent protection | yes | / |
| ||
3.8 | Over-temperature protection | 85℃ | - | Shell radiator temperature; automatic recovery | ||
3.9 | Output short circuit protection | yes | / | Shutdown protection, when the fault is removed, it can be automatically restored | ||
3.10 | Output reverse polarity protection | yes | / | Under in static conditions when the 24v battery reversed, module protection, self-recovery when the fault is removed | ||
3.11 |
Fan failure protection | yes | / | When a fan fault module automatically derating until the module overtemperature protection disables the output; also reported fan failure alarm. | ||

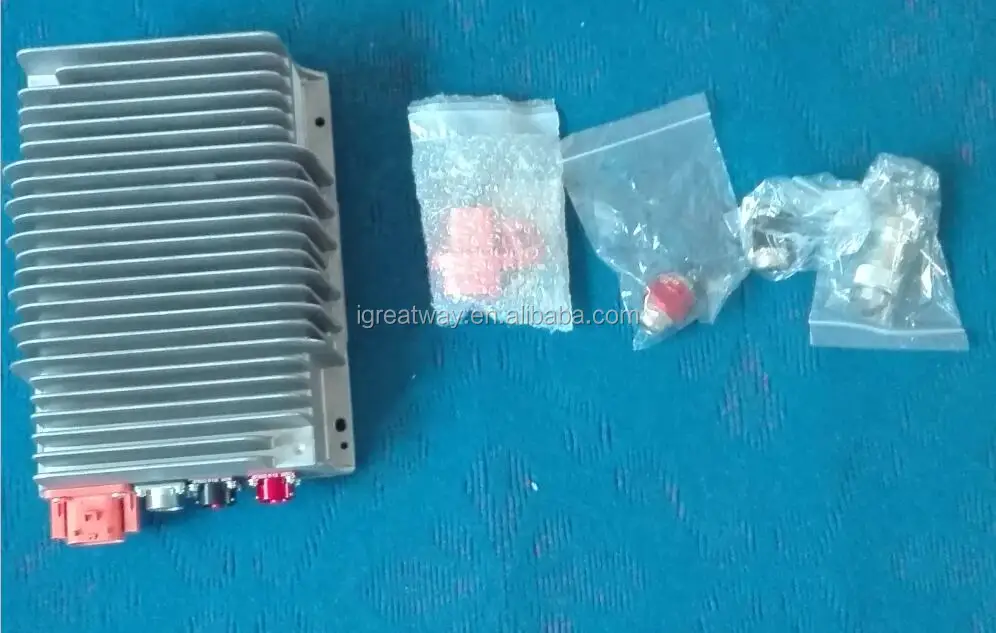

Packaging & Shipping
Our Services
Company Information
our company specialized in the manufacture and export of electric system products , including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator,hour tachometer ,air conditioning system,electric system solution .etc
