Wedling Consumables 3.2mm Welding Electrode 7018
- Category: >>>
- Supplier: Qingdao Reatech Industries Ltd.
Share on (60653012864):
Product Overview
Description

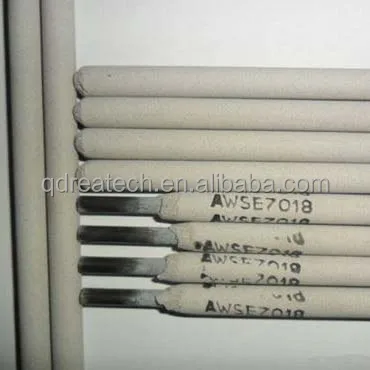

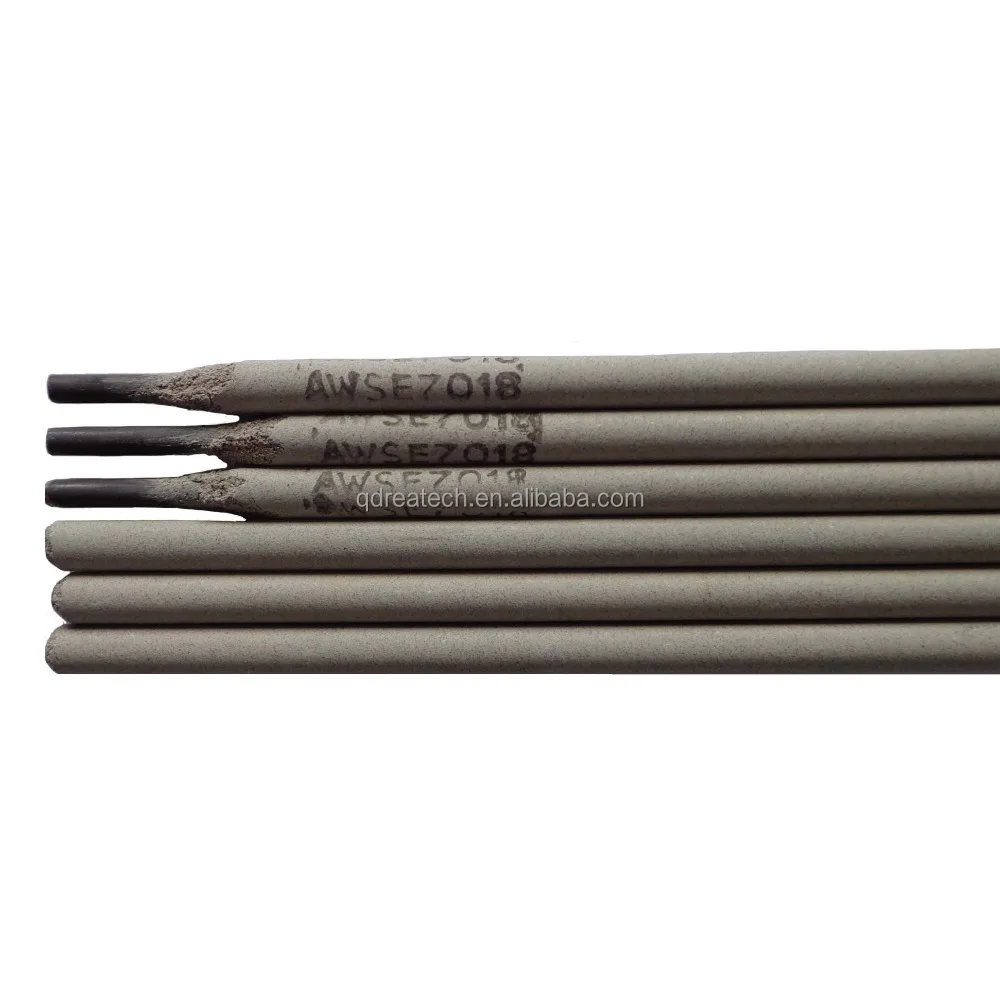

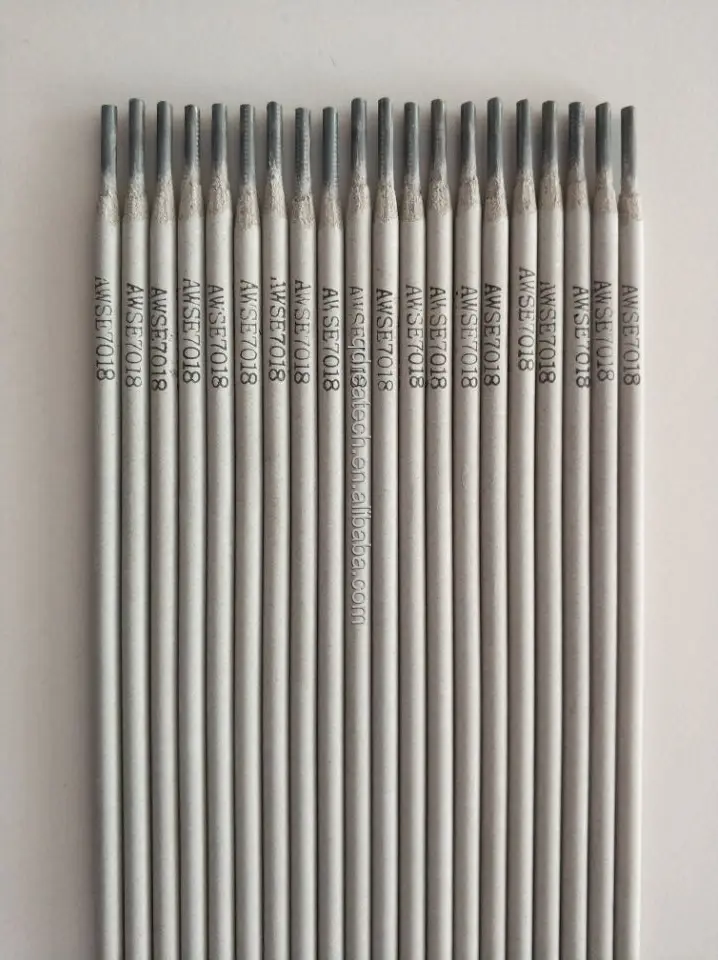

3.2mm Welding Electrode 7018
Product Description
Welding Electrode 7018 Introduction:
1. Model No.: Welding Rod AWSE7018
2. Available size:2.5x300mm, 2.5x350mm, 3.2x350mm, 4.0x400mm, 5.0x400mm
3. Packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request.
4. Delivery time: Within 15 days after confirmation
5. Application: The E7018 welding rods could be used on both AC and DC in all position and suitable for welding important structures made of low alloy steel.
Details Specification for Welding Electrode 7018:
Mechanical Properties of Deposited Metal
Test Item | Rm(MPa) | ReL(Mpa) | A(%) | KV2(J) |
Guarantee Value | ≥490 | ≥400 | ≥22 | ≥27(-30°C) |
General Result | 520~580 | ≥410 | 24~30 | 80~200 |
Reference Current (AC, DC+)
Electrode Diameter(mm) | φ2.5 | φ3.2 | φ4.0 | φ5.0 |
Welding Current (A) | 60~100 | 80~140 | 110~210 | 160~230 |
Chemical Composition of Deposited Metal (%)
Chemical Composition | C | Mn | Si | S | P | Ni | Mo | Cr | V |
Guarantee Value | ≤0.12 | ≤1.60 | ≤0.75 | ≤0.035 | ≤0.040 | ≤0.30 | ≤0.30 | ≤0.20 | ≤0.08 |

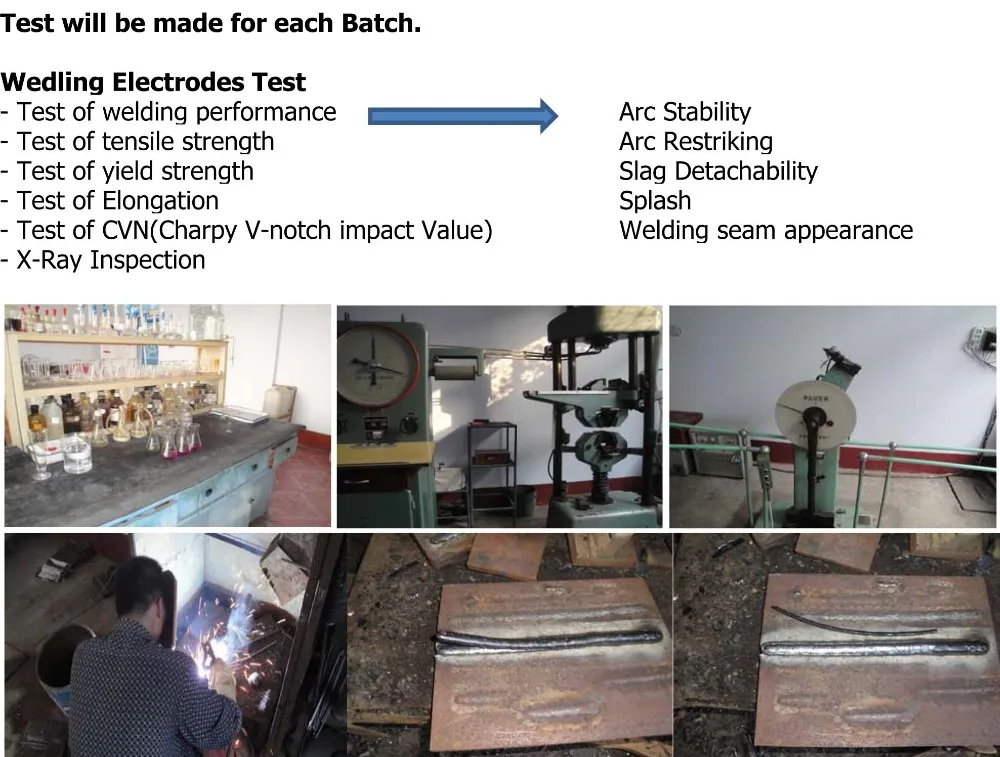

Quality Control

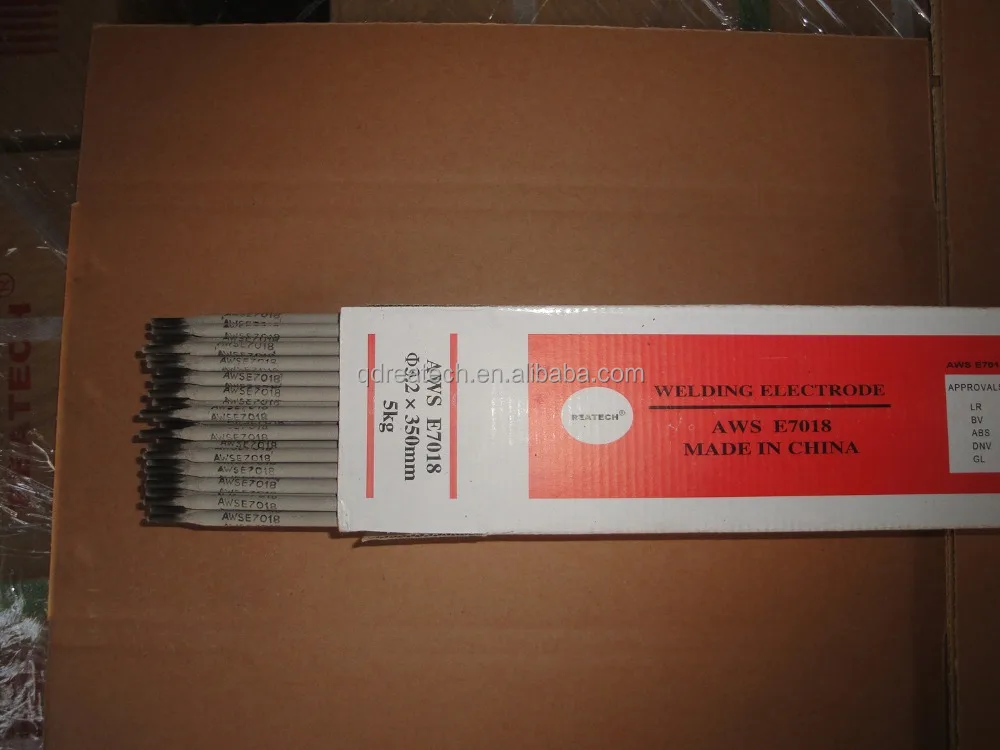

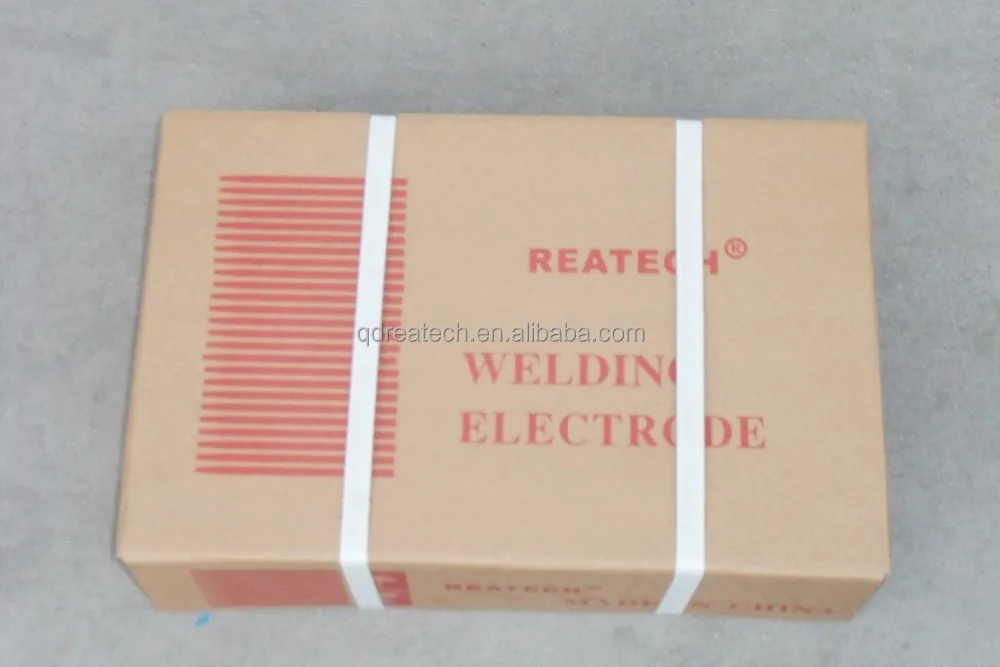

Packaging & Shipping
Certificates
Related Products
 | Model No.: Low Hydrogen Welding Electrode AWS E7018 Available size:2.5x300mm, 2.5x350mm, 3.2x350mm, 4.0x400mm, 5.0x400mm Packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request. Application: It is used on both AC and DC in all position and suitable for welding important structures made of low alloy steel. |
 | Stainless Steel Welding Electrodes Model No.: E308-16, E309-16, E312-16, E316-16 Available size:2.5x300mm, 3.2x350mm, 4.0x400mm, 5.0x400mm Packing: 1kg or 2kgs or 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request. |
 | Model No.: EZNi-C1, EZNiFe-C1 Available size:2.5x300mm, 3.2x350mm, 4.0x400mm, 5.0x400mm Packing: 1kg or 2kgs or 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request. |
 | MIG Welding Wire, TIG Welding Wire CO2 MIG Welding Wire, Flux Cored Welding Wire, Submerged Welding Wire, Stainless Steel Welding Wire, Aluminum Welding Wire
|
