RH AUDIO BGM Mini Amplifier with FM Radio Signal USB Port

Product Overview

Description

RH-AUDIO BGM Mini Amplifier with FM Radio Signal USB Port



These table-top mixer amplifier are designed as convenient solution for small to medium PA installations with USB/SD player/FM tuner/BT in a compact housing.

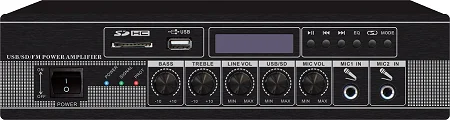

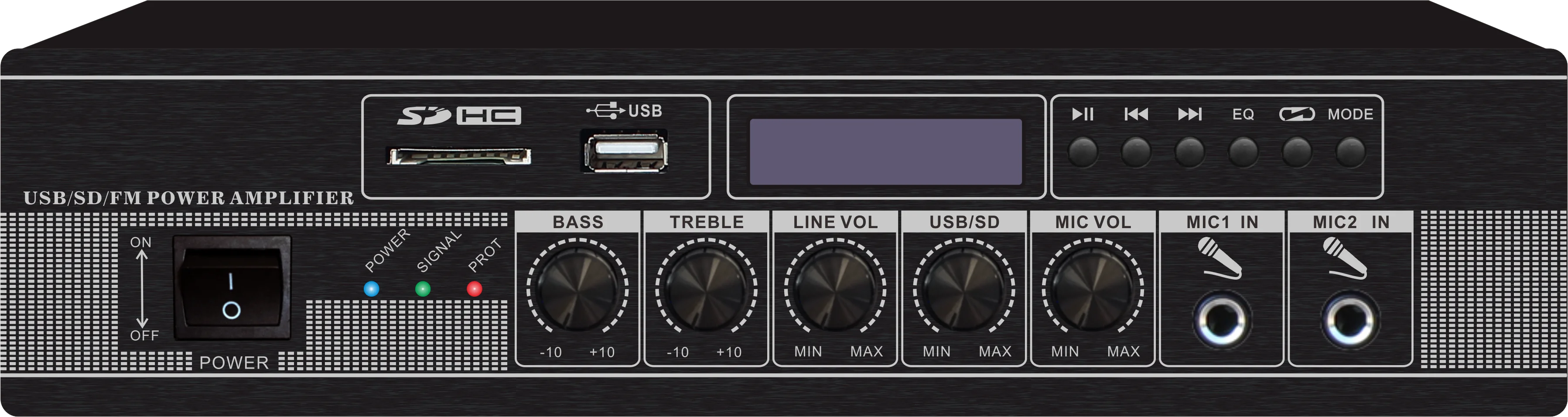

Inputs for microphone,line input,USB/SD player are governed by front panel volume controls.

The digital screen displays the working status of playing programmes,which can be controlled by the front panel buttons or the remote control.

And features two MIC inputs and one line input with 60/120 watts of amplifier power are available with either 70/100-volt or 4 to 16 ohms(Ω) output loads.

Also included a line level output for adding additional power amplifiers.

And features complete protection is provided for output short circuit,overload, high temperature,peak current limiters.

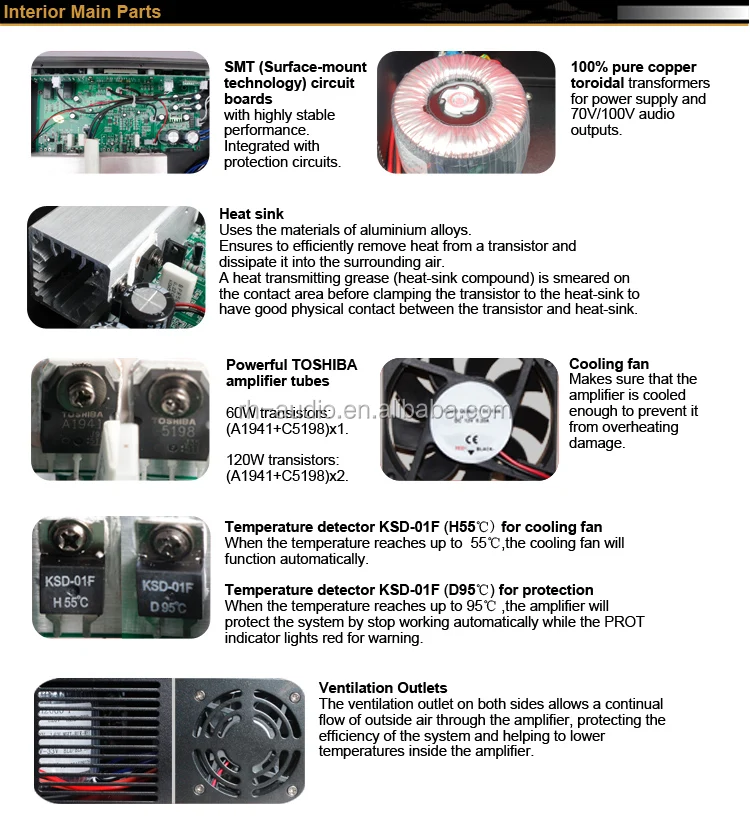

 1) Compact metal housing with front panel of aluminium alloy.
 2) SMT circuit boards with highly stable performance.
 3) Powerful TOSHIBA amplifier tubes.
 4) Pure copper transformers for power supply and 70V/100V audio outputs.
 5) 2 microphone inputs and 1 line input.
 6) Built-in players of USB/SD,and FM tuner.

 7)Supports BT connection with mobile devices.

 8) High-definition display for the working status of playing programmes.

 9) 70/100-volt and 4 to 16 ohms(Ω) output loads.

10)Individual volume controller for inputs.

11)BASS and TREBLE tone controllers.

12) Individual LED indicator for POWER/SIGNAL/PROTECTION.





Rated Power	60W	120W
Frequency Response	20 Hz 0dB -0.5dB 1dB
Output Terminals	Low impedance:4-16 ohms (Ω)
	Voltage line:70V(51 ohms), 100V(167 ohms)	Voltage line:70V(41ohms), 100V(83ohms)
MIC Input	MIC1/MIC2:600 ohms(Ω) 5-10mv,unbalanced
LINE Input	LINE:10k ohms(Ω) 150-470mv,unbalanced
LINE Output	0.775V (0 dB)
Frequency Response	60 Hz ~ 15k Hz (± 3 dB)
THD	<0.5% at 1kHz,1/3 rated power
S/N	Line:85 dB , MIC:>72 dB
Tone	BASS:100 Hz (± 10 dB) , TREBLE:12k Hz (± 10 dB)
Cooling	DC 12V FAN
Protection	AC FUSE x 1A	AC FUSE x 2A
	AC fuse,short circuit,overload,high temperature
Power Cord	(3×0.5 mm )×1.5M (standard)
Power Supply	AC 220V ± 10% 50-60Hz (Optional)
Power Consumption	84W	168W
Dimension	72(H)×305(W)×275(D) mm
Packing Size	130(H)×345(W)×345(D) mm
Net Weight	5Kg	5.5Kg
Gross Weight	5.7Kg	6.2Kg
