Бесконтактный микрометр диаметром провода лазерного сканирования

Product Application

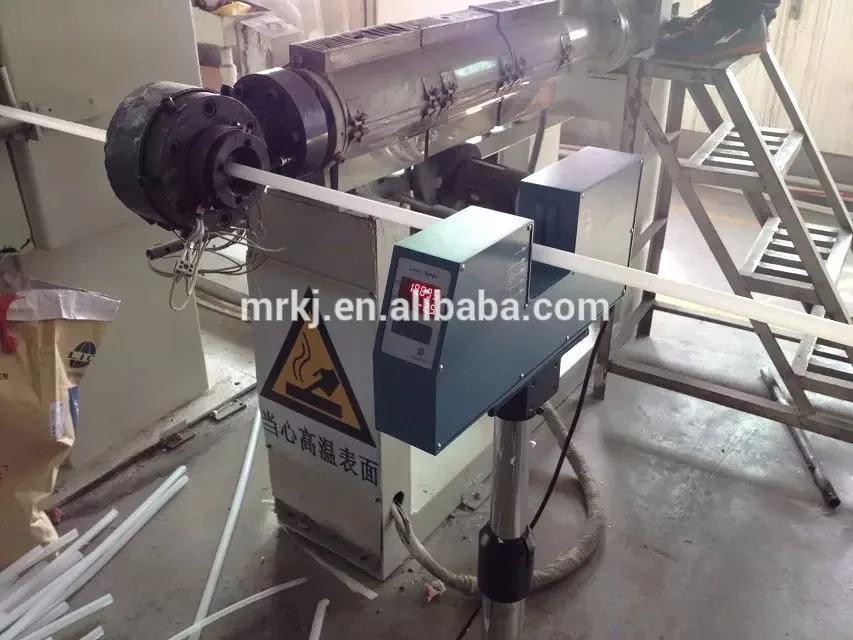

LDM Series Gauge is the classic Mercury-Tech product series, with decades of technological innovation and more than 1,000 customers use these products, high accuracy, reliable product. Currently it is the wire, cable, pipe measurement’s best choice. It develops 10 models in the series .

Main Features

① non-contact laser diameter measurement, high speed, high accuracy and good repeatability.

② Real time outside diameter and roundness display, improve quality control and production efficiency, reduce the waste of materials.

③ Various digital and analog control signal functions, to achieve fully automated production.

④ Various preset functions，nominal value, the upper and lower tolerance, alarm control presets, easy to operate.

⑤ Standard data port connection ready，compatible software for data analysis development convenience.

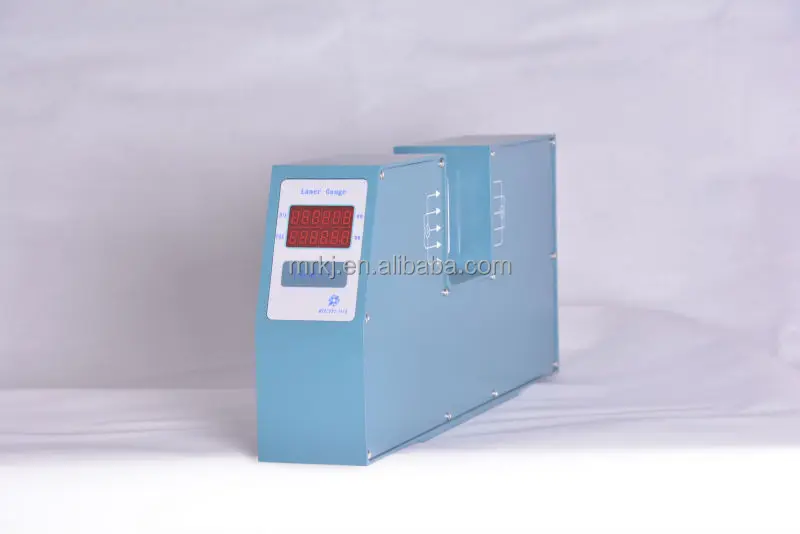

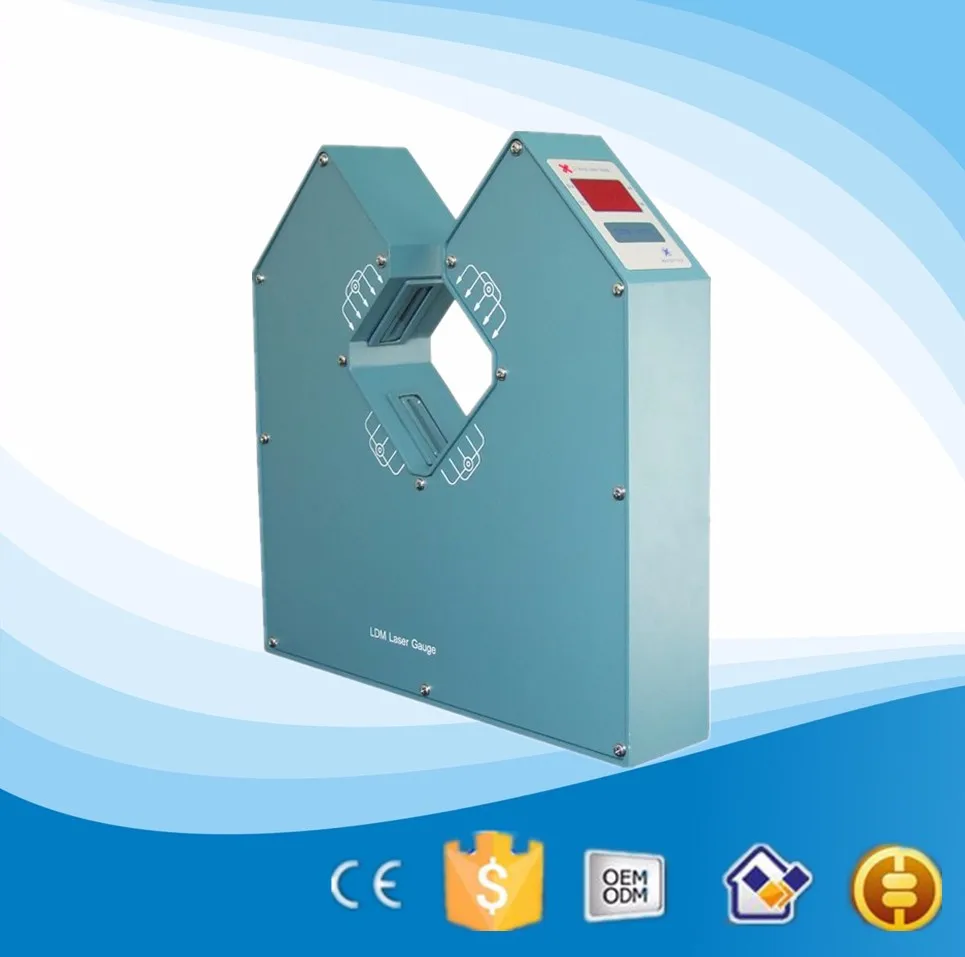

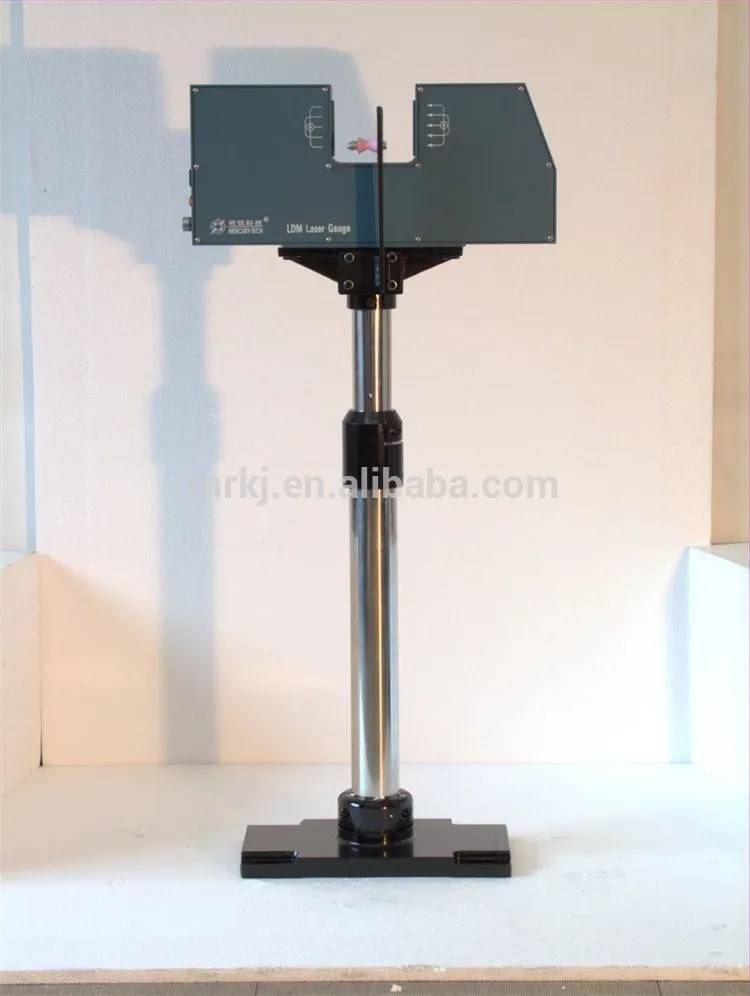

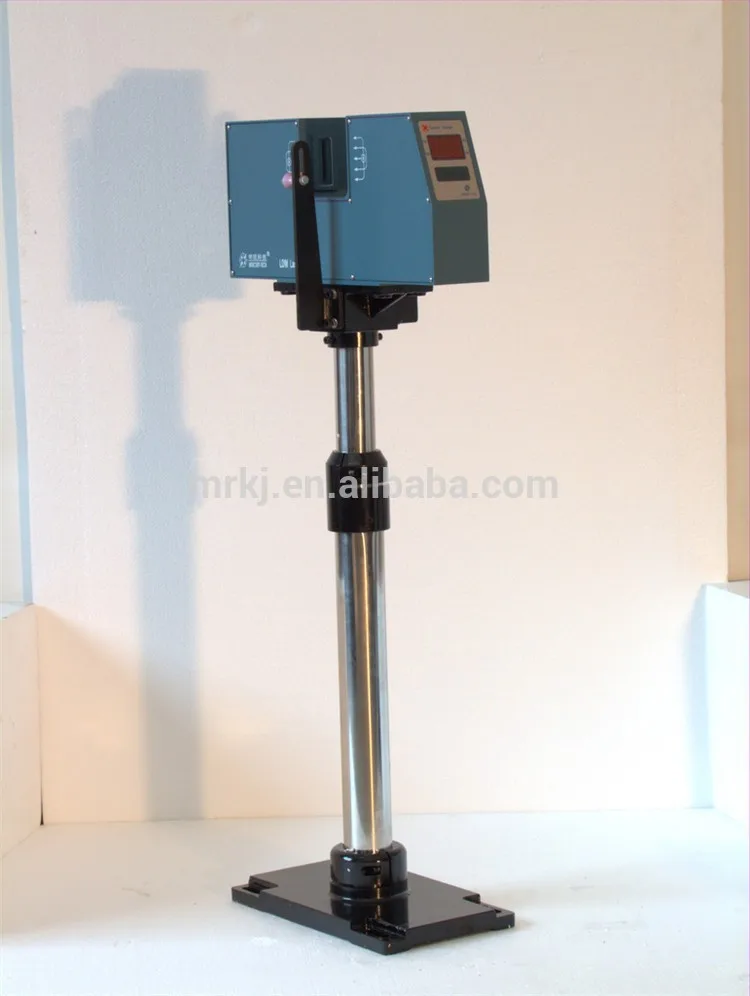

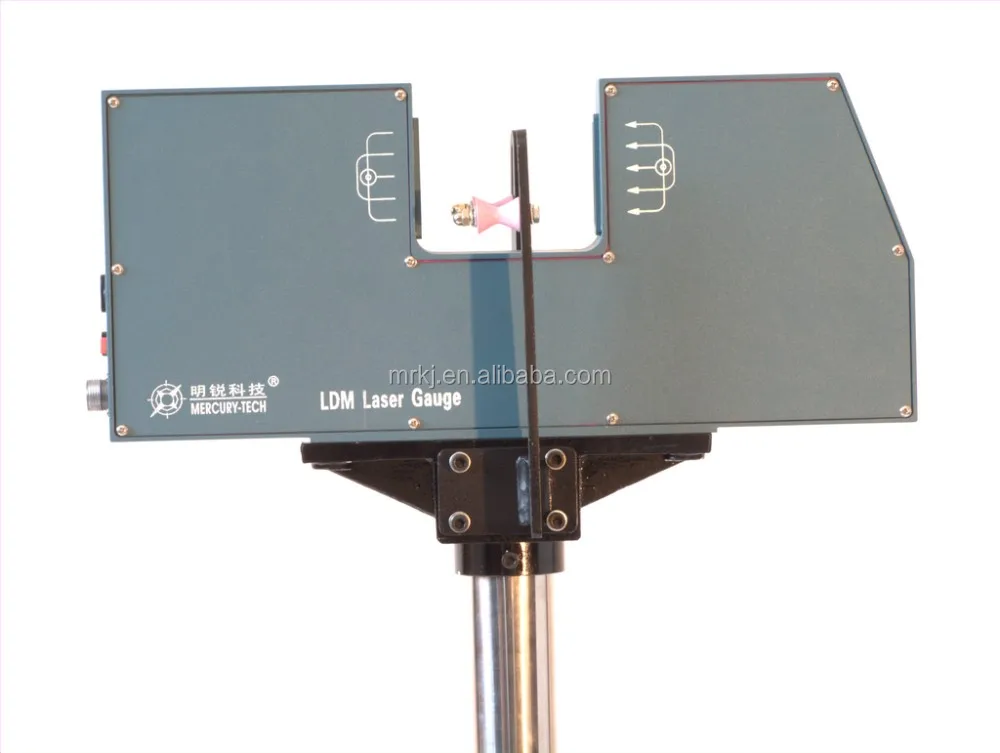

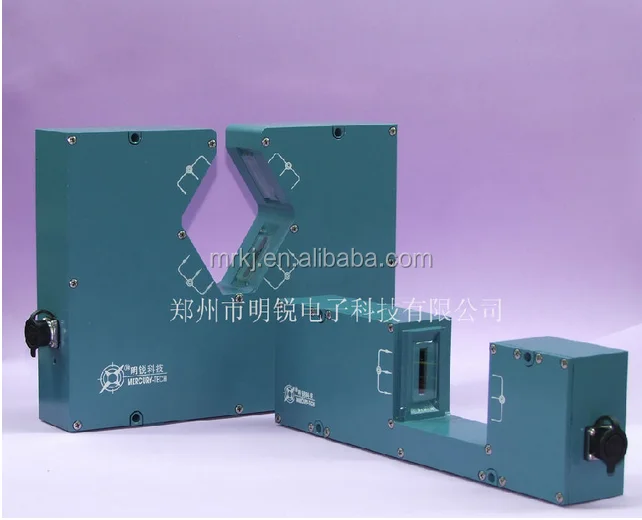

Laser Gauge Measuring Head

Model: LDM-25/50

Brand: MERCURY－TECH

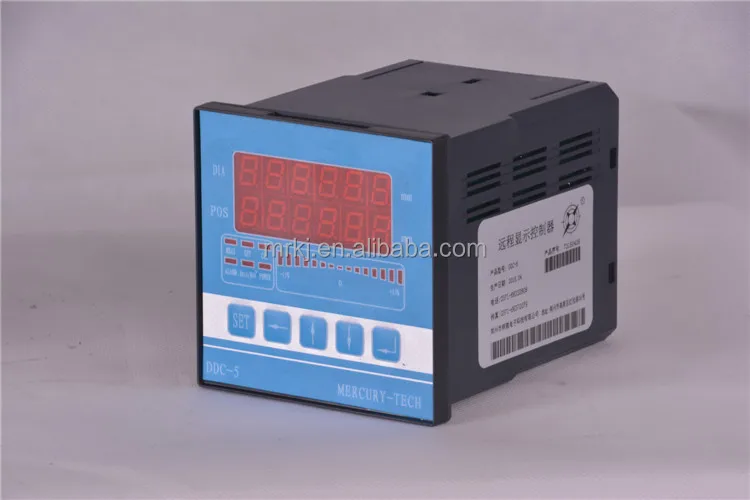

Main Controller Features

1. It be used to remote display and control.
2. It Can control the speed of DC motors, VVVF motor(extruder or the tractor).
3. It's suitable for Laboratory use.
4. It will alarm,when the diameter go beyond the the set tolerance.
5. With RS485 It can connect to PLC industry controlling computer.
6. Dimensions: 100mm×100mm×120mm (Model:DDC-5)

Laser Gauge Performance

Measurement: Laser scanning

Electronical Parameter

Operating voltage: ~ 220V ± 15% 50 - 60Hz

Operating temperature: -10 ~ 40 °C

Humidity: <85% RH
