brushless dc pump DC40 12V 24V 7m 600LPH
- Category: >>>
- Supplier: Shenzhen Zhongke Century Technology Co. Ltd.
Share on (60653090725):
Product Overview
Description
Product Description

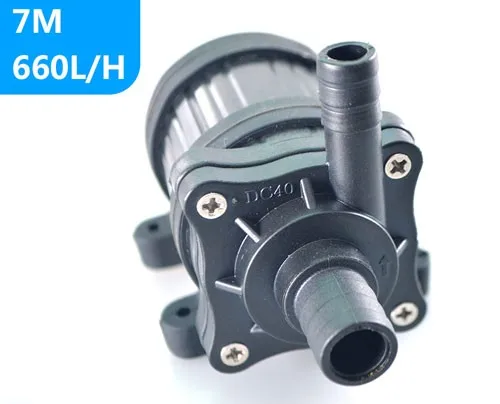

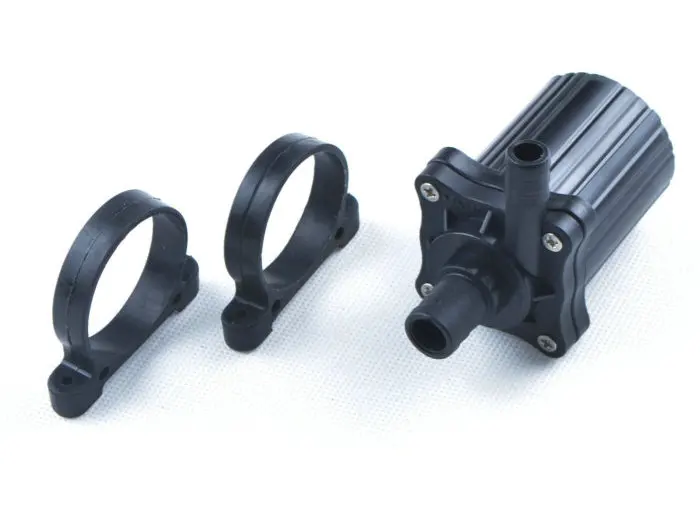

brushless dc pump DC40 12V 24V 7m 600LPH
Product Application
Our BLDC pump widely used in electric automotive cooling systems, automated equipment water cycle, water cooling and other electrical appliances, water dispenser, sanitary products, paper shredders, soilless cultivation, plumbing mattresses, air pump, aquarium fish tank,desktop crafts, foot bath, plumbing mattresses, water heaters, PC water cooling, water cooling fan, medical devices, pharmaceutical systems, chemical circulation systems,cooling system, water-cooled air-conditioning, water cooling fan, mobile bath, solar fountain, solar circulation system, water supply systems, small irrigation systems, water treatment systems, automobile circulation systems, automotive heating systems, machine tools, household appliances, kitchen appliances, bathroom products, hot water circulation system ,etc
Specification | ||||
NO. | Item | Specs | ||
1 | Dimension and weight | 84.5mmx61.8mmx43.8mm;220g | ||
2 | Installation dimension | 84.5mmx65mmx56mm; | ||
3 | External diameter of outlet | 10mm | ||
4 | External diameter of inlet | 14mm | ||
5 | Driving mechanism | Brush-less, magnetic isolated design | ||
6 | Material of pump shell | ABS,PES/SPS/PPS/PA66+30%GF (Optional) | ||
7 | Condition of use | Can continuously work, submersible or land use (not self-priming) | ||
8 | Suitable medium | Water, oil，acid/ alkaline liquids(Pre-test needed for special liquid) | ||
9 | Max working temperature | 60℃ or 100℃(customized) | ||
10 | Power consumption | 2.5W~28.8W(can be customized within this range) | ||
11 | Rated voltage | 12Vdc or 24Vdc | ||
12 | Working voltage range | 5Vdc ~ 12Vdc (Max 14V )or 5Vdc ~ 24Vdc(Max 26V) | ||
13 | Max load current | 1.2A | ||
14 | Max horizontal flow rate | 11L/MIN | ||
15 | Max static lift | 7M | ||
16 | Noise class | <40dB | ||
17 | Waterproof class | IP68(suitable for submersible installation) | ||
18 | Life span | > 30,000hrs | ||
19 | Power supply | Suitable for solar panel, batteries, adapter or other power source | ||
20 | Protection function | dry-run protection, stuck protection(customized function) | ||
21 | Power regulation function | Speed can adjustable by PWM signal, 0~5V analog signal or potentiometer (customized function) | ||
22 | Feature | small size with high efficiency,maintenance-free Use ceramics shaft and carbon fiber sleeve Completely water proof (IP68) Brush-less dc control without pollution, long life span OEM and ODM service accept Offer Pump related control system design | ||
Pump parameter
Model No. | Voltage | Max load current | Max flow rate | Max static head | Power consumption | ||||
V（dc） | A | L/H | M | w | |||||
DC40-1220 | 12 | 0.45 | 2.0 | 350 | 5.40 | ||||
DC40-1230 | 12 | 0.70 | 3.0 | 400 | 8.40 | ||||
DC40-1240 | 12 | 1.00 | 4.0 | 460 | 12.0 | ||||
DC40-1250 | 12 | 1.20 | 5.0 | 520 | 14.4 | ||||
DC40-1860 | 18 | 1.20 | 6.0 | 600 | 21.6 | ||||
DC40-2430 | 24 | 0.35 | 3.0 | 400 | 8.40 | ||||
DC40-2440 | 24 | 0.50 | 4.0 | 460 | 12.0 | ||||
DC40-2450 | 24 | 0.55 | 5.0 | 520 | 14.4 | ||||
DC40-2460 | 24 | 0.80 | 6.0 | 600 | 19.2 | ||||
DC40-2470 | 24 | 1.00 | 7.0 | 660 | 24.0 | ||||
NOTE | 1.Information including continuous working time, working temperature and medium is required to be pre-confirmed with professionals; pump cannot work with high temperature or corrosive fluids. 2.When pump is connected into circulation system, load current will be reduced to 70~85% of Max working current (opening outlet current). 3.The head means the Max vertical lifting height of water,the flow is 0L/MIN@max head. 4.The max flow rate means flow rate with no lifting height(according to the curve bellow) | ||||||||

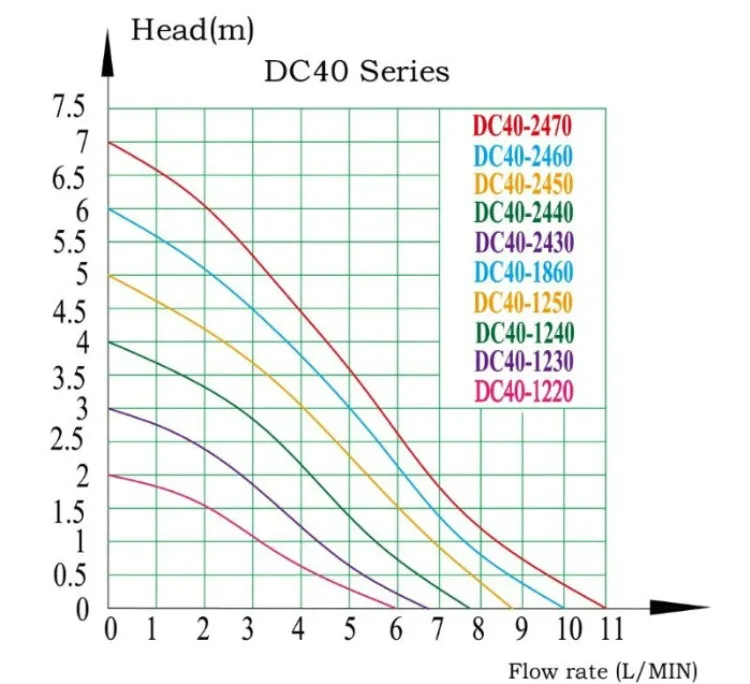

Head and Flow Curve

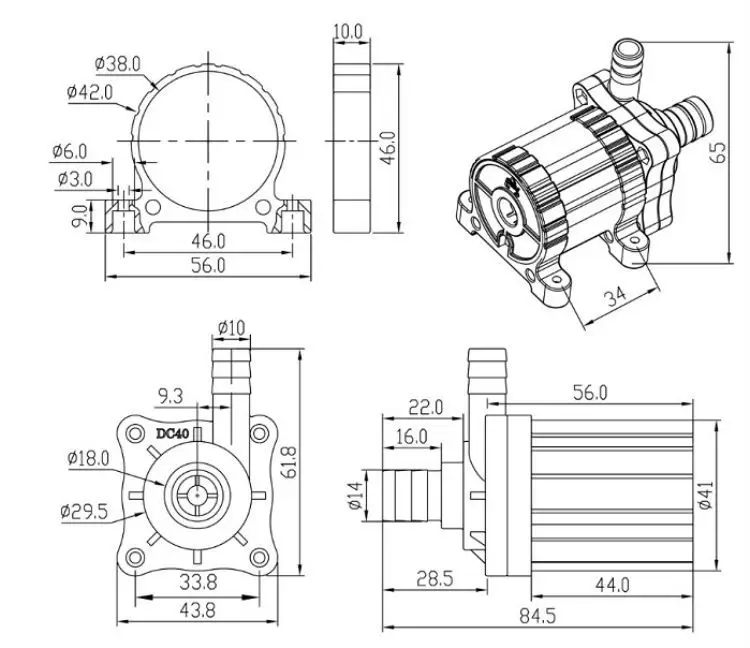

Dimension

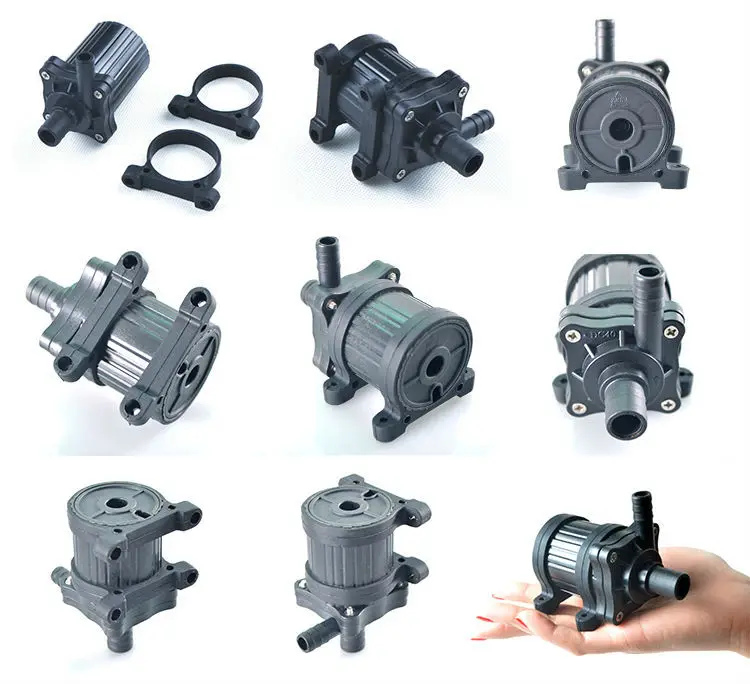

Pump Structure

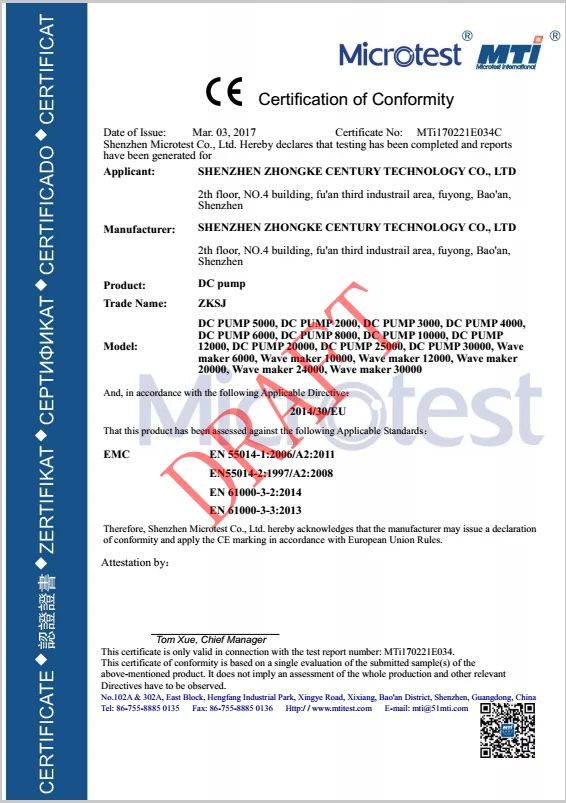

Certifications
