private model New design energy saving LED lamp 120 degree g24d 3 led CFL replacement PL
- Category: >>>
- Supplier: Shenzhen Pufa Energy Saving Lighting Technology Co. Ltd.
Share on (60653091162):
Product Overview
Description
PF 120 degree beam angle G24PLC lamp
1.Up to 80% Energy-saving and environmentally friendly,120lm/W high light efficacy and reliablilty, cost effective.
2.Use high thermal conductivity aluminium, good heat dissipation.
3.Comfortable & healthy: no UV.no flicking.and no RF interference.
4.Quick and easy installationto minimize retrofit costs,little maintenance costs.
5.Adopt high brightness and low light decline led. Good quality power LED source.
6.Long life: average 50,000 hours or more
7Wide range of availab
le operating voltage and low consumption
8.Work without ballast and starter.instant soft-start.
9.Compatible electronic ballast are avaliable if you need
Product Paramenters
Model No. | PF-G24PL-13W | PF-G24PLC-11W | PF-G24PLC-9W | PF-G24PLC-7W | PF-G24PLC-5W | ||||
Luminnus flux | 1500±10% | 1300±10% | 1000±10% | 800±10% | 550±10% | ||||

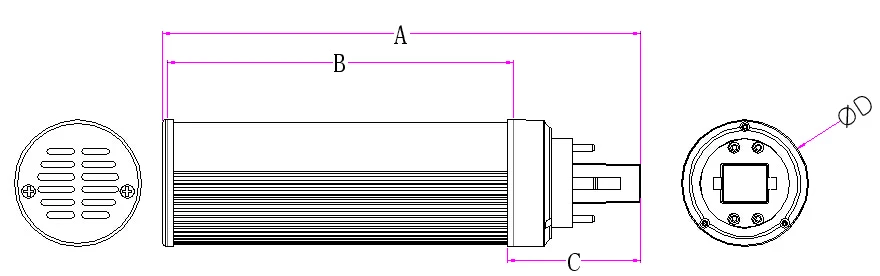

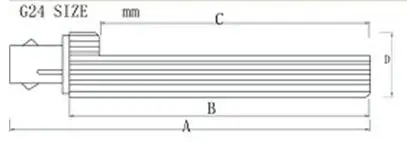

Dimension | 165mm | 150mm | 138mm | 128mm | 99mm | ||||
Socket | G24Q 4pin/ G24D 2pin | ||||||||
Power factor | ≥0.9 | ||||||||
Input Voltage | AC85-265V | ||||||||
Frequency | 50/60Hz | ||||||||
LED type | 81pcsSMD2835 | 60pcs SMD2835 | 54pcs SMD2835 | 45pcs SMD2835 | 40pcs SMD2835 | ||||
Color temperature | 2700k 3000k 4000k 5000k 6000k | ||||||||
Beam angle | 210° | ||||||||
Working temperature | -20 to 50℃ | ||||||||
CRI | 82Ra | ||||||||
Lifespan | 50000h | ||||||||
Housing material | AL+PC | ||||||||
Warranty | 3 years | ||||||||
Certification | CE & RoHS ETL | ||||||||
