5 в 12 мм 6803 ws2801 ws2811 smd rgb диод светодиодный пиксельный свет для рекламных вывесок свет
- Category: LED Light Strings >>>
- Supplier: Shenzhen Shiji Lighting Co. Ltd.
Share on (60653113593):
Product Overview
Description

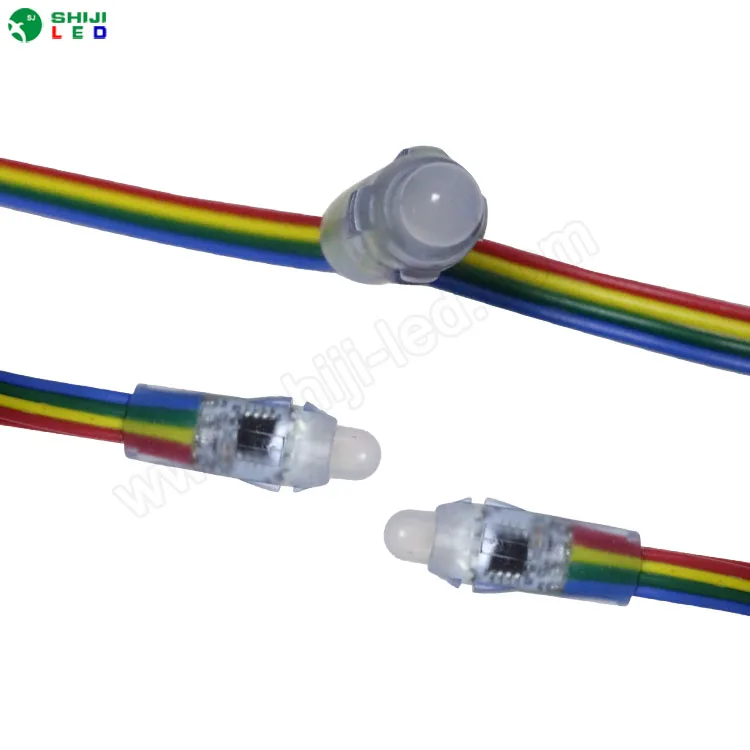

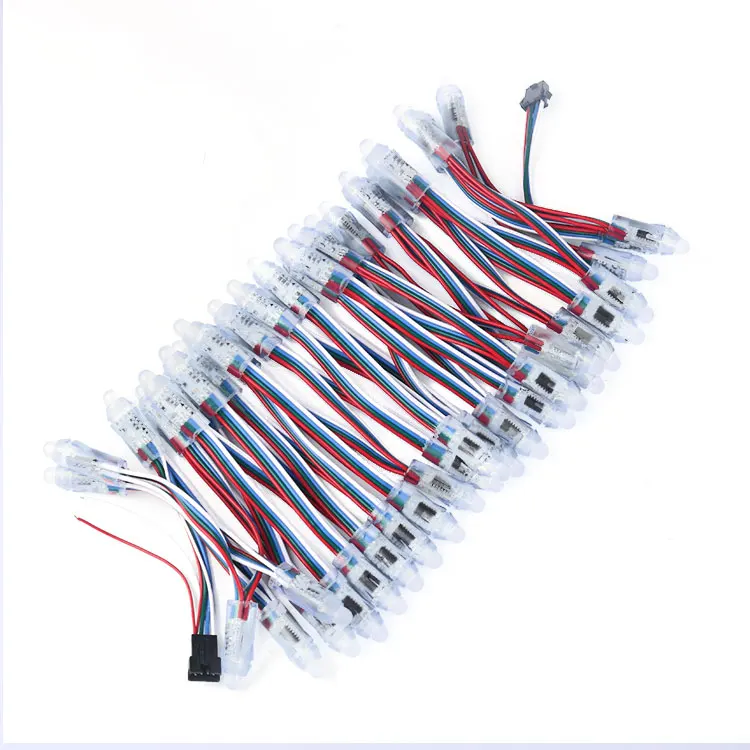

12mm 5v 6803 rgb string ws2801 ws2811 smd Led Pixel Light
Product Description
Product features
1. 12mm 5v 6803 rgb string ws2801 ws2811 smd Led Pixel Light.
2. High Brightness, Long Lifespan, Low Power Disspipation, Low Voltage, Low Decline, easy Installation, waterproof protection.
3. Waterproof IP66, 50 pcs leds/chain, 8cm length between each led.
4. Controller system:SD card controller, online controller, DMX controller Artnet, Arduino and so on.

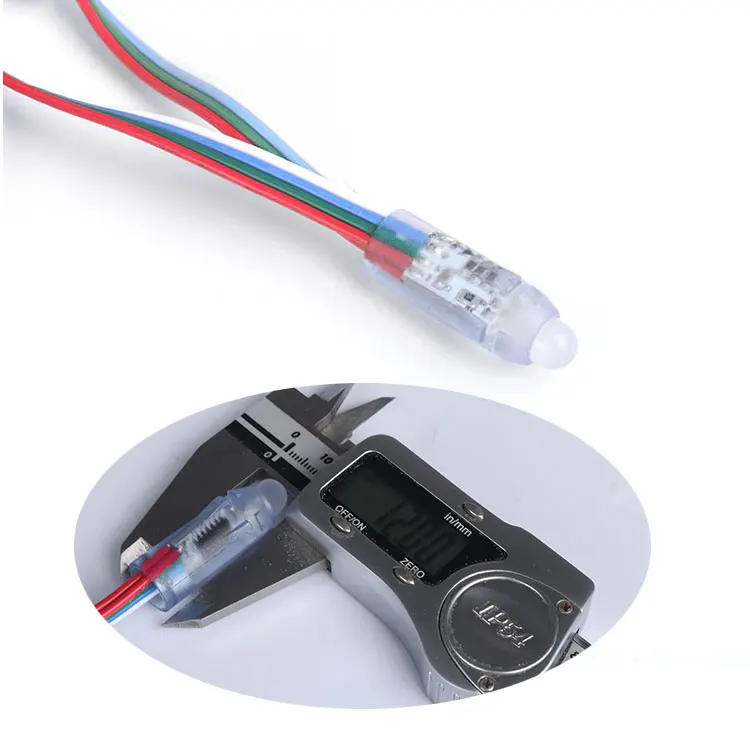

12mm diameter

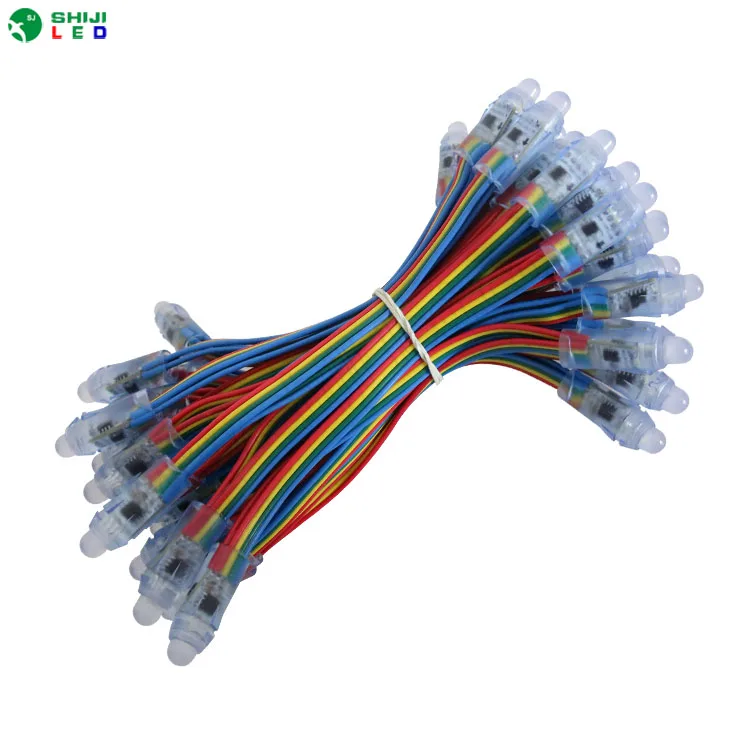

50 pcs/string

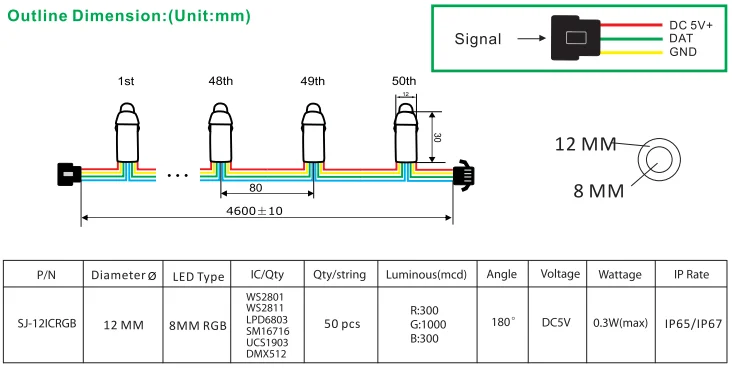

Technical Parameters
| Model NO. | SJ-12-6803/16716 |
| IC Chip | ws2811/ws2801/6803/16716 |
| Power Consumption | 0.3W |
| Work Voltage | DC 5V |
| Diameter | 12 mm |
| LED Quantity | 50pcs/string |
| Emitting Color | digital |
| Waterproof Grade | IP 66 |
| Lifespan | 50,000 hours |
| Warranty | 2 years |
| Certificate | CE&RoHS |

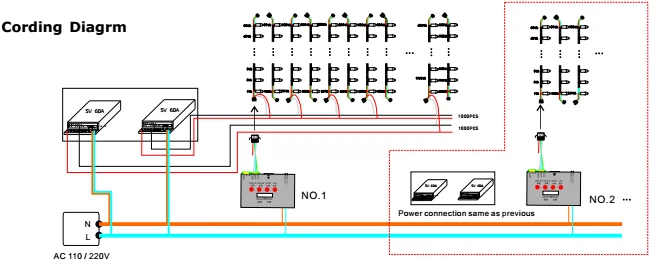

Connection Way
1. Signal wire:DC+, DAT, GND
2. DC+ and GND connect to power supplier; DAT and GND connect to controller
3. Relative Controller: SPI controller, DMX controller
4. SPI Signal:LED pixels + LED Power Supply + LED Controller
5. DMX Control:LED pixels + LED Power Supply + DMX Controller + DMX Decoder
6. LED Power Supply:meanwell power supply and chuanglian power supply(waterproof/non-waterproof)

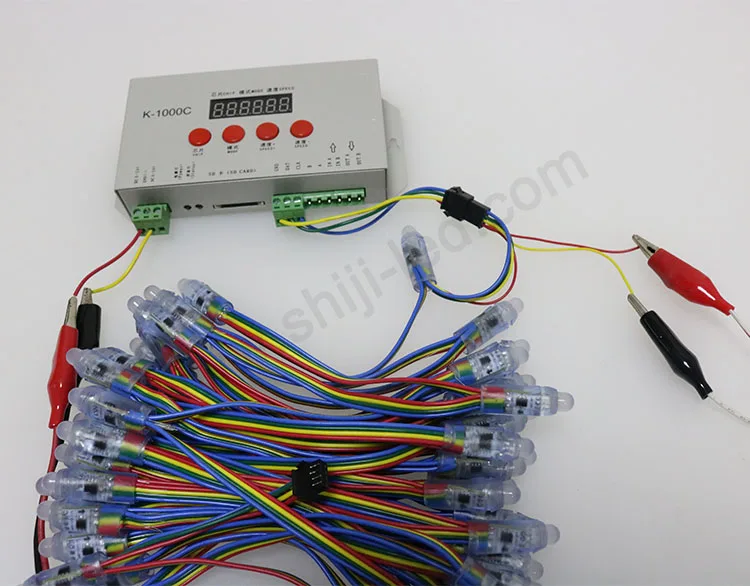

Control system
1. SD Controller T400K, T500K, T4000C, K1000C, K8000C; Online Controller; Artnet; Arduino and DMX controller.
2. Software to make program, now we often use LEDEDIT, LED EASY and MADRIX. Contact me for more information.

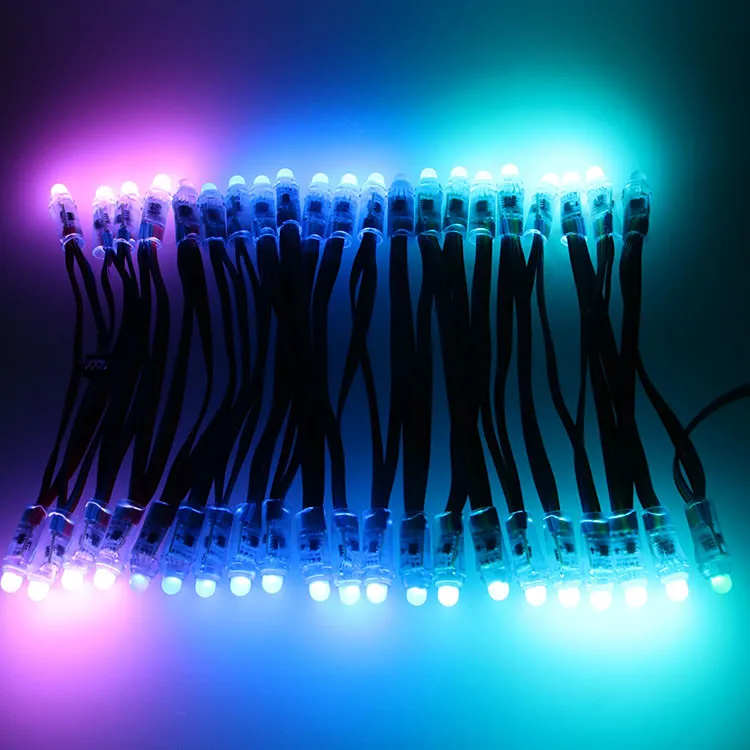

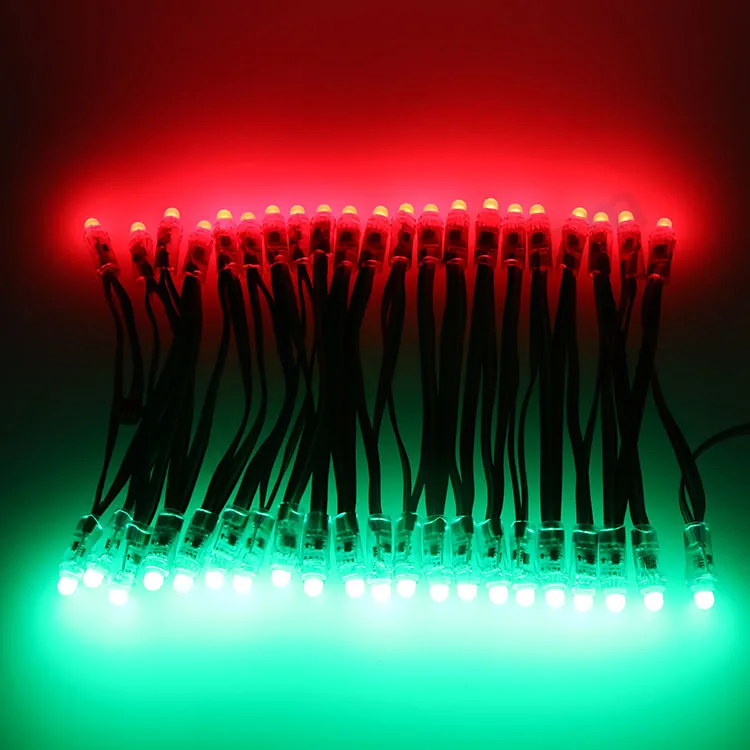

Lighting Effect
Application
1. Outdoor amusement park lighting,
2. Advertising sign
3. Outdoor signboard,
4. Casino sign,
5. Amusement park rides,
6. Playground fair lighting,
7. Game machine,
8. Traveling funfair,
9. Funfair playground.
Packaging & Shipping
1.Goods will be delivered within 3-5 working days after the payment received
2.We ship item via DHL, Fedex,UPS,Door to Door service express or air and sea.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Need about 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
