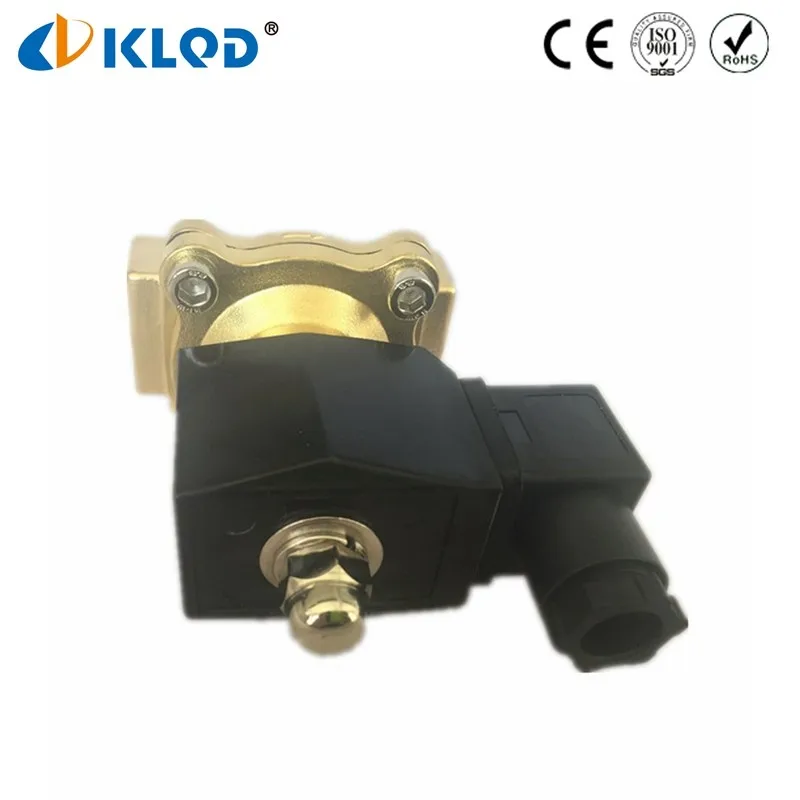

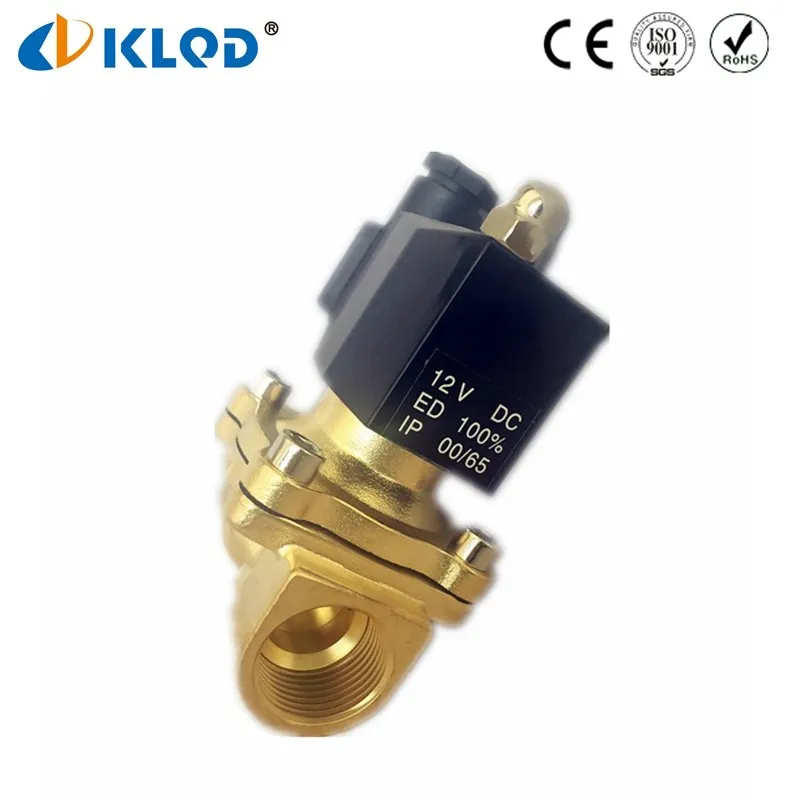

Low Cost Hot Type 2W Series 24V Solenoid Valves for Gas
Low Cost Hot Type 2W Series 24V Solenoid Valves for Gas
Low Cost Hot Type 2W Series 24V Solenoid Valves for Gas
Low Cost Hot Type 2W Series 24V Solenoid Valves for Gas

Low Cost Hot Type 2W Series 24V Solenoid Valves for Gas

Share on (60653484711):


Price:

Quantity:


Product Overview

Description


Product Description
\t
Model
\t
2W160-10
\t
2W160-15
\t
2W200-20
\t
2W250-25
\t
2W350-35
\t
2W400-40
\t
Working Medium
\t
Air,Water,Oil,Gas
\t
Operation
\t
Direct Acting
\t
Acting Type
\t
Normally Closed/ Normally Open
\t
Orifice Size
\t
16
\t
20
\t
25
\t
35
\t
40
\t
CV Value
\t
4.8
\t
4.8
\t
12
\t
24
\t
29
\t
Port Size
\t
3/8"
\t
1/2"
\t
3/4"
\t
1"
\t
1-1/4"
\t
1-1/2"
\t
Operation Fluid Viscosity
\t
20 CST Below
\t
Operating Pressure
\t
Air:0~1.0Mpa  Water:0~0.7Mpa  Oil:0~0.9Mpa
\t
Max.Pressure Resistance
\t
1.0 Mpa(Normal Open Type Max.Pressure 0.8Mpa)
\t
Operating Temperature
\t
NBR for -5~80°C and VITON for -5~150°C
\t
Voltage Range
\t
-10%~+10%
\t
Material of Body
\t
Brass
\t
Material of Oil Seal
\t
NBR,EPDM,VITON,SI

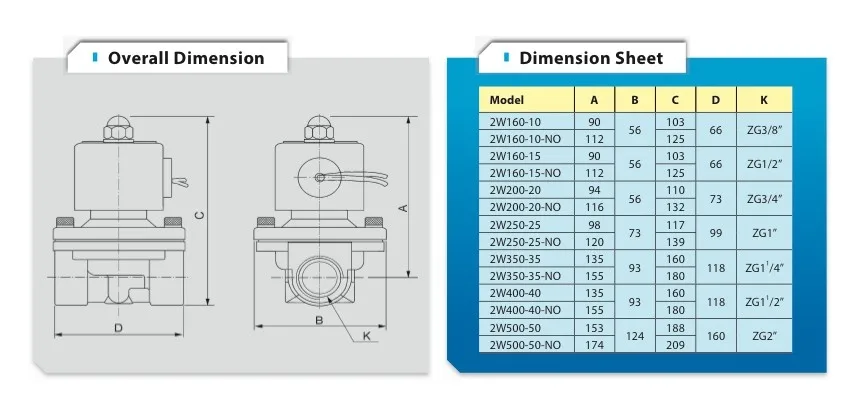

Product Details
Our Company

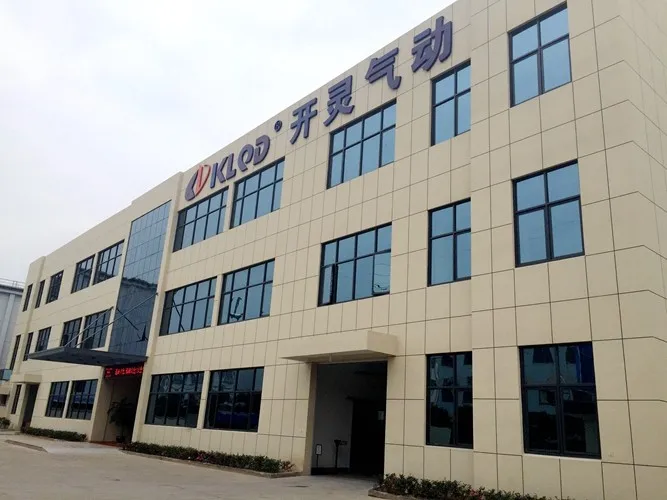

Factory

Our Factory

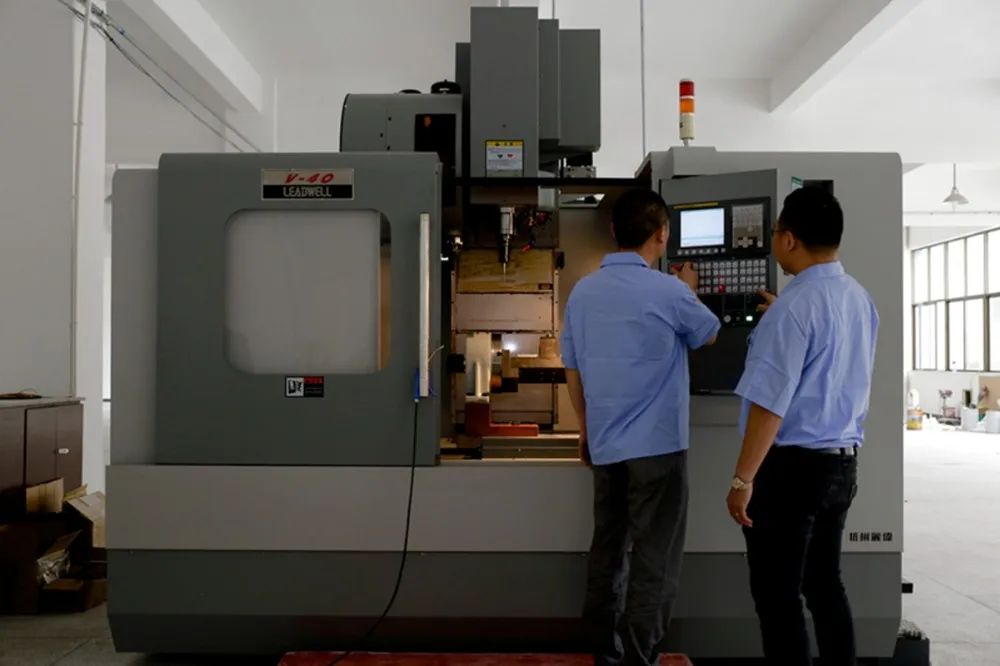

Workshop

Our Workshop

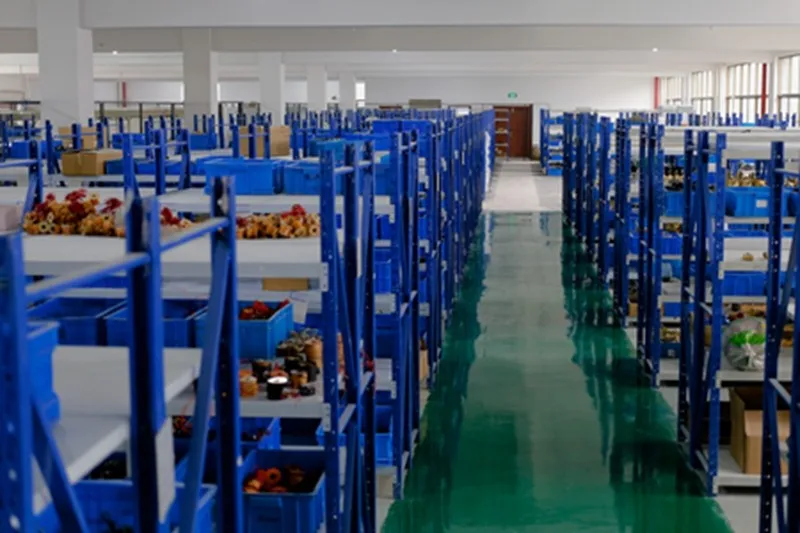

Warehouse

Our Warehouse

Team

Our Team

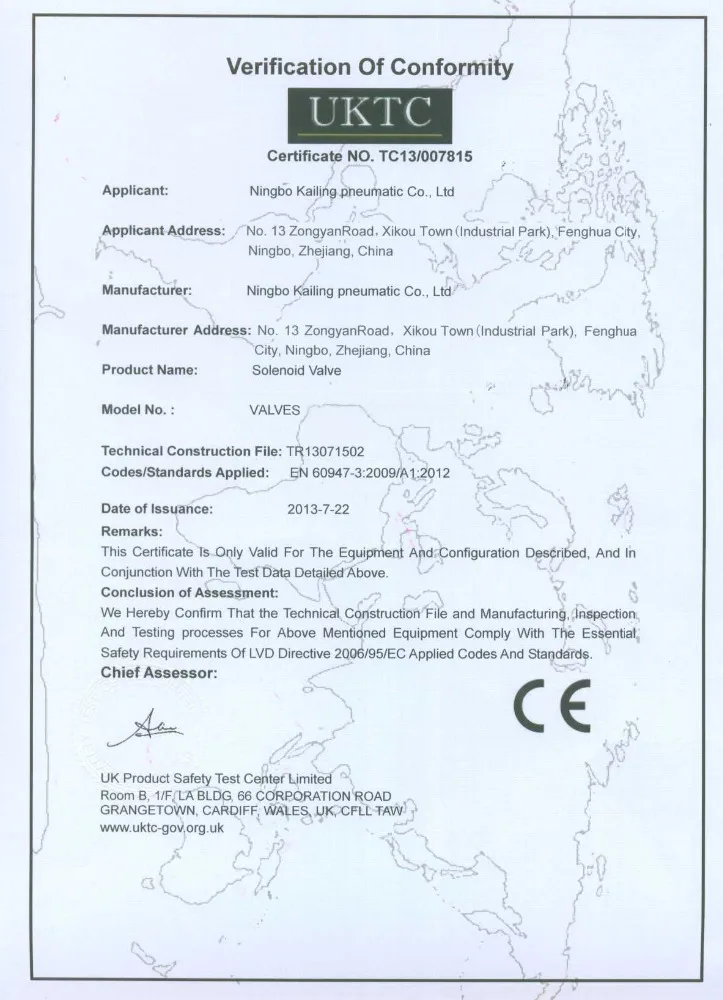

Our Certifications

High quality of the raw materials, the precision of the parts, the hard tests during and at the end of production are a warranty of reliability and features. Our real strength is to develop customised products to solve any requirement of utilisation. The production runs conforming to the rigorous ISO 9001/2000 requirements .The product range consists of solenoid valves, process valves,Air source treatment units etc ,which are found in a variety of industrial applications such as machinery, metallurgy, food, textile and waste treatment.

\t\t\t\t\t\t\t\t\tPayment \t\t\t\t\t\t\t
Packing & Delivery

Carton Packing.

Use the strong Nylon bags to protect products.

Carton Packing.

Expert and careful packing to make sure all products are in good condition.

Pallet packing & delivery.

1. Use the pallet to protect products.

2. Sea shipment.

3. Air shipment.

4. Also has the cooperation with DHL/Fedex/UPS/EMS.
