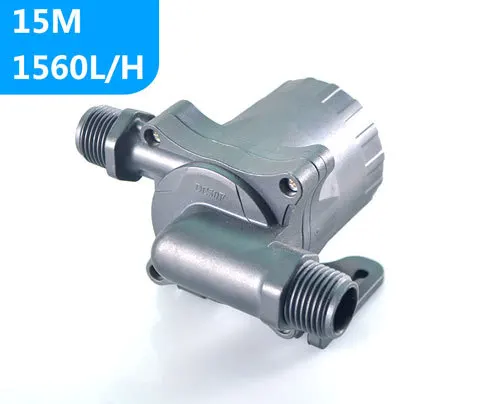

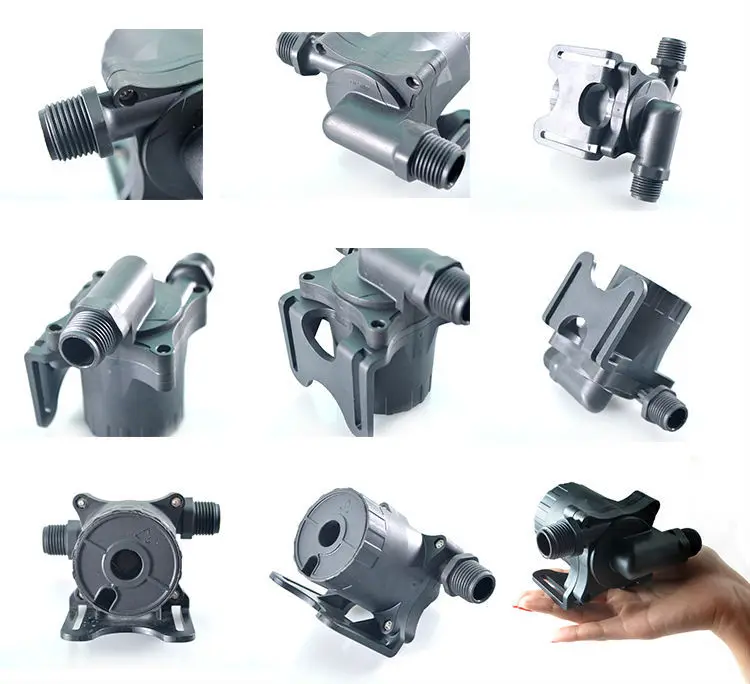

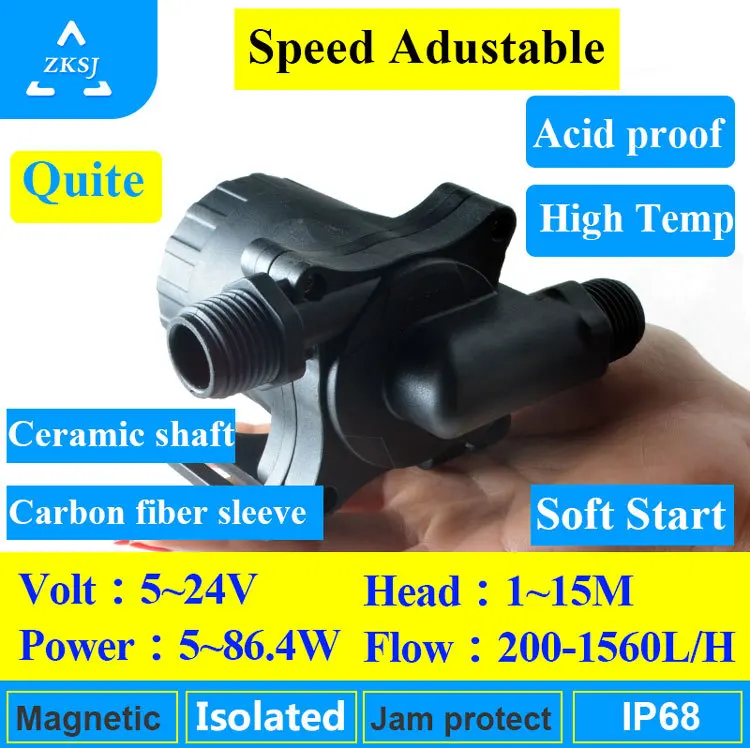

12V 24V Brushless Laser Coolers DC Pump With Flow 26LPM Head 15M

Share on (60653491712):


Price:$35.00 - $45.00

Quantity:


Product Overview

Description


Product Description

Product Application

Our BLDC pump widely used in electric automotive cooling systems, automated equipment water cycle, water cooling and other electrical appliances, water dispenser, sanitary products, paper shredders, soilless cultivation, plumbing mattresses, air pump, aquarium fish tank,desktop crafts, foot bath, plumbing mattresses, water heaters, PC water cooling, water cooling fan, medical devices, pharmaceutical systems, chemical circulation systems,cooling system, water-cooled air-conditioning, water cooling fan, mobile bath, solar fountain, solar circulation system, water supply systems, small irrigation systems, water treatment systems, automobile circulation systems, automotive heating systems, machine tools, household appliances, kitchen appliances, bathroom products, hot water circulation system ,etc

\t
Specification
\t
NO.
\t
Item
\t
Specs
\t
1
\t
Dimension and weight
\t
109mmx91mmx71.5mm;480g
\t
2
\t
External diameter of outlet
\t
1/2” thread(M20)
\t
3
\t
External diameter of inlet
\t
1/2” thread(M20)
\t
4
\t
Driving mechanism
\t
Brush-less, magnetic isolated design
\t
5
\t
Material of pump shell
\t
ABS,PES/SPS/PPS/PA66+30%GF (Optional)
\t
6
\t
Condition of use
\t
Can continuously work, submersible or land use (not self-priming)
\t
7
\t
Suitable medium
\t
Water, oil, acid/ alkaline liquids(Pre-test needed for special liquid)
\t
8
\t
Max working temperature
\t
60℃(for T sub-series) or 100℃(for S/A sub-series)
\t
9
\t
Power consumption
\t
2.5W~48W(for T sub-series) or 2.5W~86.4W(for S/A sub-series)
\t
10
\t
Rated voltage
\t
12Vdc or 24Vdc
\t
11
\t
Working voltage range
\t
5Vdc ~ 14Vdc or 5Vdc ~ 26Vdc
\t
12
\t
Max load current
\t
2.0A (for T sub-series) or 4.5A(for S/A sub-series)
\t
13
\t
Max horizontal flow rate
\t
18L/MIN(for T sub-series) or 26L/MIN(for S/A sub-series)
\t
14
\t
Max static lift
\t
8M(for T sub-series) or 15M(for S/A sub-series)
\t
15
\t
Noise class
\t
<40dB
\t
16
\t
Waterproof class
\t
IP68(suitable for submersible installation)
\t
17
\t
Life span
\t
>30,000hrsIP68(suitable for submersible installation)
\t
18
\t
Power supply
\t
Suitable solar panel, batteries, adapter or other power source
\t
19
\t
Protection function
\t
Dry-run protection, lock protection(customized function)
\t
20
\t
Power regulation function
\t

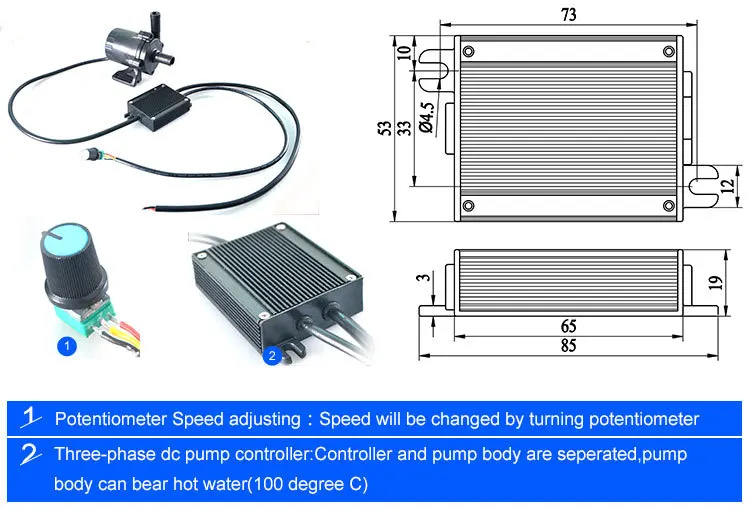

Speed adjustable by PWM signal, 0~5V analog signal or potentiometer (functions are optional for customization)
\t
22
\t
Feature
\t
small size with high efficiency,maintenance-free
Use ceramics shaft and carbon fiber sleeve
Completely water proof (IP68)
Brush-less dc control without pollution, long life span
OEM and ODM service accept
Offer Pump related control system design
Pump parameter
\t
Model No.
\t
Voltage
\t
Max load current
\t
Max statichead
\t
Max flow rate
\t
Power consumption
\t
V(dc)
\t
A
\t
M
\t
L/H
\t
w
\t
DC50F-1250T
\t
12
\t
2.0
\t
5.0
\t
900
\t
24
\t
DC50F-1250S
\t
DC50F-1250A
\t
DC50F-12110S
\t
12
\t
4.5
\t
11
\t
1320
\t
54
\t
DC50F-12110A
\t
DC50F-2480T
\t
24
\t
2.0
\t
8.0
\t
1080
\t
48
\t
DC50F-2480S
\t
DC50F-2480A
\t
DC50F-24150S
\t
24
\t
3.60
\t
15
\t
1560
\t
86.4
\t
DC50F-24150A
\t
NOTE
\t
1.Information including continuous working time, working temperature and medium is required to be pre-confirmed with professionals; pump cannot work with high temperature or corrosive fluids.
2.When pump is connected into circulation system, load current will be reduced to 70~85% of Max working current (opening outlet current).
3.The head means the Max vertical lifting height of water,the flow is 0L/MIN@max head.
4.The max flow rate means flow rate with no lifting height(according to the curve bellow)
\t

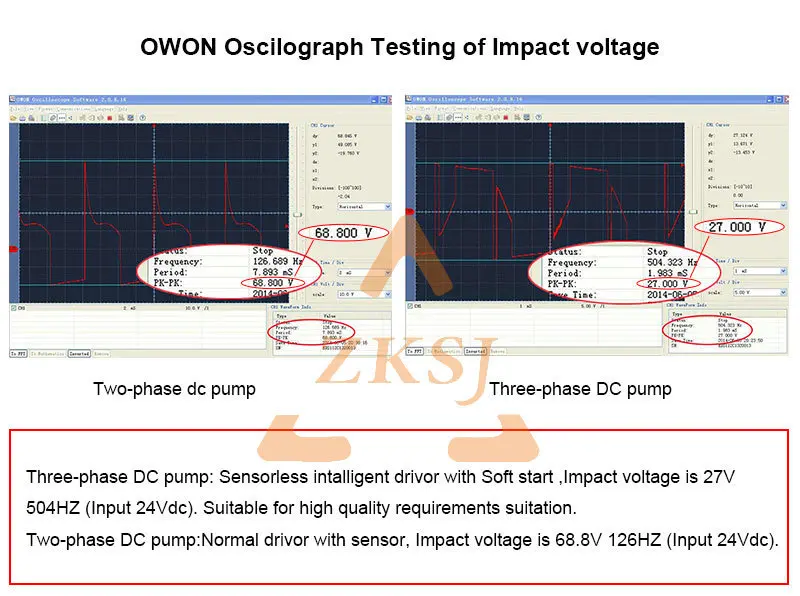

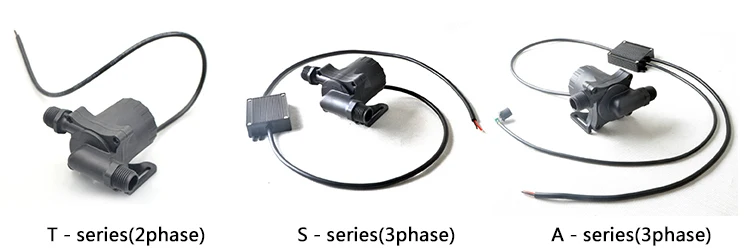

Difference between 2phase & 3phase brushless DC pump
\t
2phase (T sub-series)
\t
Hall sensor driving, circuit board should be placed inside pump body
\t
 3 phase(S/A sub-series)
\t
1)NOTE that 3phase dc is completely different with 3phase AC; 3phase DC means 3 pairs of magnetic polarity & sensor-less, power supply the same with common DC pump
2)Intelligent program-driving, sensor-less, circuit outside of pump body (main factor that pump can be high-temperature resistant)
3)Speed adjustable by PWM, 0~5V signal or potentiometer(optional)
4)Lock protection,reverse-connected protection, over-vol.&over-current protection,
5)Soft start, no current impact, can be contact directly with solar panel

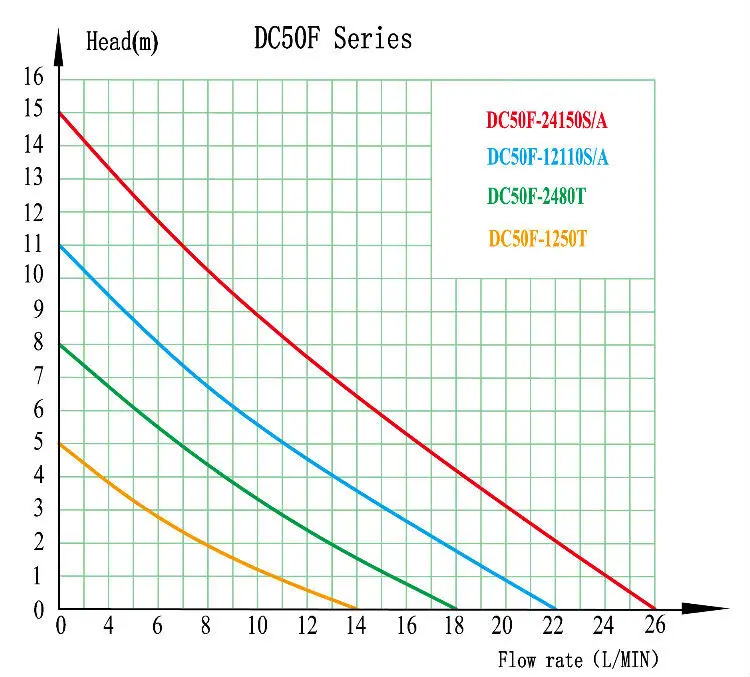

Head and Flow Curve

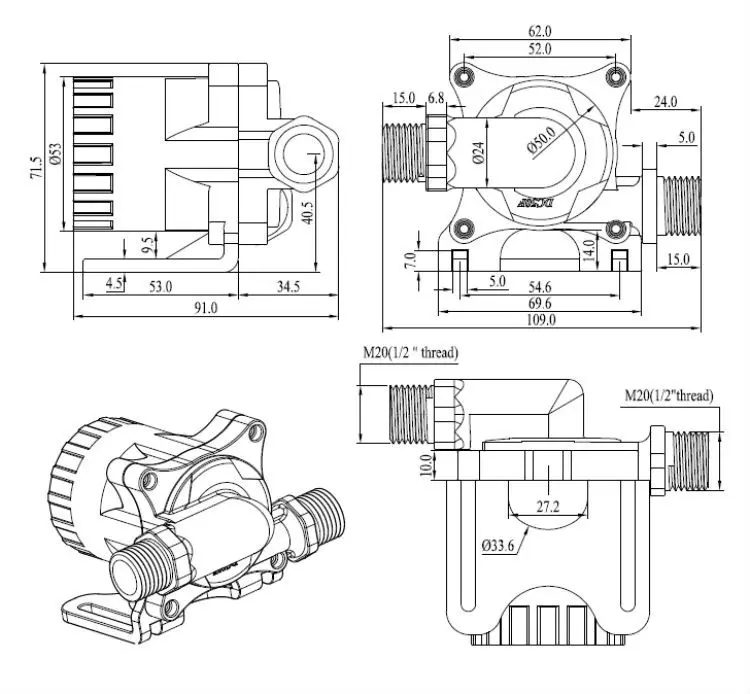

Dimension
Pump Structure
Certifications
Related Products

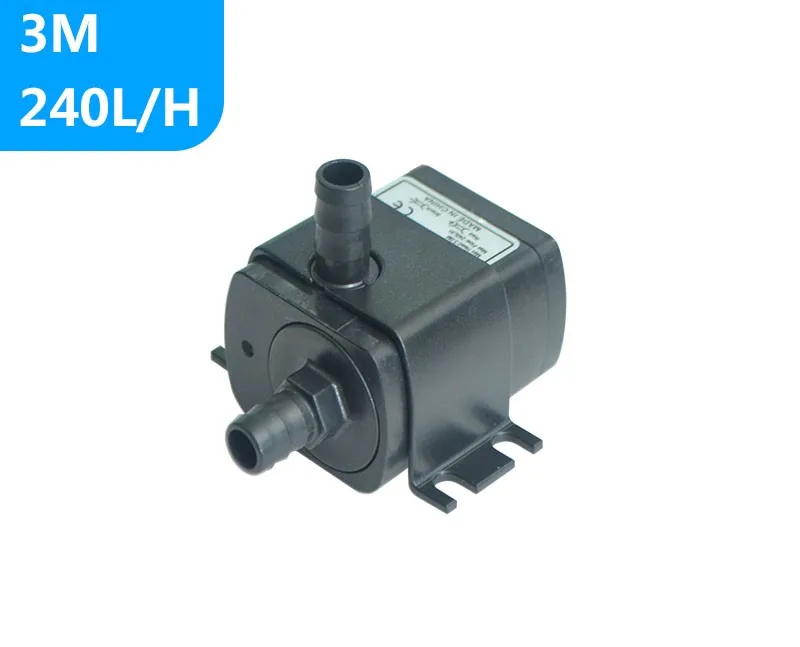

brushless dc pump DC30A-1230 12v 3m 240L/H

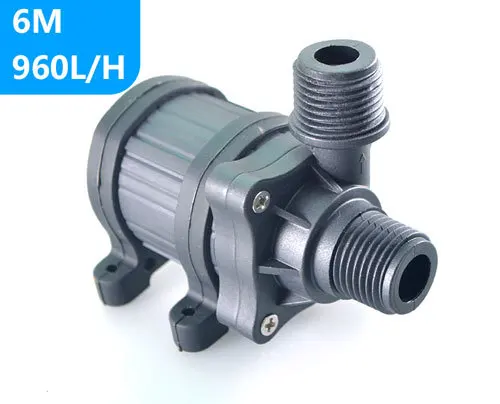

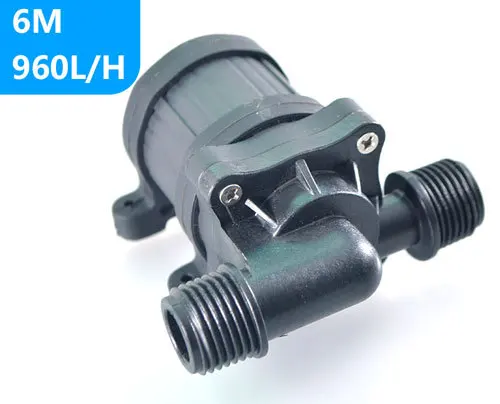

brushless dc pump DC40C 12v/24V 6m 960L/H

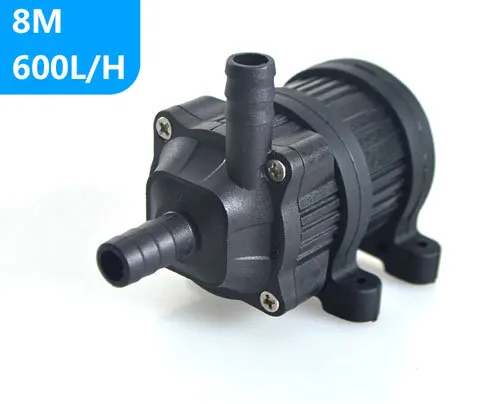

brushless dc pump DC40D 12v/24V 8m 600L/H

Brushless dc pump DC40 12/24V 5~7M 500~660L/H

91.8% Response Rate

Brushless dc pump DC40F 12/24V Head 4-6M   Flow 500-960L/H

91.8% Response Rate

Brushless dc pump DC40H 12/24V 5~11M 300~450L/H

91.8% Response Rate

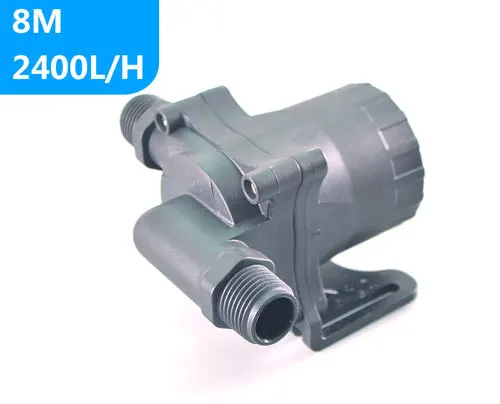

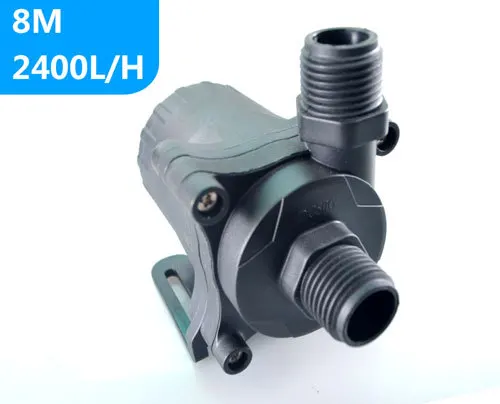

brushless dc pump DC50C 12v /24V 8m 2400L/H

brushless dc pump DC50E 12v /24V 15m 1560L/H

brushless dc pump DC50F 12v /24V 15m 1560L/H

Brushless dc pump DC50G 12/24V 5~8M 1000~2400L/H

Brushless dc pump DC50E 12/24V 6~15M  500~1560L/H

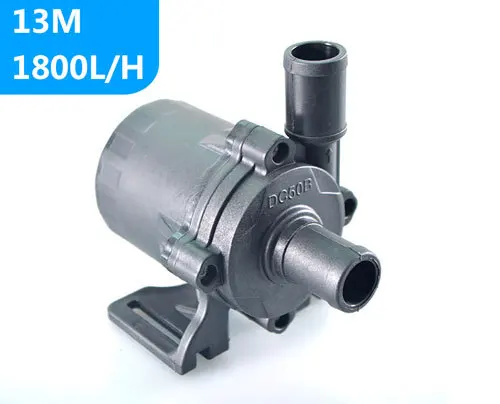

Brushless dc pump DC50B 12/24V 5~13M 1000~1800L/H

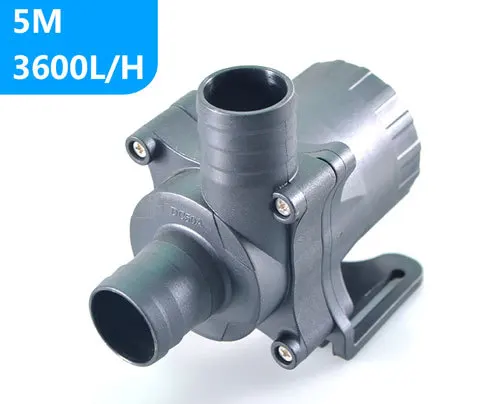

Brushless dc pump DC50A 12/24V 3~5M 1000~3600L/H

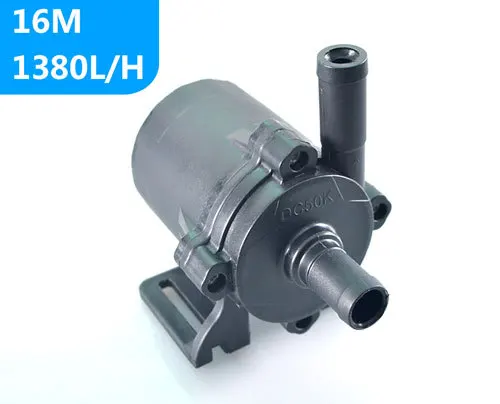

Brushless dc pump DC50K 12/24V 5~16M 1000~1380L/H

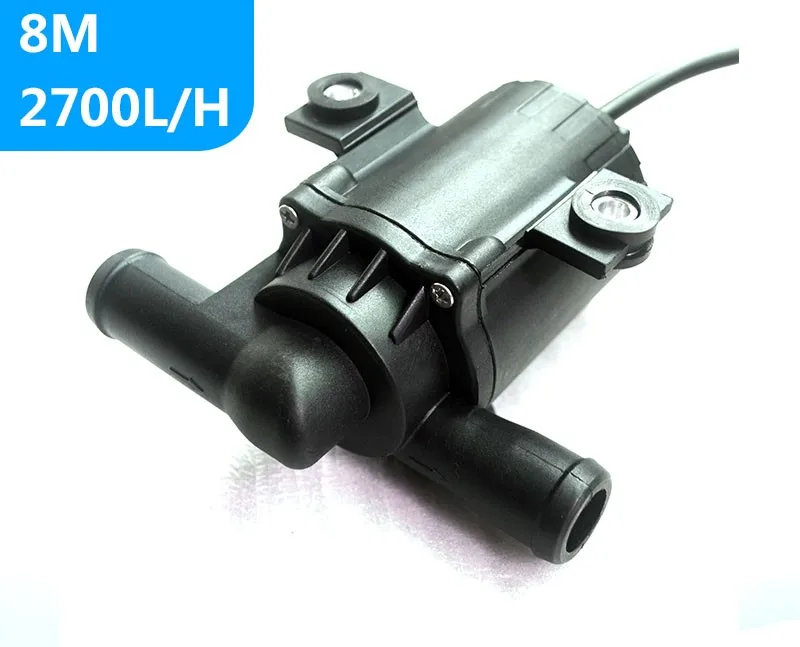

Brushless dc pump DC50D 12/24V 4~8M 1000~2700L/H
