Spice Pepper Grinding Machine

Product Overview

Description

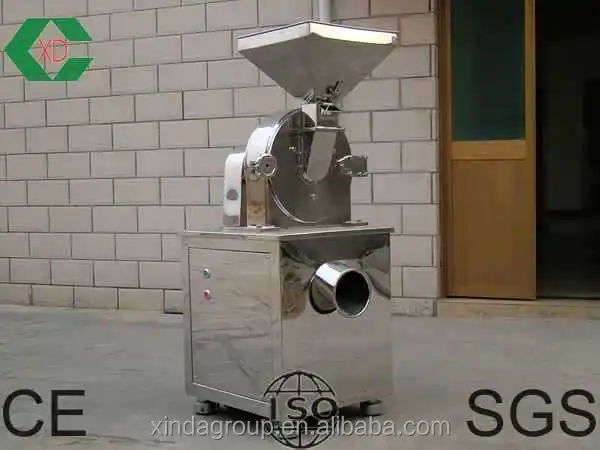

Spice Pepper Grinding Machine

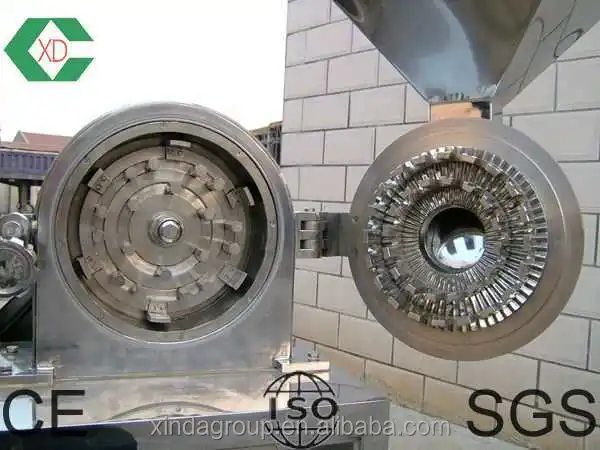

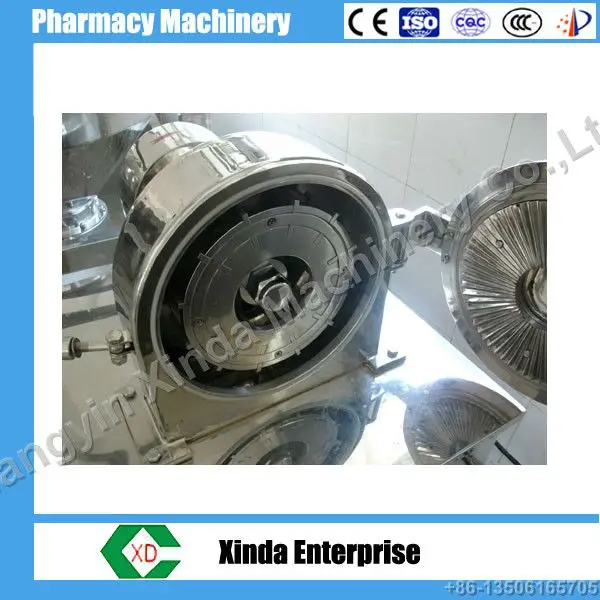

The machine uses the relative movement between the turbo blades and the fixed toothed liner to impact, grind and crush the target materials. The size of powder can be achieved by changing the screen. The machine has the features of easy structure, solid, stable running and good efficiency. The crushed material is discharged directly from the grinding chamber of the main frame. In addition, the whole machine is made of stainless steel, with smooth inside walls to avoid powder accumulation on the inside walls and complies with GMP standard. It is especially suitable for crushing various herbal spice materials with oil and high fiber content.

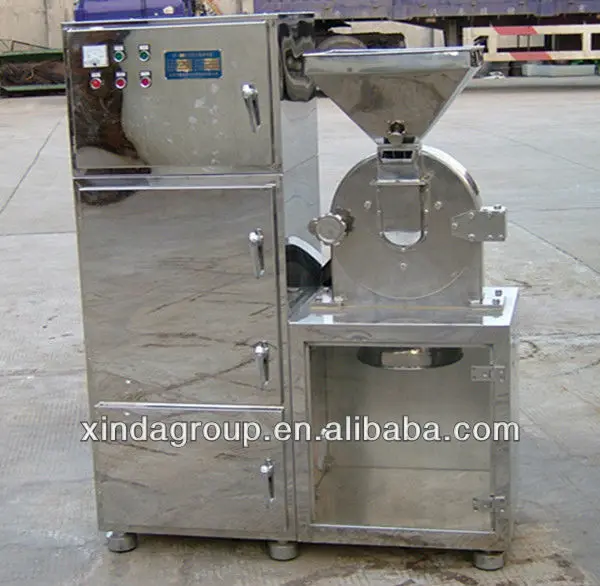

     The machine is equipped with cylinder drum dust filter, no dust emission during production.



Model	150B	250B	350B	500B
Capacity kg	20-80	30-200	50-300	80-500
Size of input granule mm	<10	<10	<12	<15
Size of output granules(Mesh)	12-120	12-120	12-120	12-120
Crushing power kw	2.2	5.5	11	22
Dust absorption power kw	1.5	1.5	1.5	1.5
Speed of principal axis rpm	3000	2900	2900	2800
Weight kg	250	420	620	900
Overall size mm (L×W×H)	1280×600×1450	1280×600×1550	1300×600×1650	1450×600×1850
